Light Machines Corp SpectraLight Lathe and Mill To Restore! These are just Sherline Machines in a Nice Cabinet.

Lightmachines Lathe & Mill

Factory Light Machines Spectralight Controller. (I sold this Controller No Further Development)

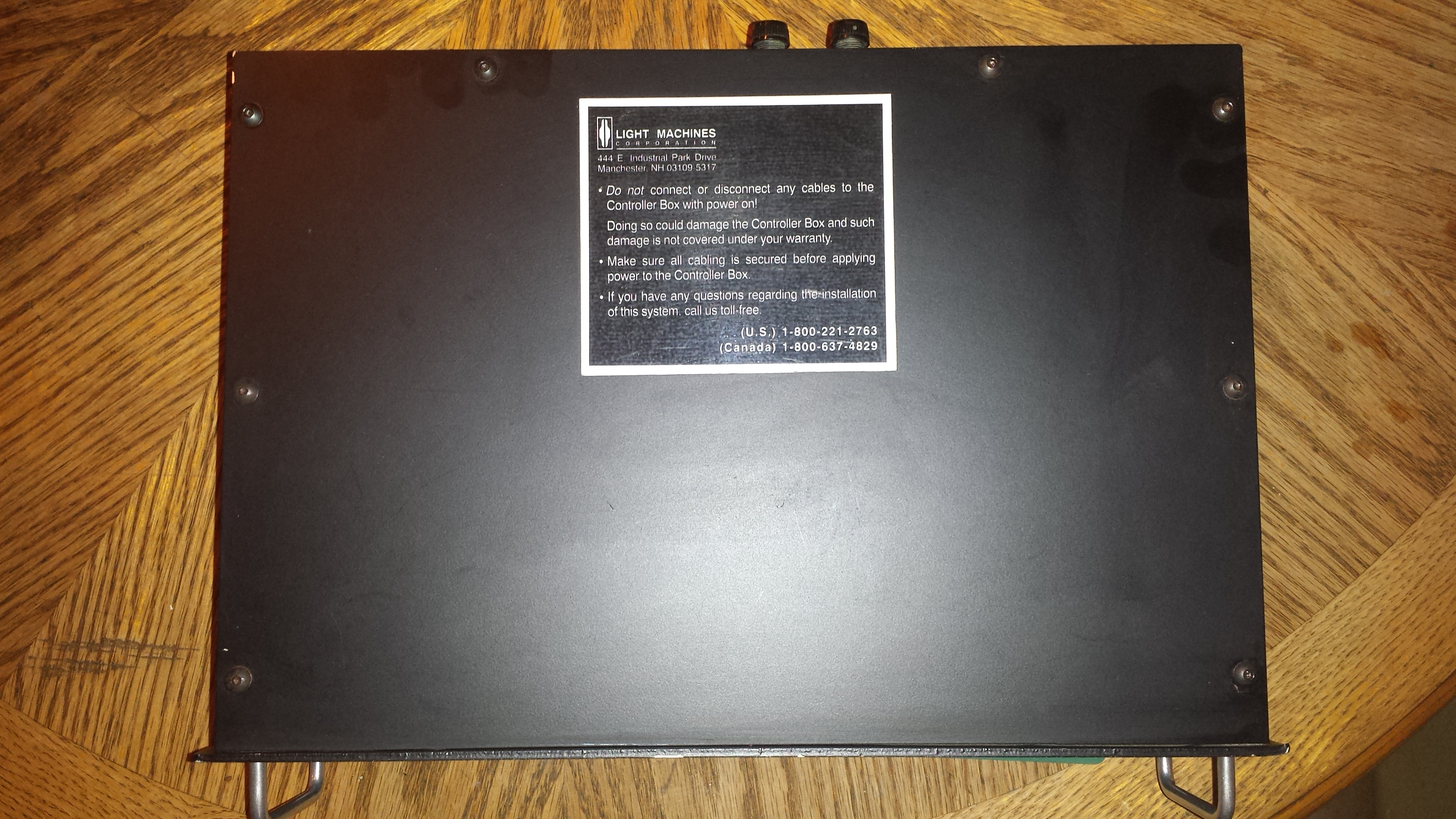

Stectralight Controller Front Stectralight Controller Back  Stectralight Controller Inside Stectralight Controller Top
Spectralight Light Machines Full Controller Pin-Outs Wire Them Accordingly to Your LPT port and software configure configuration. You Must have a older LPT Card with a strong 5V a card with 3.3V will not work.
22 Enable
6 X Dir
21 X Step
18 Y Dir
20 Y Step
5 Z Dir
19 Z Step
17 Enable
4 Spindle On
23 E-Stop (Requires 10uf capacitor in Parallel to Ground)
13 Home (Inverted)
24 Limit (Inverted)
1 Accessory (inverted)
11 Cover
2 Chuck
7 Ground

Lathe Motor is A Baldor Mill Motor is Unknown!!!
Light Machines Spectralight Spindle Motor 1 Light Machines Spectralight Spindle Motor
Lathe Spindle, Quadrature Encoder, (Looks like a US Digital E2 Encoder) & Minarik Motor Controller
Light Machines Corp Spindle & Encoder Light Machines Corp minirak motor control
Encoder Controller??? Not sure must have a use in the Factory Light Machines Controller.

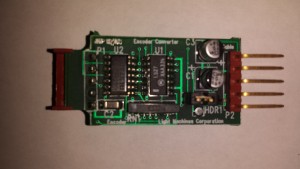

Light Machines Corp Encoder Controller Front Light Machines Corp Encoder Controller Back
New Sur-Step 166oz Nema23 Stepper Motors Being Installed on the Milling Machine. Cleaning Up Well! Moving to a 286in oz on the z axis since I have one available now.

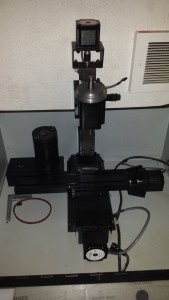

Spectralight-LightMachines-Sherline New Steppers

One of the Stepper Drive’s Sumtor Elec MB450A Arrived. Here is the Chenglish MB450A Manual
Upon Opening it looks like a Leadshine M542 Clone Even Says M542 V2.0 on the PCB.
Seems Well Constructed We Will See How Long They Last at 48V They are Rated for 50v!
Sumtor elec microstep driver MB450A  Sumtor elec microstep driver MB450A AKA M542

12V 10A Walmart Special PSU. Prob only going to use a small 12V 1a to save space.
12V PSU

10/06/2015 48V PSU…. Arrived Along With 2 More MB450A Drivers
48V 10A PSU

The MB450A Drives.

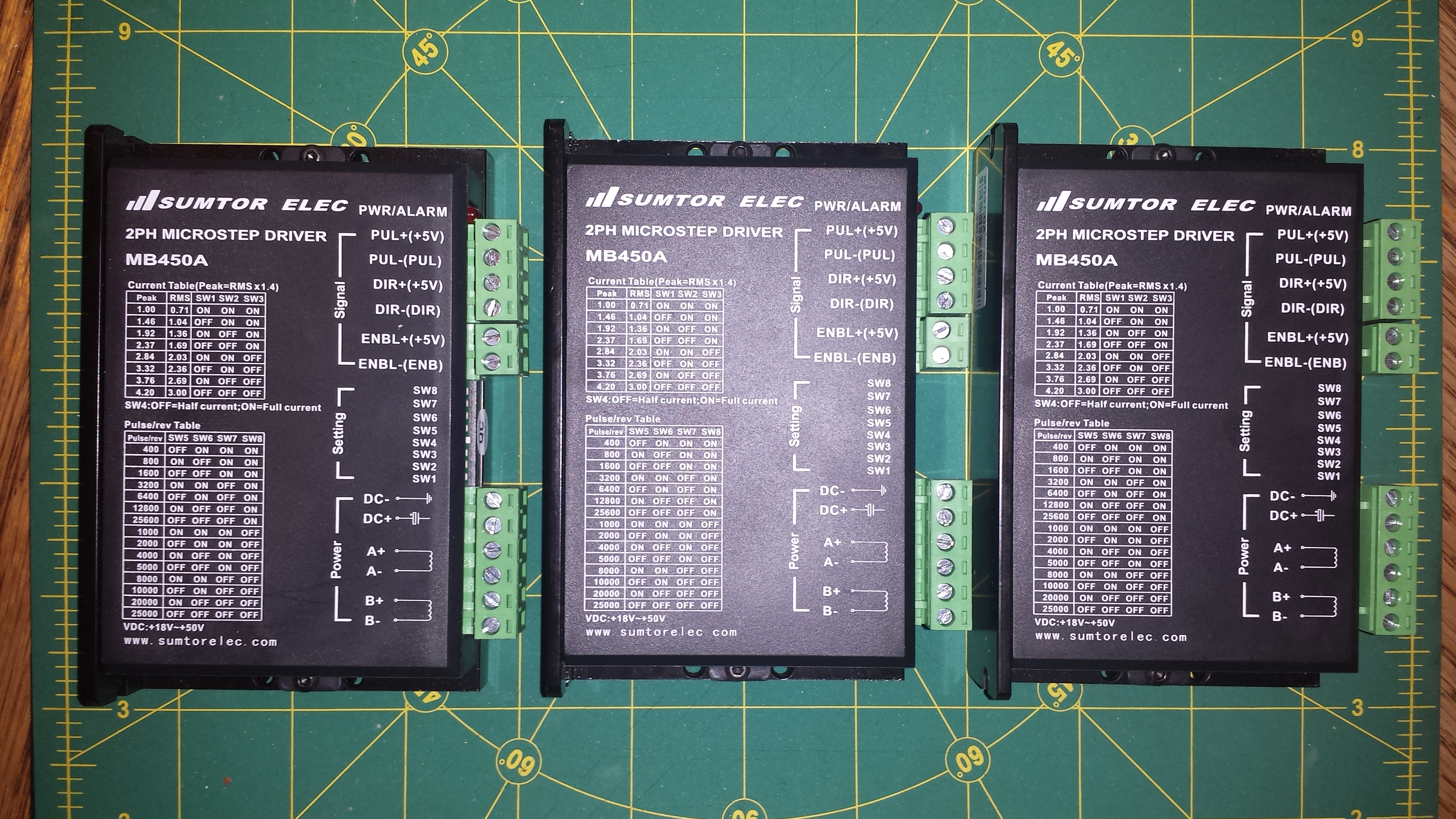

3 of 5 Drivers Received

Updates Soon. ETA for Movement is 20th of December ish! I am busy with other things right now so project is delayed!

Was able to get some work done on the lightmachines LCNC “PathPilot” controller. We have movement.
[youtube]https://youtu.be/VTh52gv0524[/youtube]



Last Updated on March 10, 2021 by Steven Rhine
