Coming Soon… Xeltek Superpro 6104 Teardown Inspection..
The Xeltek 6104 is Discontinued But Still Updated Uses the 6100N Software and Device List.

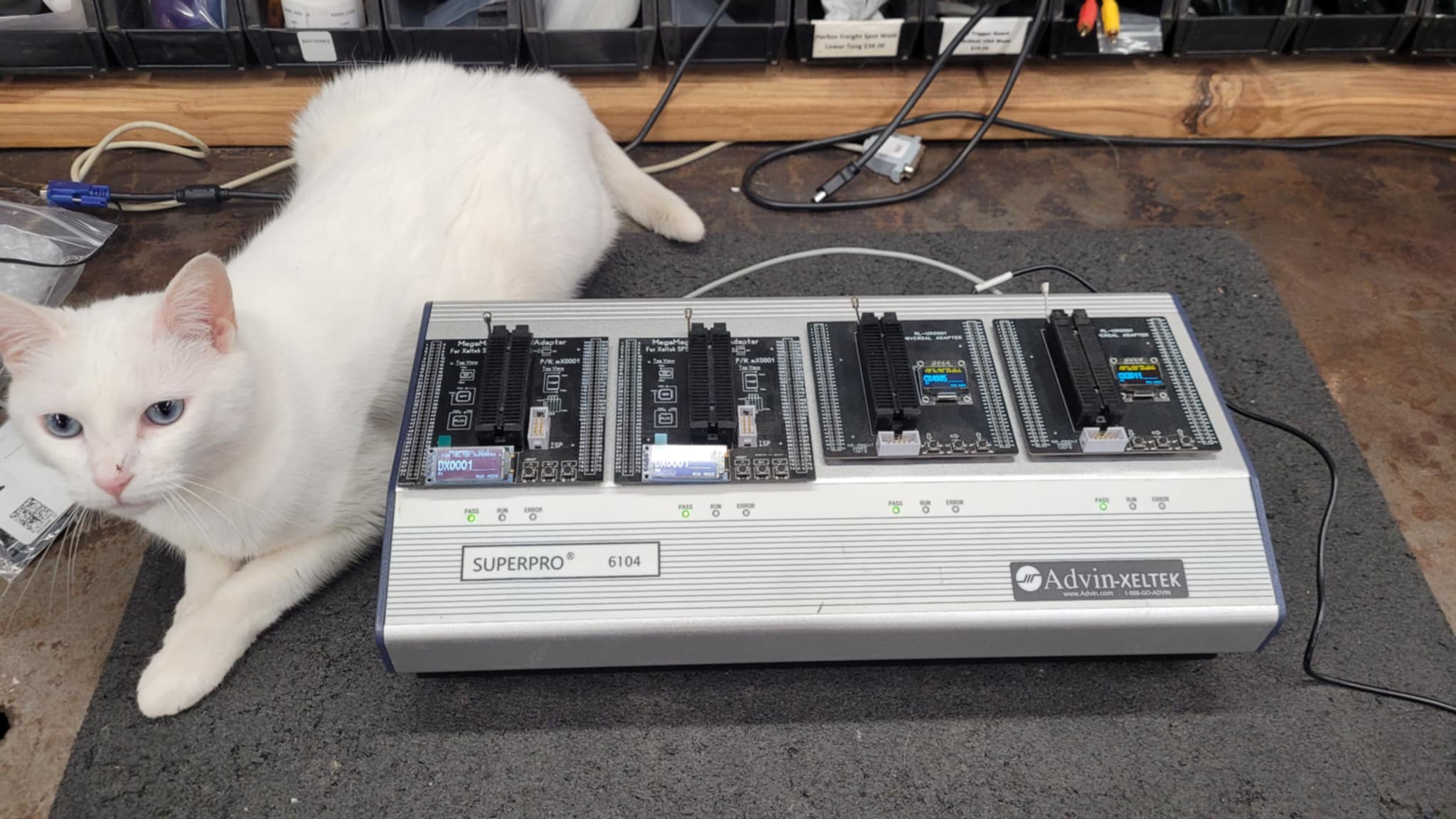

Photo unboxed with Mega Magic and Magic Chip Adapters Installed.
Unit was Purchased in Unknown Untested Condition from a seller that seems to not care about his word and character!
Xeltek 6104 Is a Discontinued Model, But Still Is Supported with the Superpro 6100N Updates. No Photos of the Bottom, Yellow Brittle Connectors, No Power Brick That’s why I offered a low amount.
Ebay Listing | Ebay Seller Strange_Hour&Company
Knowing how and what fails in these units and this being a gang programmer not generally what a hobbyist would use but a business doing production work. When they fail and are out of warranty they generally like other things scrap them and buy a new model for the write off. A new one is $4,000 or more after taxes. I make my offers knowing the reason why these units are on ebay is they have issues. Sometimes a seller genuinely has no ability to test it.
Connectors Hirose FX 2 are a PITA to replace, once they yellow they become brittle, will crack and give connection errors. Links to Get Replacements.
80pin
https://www.digikey.com/en/products/detail/hirose-electric-co-ltd/FX2-80P-1-27SV-71/1013420
https://mou.sr/4lacZNi
100Pin
https://www.digikey.com/en/products/detail/hirose-electric-co-ltd/FX2-100P-1-27SV-71/1024466
https://mou.sr/4hX68Ux
Compatible Power Supply For Xeltek 5004-6104N
Unboxing Video (And My Opinion On Seller)

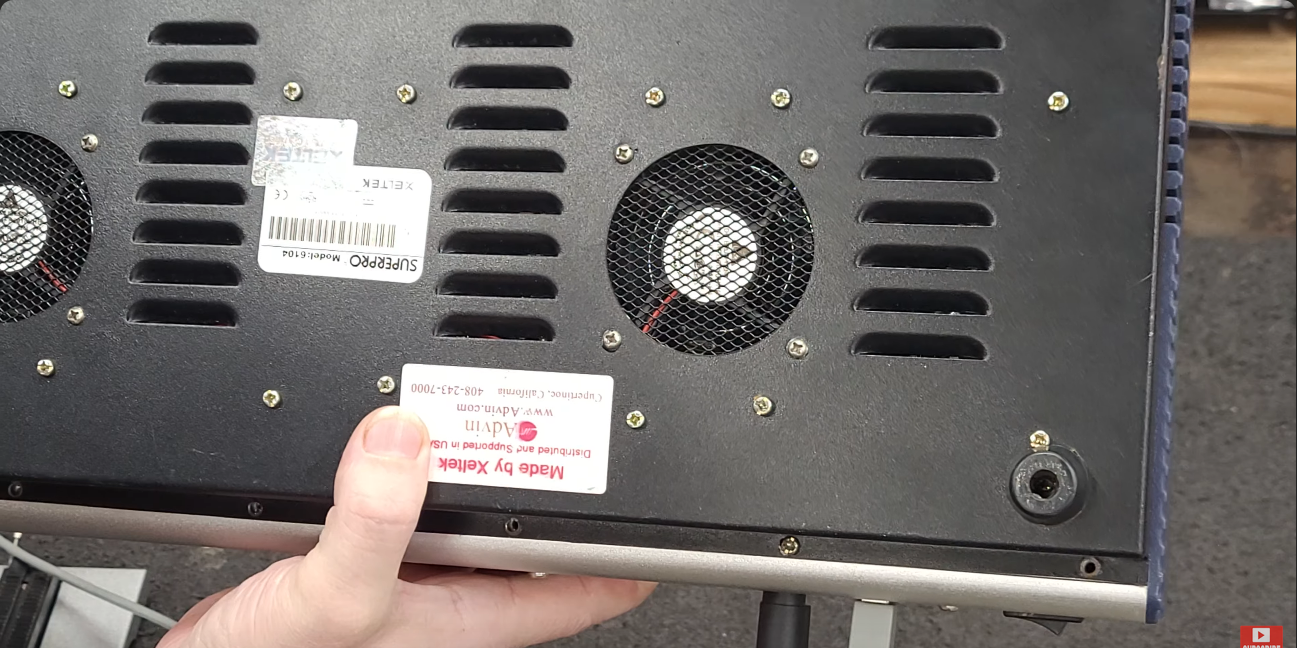

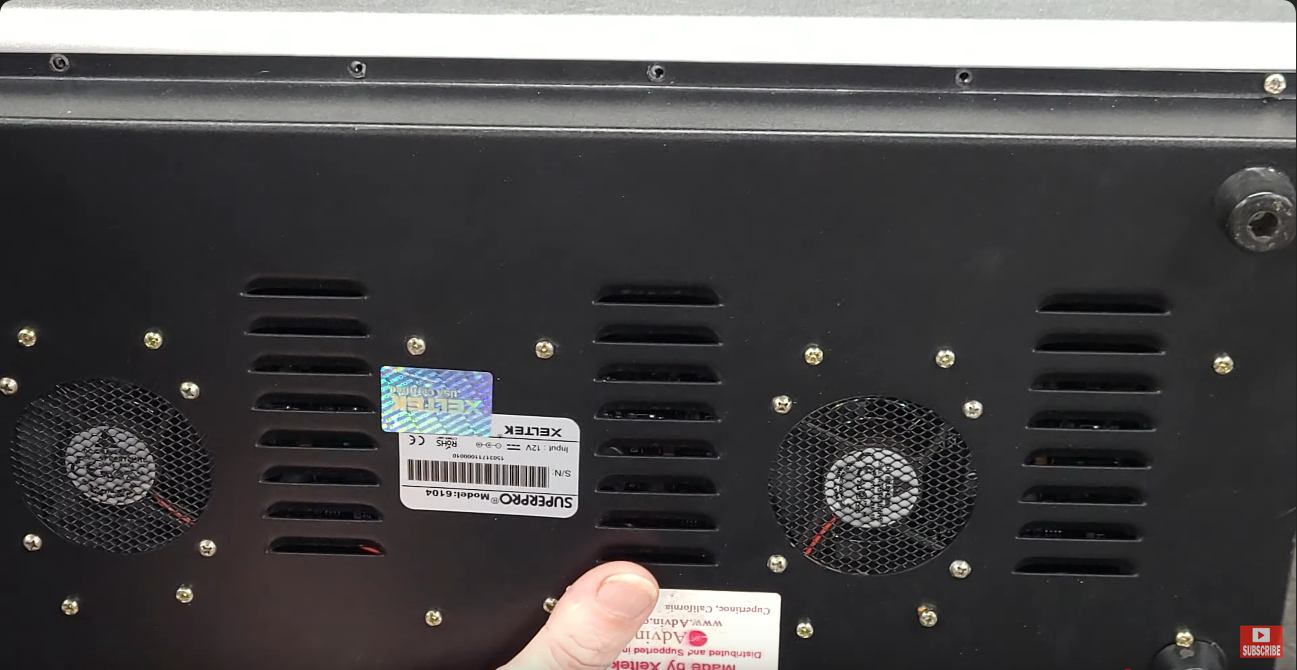

Listing Photos did not show the bottom of the unit.. We now know why! Whats Missing? Well the Screws! So this unit Has been opened up!

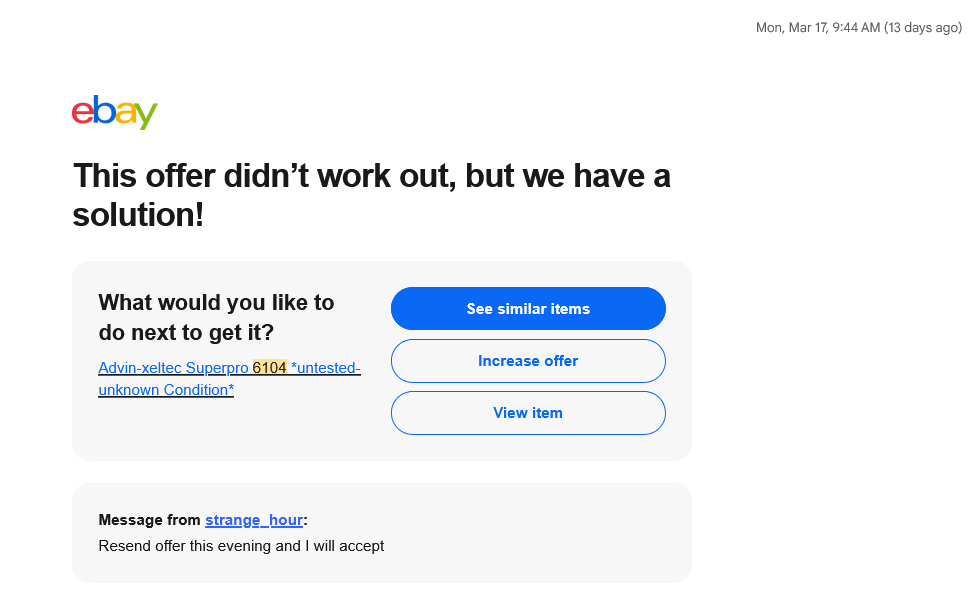

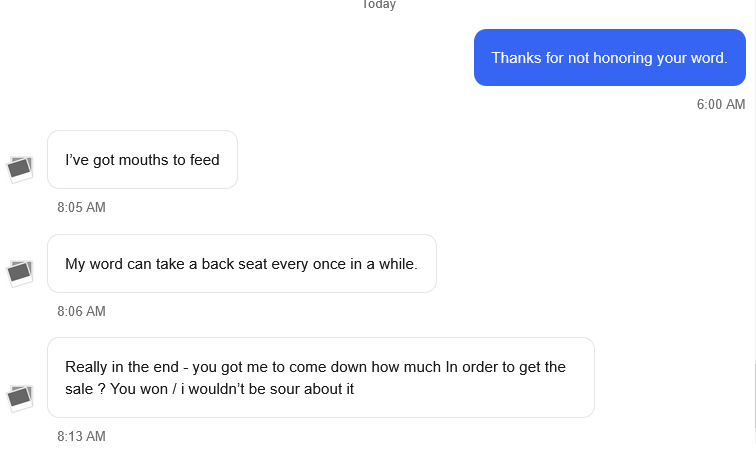

Sellers Messages?
Content of character tell a lot about a person!
This unit has shorted transistors on the Ground Driver Boards.. I need to remove the board to replace the hisrose sockets so while I am there will replace the shorted transistors! The Delay on Site 4 For sure Power supply issues on site 4, The Delayed Boot is Generally a Failed Electrolytic Cap 470uf 35V, A Faulty Transistors or Both. I am sure Seller knew this unit had issues reason why no photo of bottom.
Unbadging this Programmer Removing the ADVIN Sticker… I forgot to turn on the microphone so I added some clown music!
Last Updated on April 3, 2025 by Steven Rhine
