This post will serve as the central hub for all public mega magic adapter Top Case Gerber files.
I’ll be adding and organizing the top cases as I find the time since I’m doing this entirely on my own, it may take a little while to get everything sorted.
Blogging and maintaining this resource takes a lot of time and effort. If you’d like to support the work (and help fund future boards), contributions are always appreciated:
👉 Cash App – $slrhine
If you have made a an adapter let me know I will be happy to post it here on the list.

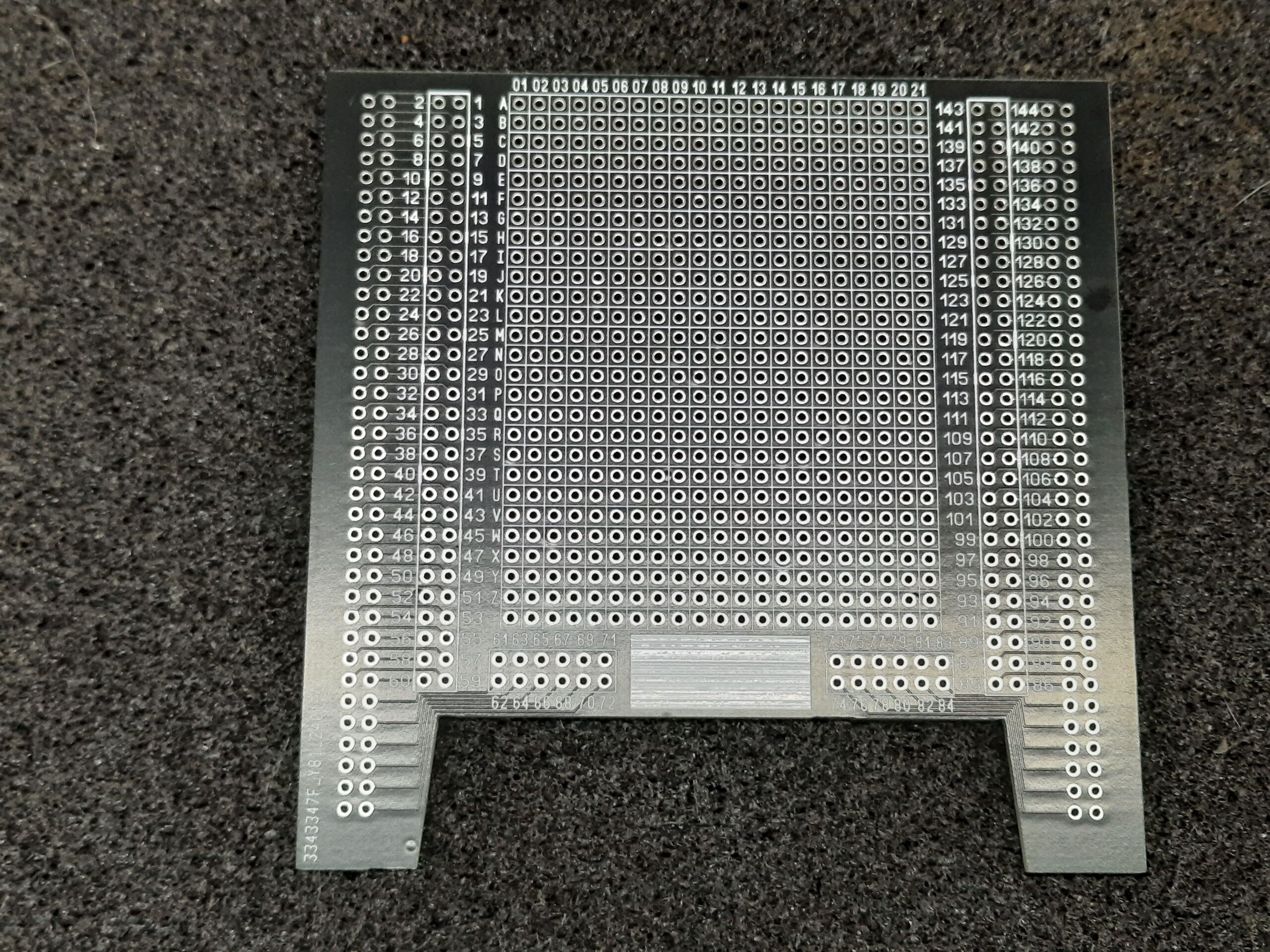

Universal Bread Board Topcase MX0000
SDIP 32 & 42 Top Case MX0032-MX0042
SDIP 56 Top Case MXC0056
SDIP64 Top Case MX0064
TSOP56 Topcase MX0011
TQFP52 Solder TQFP-52SOL
PLCC52 TopCase MX2052
PLCC68 TopCase MX2068
PLCC84 TopCase MX2084
PQFP100 TopCase MX3045
Here is the Top Case Foot Print for Easy Eda Pro EDA PCB Design Software for Making Your Own Socket Top Case Boards. I offer No Assistance or help with these files. If You wish to donate the gerbers of the adapters you make I will be sure to post them if you send me a link. This is a community effort.
Standard Xeltek 49+ Pins are 1-2 Starting at Pin 1 on the Side Headers up to 144 Pins.
Last Updated on April 15, 2026 by Steven Rhine
