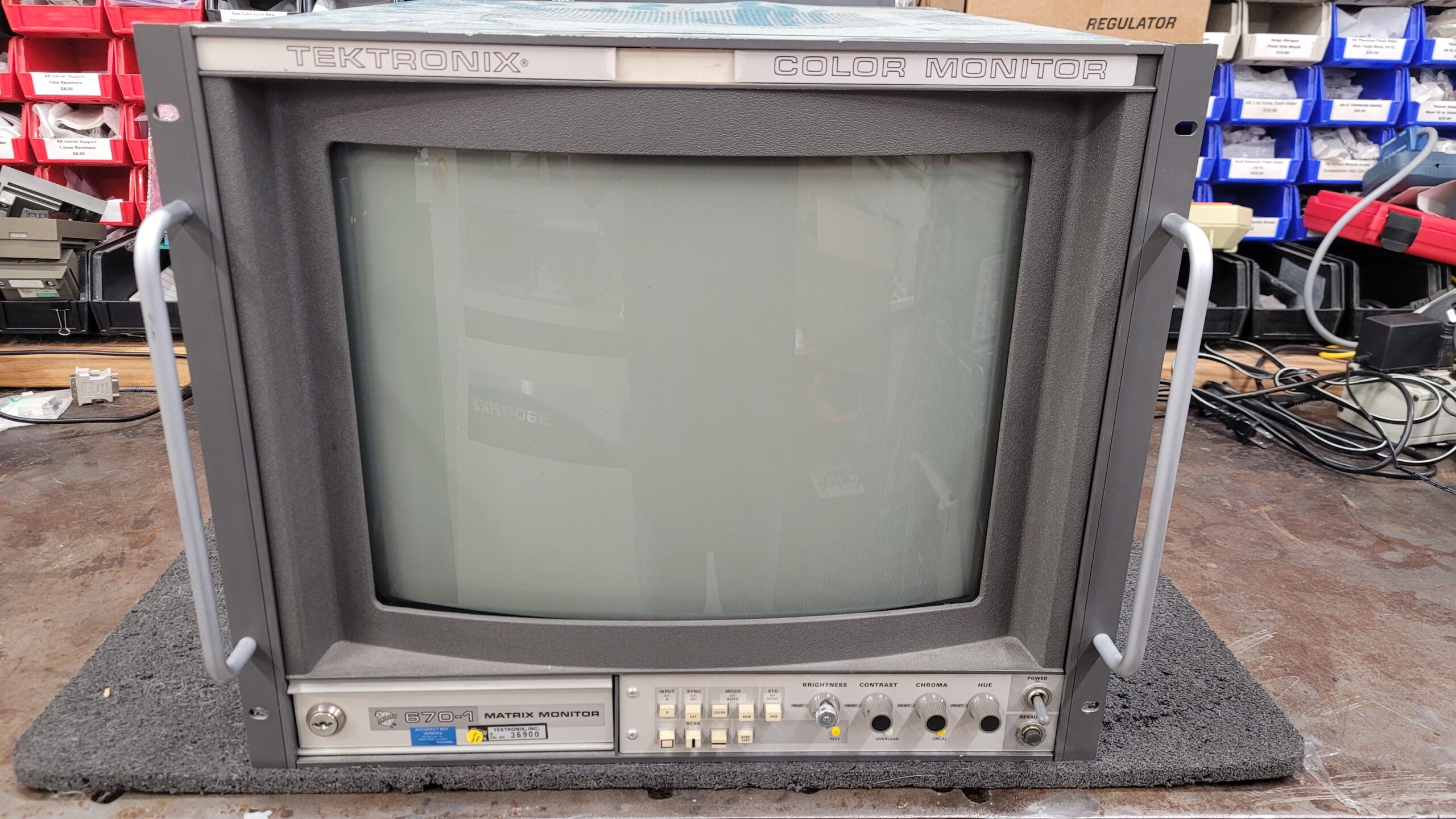

Rare Vintage Tektronix 670-1 Matrix Monitor Trinitron 1975
This will be Quick and Dirty to Get Some Content and Photos up… More later maybe.

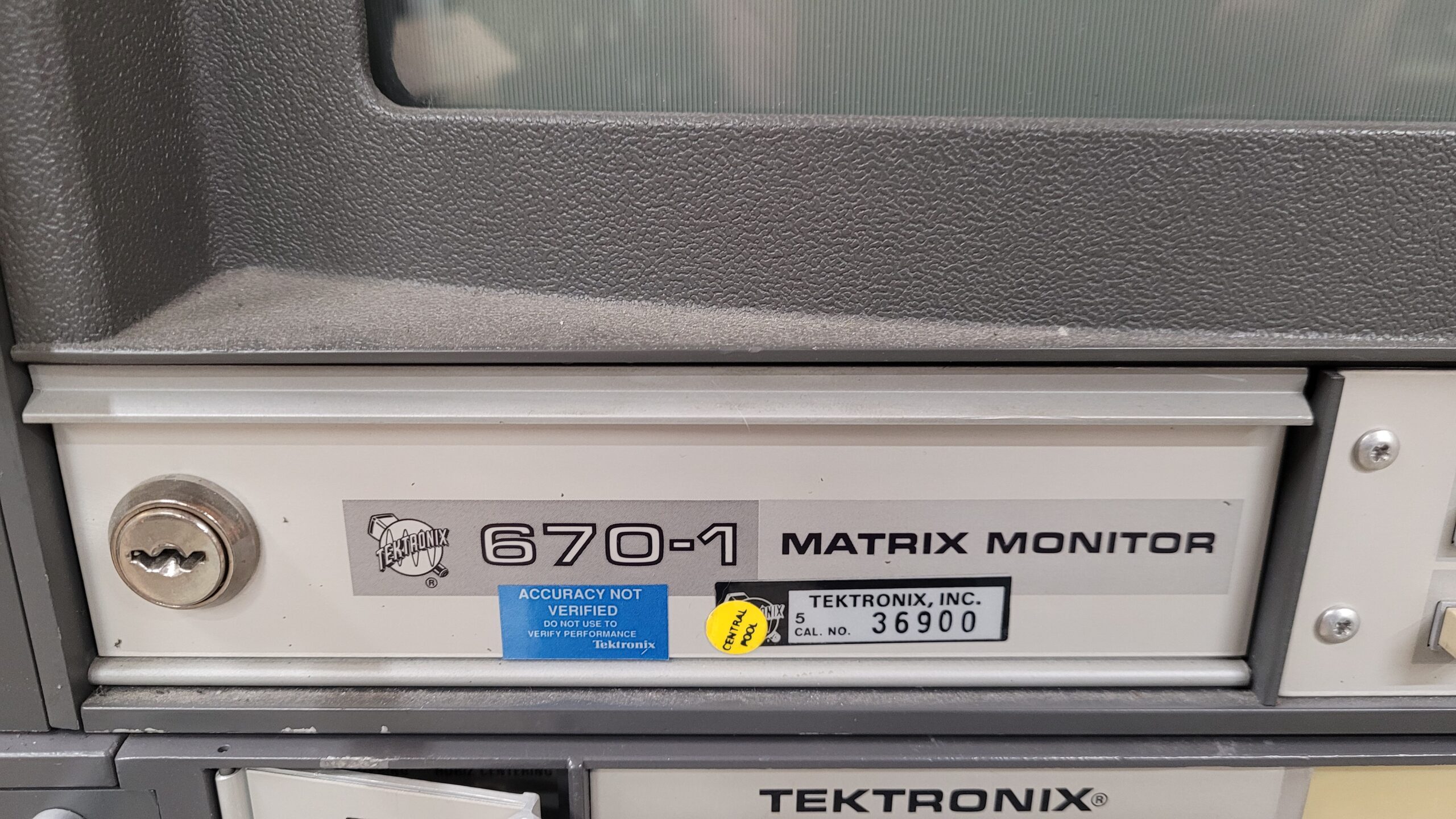

Badge

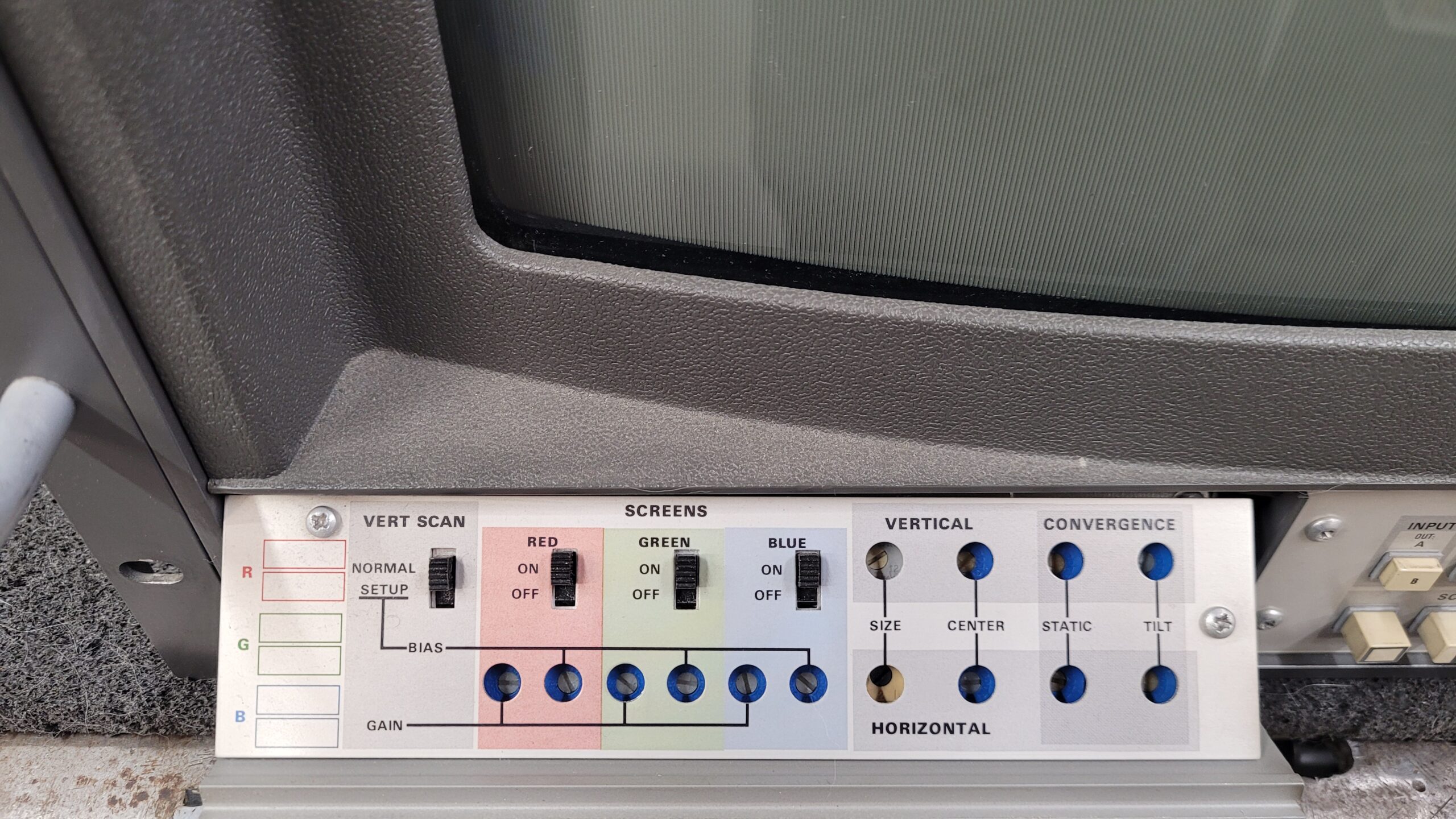

Controls #1 Under Badge

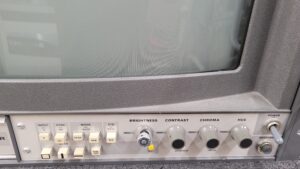

Controls #2

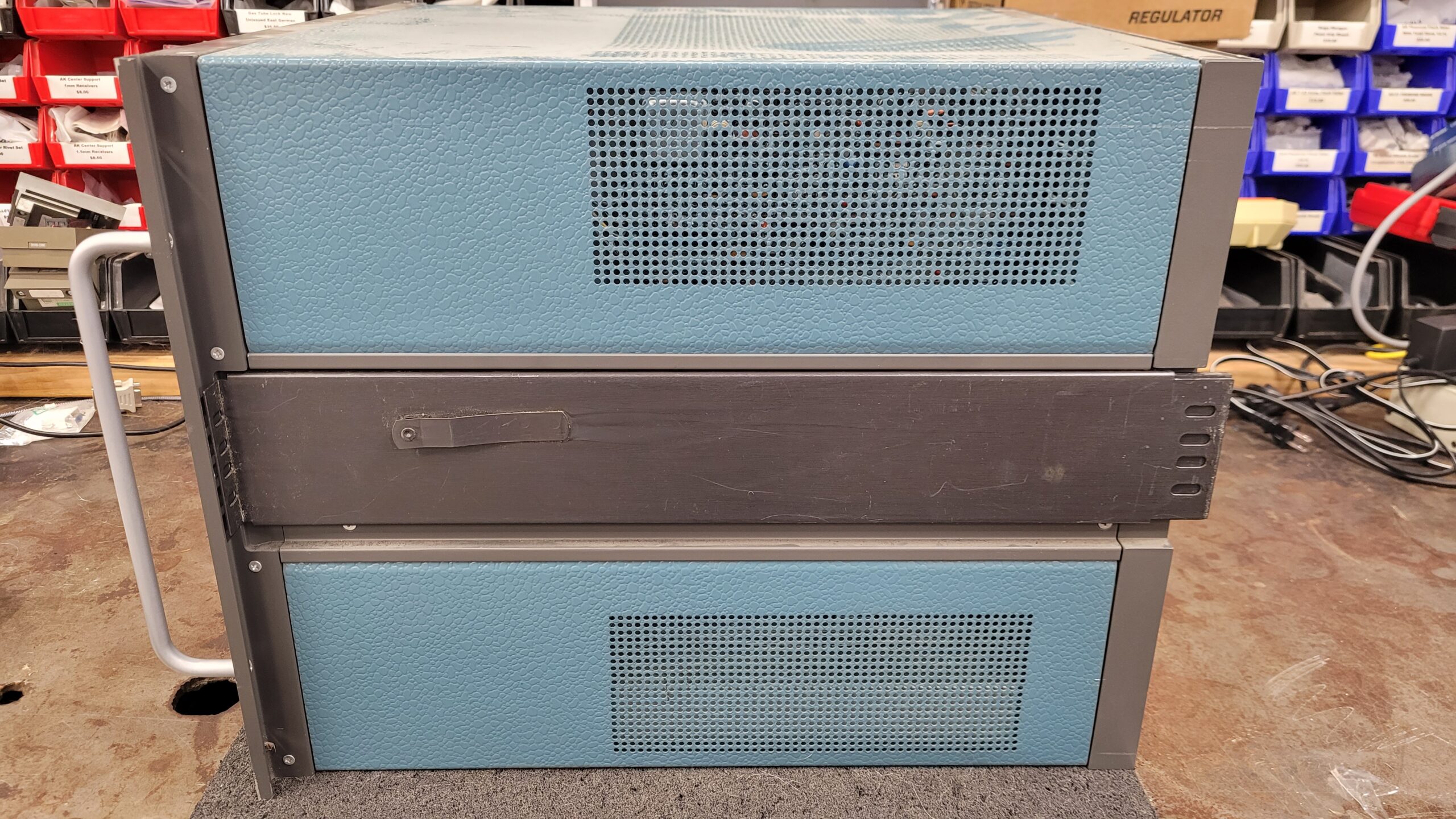

Only Takign a Photo of One Side… Other Side Photo Blured! But both rack slides are there.

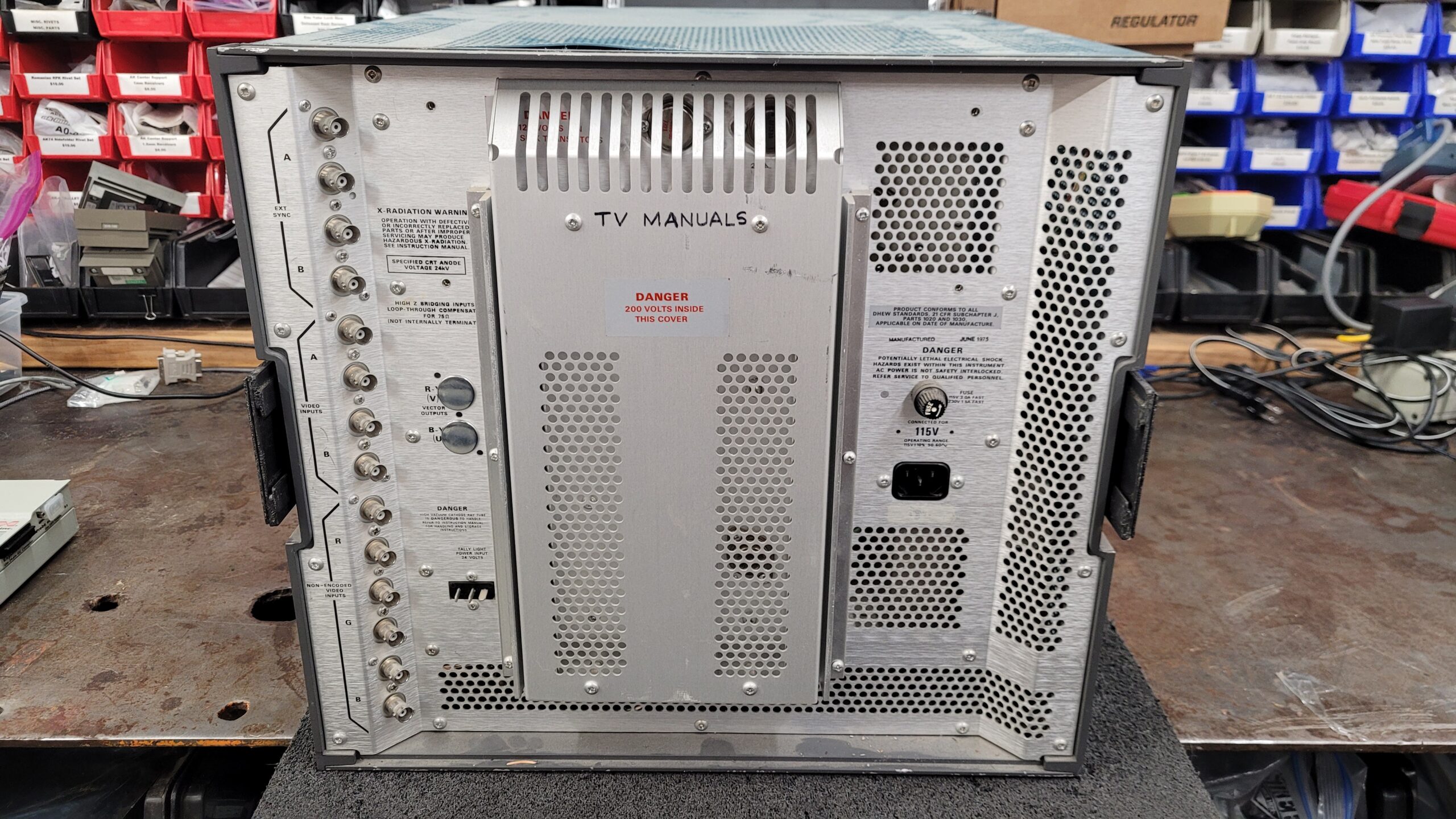

Back

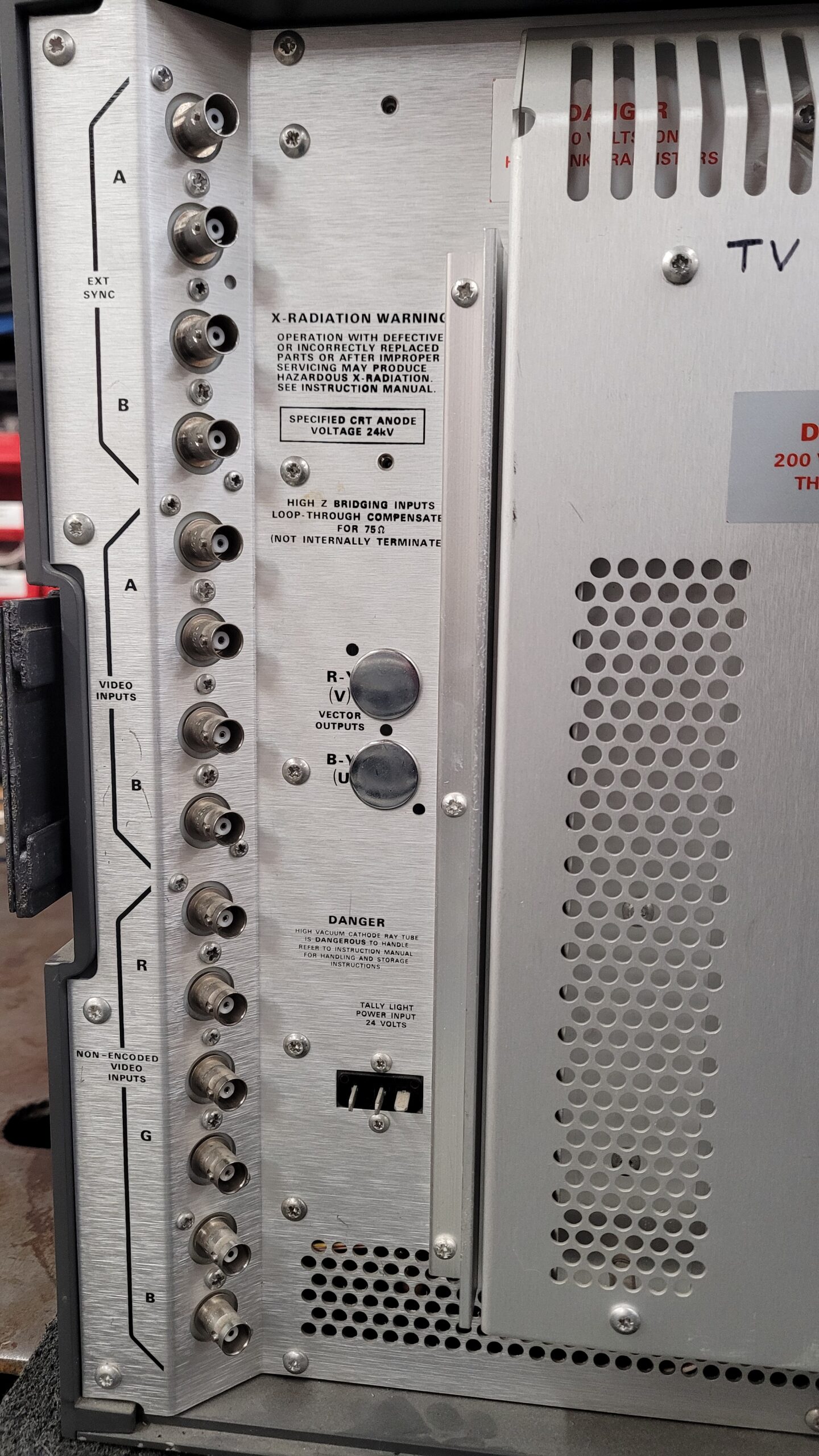

Inputs

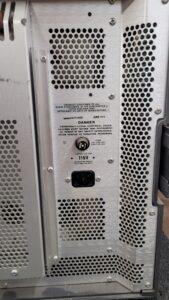

Power and Data Plate

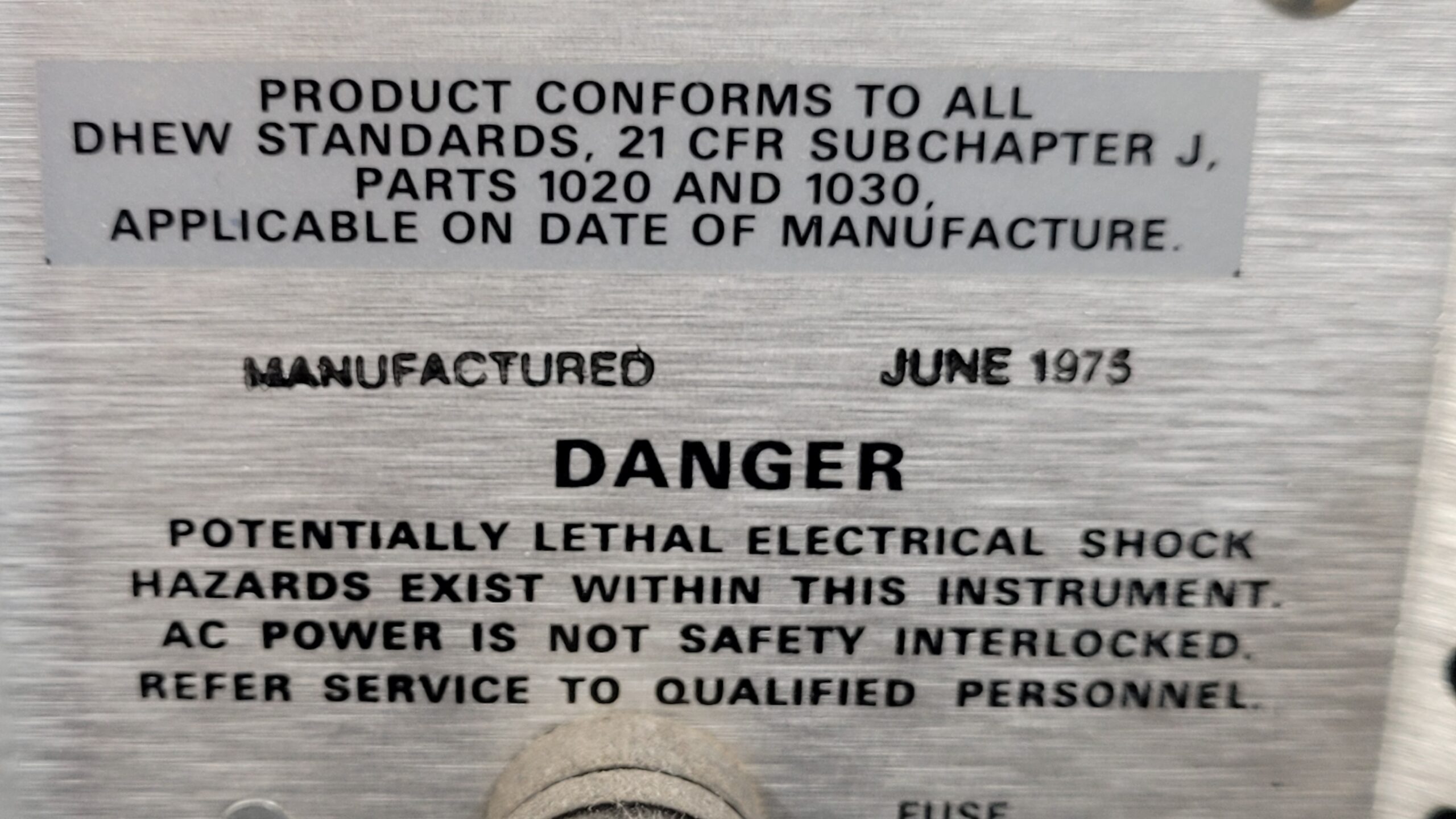

Data Plate Year June 1975

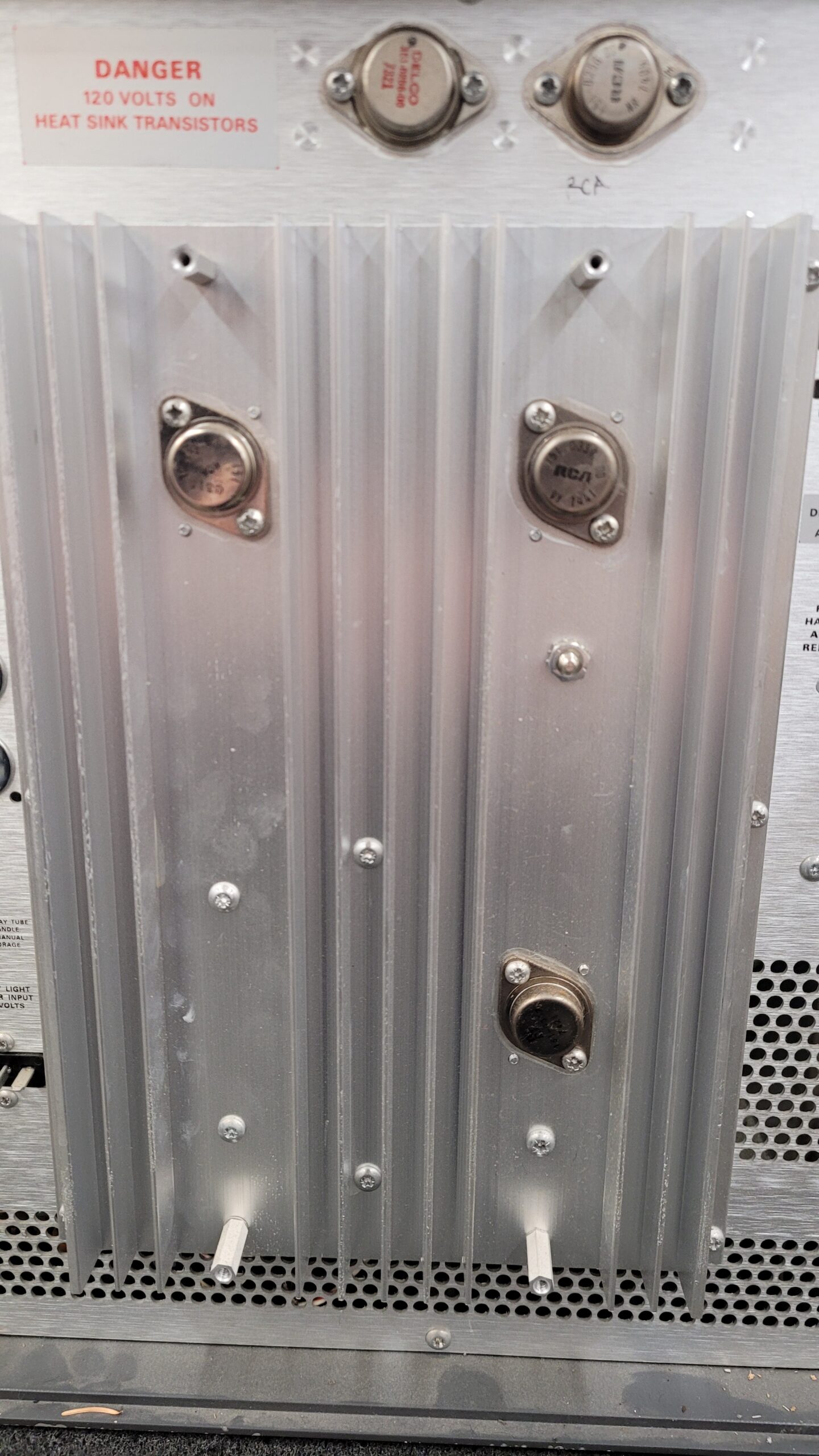

Transistors Under Rear Cover

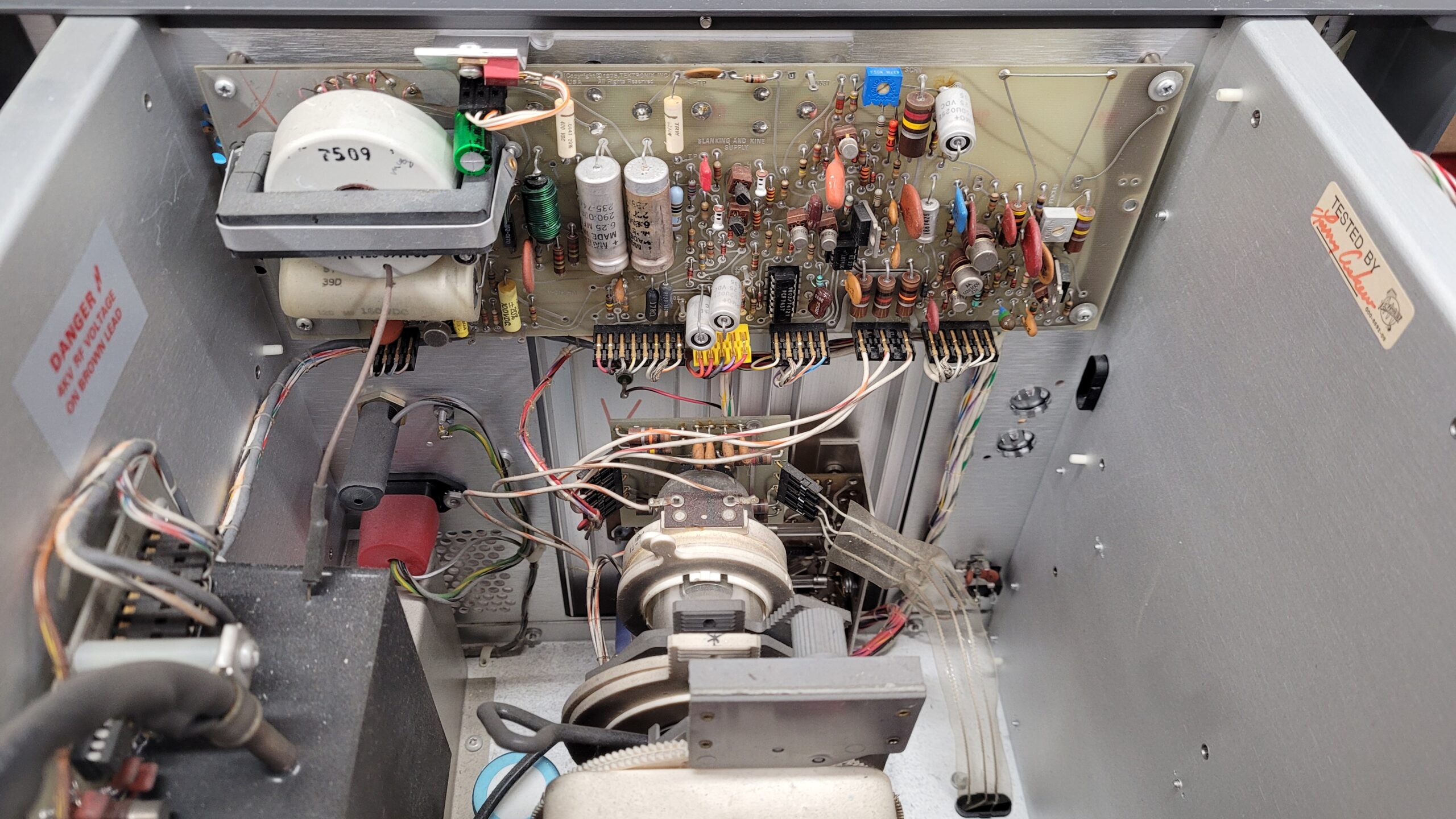

Inside Top Cover Removed Blanking and KINE Board on Back

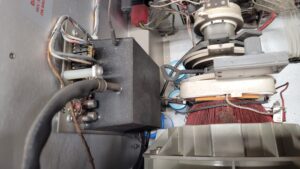

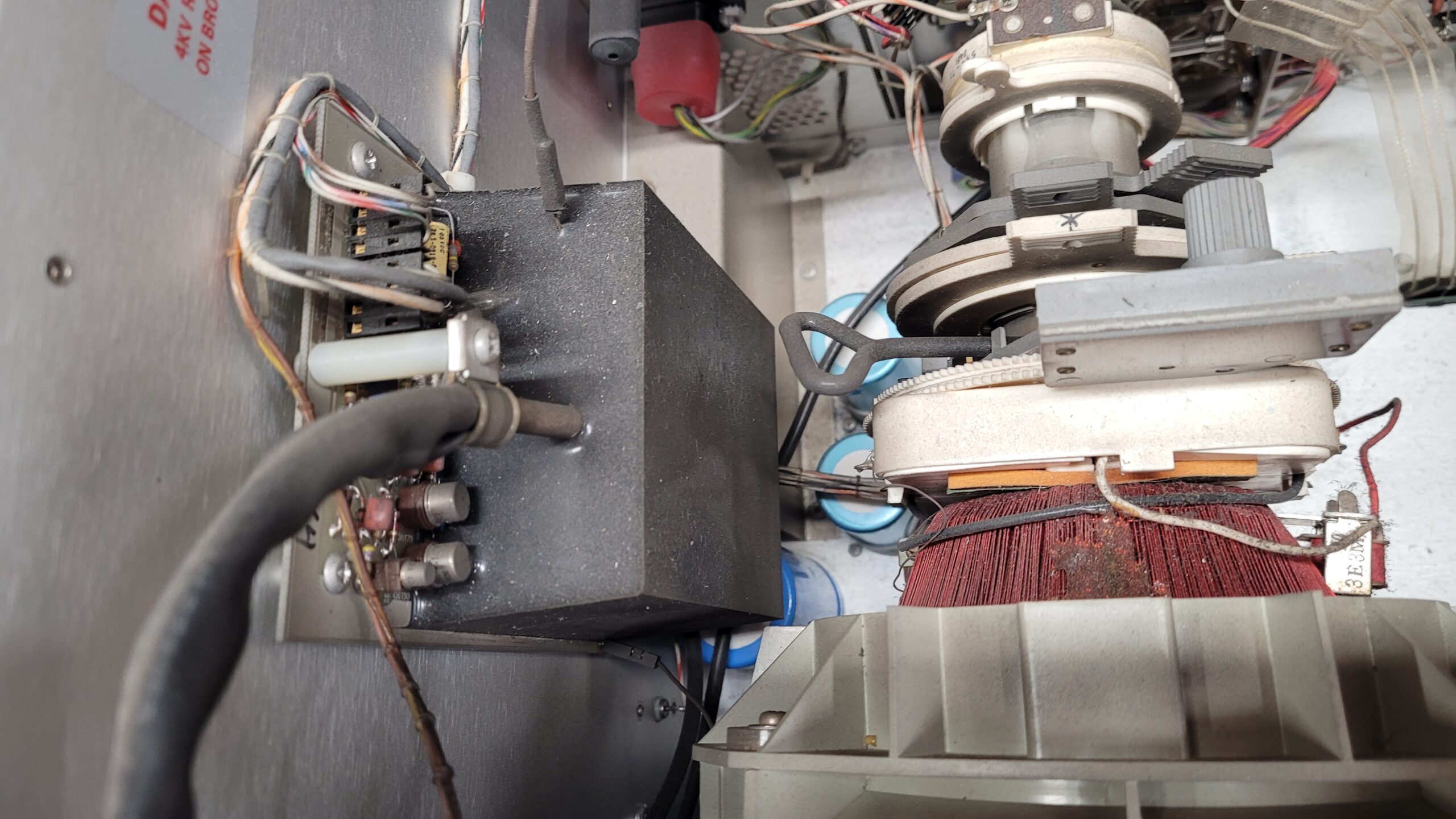

High Voltage Sealed Unit (Flyback)

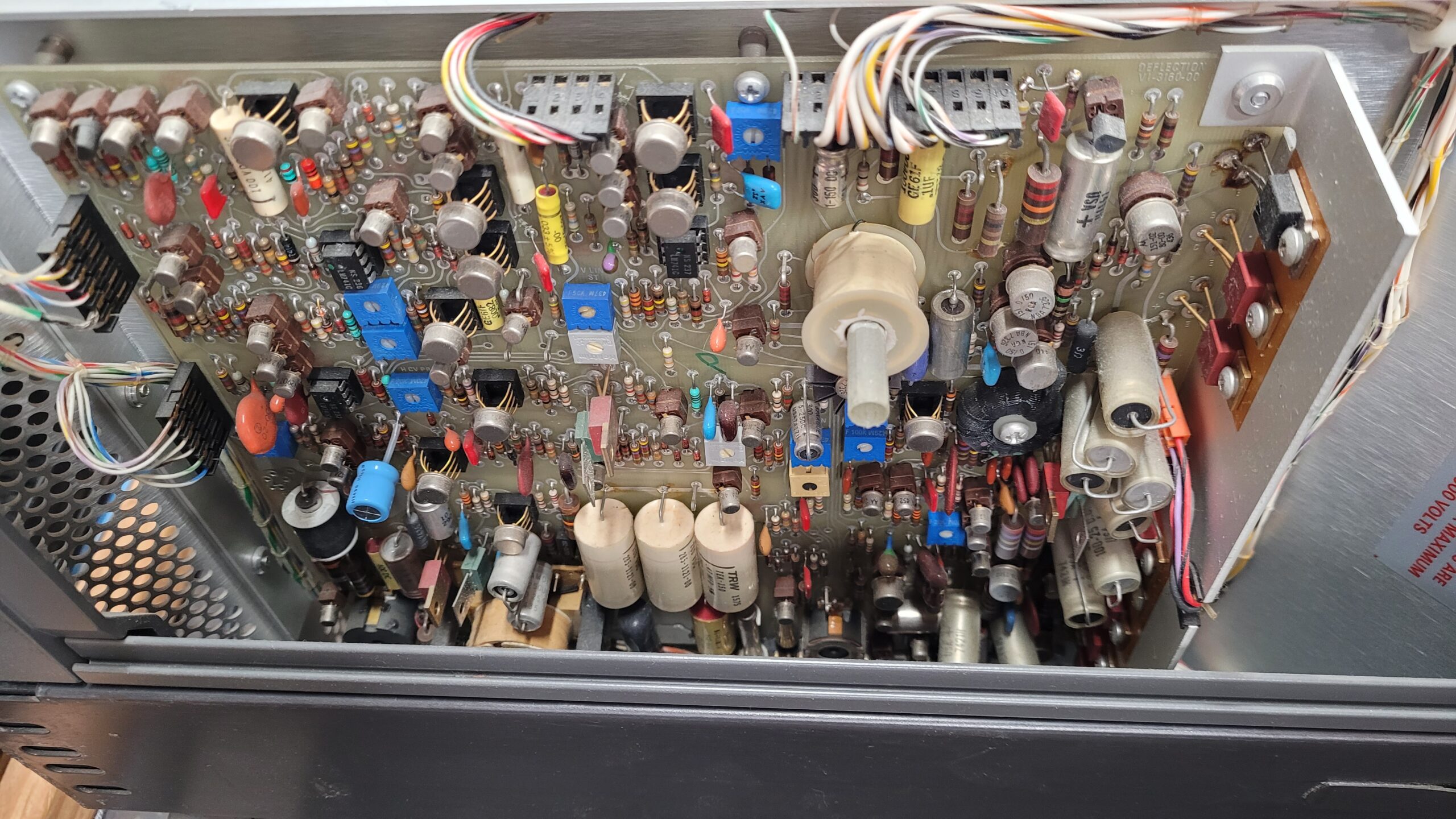

Left Side PCB Deflection

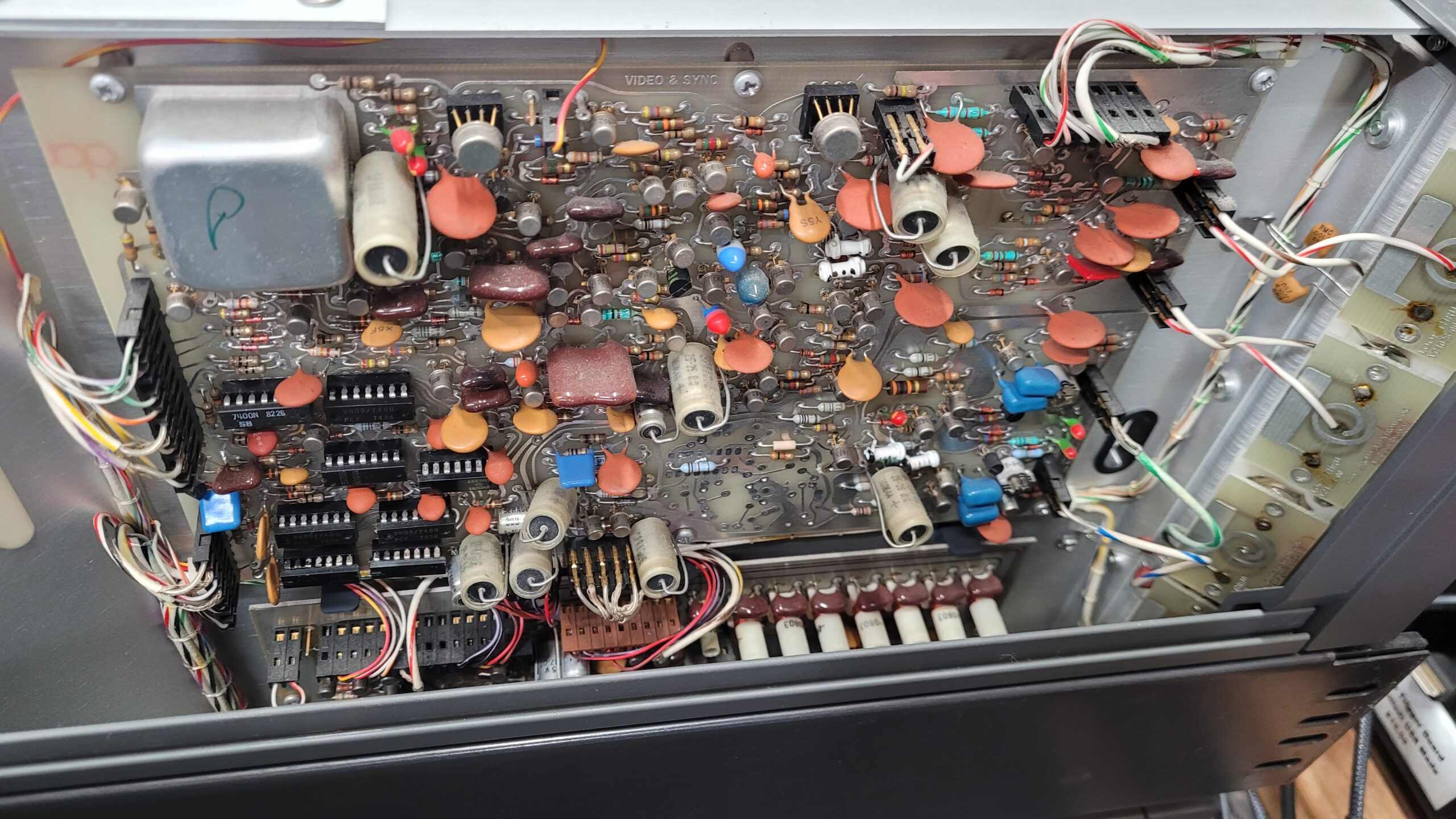

Right Side PCB Video Sync
I will Pull the bottom cover off at a later date and get the internal of that area. This beast is heavyyy!!

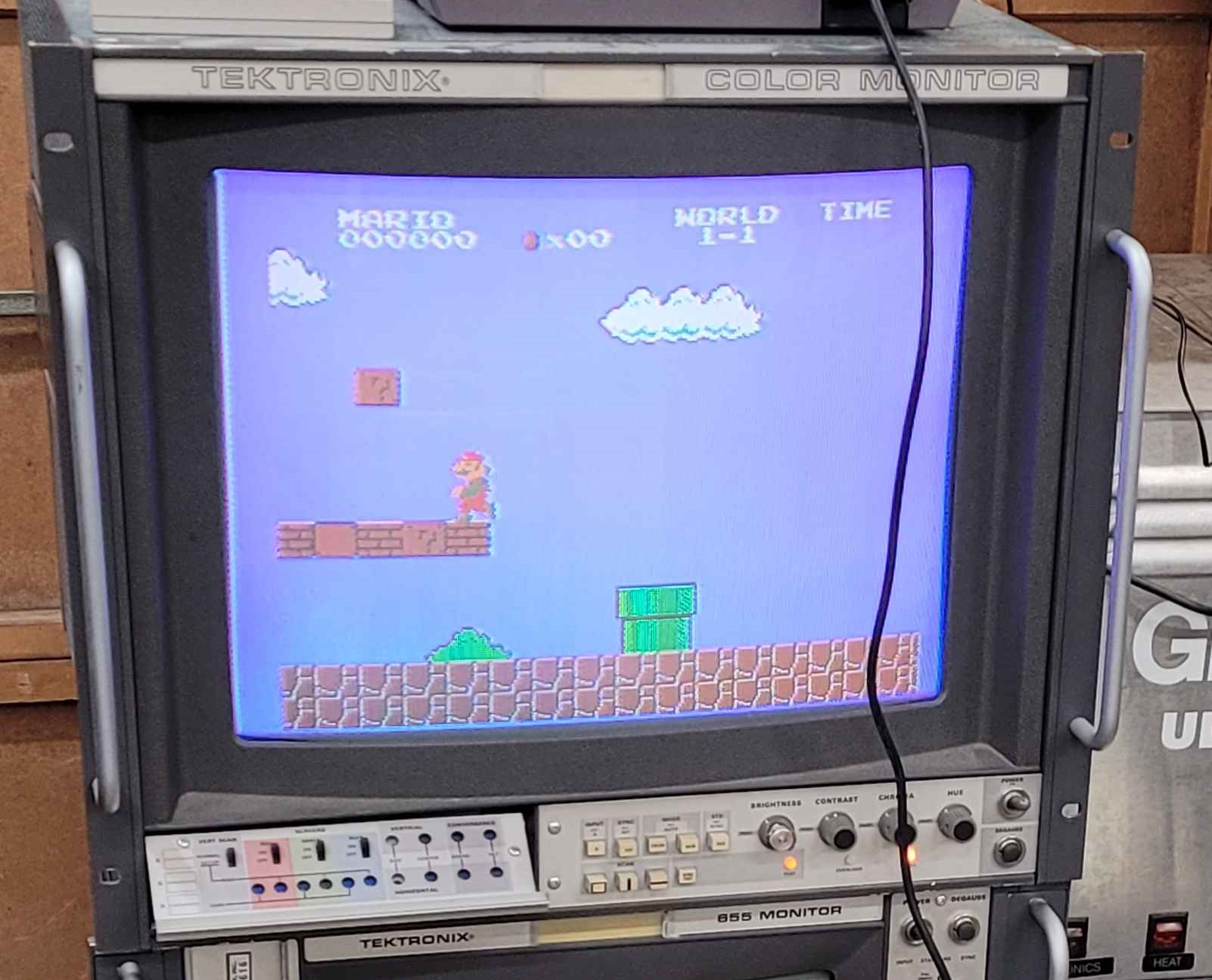

Yes it Functions.. !!

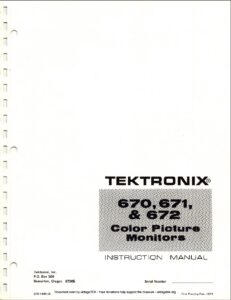

02/27/2026 I now have the Manual for the 670, 671, 672 Monitors.
A big thanks to the Volunteers at the VintageTek Museum for the Scanning of the Manual. I gave a donation on 03/05.

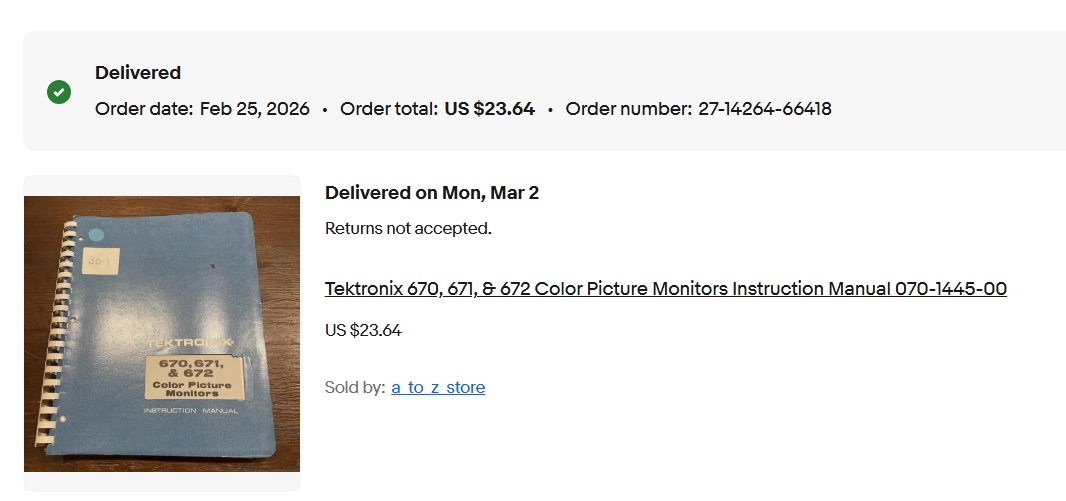

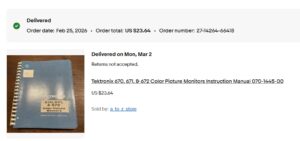

I also found a hard copy on the feebay too..
