DALLAS DS1644 Nonvolatile Timekeeping RAM Xray Image,
Removed form a Tektronix TDS340 Oscilloscope
If You have a working DS1644 it is most likely between 20 and 30 years old.
Warning: Sometimes the heat the the de-soldering process will finish the 30+ year old battery off so go slow take your time no race use a good de-soldering removal tool not wick to clear the holes.
You can Read this for backup but there is a clock so it will not verify. Unless you start the verify after the clock data so only verify to 7FEF
I always do 2-3 Reads and Compare them in a hex editor the only lines that should change it the Clock anything else is corrupted data.

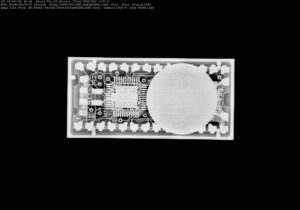

DALLAS DS1644 Battery Xray Image Pin One Left Lower

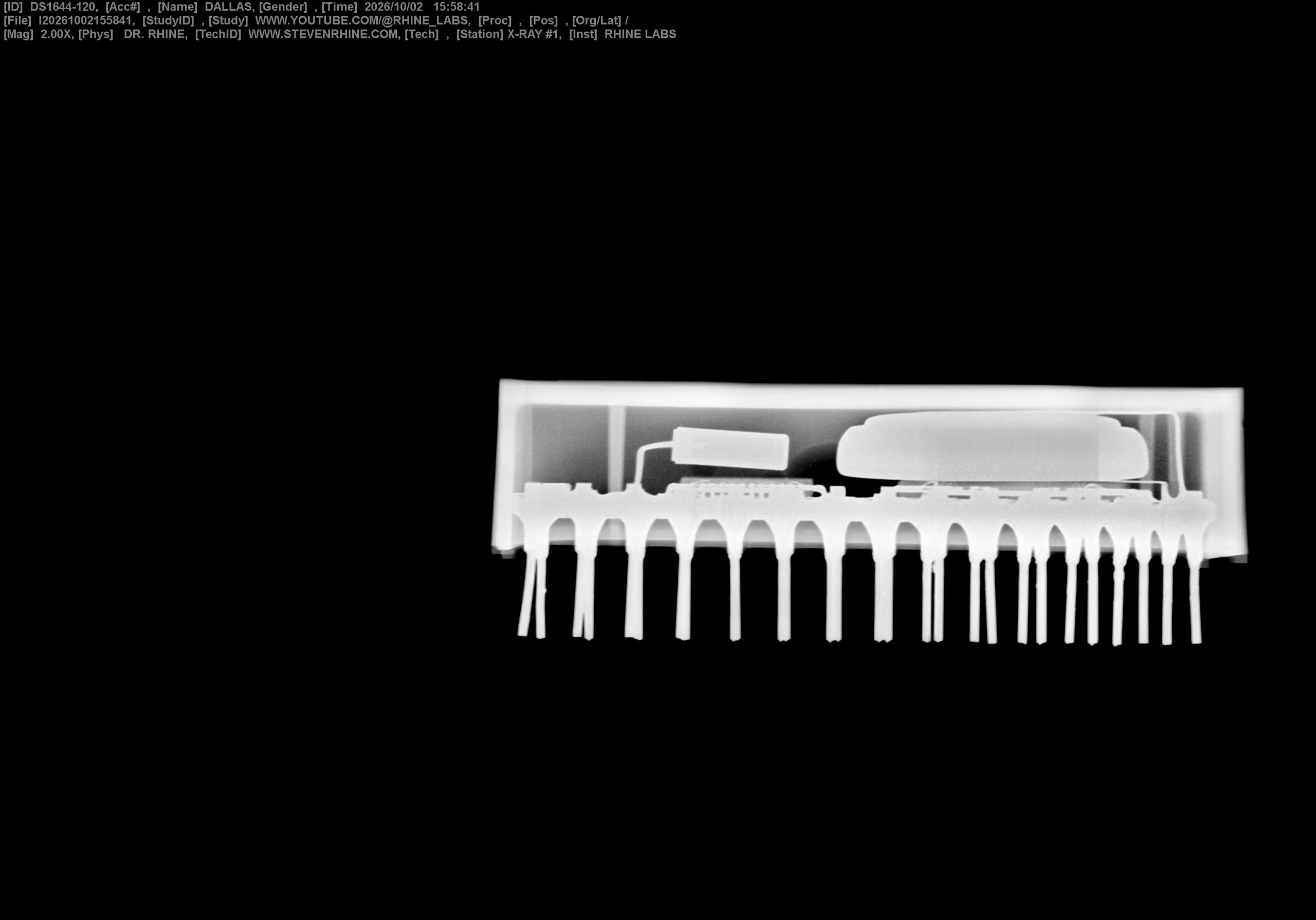

Side View
My Backup Files of the 2 TDS340 Units that had functional DS1644 Chips These Were programmed to a Bodged Battery Unit and Booted with No Errors.
Tektronix TDS350 DS1644 Backup No.1
Tektronix TDS350 DS1644 Backup No.2
You can use these to help get valid data to help with the self Calibration.

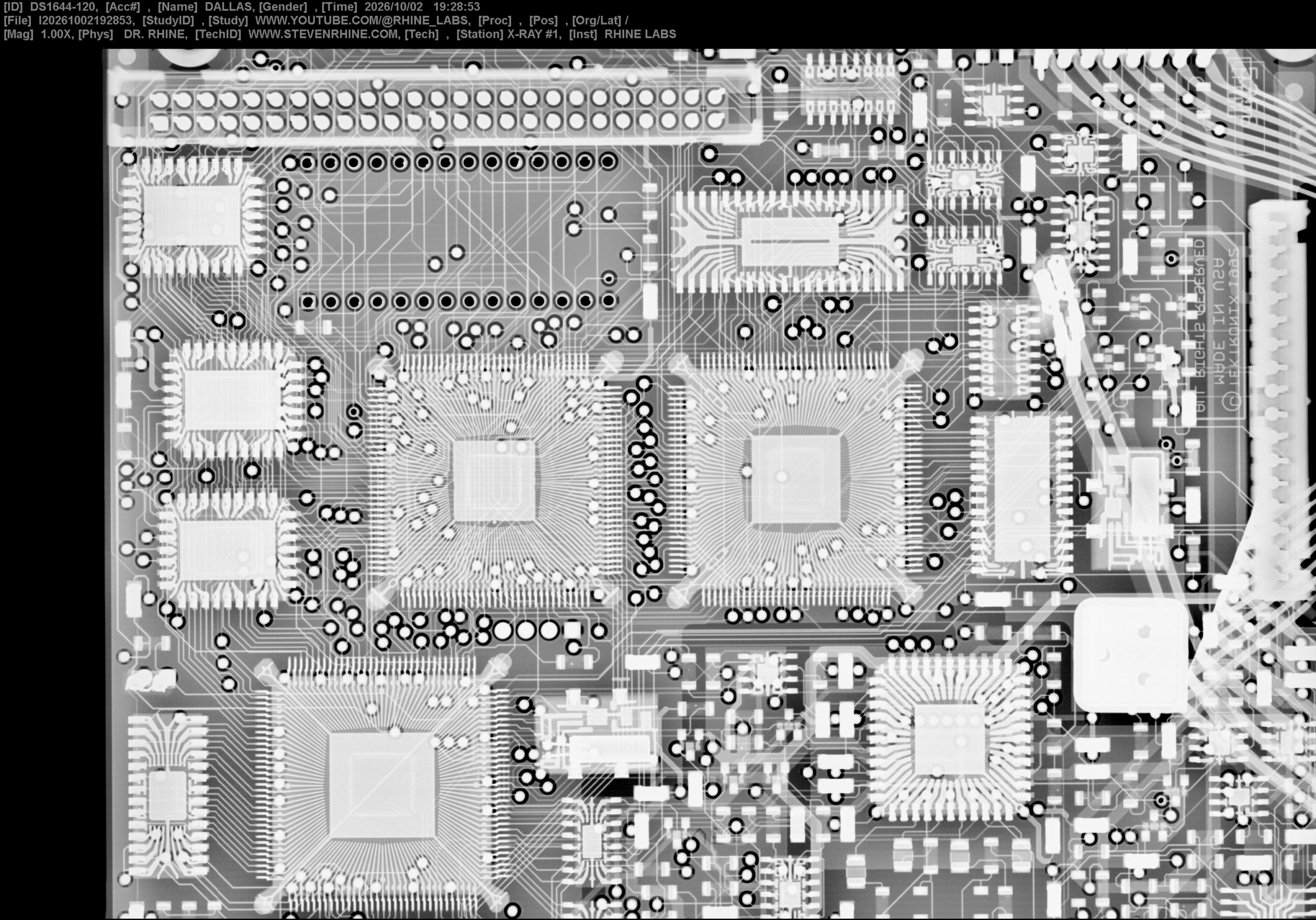

Partial X-ray of the Tektronix TDS340 Oscilloscope Board it came out of.
The Cr3032 Battery Bodge will post how I did it in a bit. Will be minimally Invasive.

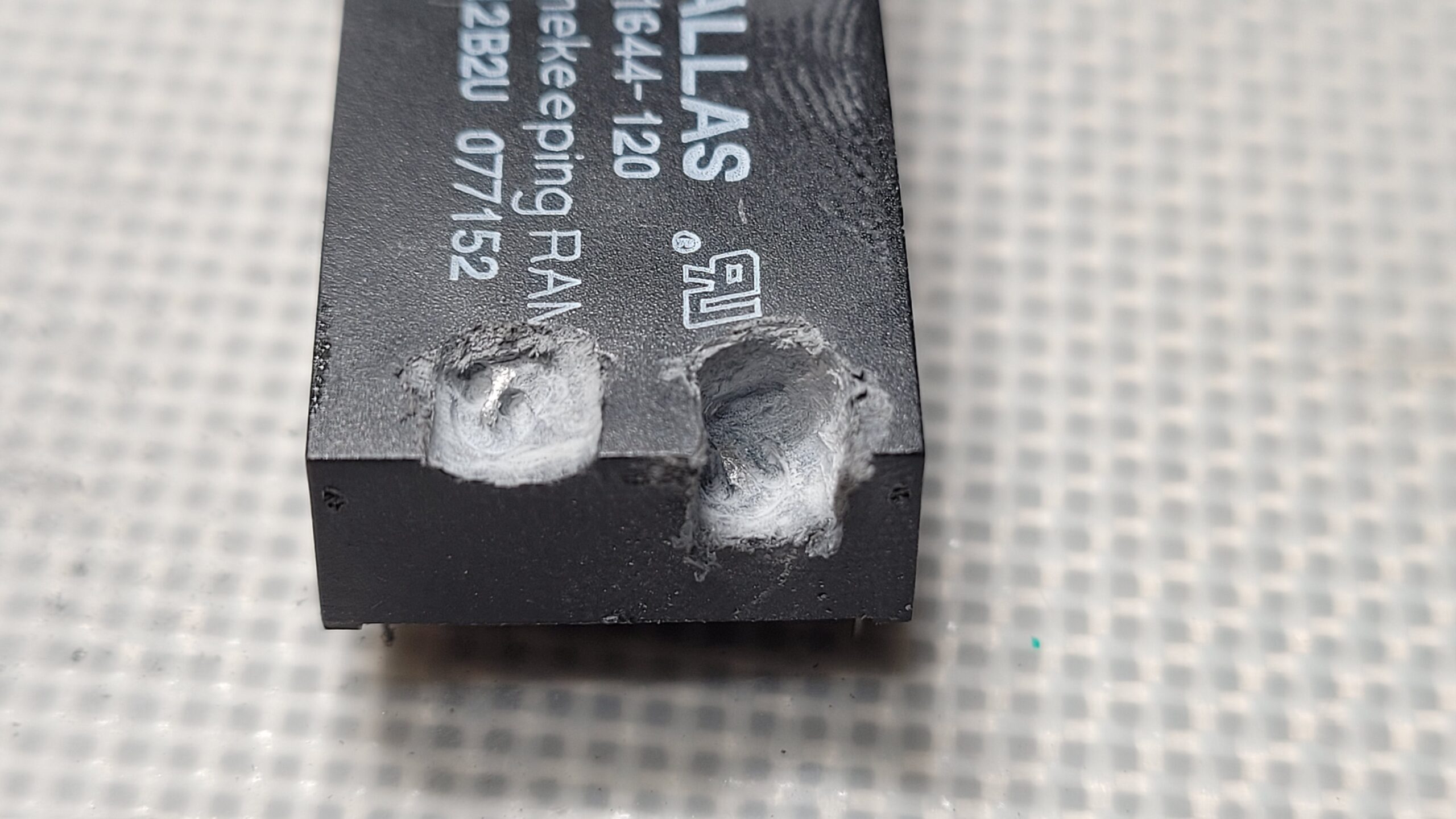

I Ground down in to the DS1644 epoxy package be careful here do not grind away the nickle on the leads..
On this one I did I had to bend the legs over to solder on the back side of them.
