DRO System For The Grizzly G0704 Is Here!

Updated 02/21/2014

Stay Tuned for the Video Blog of the How To Install From Start to Finish.

DRO is a TDS-3i you can get it From The DRO Store In Singapore!

Estimated Ship date Feb 10th 2014. Actual Ship Date Feb 12th 2014 You Can track the Package From Singapore Here

I Should Start Filming The Install Feb 18th 2014 (FedEx Is Late With 1/2 The Shipment) Fedex Delivered All Packages On Feb 19th 2014.

So far e-mail communications with Scott at theDROstore has been excellent!

Just an FYI after doing a mockup on the Grizzly G0704 Mill with aluminum strips the Scale Sizes Required.

Z Axis 1, 520MM Scale Over all Scale Length 26.1

X Axis 1, 470MM Scale Over all Scale Length 24.1 (if you want to do a front install you can use a 470MM Scale) Rear install has a drain plug so no larger then 470MM

Y Axis 1, 170MM Scale Over all Scale Length 12.3 I am thinking i should have got a 22mm for this axis!

The DRO Head…. As It Arrived….

02/22/2014 Went to the metal store today to get some materials to make bracket’s.

http://www.thedrostore.com/details-promo-3i.htm — You can get This DRO System @ http://www.thedrostore.com

Head Mount & Z Axis Scale — Head Mount & X Axis Scale

Z Axis Scale Install.. Note to The DRO Store Need More Screws for Installing The Scale.

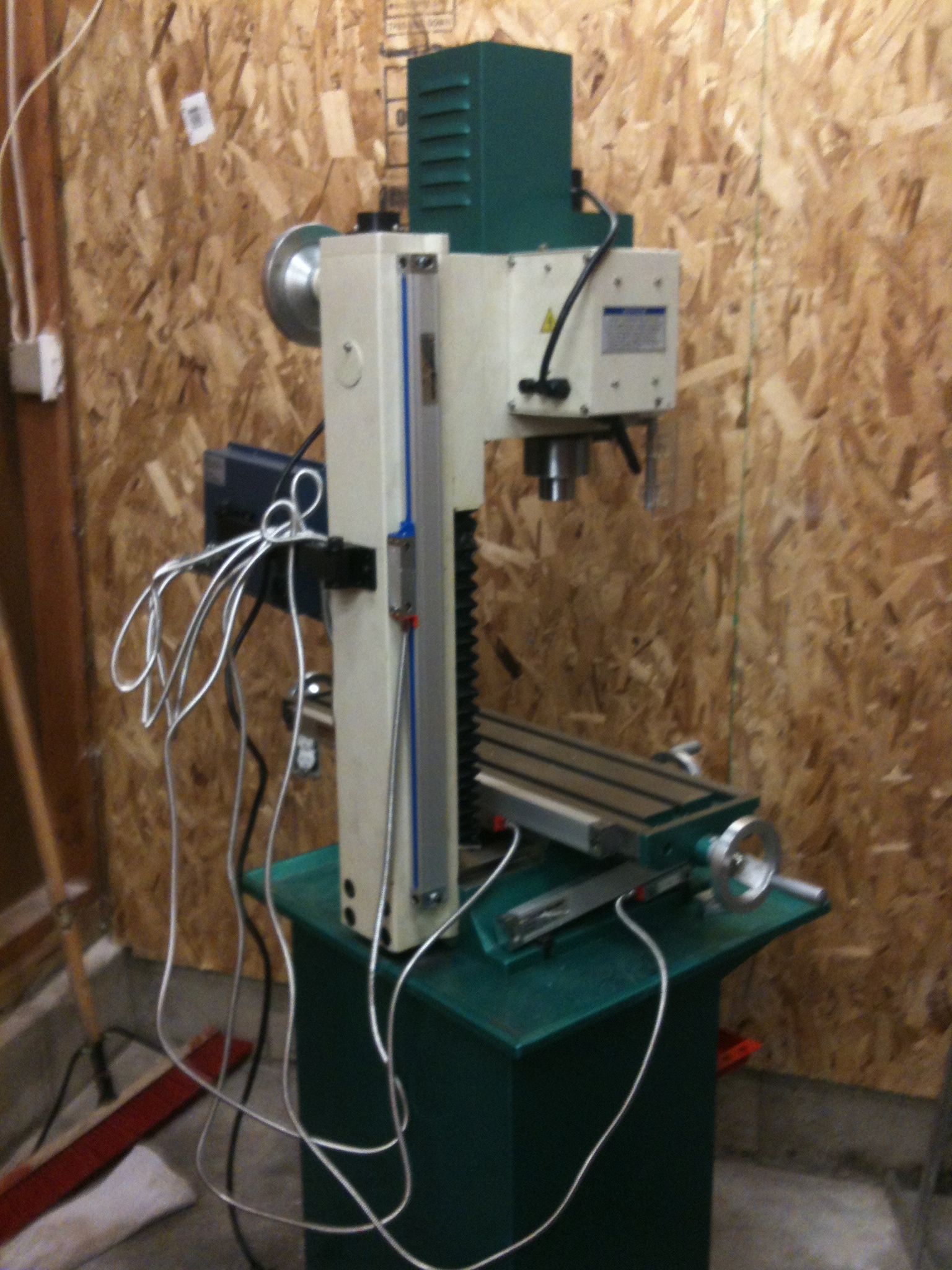

Powered Up! All 3 Scales Seem to Work! I need to Mount the Read Heads On The X and Z Axis and Mount the Y Scale and Read Head! But Making Progress..

Update: 02/23/2014 I Was able to get a few hours of free time today! Got the Z Axis Reader Head Mounted…

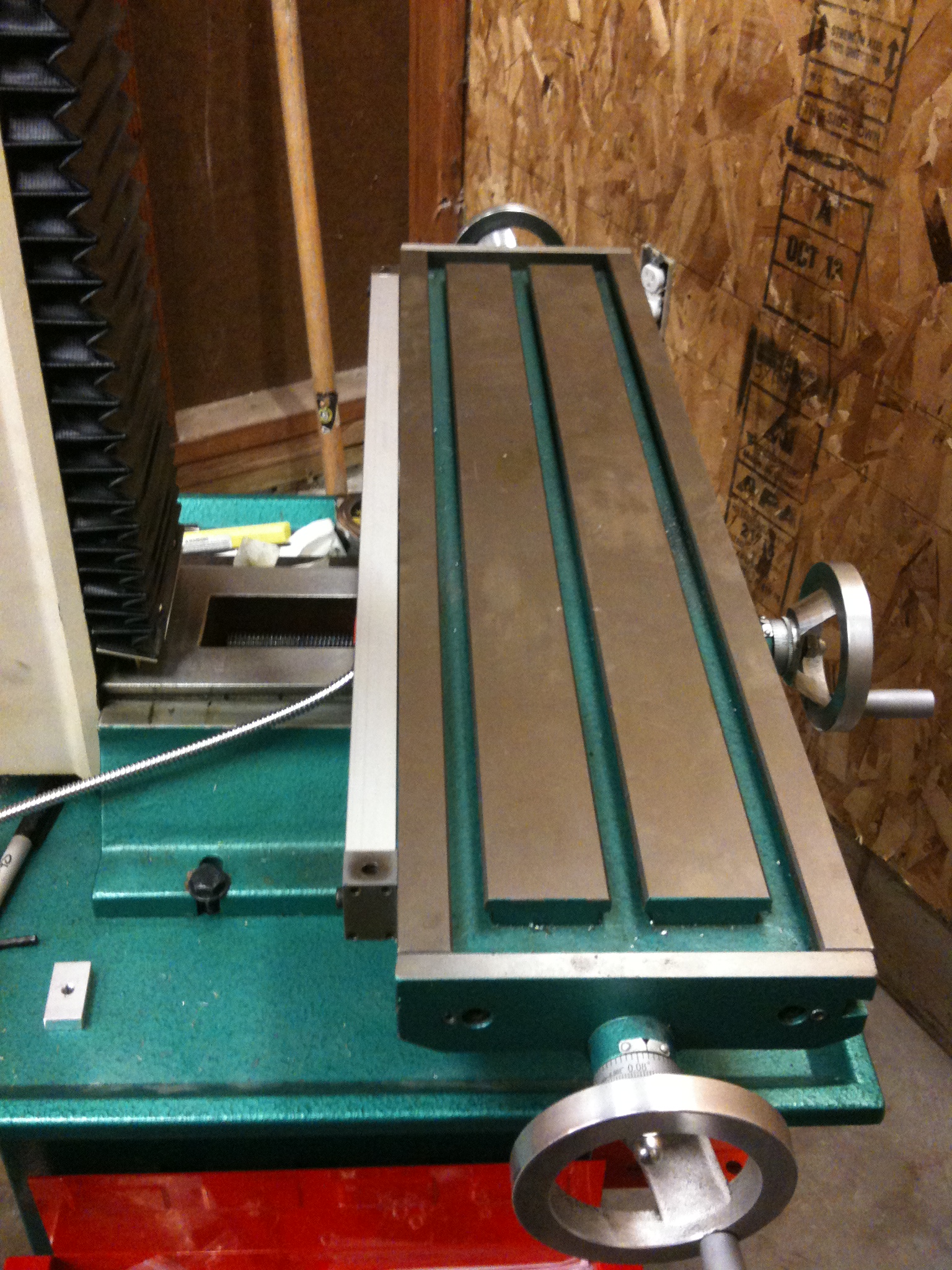

Update: 02/26/2014 Y axis Complete…

Last Updated on November 28, 2014 by Steven Rhine
