Tektronix 655HR-1 Monitor... Repair – Refresh – Restore!! (Soon)
I was searching for a Decent Sony PVM or a BVM but people ask stupid prices for them not serviced. They see them for sale ebay the ones that have been serviced and think well that’s what they sell for there but don’t seem to read its been serviced and their has not.

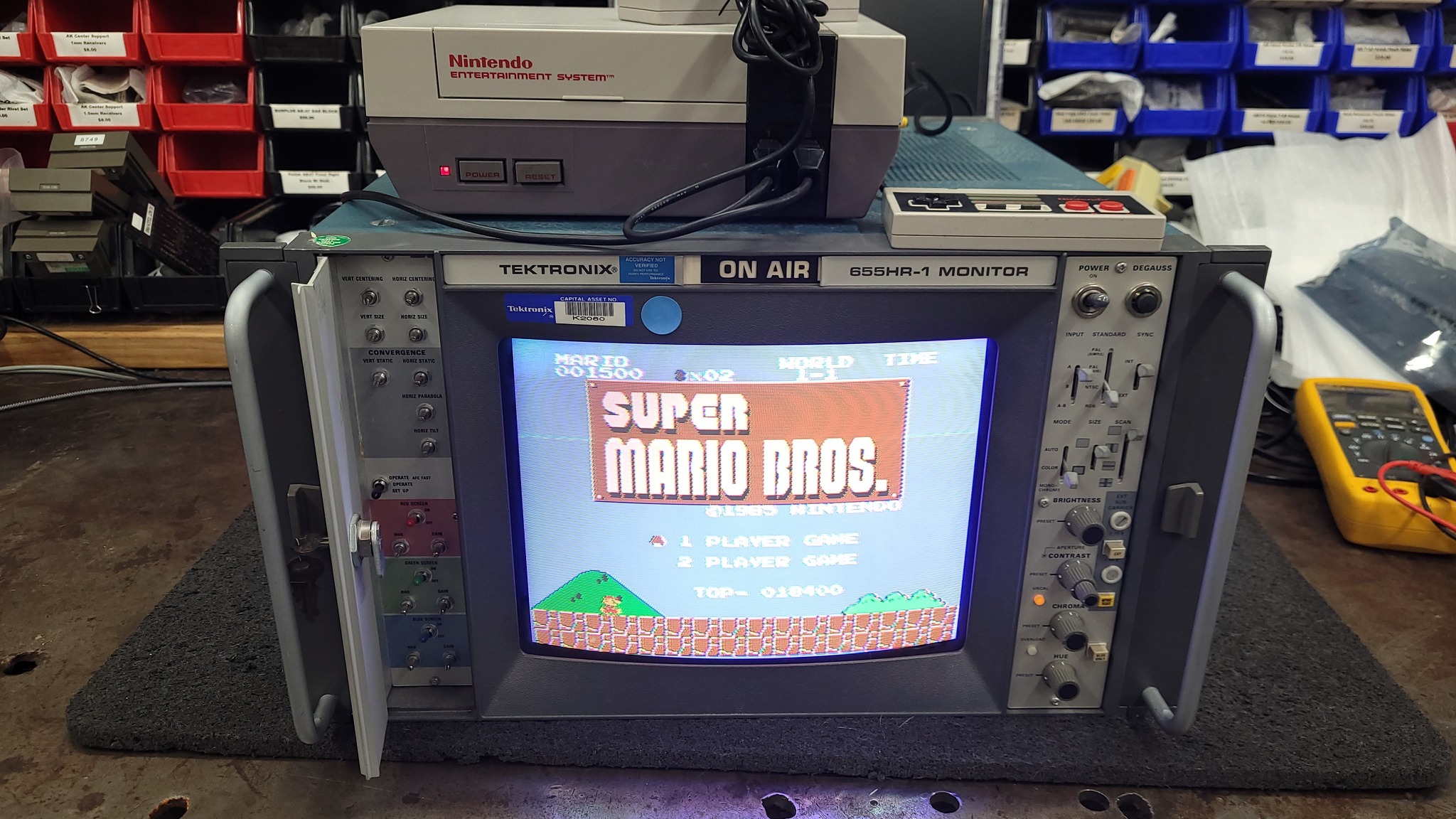

This will be my Analog Shop Monitor.. Was going to use a K7000 but this monitor I think will be better maybe?
Needs some Attention but looks darn good for being About 43 Years old.
I’ll toss the Sencore CR70 Tester on it and check the Tube but it appears nice. Lets hope the focus / convergence drifting issue is not the flyback or a weak tube. Fingers crossed it is the common caps in convergence or deflection circuit that fail. The CRT Should be a Trinitron 330JB22 CRT some say a 330YB22 is closest.

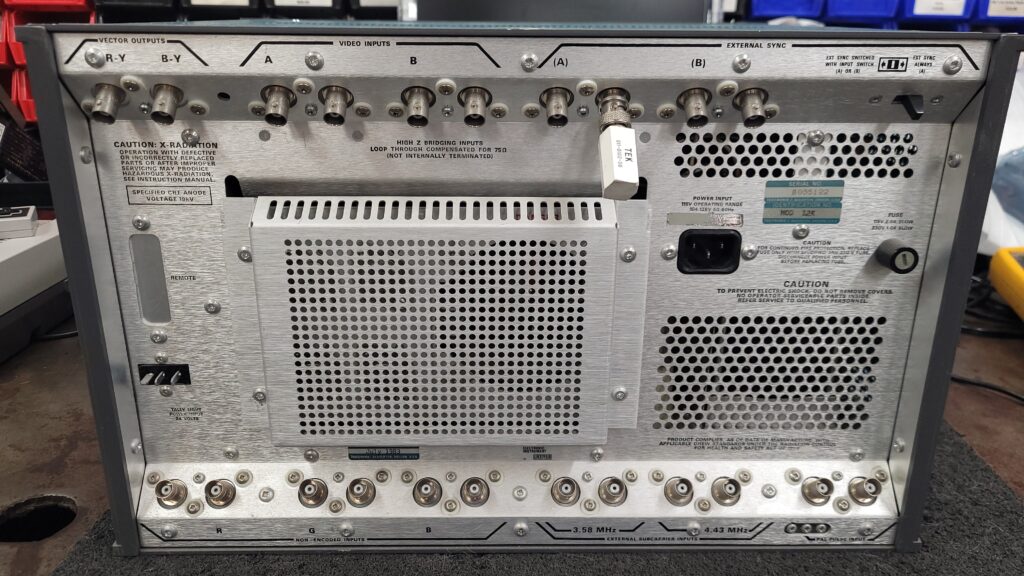

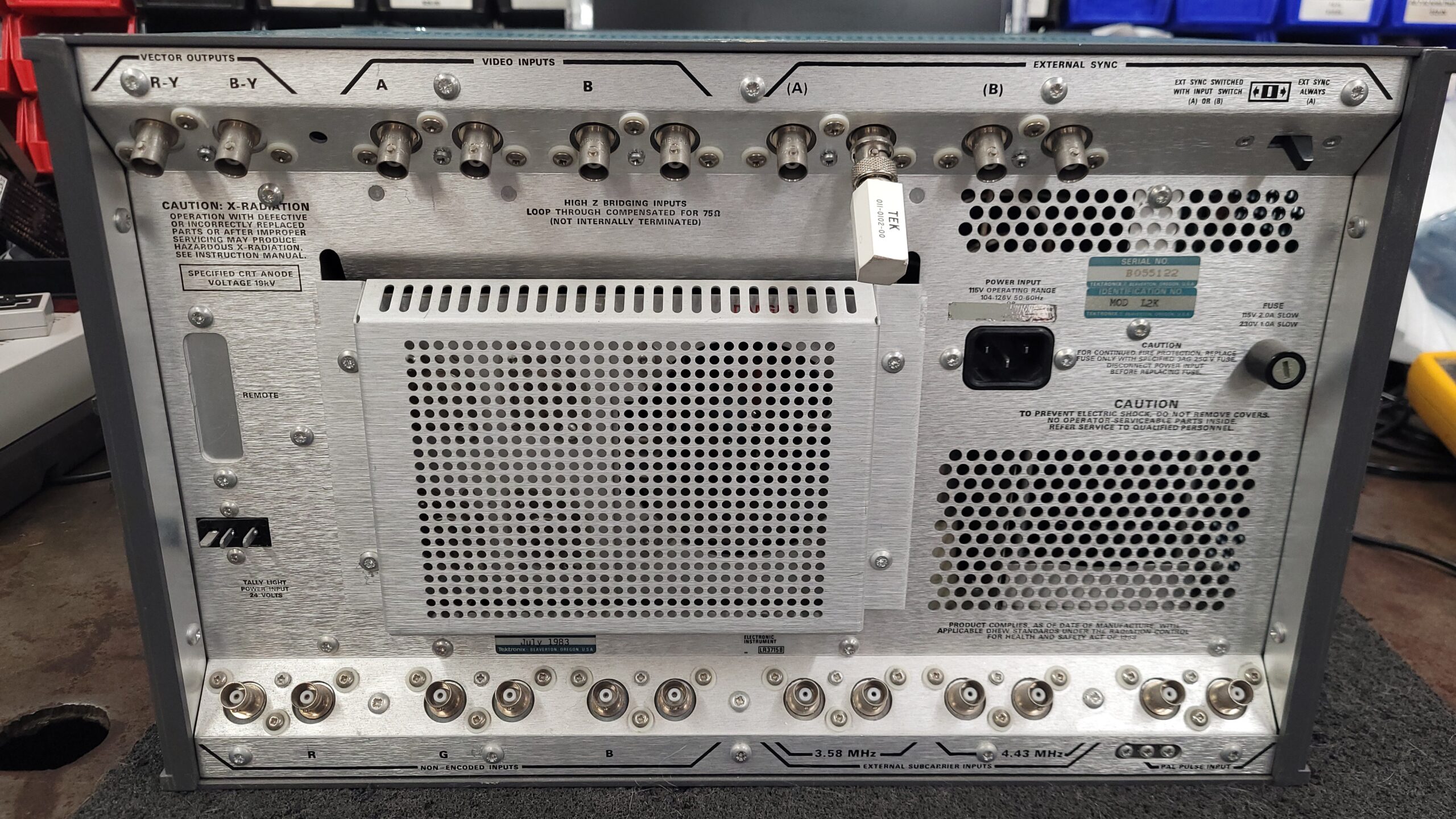

Back Side.. Almost Fully Optioned… No Blank Spaces Except for the Remote.
Archive Of the Manual.. Tektronix 655HR-1 070-2646-00 Manual With Parts and Schematics
I Opened it up and Checked the deflection boards, pin cushion board, and blanker board found a few bad caps.. it solved as lot of the noise. But still wavy on the edges and the top.

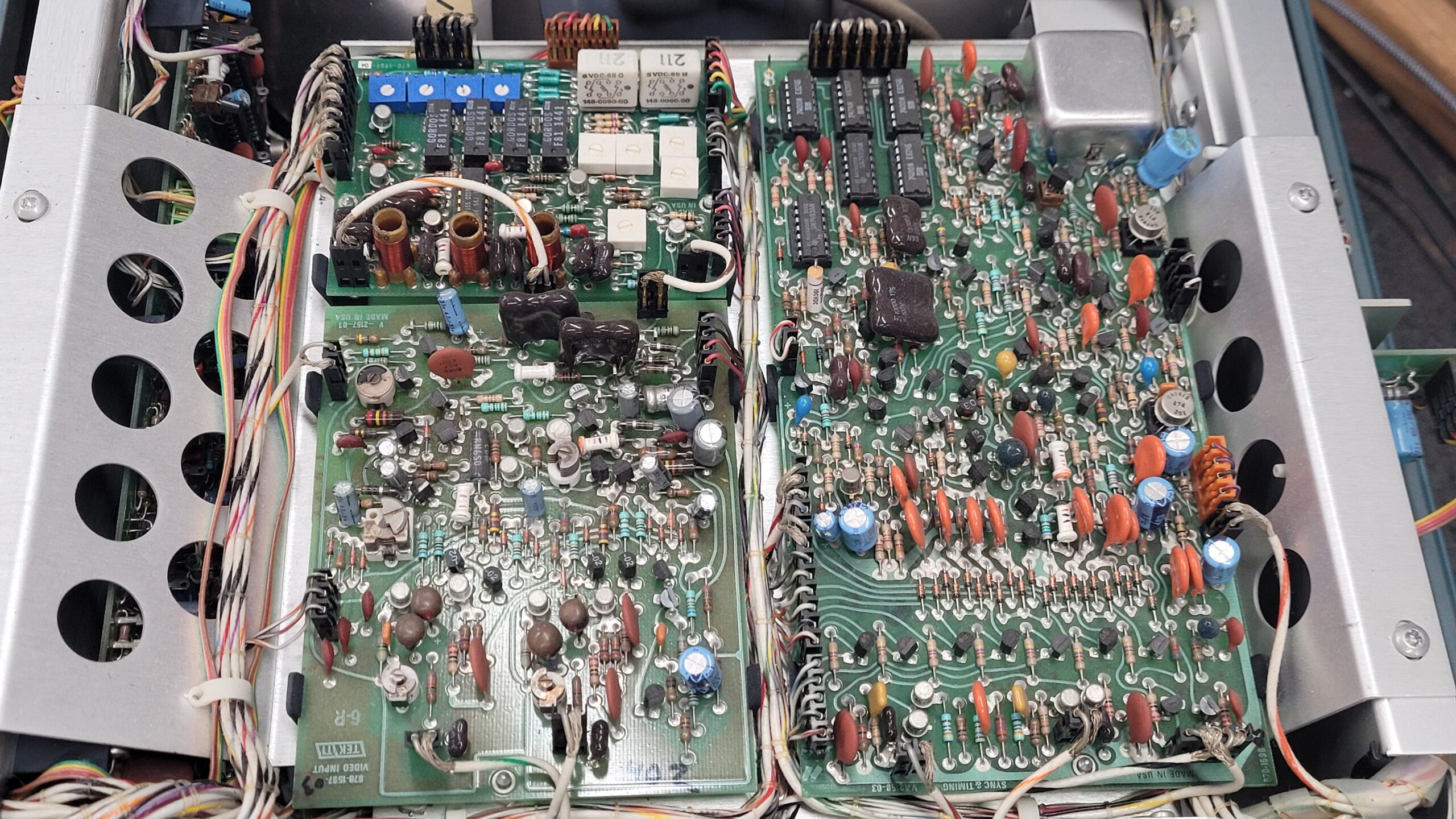

Opened Up

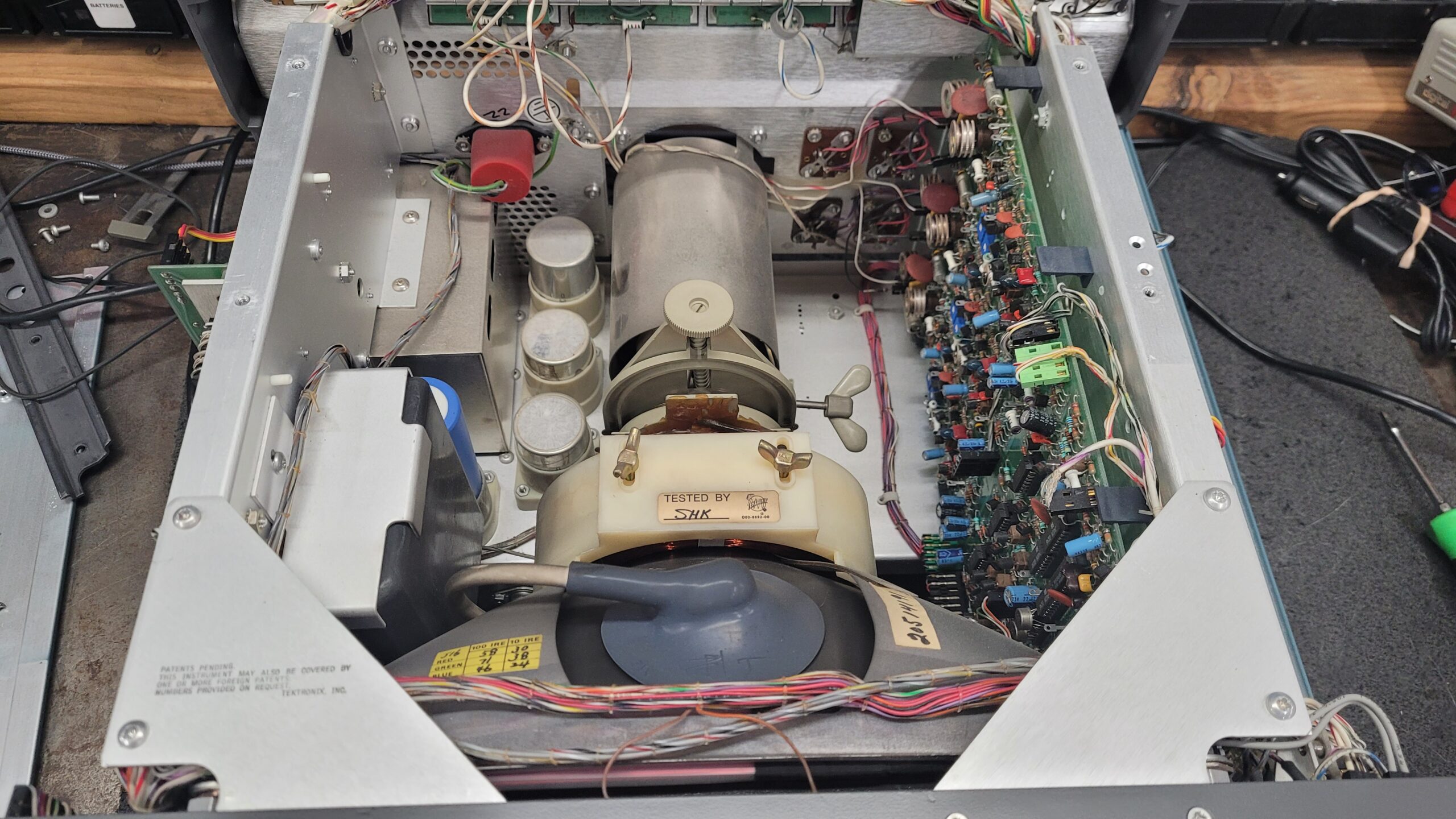

The Video Board and Sync Boards Lifted Up.. Exposes the CRT…

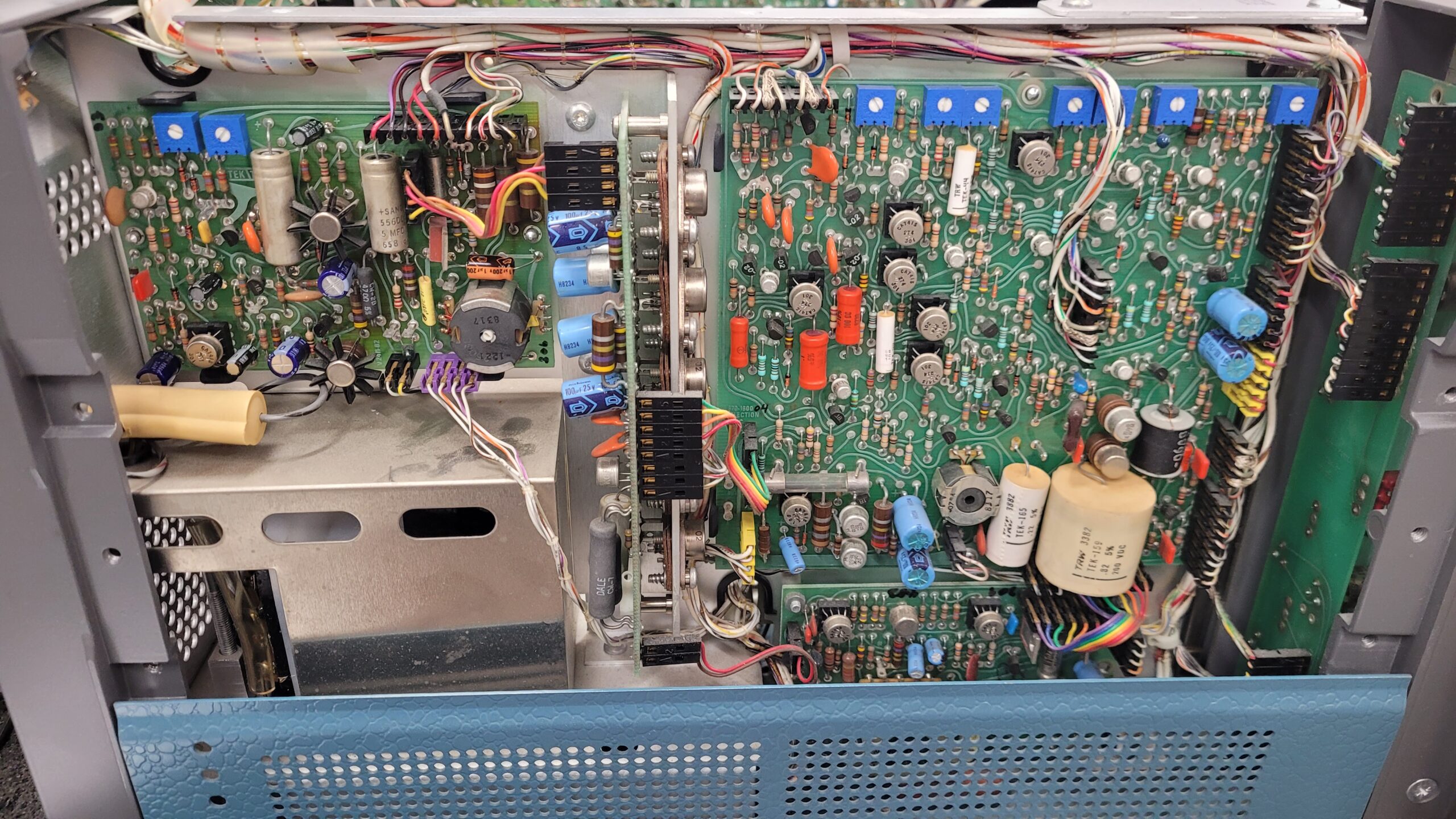

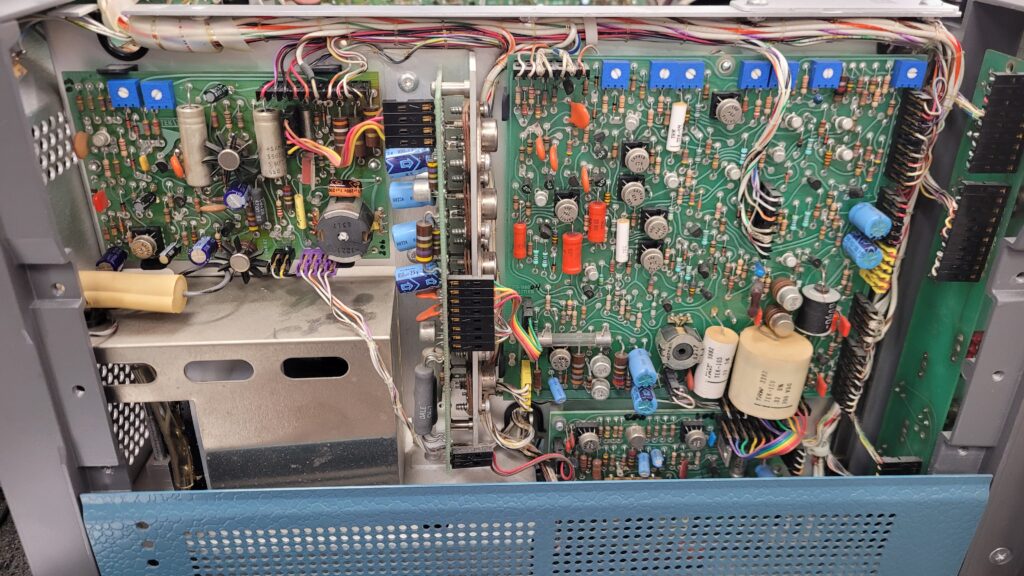

Right Side.. I Already Removed and Replaced the caps on the pin cushion board.

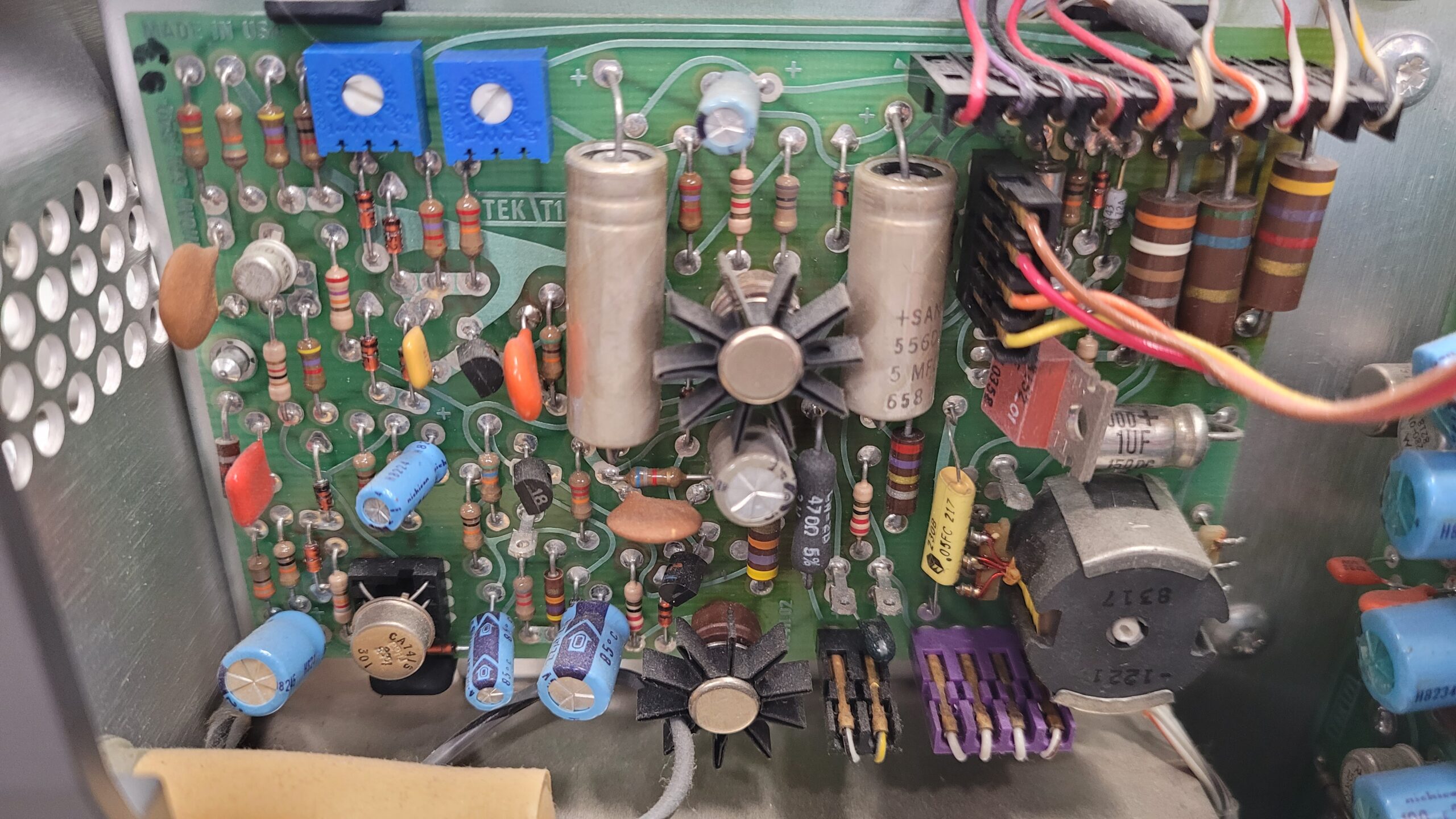

Pin cushion board

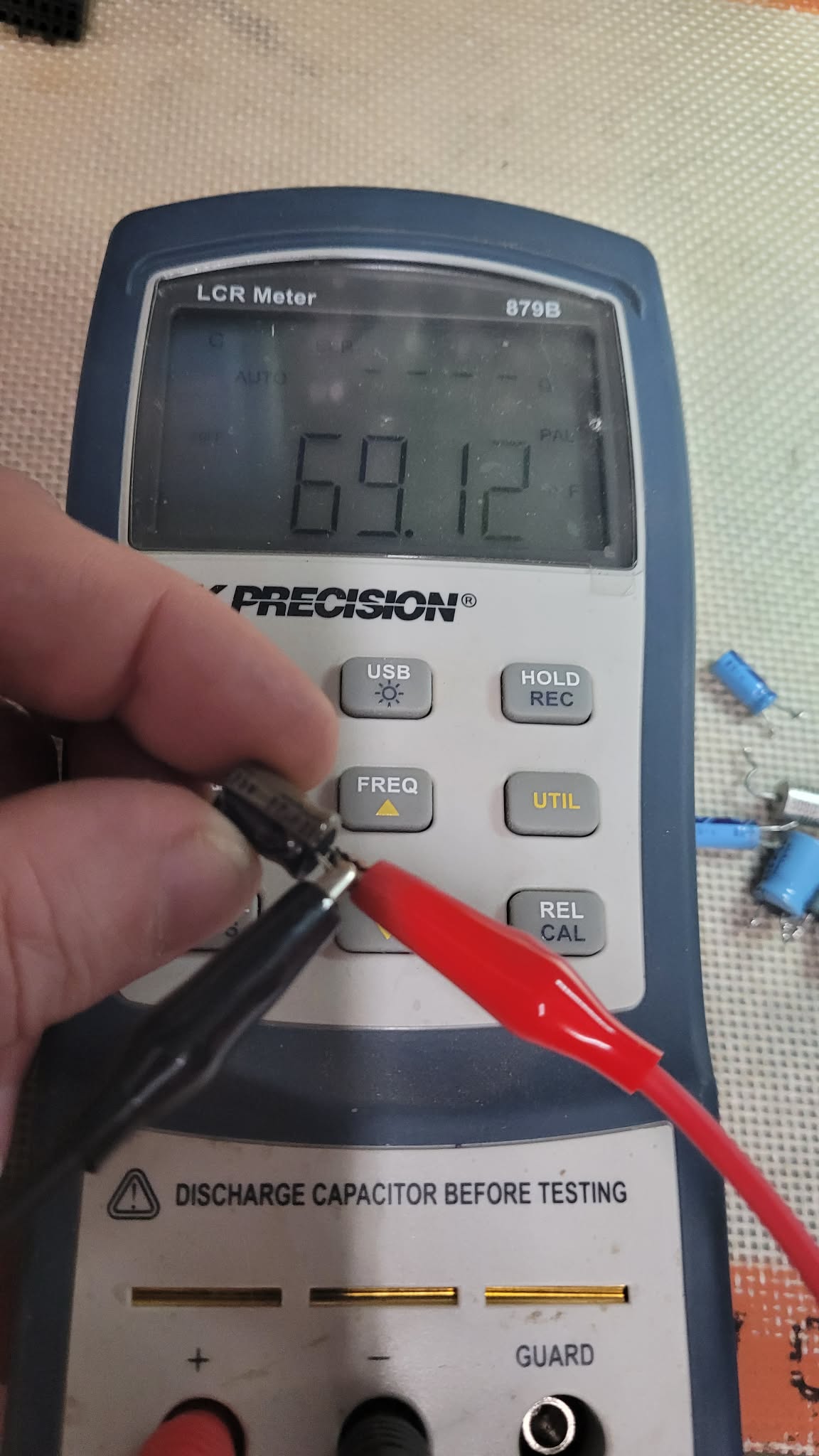

Here is a Cap From the pin cushion board dead..
I just used what I had in the bins, I dont stock much thru hole stuff any more. They were little high on the voltage, I need to get the larger axial caps ordered they are also bad.
Blanker Board…
Same Situation all Caps bad..

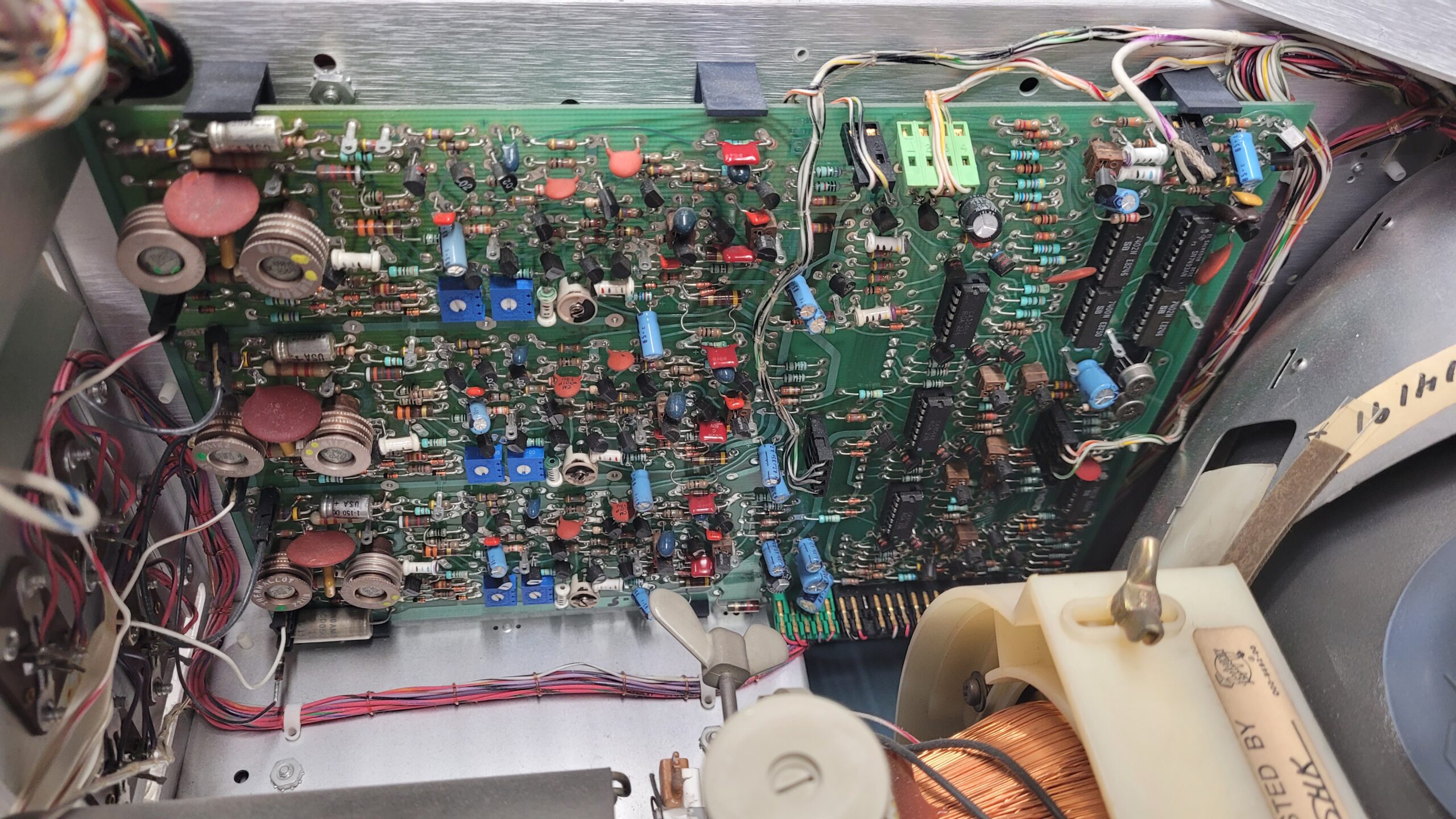

Checking the amplifier board it’s got issues as well.. I Checked the ESR in caps everyone I tested was bad or borderline.
This Monitor will take prob more work then I am willing to do.. So Right now it will be Just tear-down content unless I get motivated. I am kinda scared to put it on the CRT Tester that is if we have data for the CRT. I need to check the RGB see if it has same symptoms there.
I need to regroup and get a parts list. Most the electrolytic caps are 100uf 25v, 22uf 25v 4.7uf 35V
From the Parts List All Capacitors (May be Errors Manual is Older then This CRT)
ALL CAPACITORS BY TYPE – 650HR Series
1. ELECTROLYTIC CAPACITORS (CAP,FXD,ELCTLT)
============================================
Value Voltage Qty Circuit Designators
—– ——- — ——————-
1uF 35V 6 C1407, C1452, C5700, C5730, C5760, C8873
1uF 150V 5 C1120, C4831, C5900, C5930, C5960, C6203
2.2uF 20V 2 C1420, C1519
4.7uF 35V 30 C1053, C1111, C1183, C1201, C1211, C1251, C1968, C4160, C4165, C4386, C4851, C4875, C4961, C5000, C5104, C5420, C5450, C5480, C5520, C5550, C5580, C5620, C5650, C5680, C5712, C5742, C5772, C8160
5uF 150V 2 C4951, C5990
6.8uF 35V 3 C1482, C1652, C4195, C6265
10uF 15V 1 C4980
10uF 25V 6 C1739, C5502, C5512, C5532, C5542, C5562, C5572
12uF 150V 2 C4789, C4963
15uF 20V 1 C8789
22uF 15V 1 C5860
22uF 25V 41 C1001, C1101, C1304, C1460, C1470, C1566, C4000, C4010, C4853, C4863, C4887, C5132, C5310, C5380, C5474, C5476, C6167, C6181, C6184, C9030, C9104, C9136, C9140, C9162, C9172, C9194, C9371
33uF 10V 8 C9316, C9326, C9346, C9354, C9378, C9380
47uF 20V 1 C1760
100uF 10V 6 C1323, C1324, C1371, C1372
100uF 25V 26 C1415, C2173, C2377, C2383, C2387, C3582, C3586, C3590, C4278, C4292, C4400, C4410, C4715, C4719, C4735, C4736, C4749, C8040, C8060, C8070
120uF 150V 1 C8650
330uF 6V 1 C4080
1300uF 150V 1 C8310
4500uF 40V 2 C8330, C8360
18000uF 15V 1 C8390
TOTAL ELECTROLYTIC: 144 units
2. CERAMIC CAPACITORS (CAP,FXD,CER DI/DL)
==========================================
Value Voltage Qty Location
—– ——- — ——–
1pF 500V 2 C5912, C5942, C5972
2.7pF 500V 7 C174, C188, C189, C198, C5622, C5652, C5682
4.7pF 500V 2 C1261, C9370
5.6pF 200V 1 C2621
5.6pF 500V 4 C2681, C2685, C2887
10pF 500V 3 C1669, C5720, C5750, C5780
11pF 500V 1 C9340
12pF 500V 1 C102
15pF 500V 2 C9080, C9304
22pF 500V 1 C1141
27pF 500V 2 C1121, C1660
33pF 500V 15 C187, C195, C1271, C1281, C2013, C3012, C3620, C3642, C3654
47pF 500V 2 C5312, C5320
68pF 500V 6 C5100, C5102, C5814, C5844, C5874
82pF 100V 2 C8656, C8657
100pF 200V 19 C2131, C2165, C2227, C3146, C3150, C3244, C3250, C3326, C3334, C4580, C4588, C4688
150pF 200V 3 C4867, C4991
150pF 500V 4 C9206, C9244, C9272
180pF 500V 5 C1711, C1917, C1918, C2265, C3346
270pF 1000V 2 C1546, C4594
300pF 1000V 1 C1701
330pF 500V 2 C4871
470pF 500V 4 C1849, C3006, C8682
820pF 500V 4 C1446, C2191, C3264
0.001uF 100V 24 C1103, C1191, C1383, C1385, C1391, C2109, C2661, C2811, C2829, C2833, C3398, C3860, C3920, C3924, C3948, C3952, C8665
0.001uF 500V 12 C103, C1480, C1490, C1512, C1829, C5600, C5604, C5630, C5634, C5660, C5664, C8652
0.001uF 200V 3 C4733, C4746, C4756, C6183
0.0015uF 200V 2 C2113, C3110
0.0022uF 50V 2 C2103, C3008
0.005uF 500V 4 C5902, C5932, C5962
0.01uF 150V 51 C1061, C1313, C1322, C1518, C1596, C1653, C1656, C1700, C2133, C2225, C2385, C2389, C2413, C2433, C2501, C2633, C2637, C2641, C2707, C2793, C2961, C2975, C3010, C3042, C3044, C3048, C3050, C3160, C3254, C3260, C3482, C3518, C3540, C3552, C3558, C3636, C3692, C3694, C3702, C3730, C3738, C3754, C3954, C3966, C3986, C4294, C5020, C5054, C8302, C8668, C9210, C9246, C9254, C9274, C9336, C9366, C9390
0.01uF 500V 4 C8100, C8654, C8664
0.01uF 1000V 4 C6247, C6271, C7501, C8630
0.01uF 2000V 1 C8717
0.02uF 25V 3 C1567, C1863
0.02uF 50V 6 C1410, C1412, C5500, C5514, C5530, C5544, C5560, C5574
0.02uF 150V 16 C1061, C1313, C1322, C1518, C1596, C1657, C1998, C2005, C2361, C2419, C2601, C3040, C9336, C9366, C9390
0.022uF 50V 1 C5008
0.05uF 50V 1 C1613
0.068uF 50V 1 C4879
0.1uF 25V 10 C1438, C1472, C1474, C1570, C1664, C1667, C1761, C1763, C1765, C1792, C1870
0.1uF 50V 23 C151, C160, C162, C190, C1312, C1340, C1376, C1456, C2491, C2584, C2682, C2688, C4192, C5510, C5516, C5540, C5546, C5570, C5576, C5710, C5740, C5770, C8261, C8666
0.1uF 100V 27 C2023, C2161, C2715, C2751, C2937, C2939, C3028, C3204, C3208, C3322, C3324, C3336, C3339, C3484, C3490, C3498, C3584, C3696, C3814, C3846, C3852, C3863, C3934, C3940, C4070
0.1uF 200V 6 C4200, C4300, C4390, C4788, C4889, C5910, C5940, C5970
0.2uF 25V 2 C4734, C5314
0.22uF 50V 4 C1410, C1412, C2467, C3676
1uF 25V 5 C1697, C1992, C2733, C2759, C3556, C3826, C3956
TOTAL CERAMIC: ~350+ units
3. MICA CAPACITORS (CAP,FXD,MICA D)
====================================
Value Voltage Qty Location
—– ——- — ——–
10pF 100V 1 C8300
33pF 500V 7 C187, C195, C2013, C3012, C3620, C3642, C3654
36pF 100V 1 C2581
43pF 500V 8 C1325, C1364, C1691, C1990, C2519, C2539, C9328, C9356, C9382
53pF 300V 1 C3796
70pF 100V 3 C153, C186, C188
85pF 500V 1 C2481
110pF 100V 1 C8260
120pF 500V 3 C2692, C2971
130pF 100V 1 C2437
150pF 500V 6 C175, C197, C3382, C3780, C3782
160pF 100V 3 C3610, C3630, C3650
190pF 100V 2 C2511, C2533
220pF 500V 2 C2675, C2885
253pF 300V 2 C3896, C3994
267pF 500V 4 C154, C180, C186, C196
330pF 500V 4 C3608, C3628, C3644
390pF 500V 2 C2509, C2531
410pF 500V 10 C2271, C2287, C3108, C3176, C3206, C3276, C5010
430pF 500V 4 C2689, C2789, C2891
470pF 300V 3 C1535, C1620, C2003
510pF 500V 1 C2301
0.001uF 100V 5 C1534, C1602, C1950, C3384
0.0033uF 500V 2 C1738, C4360, C8655
0.01uF 100V 4 C1020, C1021, C1505, C1730
TOTAL MICA: ~80+ units
4. PLASTIC FILM CAPACITORS (CAP,FXD,PLSTC)
===========================================
Value Voltage Qty Location
—– ——- — ——–
0.0033uF 100V 1 C4308
0.005uF 2000V 1 C4050
0.0082uF 100V 1 C6097
0.01uF 100V 1 C1939
0.022uF 100V 1 C4498
0.033uF 100V 2 C4466, C4562
0.033uF 300V 1 C8601
0.047uF 100V 1 C8662
0.05uF 200V 1 C4833
0.068uF 100V 1 C4476
0.1uF 100V 1 C4480
0.1uF 400V 1 C8600
0.22uF 100V 1 C8778
0.22uF 200V 1 C4254
0.47uF 100V 1 C4030
0.82uF 200V 1 C4236
TOTAL PLASTIC: ~16 units
5. VARIABLE CAPACITORS (CAP,VAR)
=================================
Type Range Voltage Qty Location
—- —– ——- — ——–
AIR 1.3-5.4pF 250V 3 C1131, C1375, C9306, C9342, C9372
AIR 1.6-9.1pF 425V 1 C3310
AIR 1.7-10pF 250V 2 C1131, C3480
AIR 1.9-15.7pF 250V 1 C3314
CERAMIC 9-35pF 200V 1 C1183
CERAMIC 9-45pF 200V 4 C5722, C5752, C5782
TOTAL VARIABLE: ~12 units
SUMMARY BY TYPE
===============
Electrolytic: 144 units
Ceramic: ~350 units
Mica: ~80 units
Plastic Film: ~16 units
Variable: ~12 units
————————
TOTAL CAPACITORS: ~602 units
Note: Some components are model-specific (650HR, 651HR, 655HR variants).
Exact ceramic count may vary slightly due to model variations.
More Later Check Back Soon.
