Magewell Pro Capture AIO SKU: 110200000
Part Number ACC00020 Cable DB9 to Composite / Component / S Video Pin Out
Composite Video
Video Pin 7
GND/Shield Pin 4
Audio
Right Audio Pin 9
Left Audio Pin 5
GND/Shield Pin 4
Component Video
Red Pin 1
Green Pin 2
Blue Pin 6
GND/Shield Pin 4
SVIDEO
1 & 2 GND/Shield Pin 4
Luma Pin 3 to Pin 8
Chroma Pin 4 to Pin 3
Magewell Pro Capture AIO SKU: 110200000
Part Number ACC00010 DVI to HDMI, VGA, Component Cable
DVI Port Works with Standard DVI to HDMI Adapters, DVI to VGA Adapter.. I will get the DVI to Component Wiring Soon.

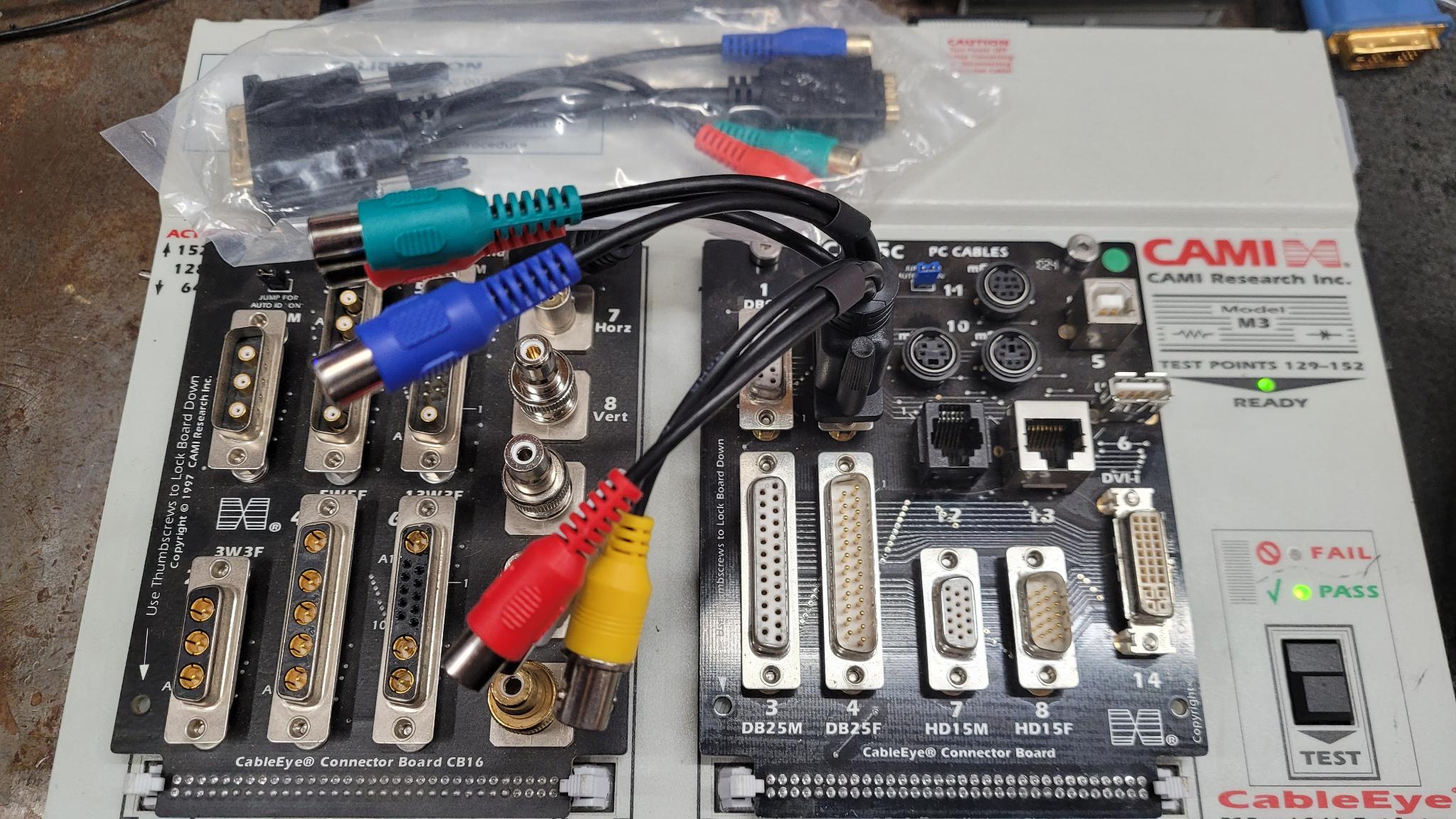

Decoded With Cami Research Cable Eye..
