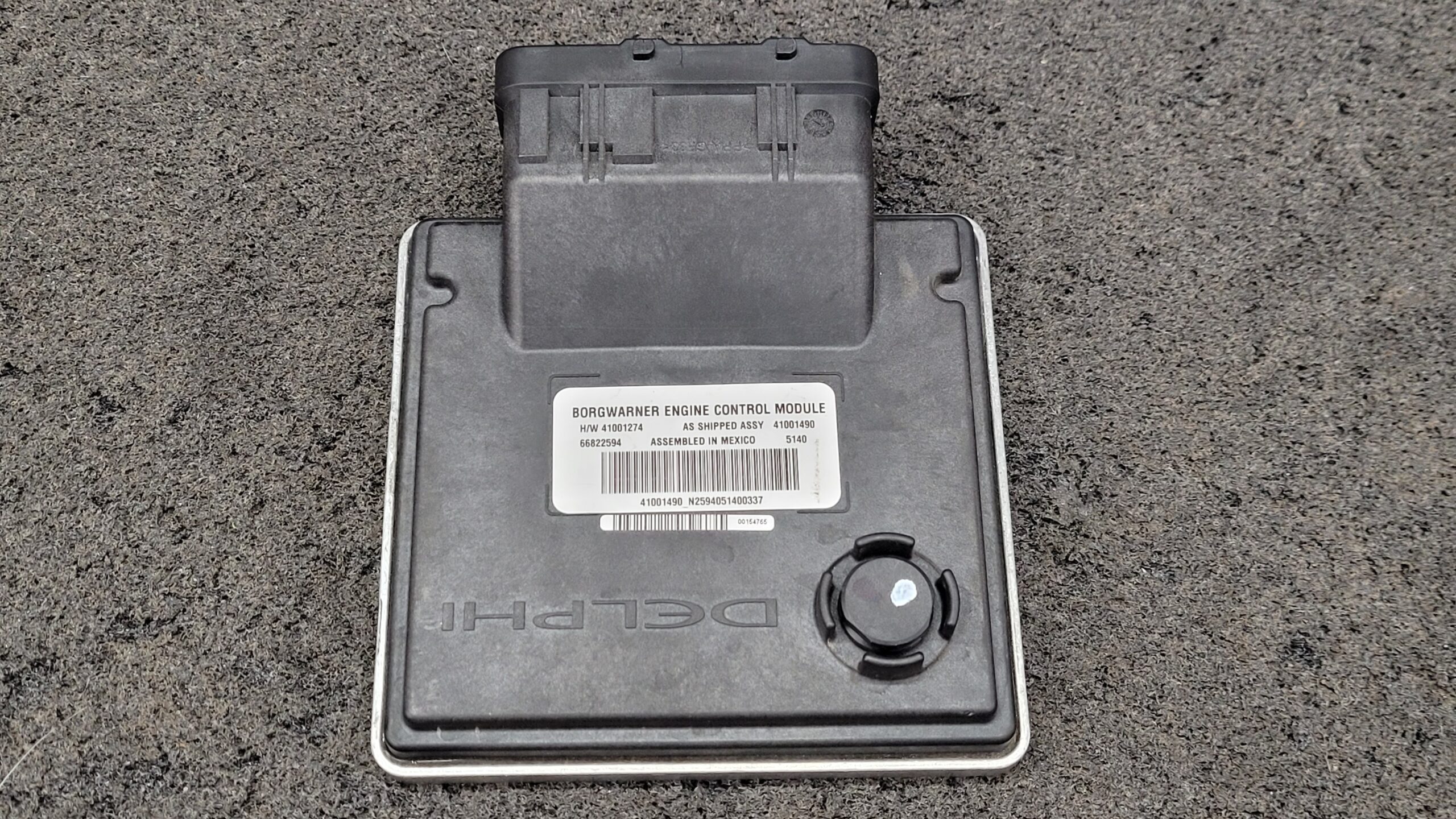

HARLEY-DAVIDSON ECM Delphi 41001274 / HD 41001490 X-RAY IMAGES
Harley-Davidson part number 41001490 is an Electronic Control Module (ECM / ECU) used on select 2025 and 2026 Harley-Davidson Touring and Softail motorcycles
Compatible Models: 2025–2026 Harley-Davidson Touring, CVO, and Softail platforms (such as FLTRX Road Glide, FXLRST Low Rider ST, and FXBR Breakout

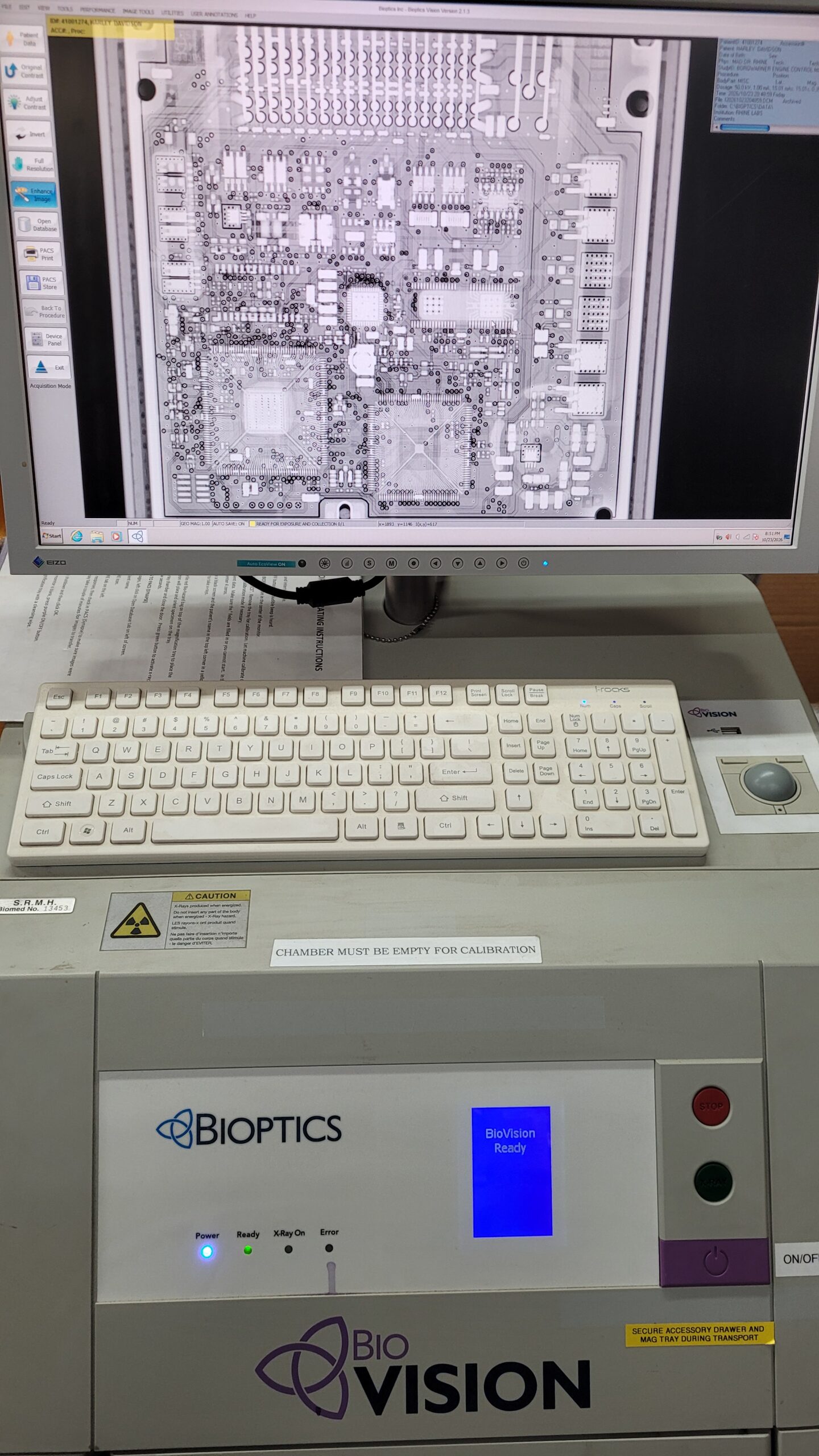

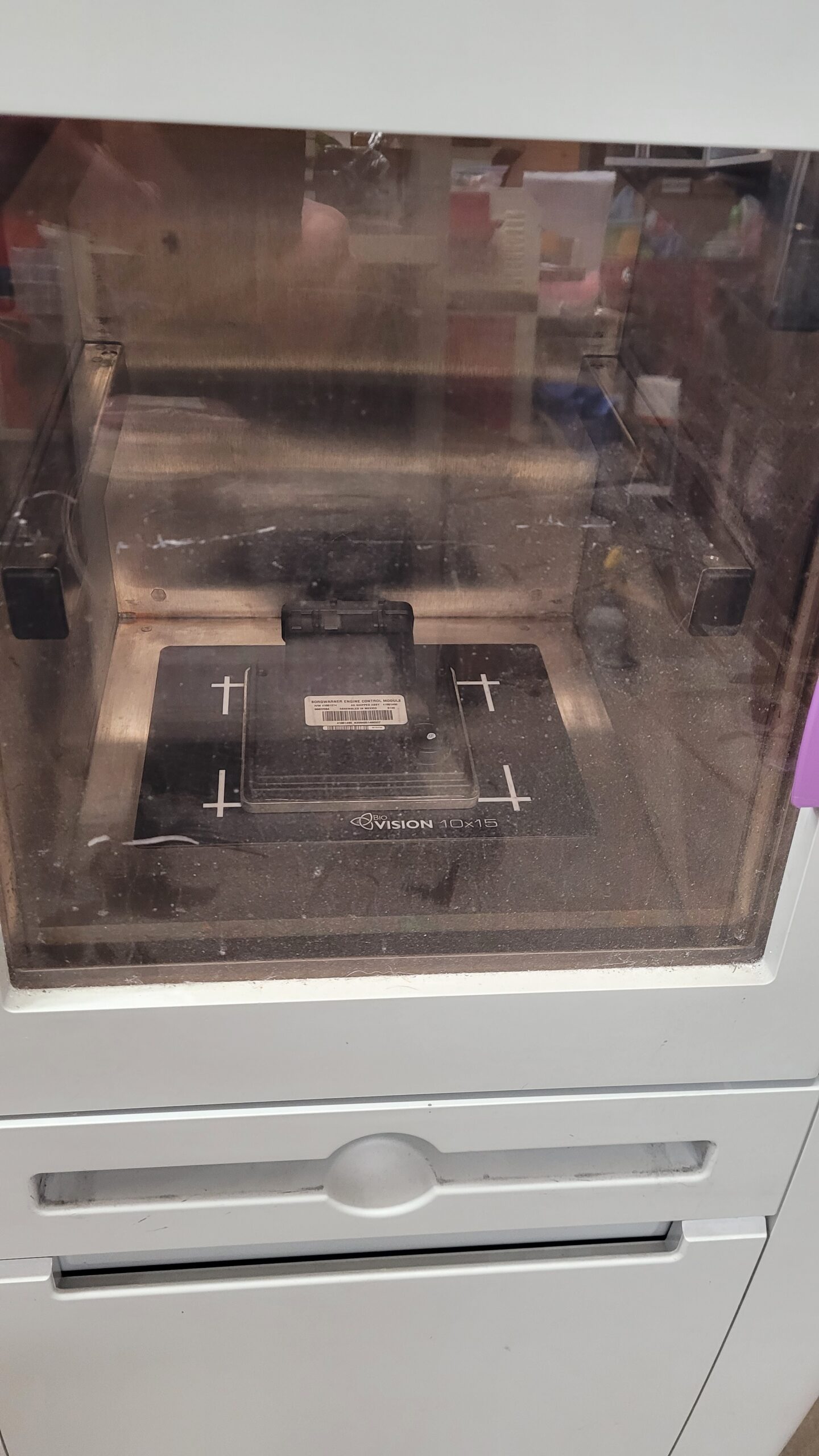

In the X-Ray machine
X-ray #1 Taken 50KV 15 Seconds to get thru the aluminum plate and a clear images.

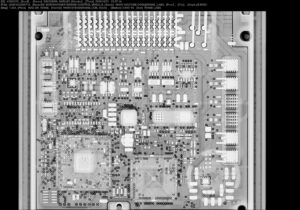

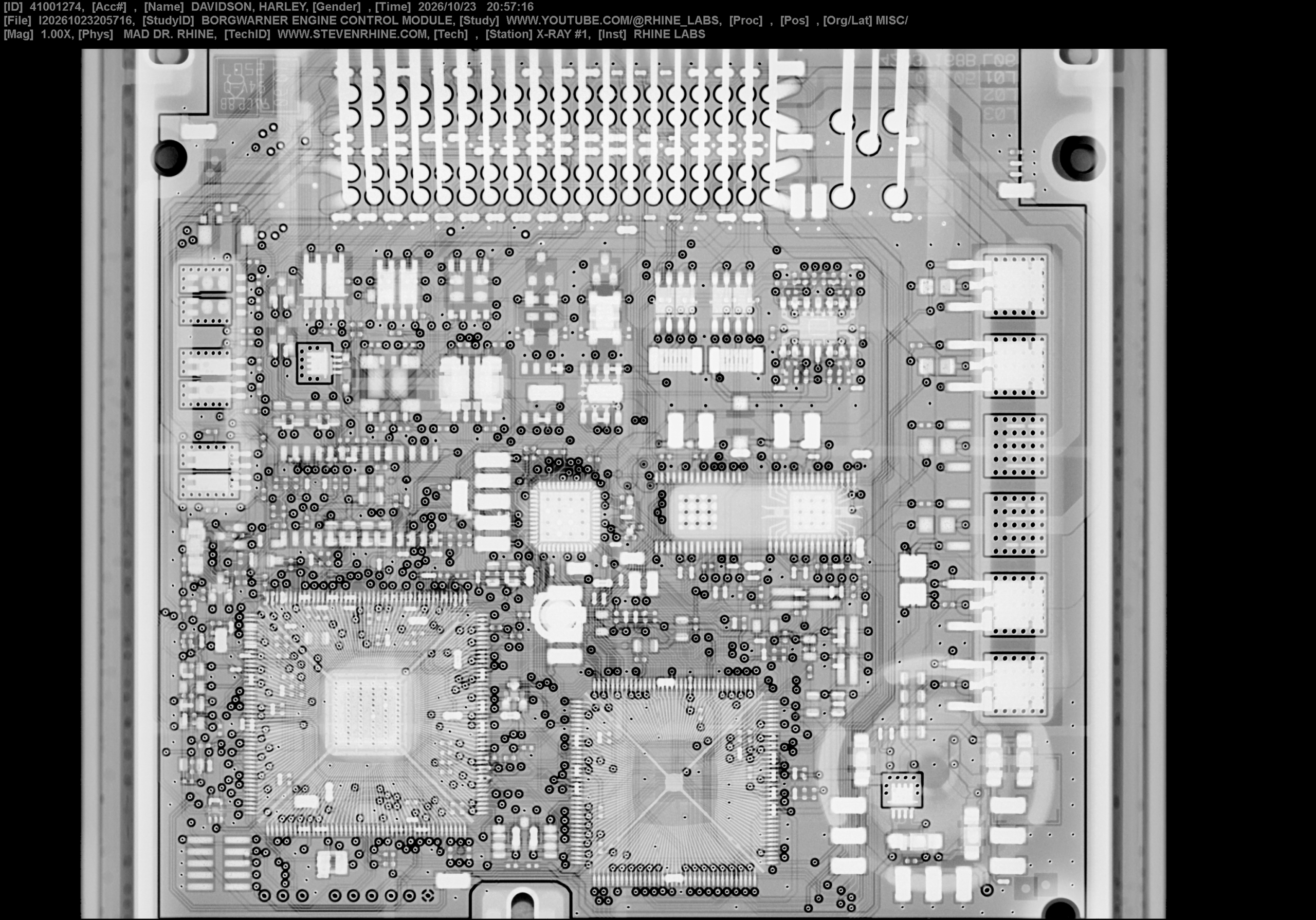

HARLEY-DAVIDSON ECM 41001274 X-RAY Image #1 my sensor is just a little to small…

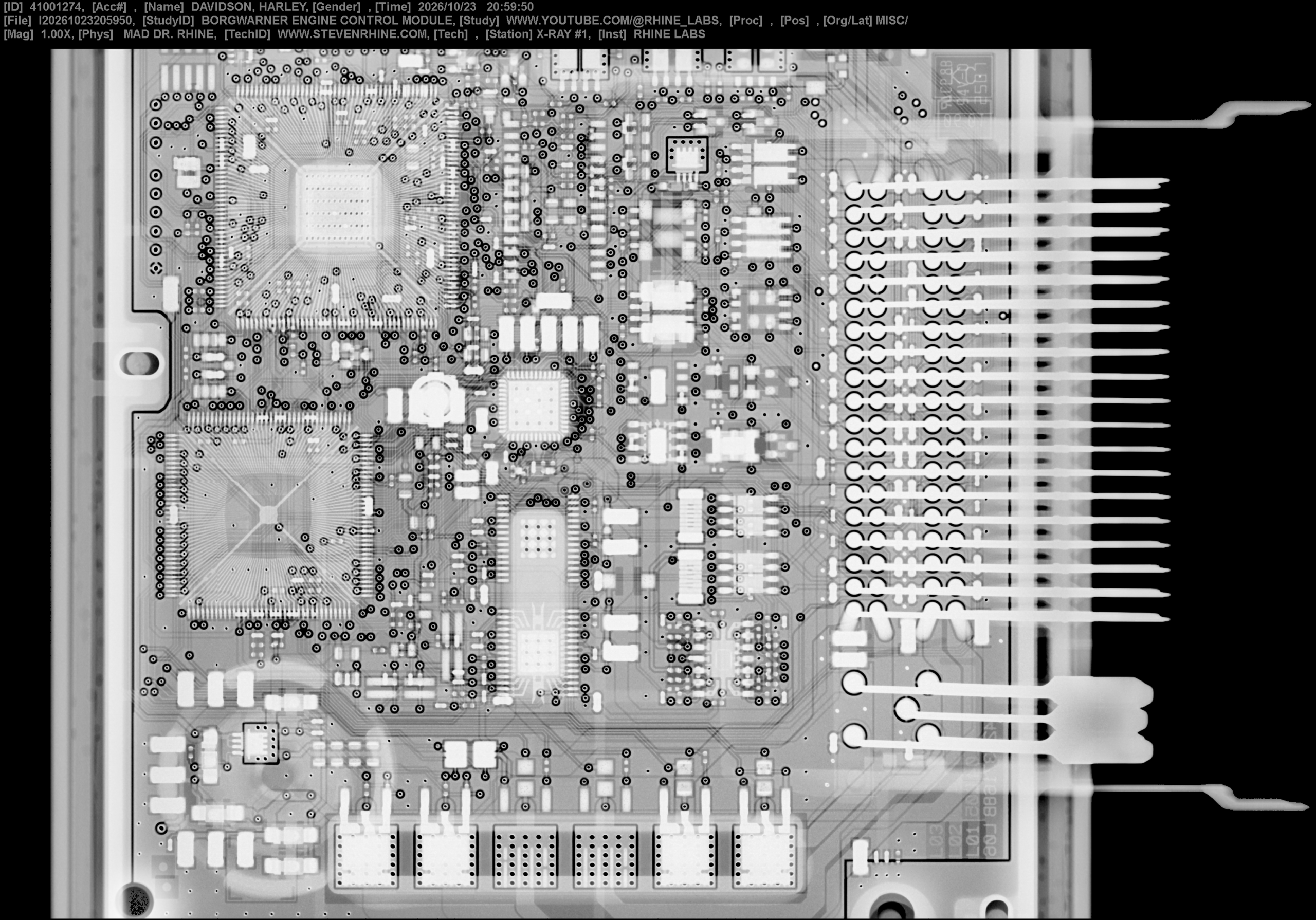

Image #2 Rotated 90 Degrees

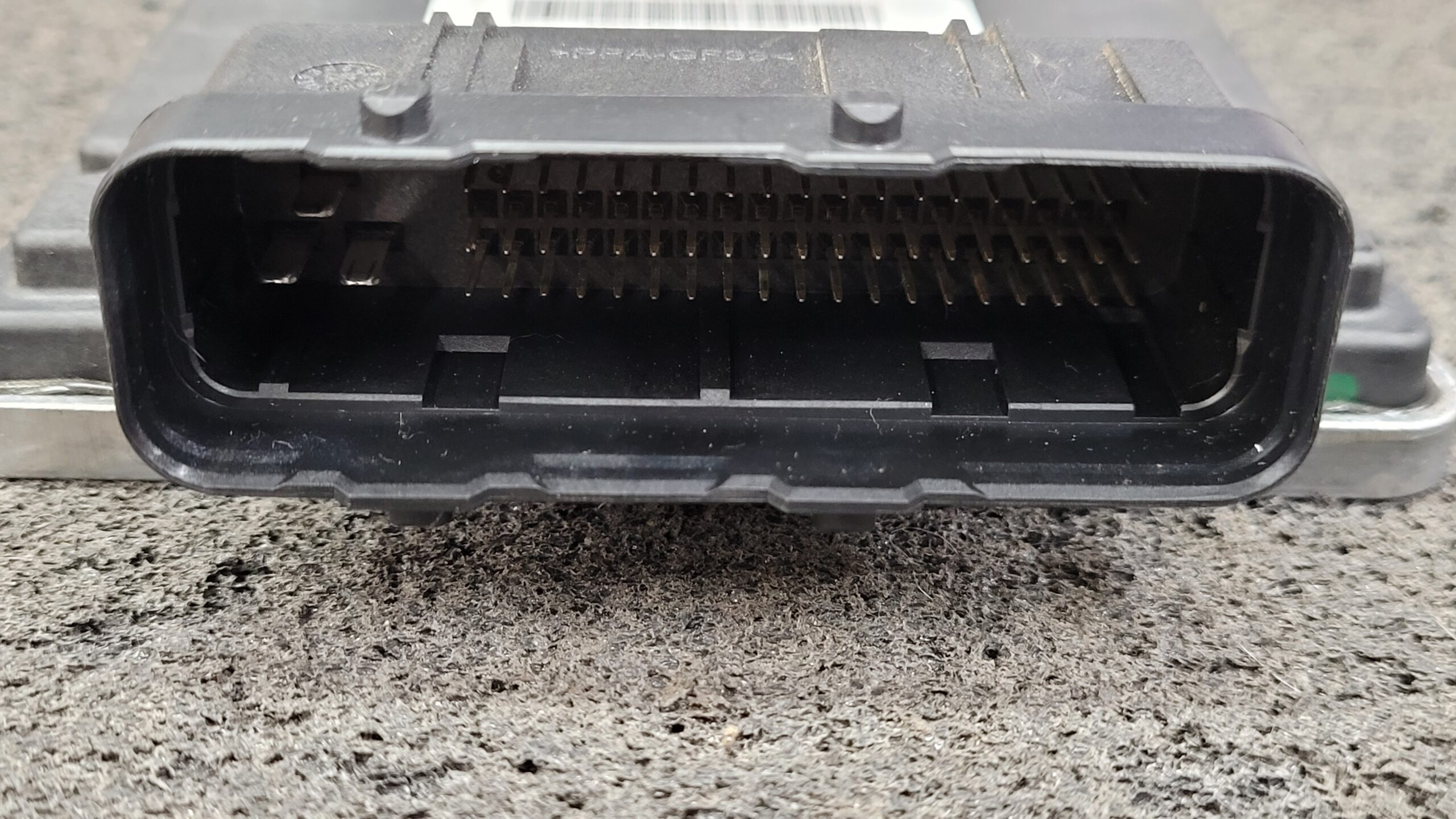

Pin Out (Soon)
Teardown will be later
Last Updated on October 24, 2026 by Steven Rhine
