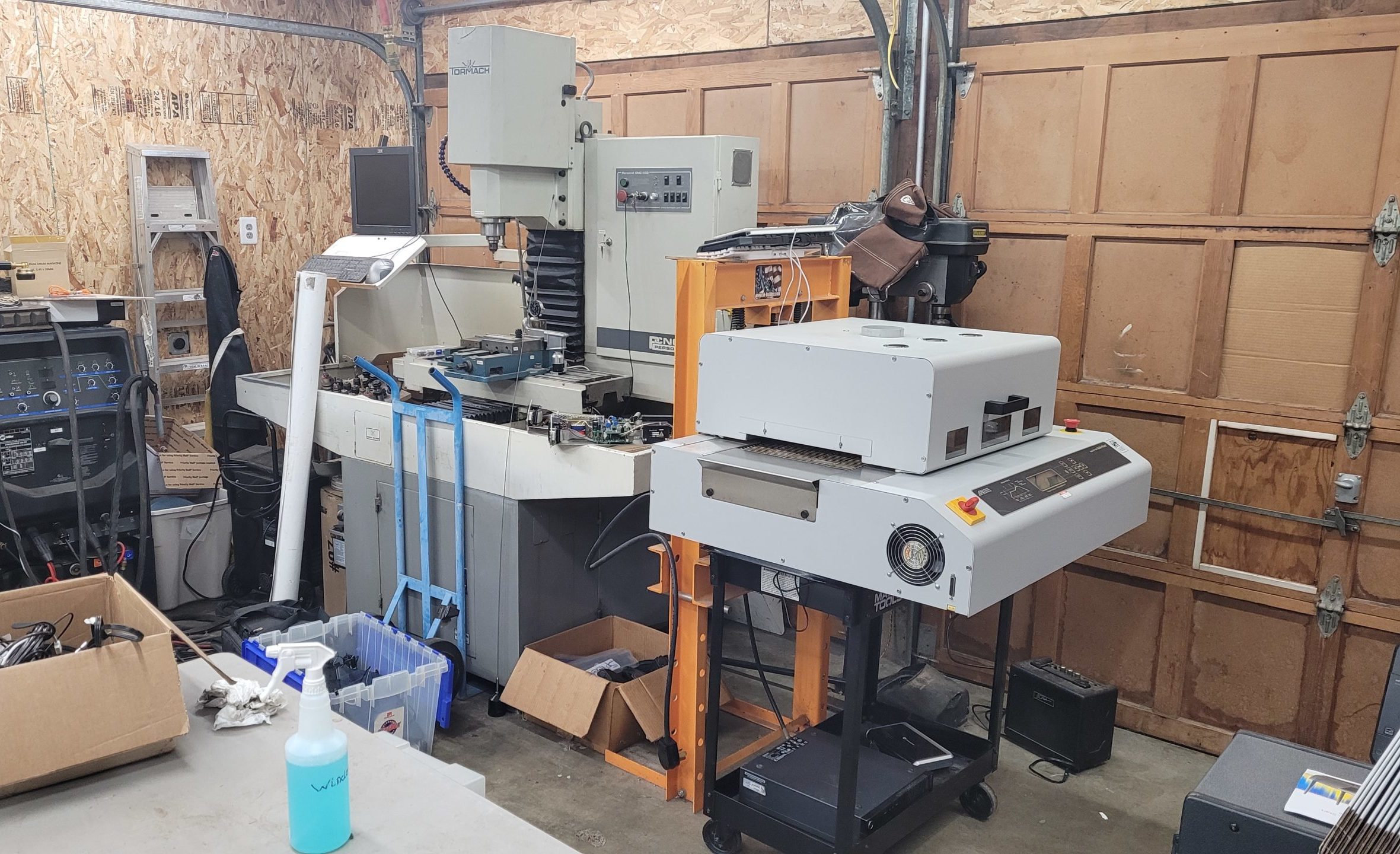

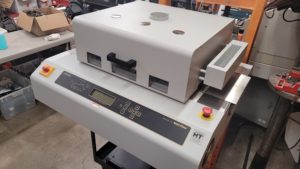

Detailed Photos The GF-12HC/HT In my Over Crowded Shop.
Heating Section
DDM Novastar Automated Production Systems GF-12HC HT PCB Reflow Oven Lockout Codes / Passwords

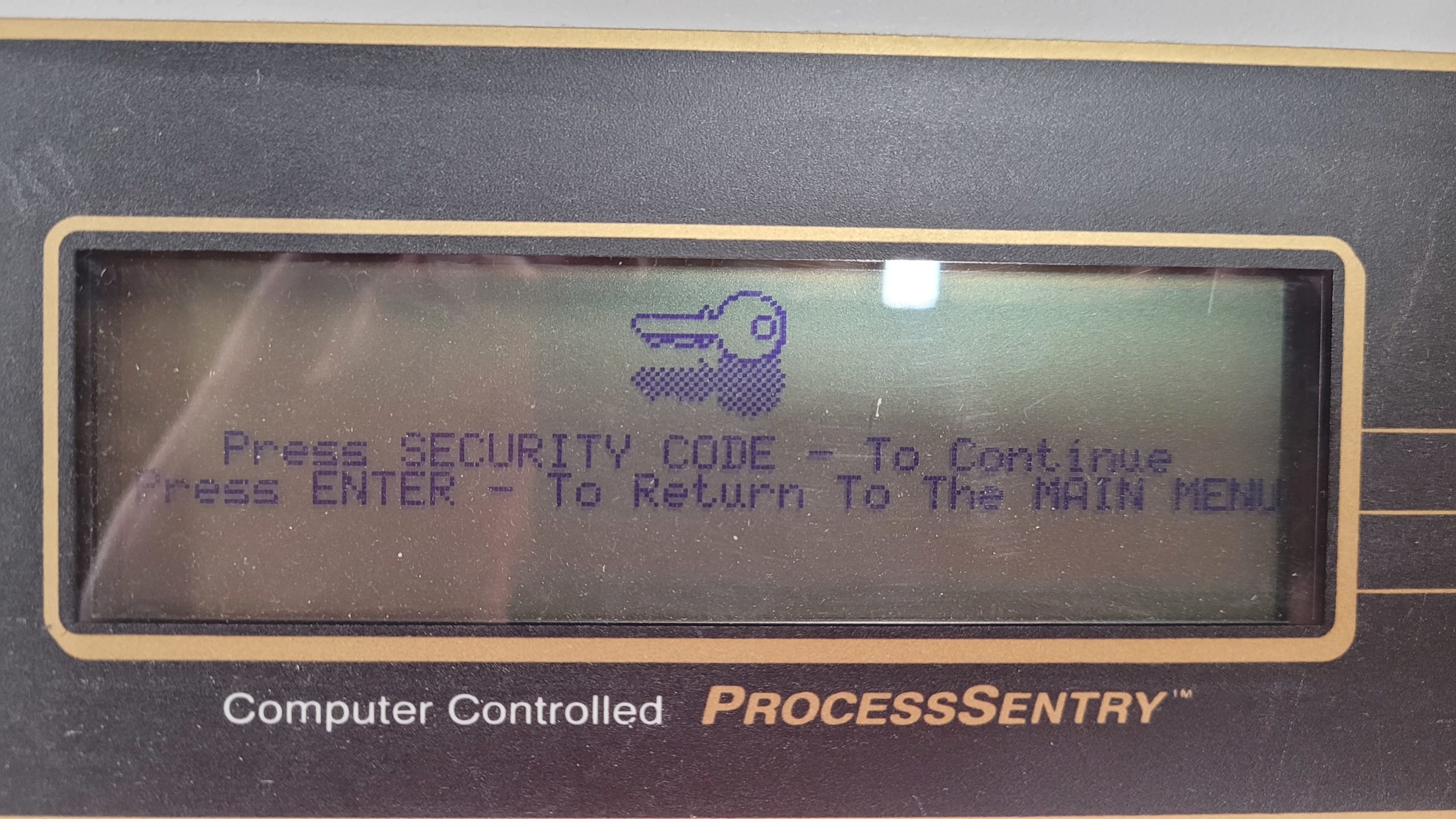

Lets Maybe Find a Way To Disable Them?

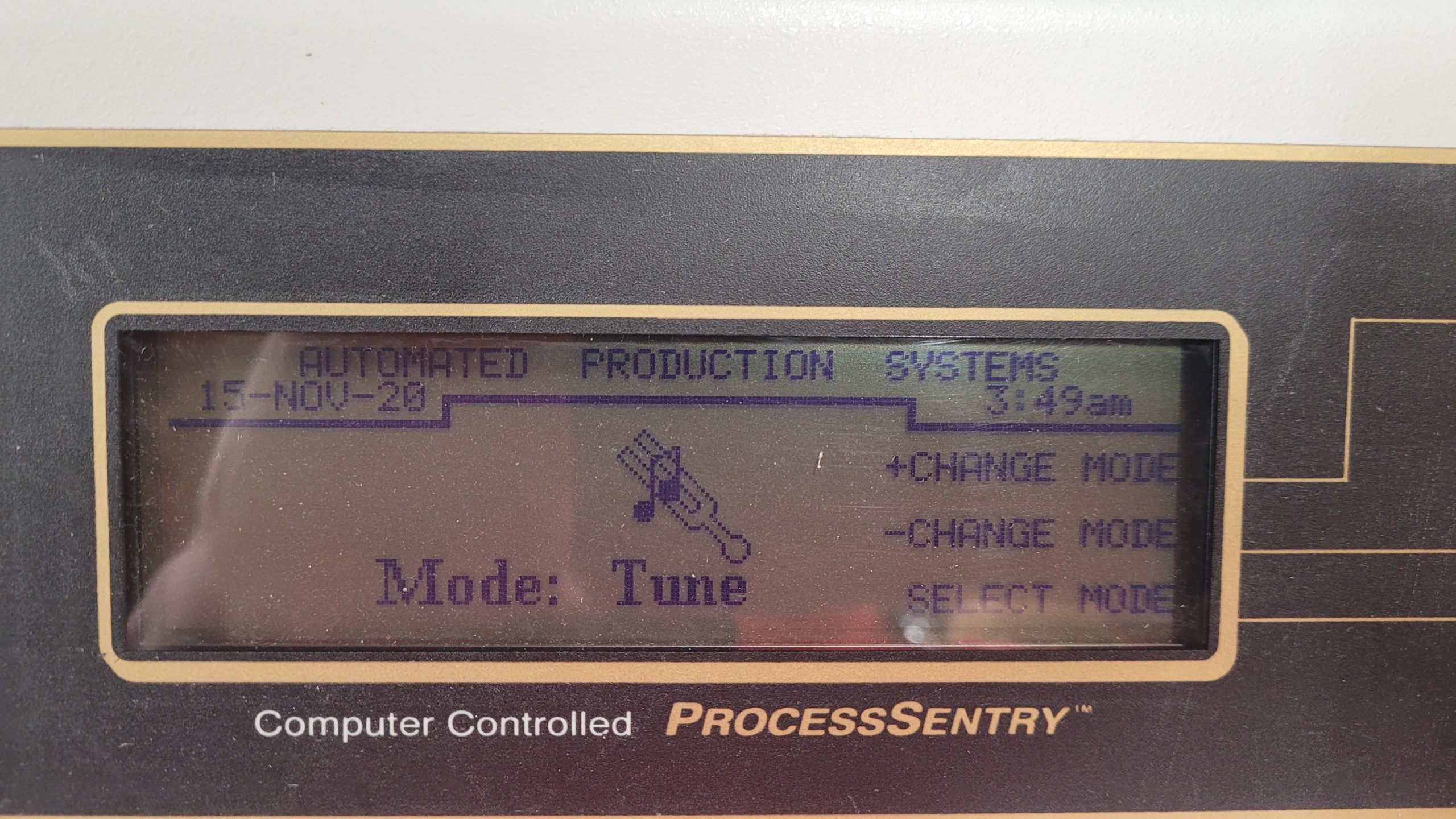

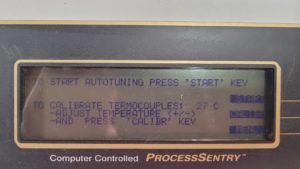

Tune: F1 – Left – Down – Right

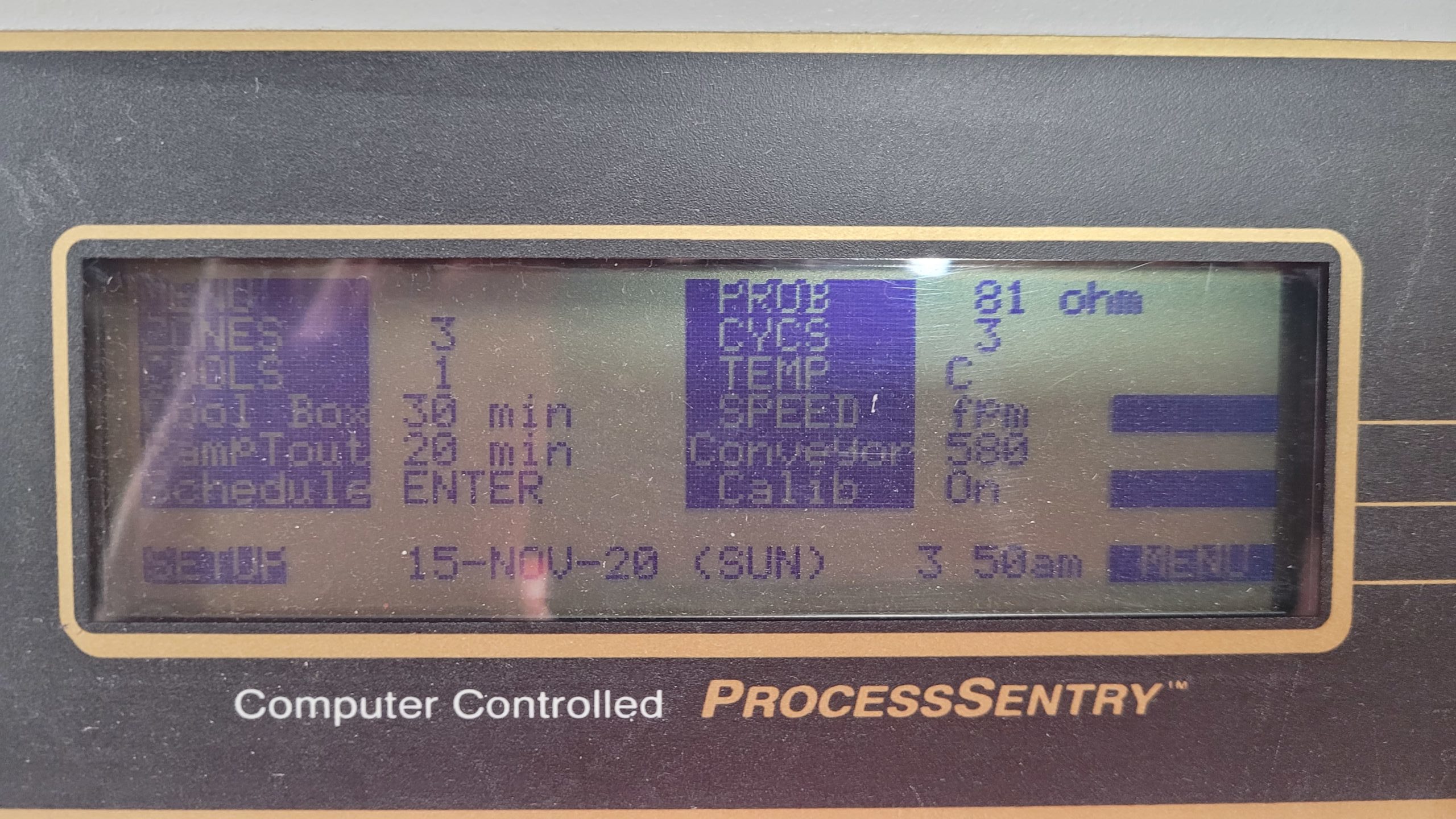

Setup: F2 – Left – Up – Down
Video of New Appliance.
Yep!!! My Curiosity Strikes Again Whats Under The Hood of this Reflow Oven Lets See it’s Guts.. Mini Teardown!

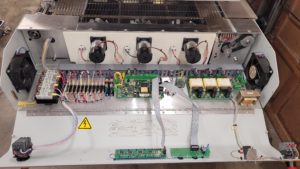

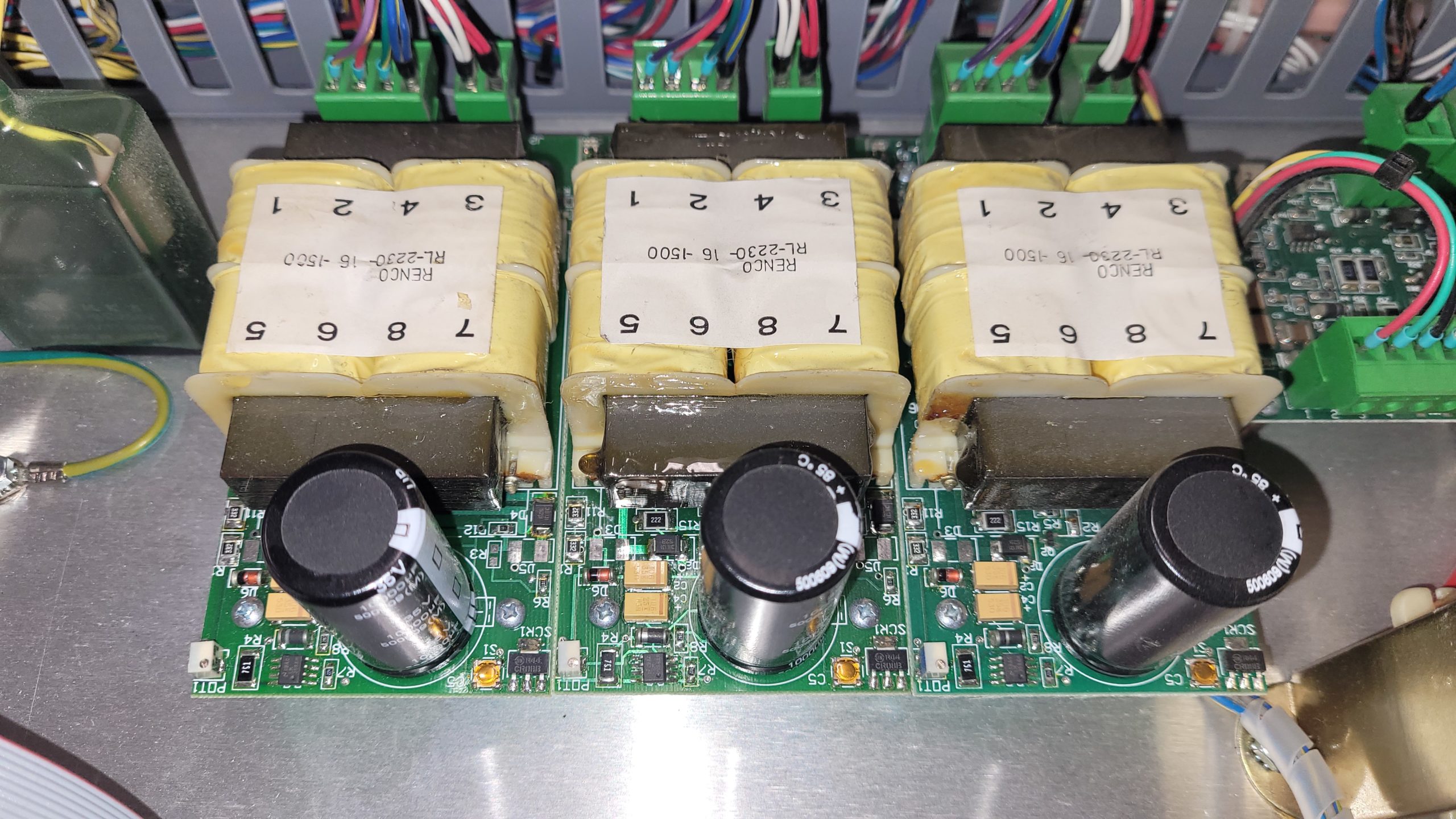

The Novastar GF-12HC / GF-12HT is Simple to Open Up! Couple Screws on the side and few across the top front panel will open up the front panel.

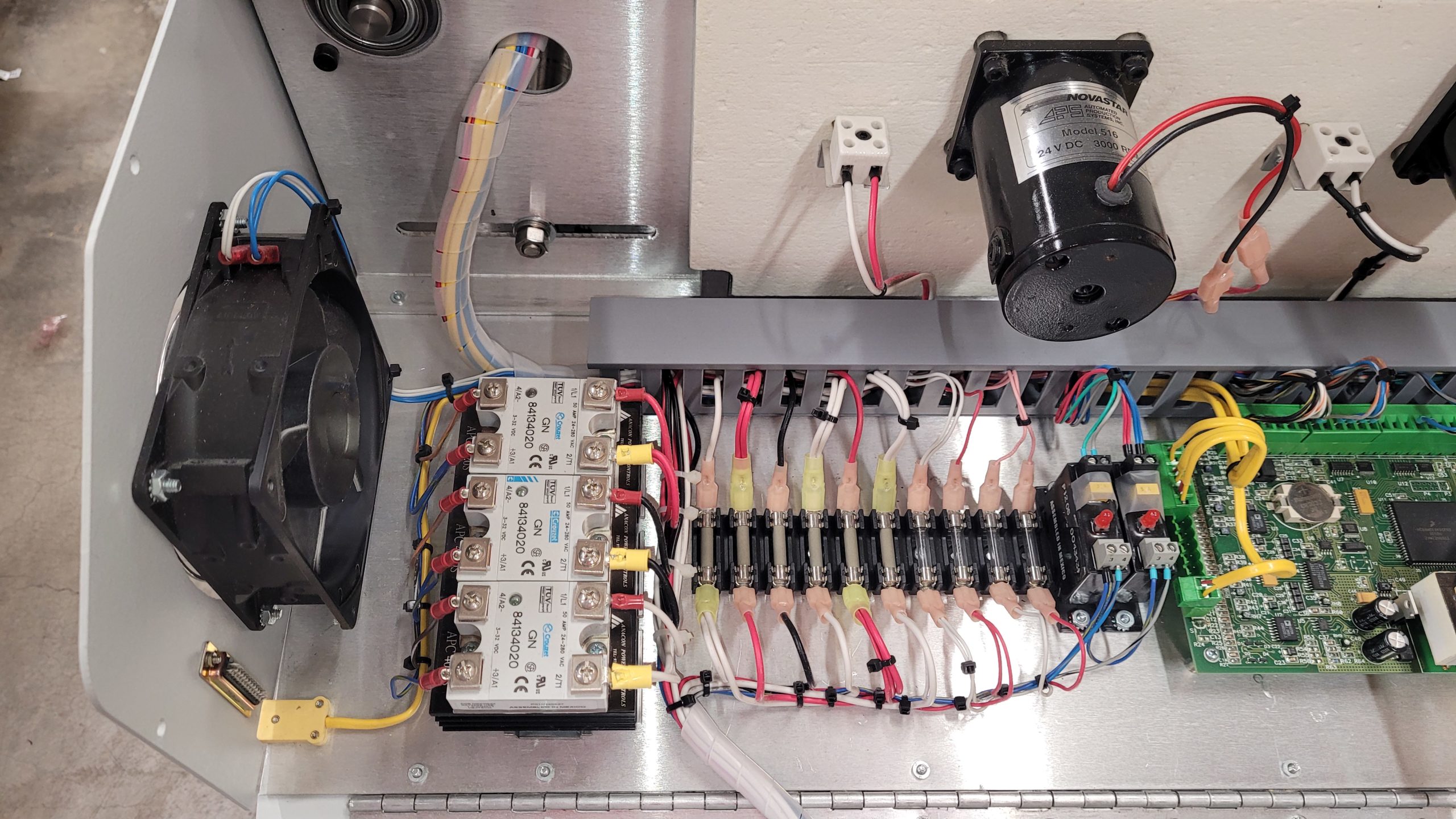

Left Side PC Serial Connector has NO Connection?? Where Does it Go?

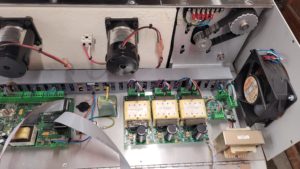

Right Side

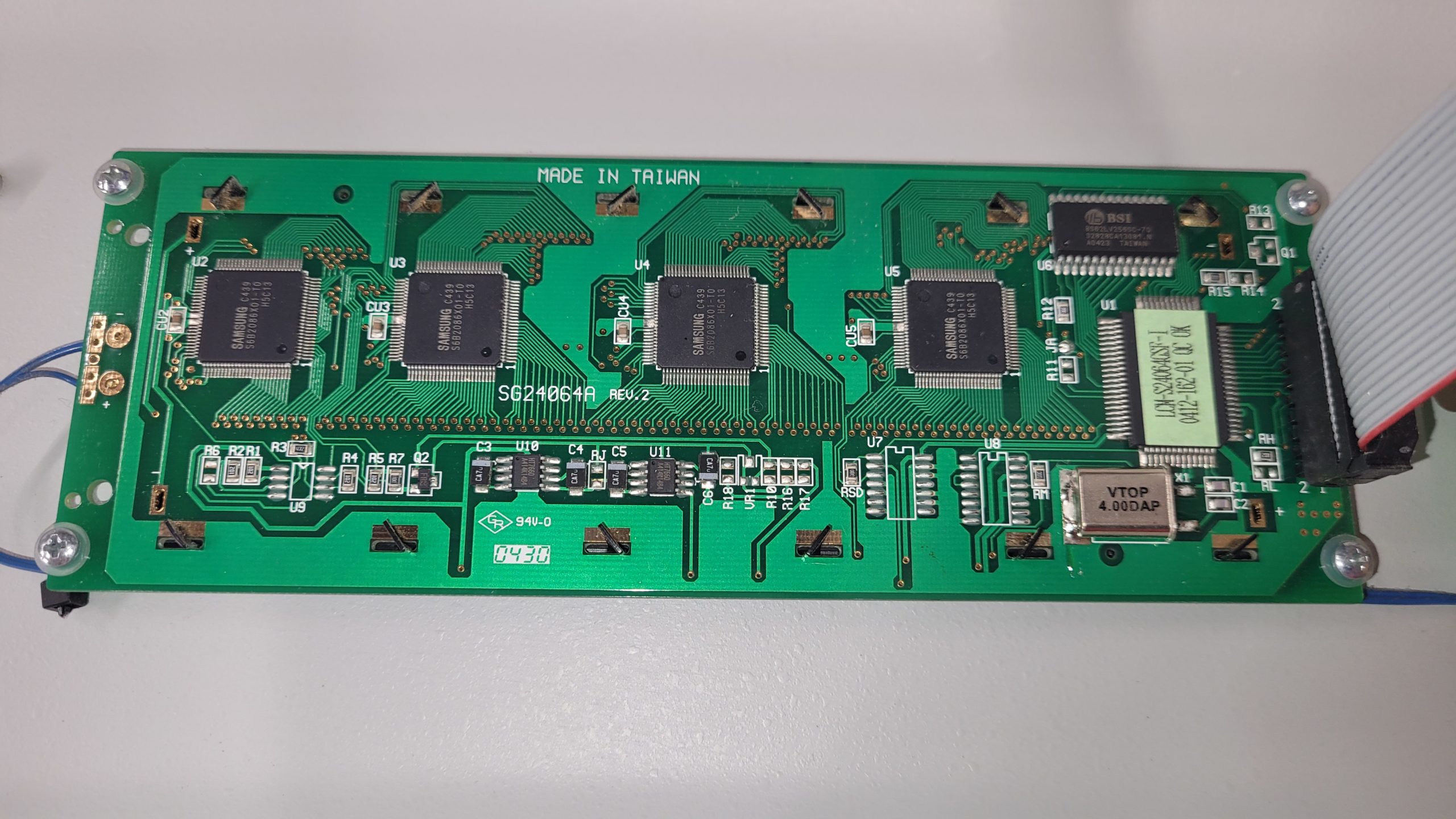

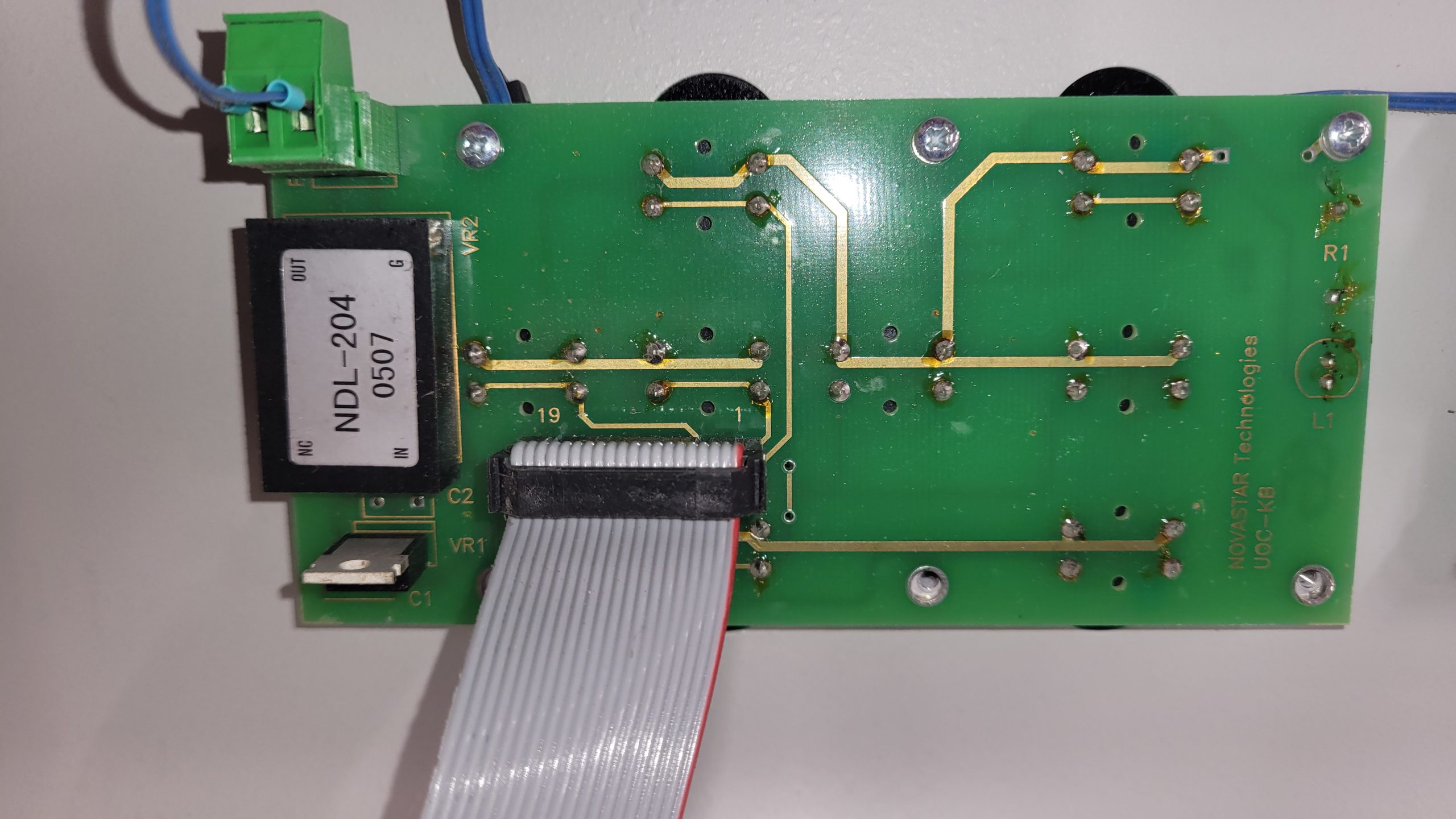

Display Looks Like Off the Shelf Part sg24064a (Link) and Button Board

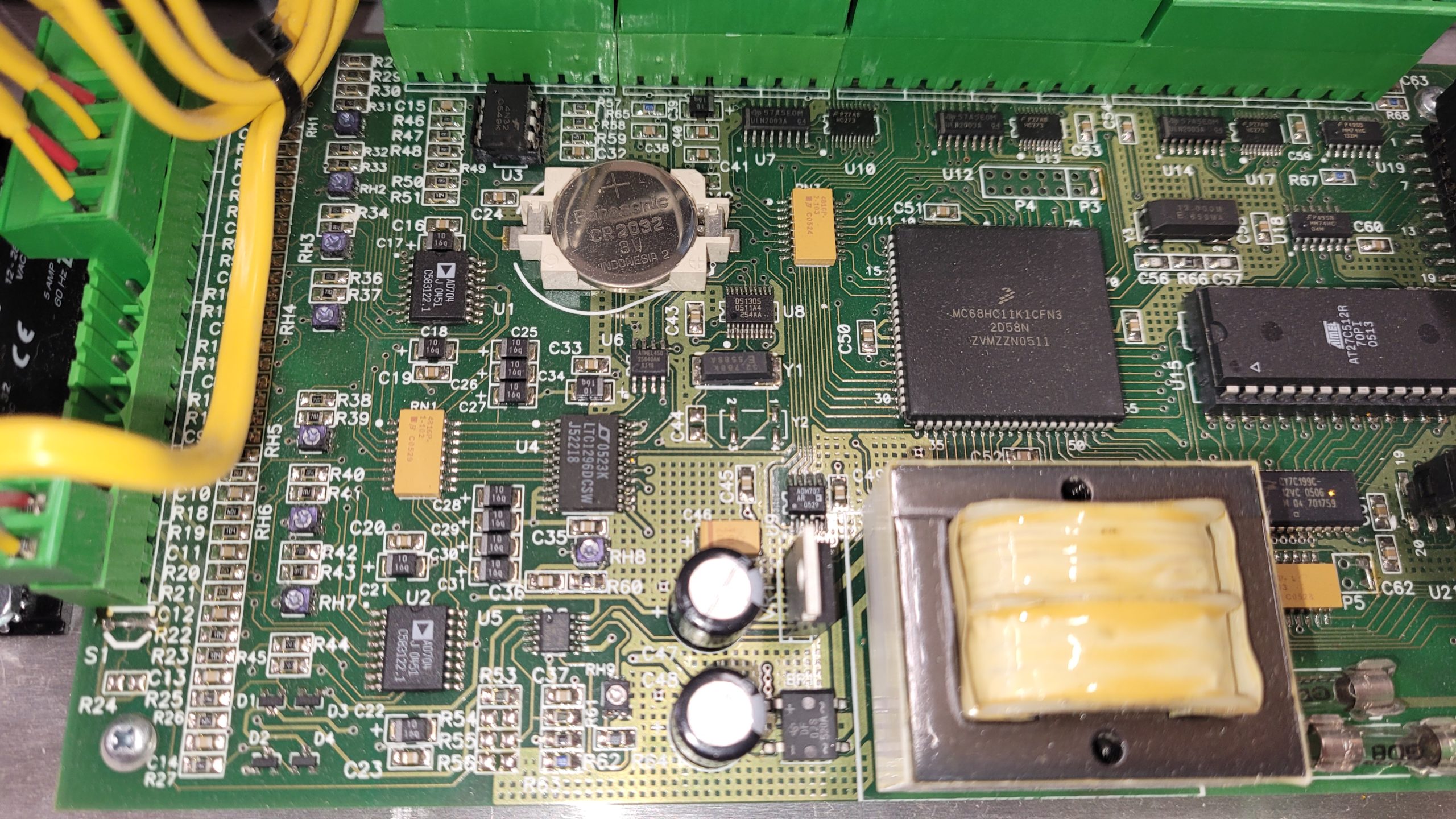

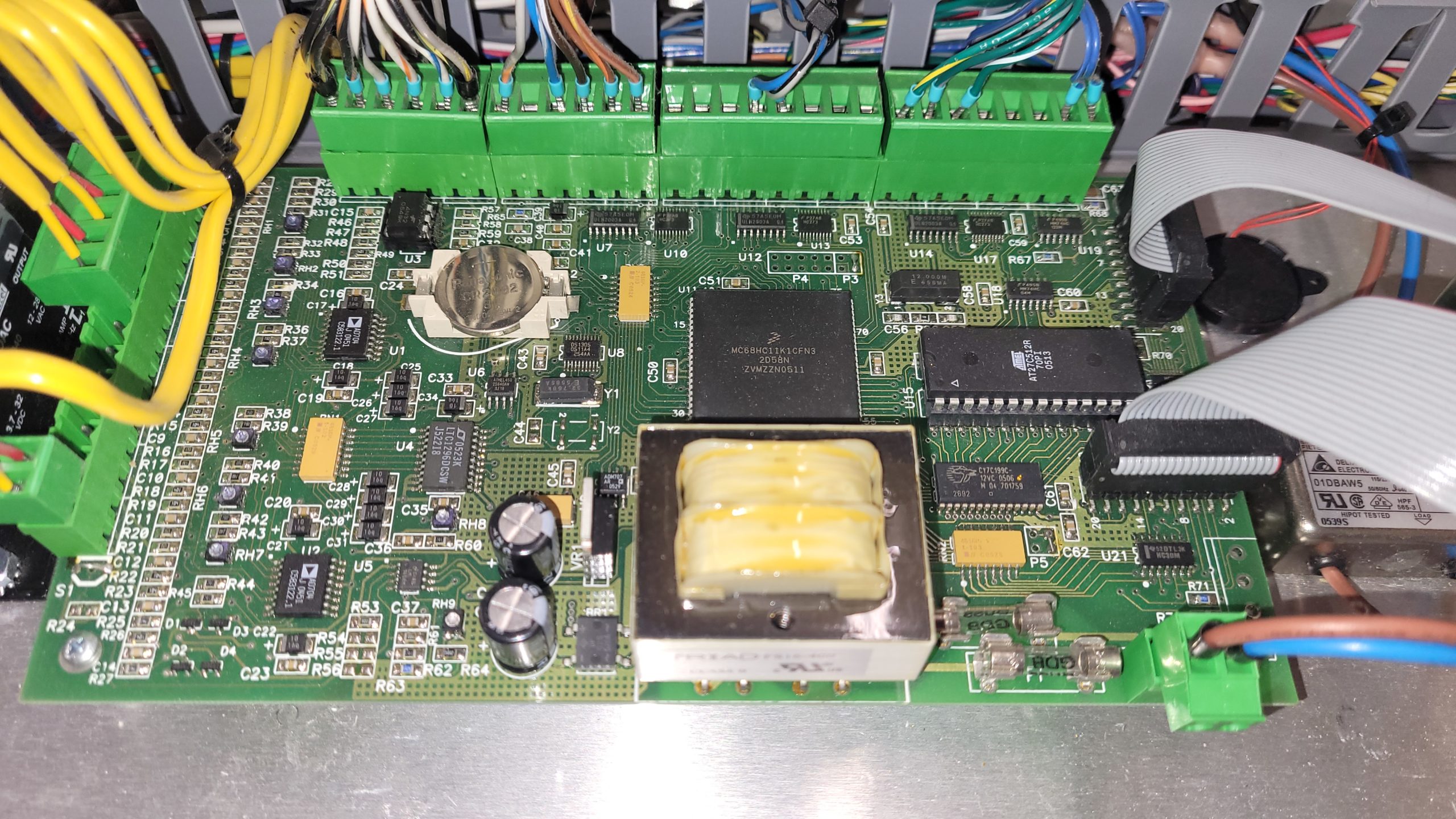

Main Board Main CPU MC68HC11K1CFN3 Data Sheet
Some Chips..

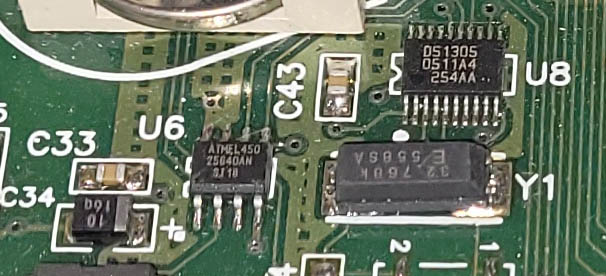

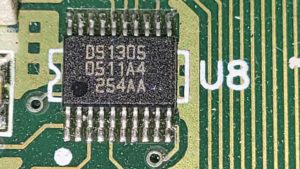

U8 DS1305 Serial Alarm Real Time Clock Data Sheet
AT25640 64K EEprom (Photo Was Messed Up So Had to Crop.) Data Sheet

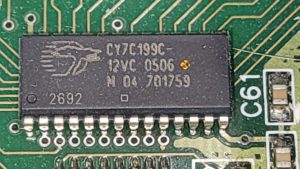

Cypress CY7C119C-12VC 256K Static Ram Data Sheet

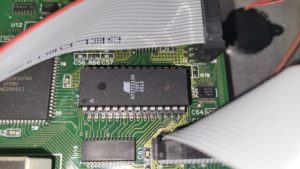

Atmel AT27C512R Eprom Data Sheet (Backup)

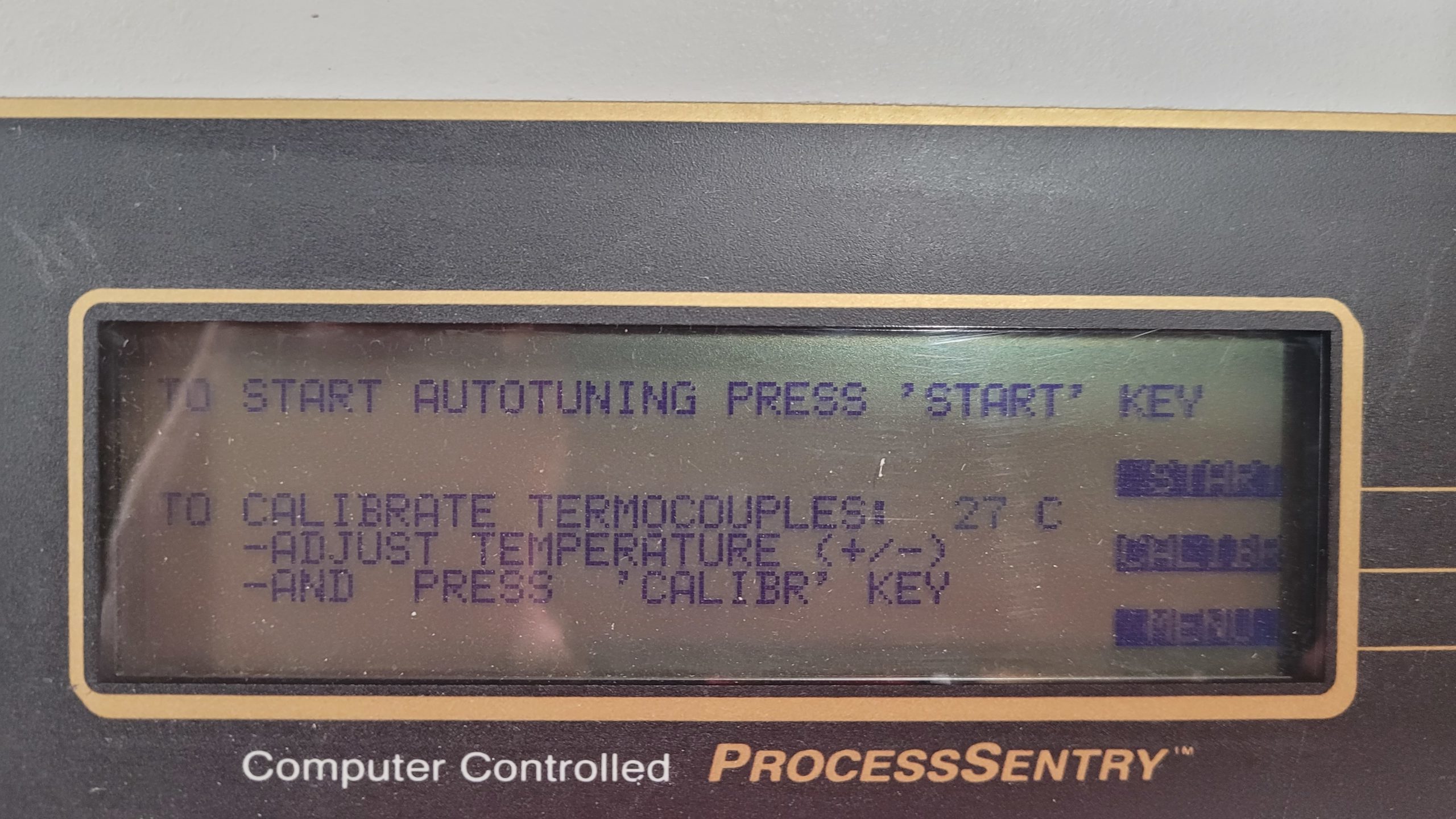

Some Other Novastar GF-12HC / GF-12HT Display Photos.

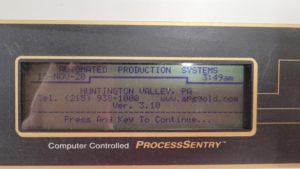

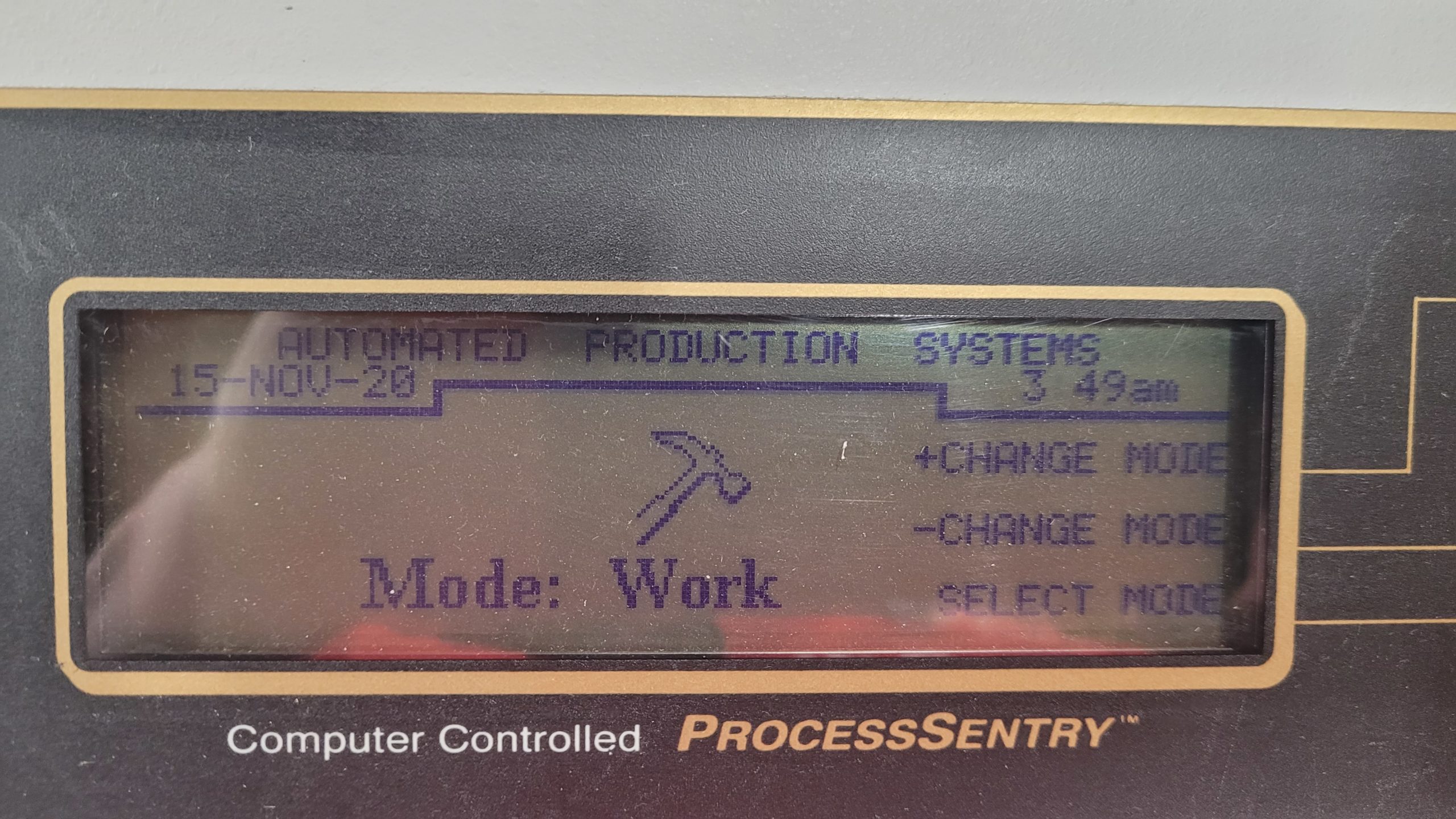

Welcome Screen

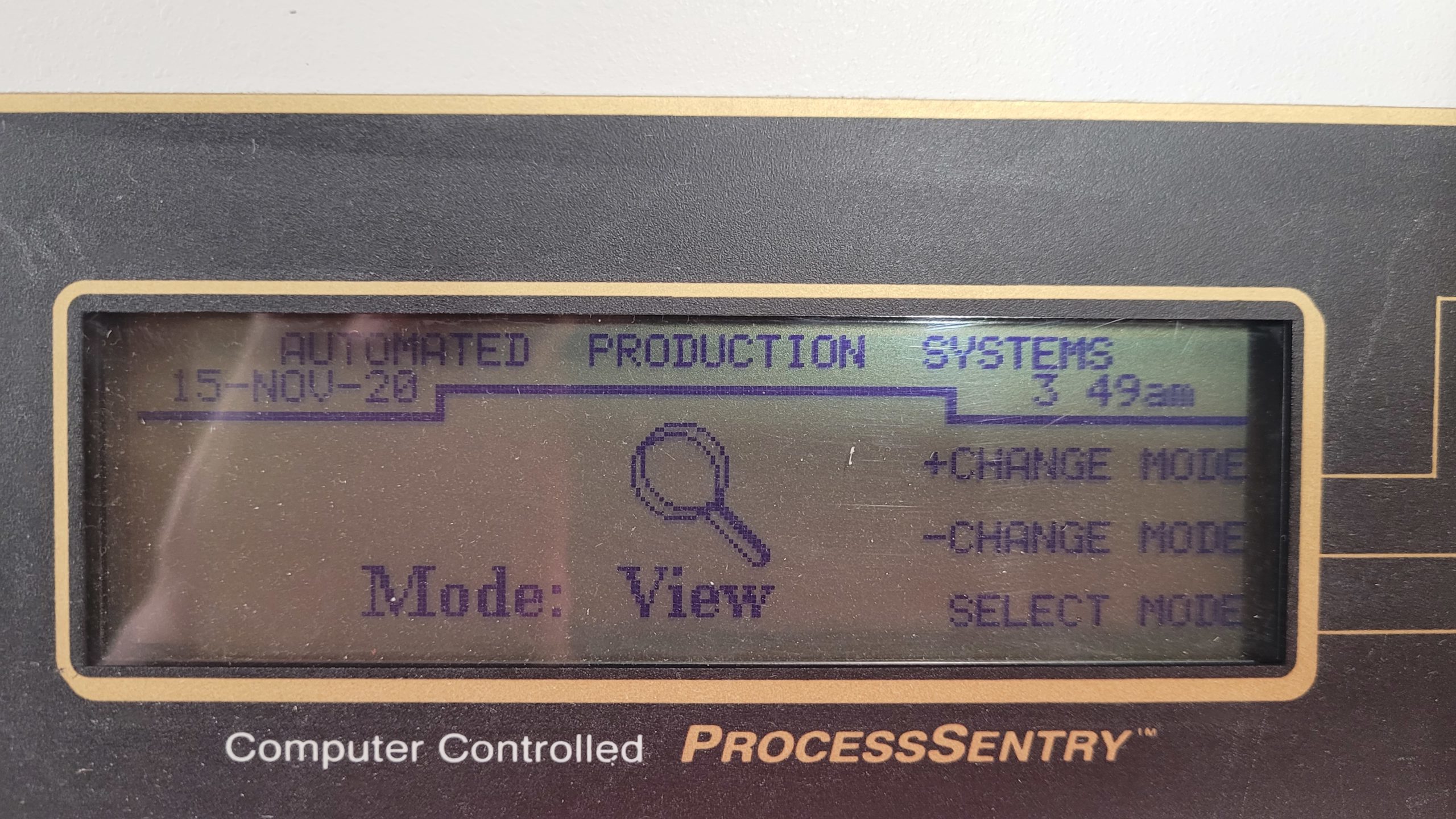

View

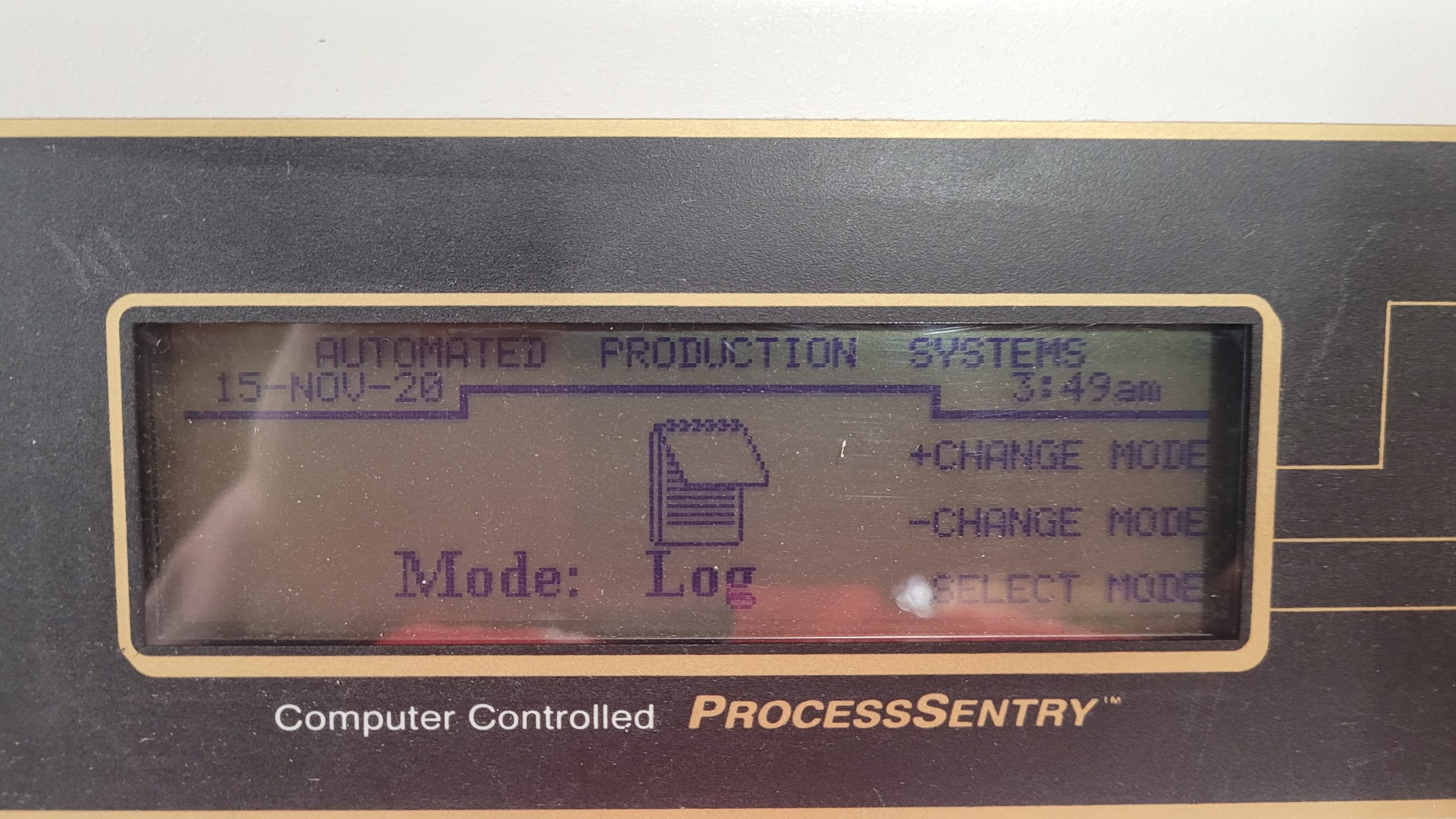

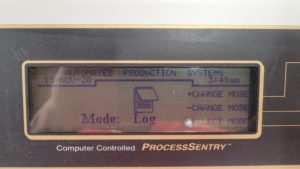

Log

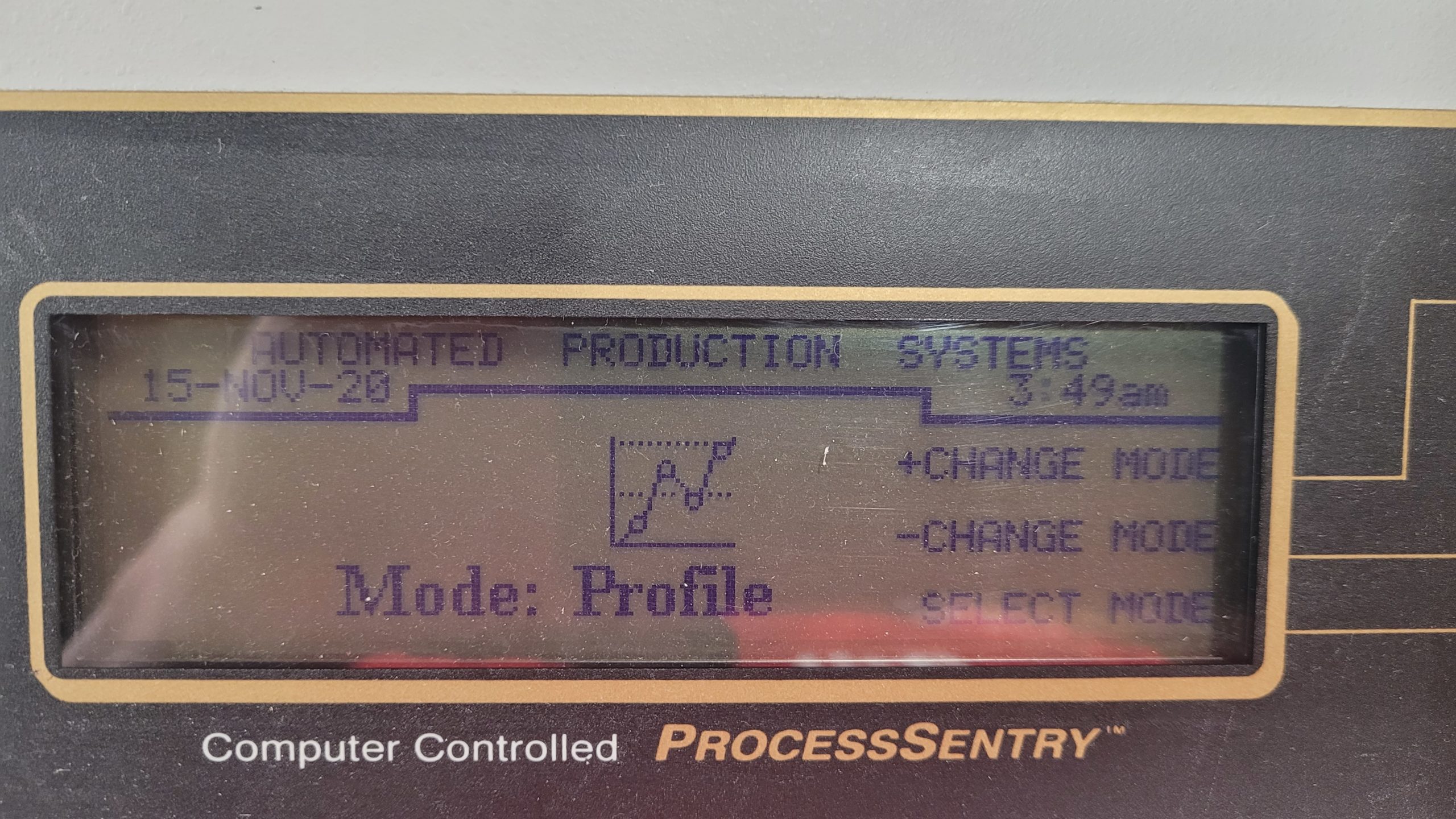

Profile
Work
