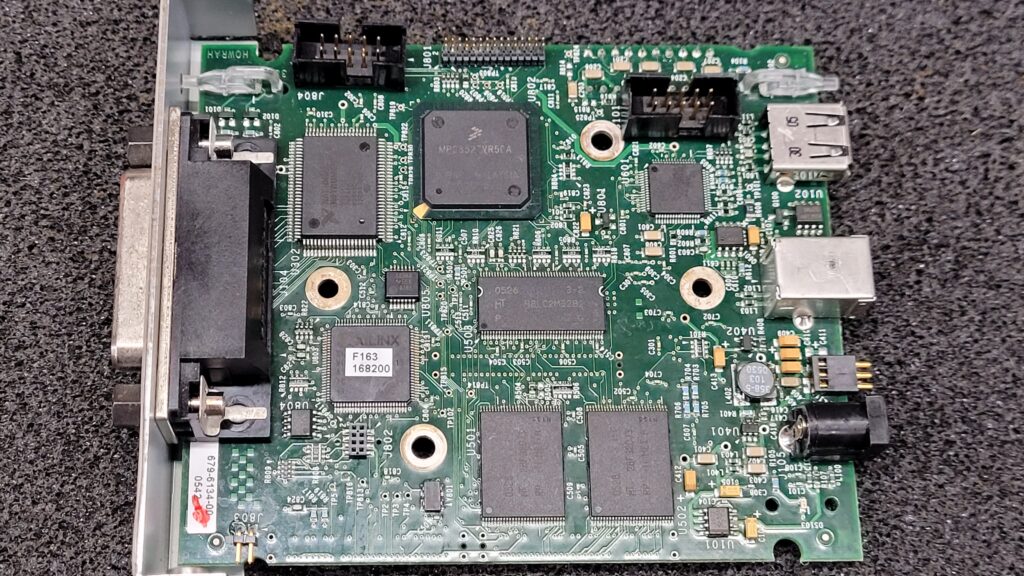

Teardown: Tektronix TEK-USB-488 GPIB to USB Adapter
This unit is dead.. Shorted on the 5V not sure if I want to fix it or feebay it as is. I don’t have a compatible piece of test equipment (Check the TekWiki)
07/05 Video
Firmware is on Tektronix Site Prob not for loading bare Silicon I’ll prob back up the TSOP’s for people with bricked units.
Manual Tektronix Site
Photos (Soon)

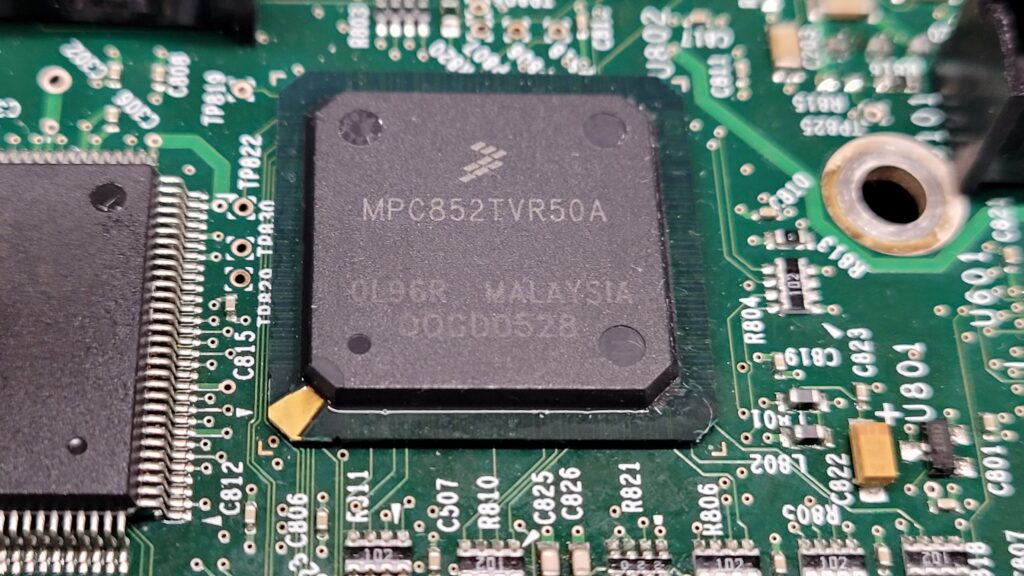

MCU

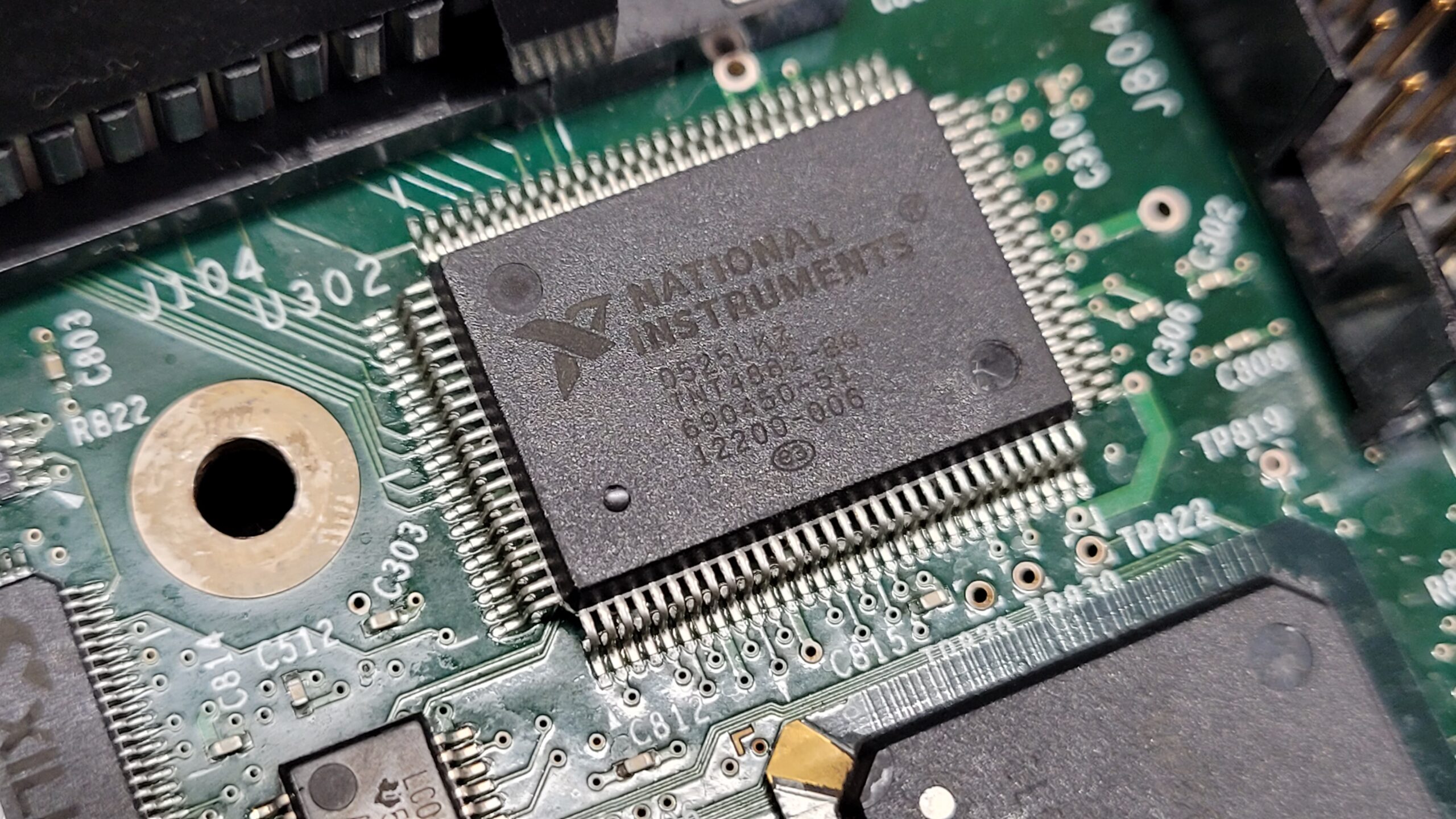

National Instruments TNT488
USB Philips ISP1160

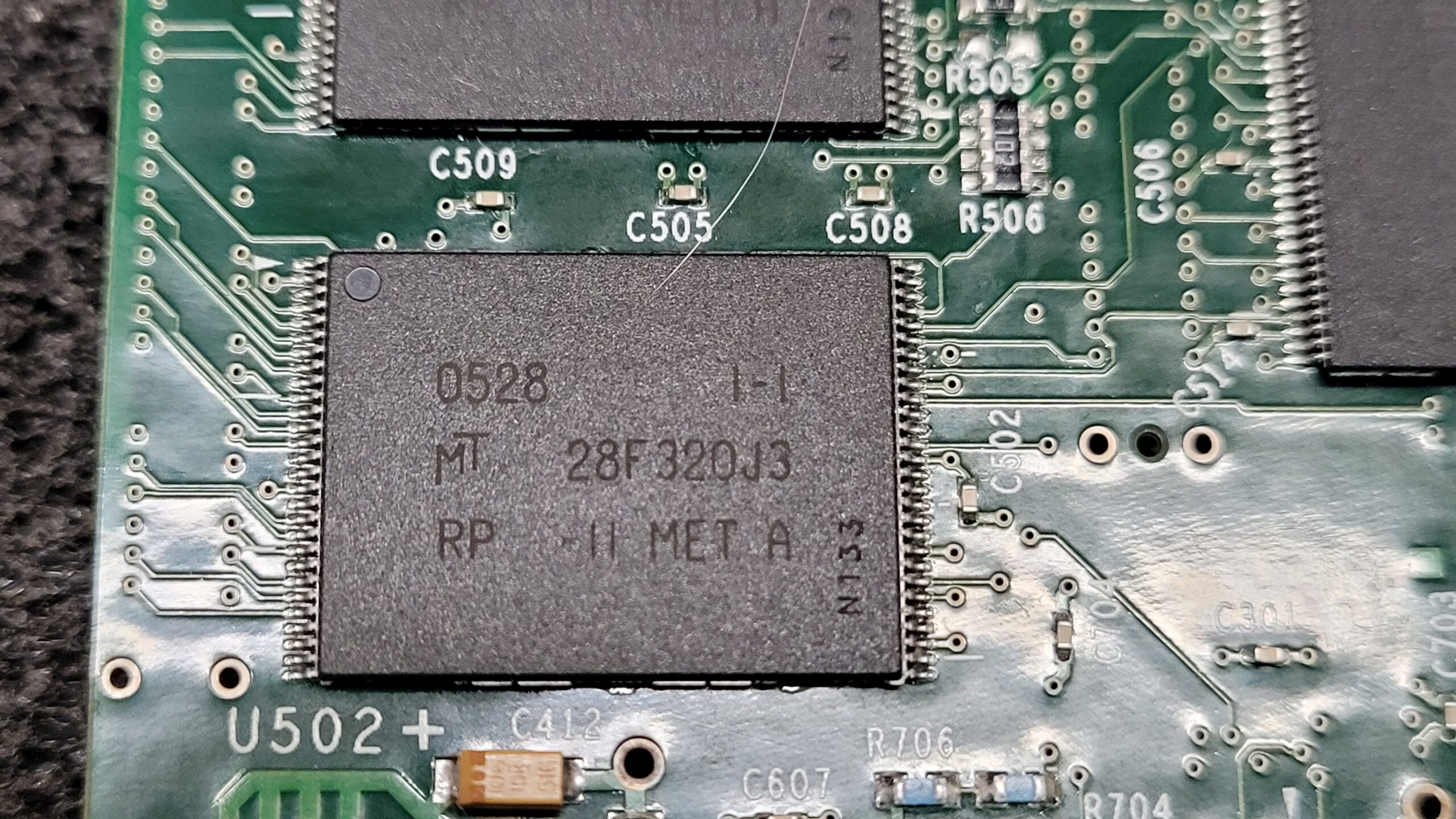

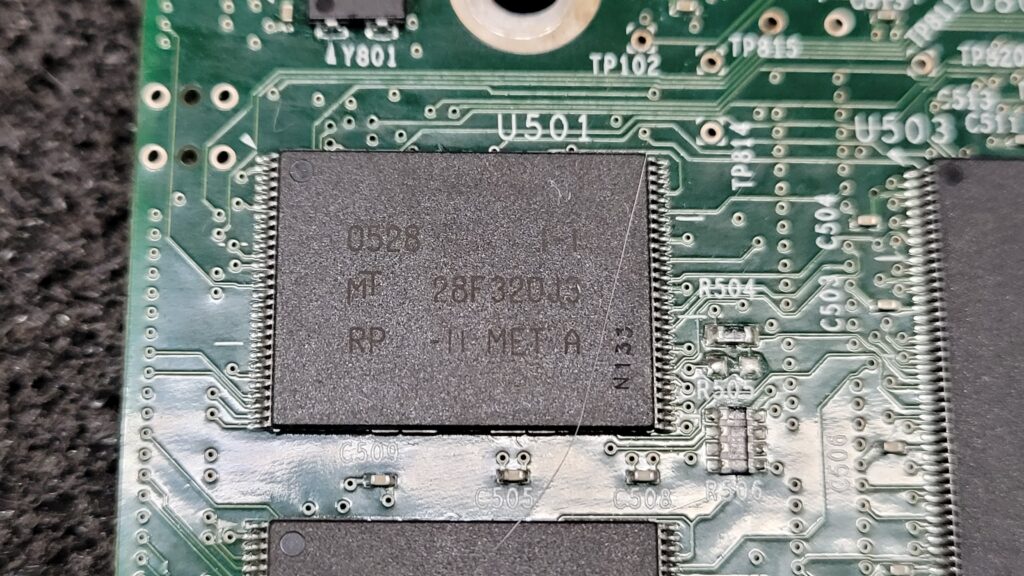

Flash U501 & U502 28F320J3 TSOP56

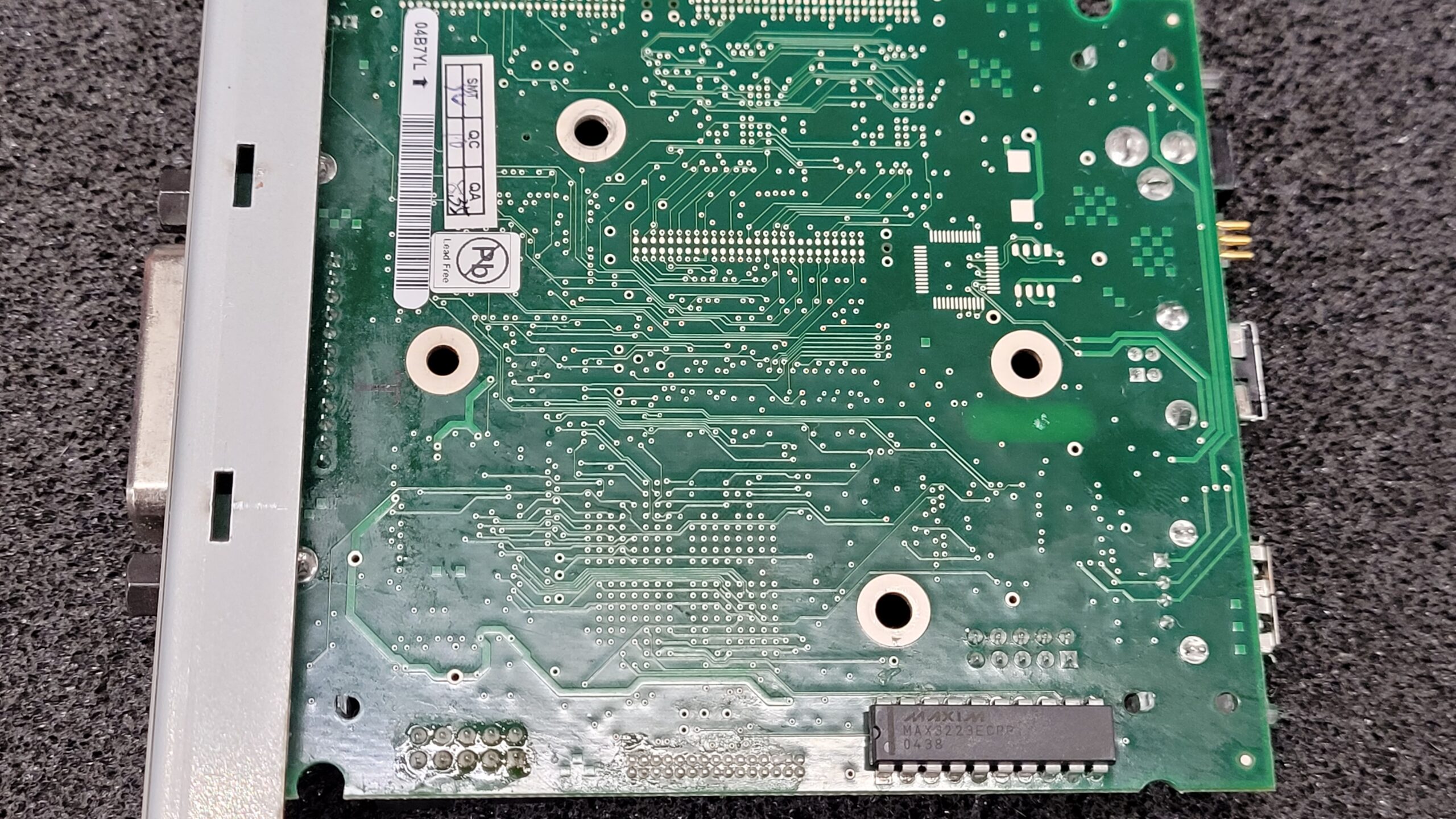

A MAX3223ECPP On the Bottom of the Board.
I gave it +5V and some current and 2 Tantlums C104 and C308 glowed under FLIR as well as that U101 a mosfet removed tantalum Both tantalum’s confirmed shorted as well as the mosfet. I Replaced tantalum’s with some I had on hand I removed the mosfet and it cleared the short but this may have other issues. I may order a mosfet on my next mouser or digikey order not sure.
U101 IC Marked 55M is Also marked 2012 I believe it is a mosfet TPS2012 from the pad layout.
I spent 20-30min on it that’s my max before I condemn it to the feebay or scrap bin. Since I do not have a piece of test equipment it works on.
I spent another 30min determined that the NI4882 Chip is bad this is a parts bin device now.
I will back up the Flash and the Xilinx chip.
