PCB X-Ray of the Week | Nintendo NES Super Mario Brothers 3 Cartridge PCB X-ray NES-TSROM-06 Mapper this game pushed the 8 bit NES hardware to its limits.
When i was a kid i spent more time than i should have playing this game.. so as an adult I wanted to play it again… I bought one! Ebay Seller Item arrived in as described condition PCB connections were a bit dirty (to be expected) other than that PCB was in perfect condition.
I know these cartridges have been posted before but ya dont see many X-rays since I had it open for a inspection and a cleaning said why not take an x-ray.

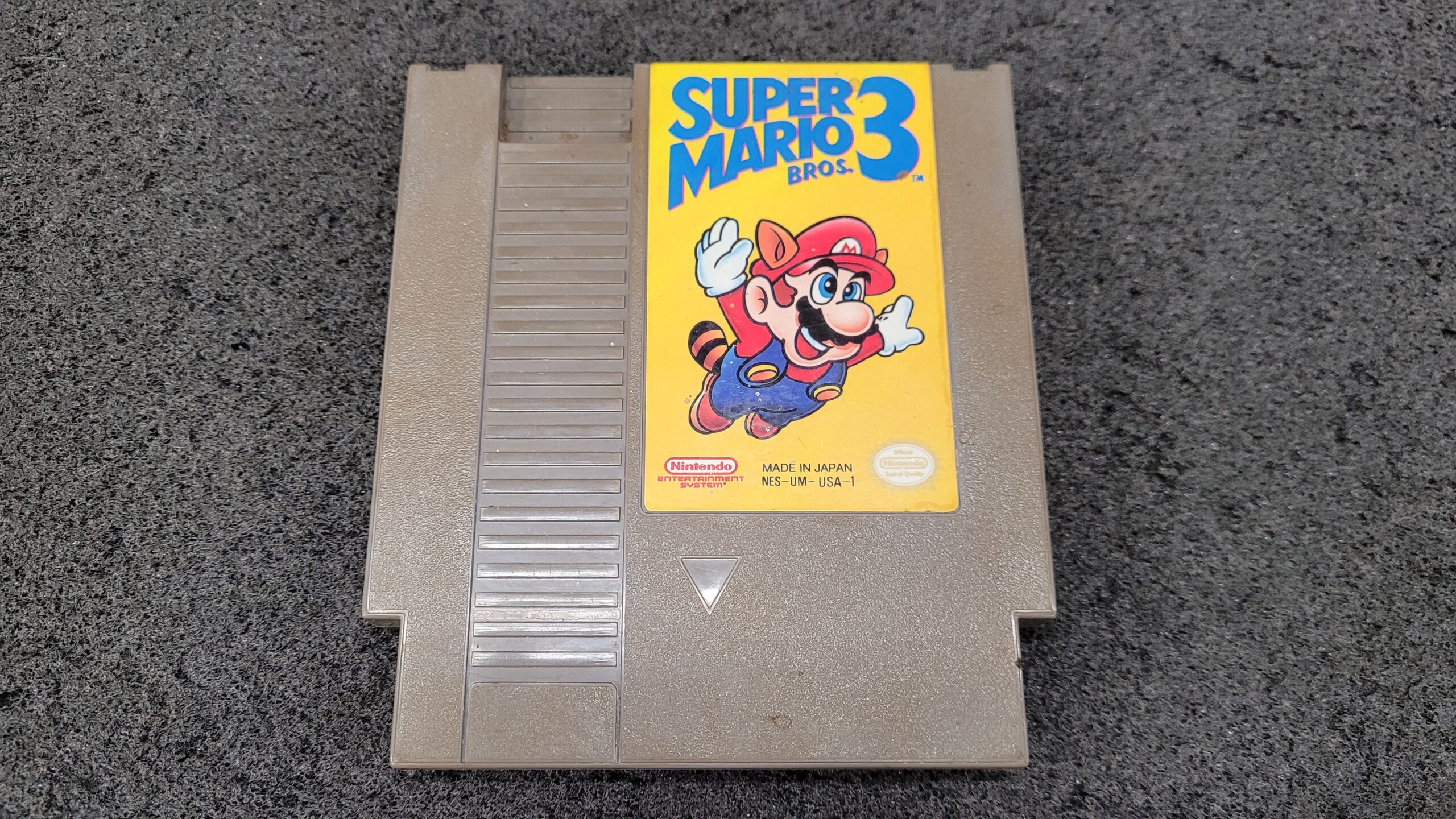

Super Mario Brothers 3 NES

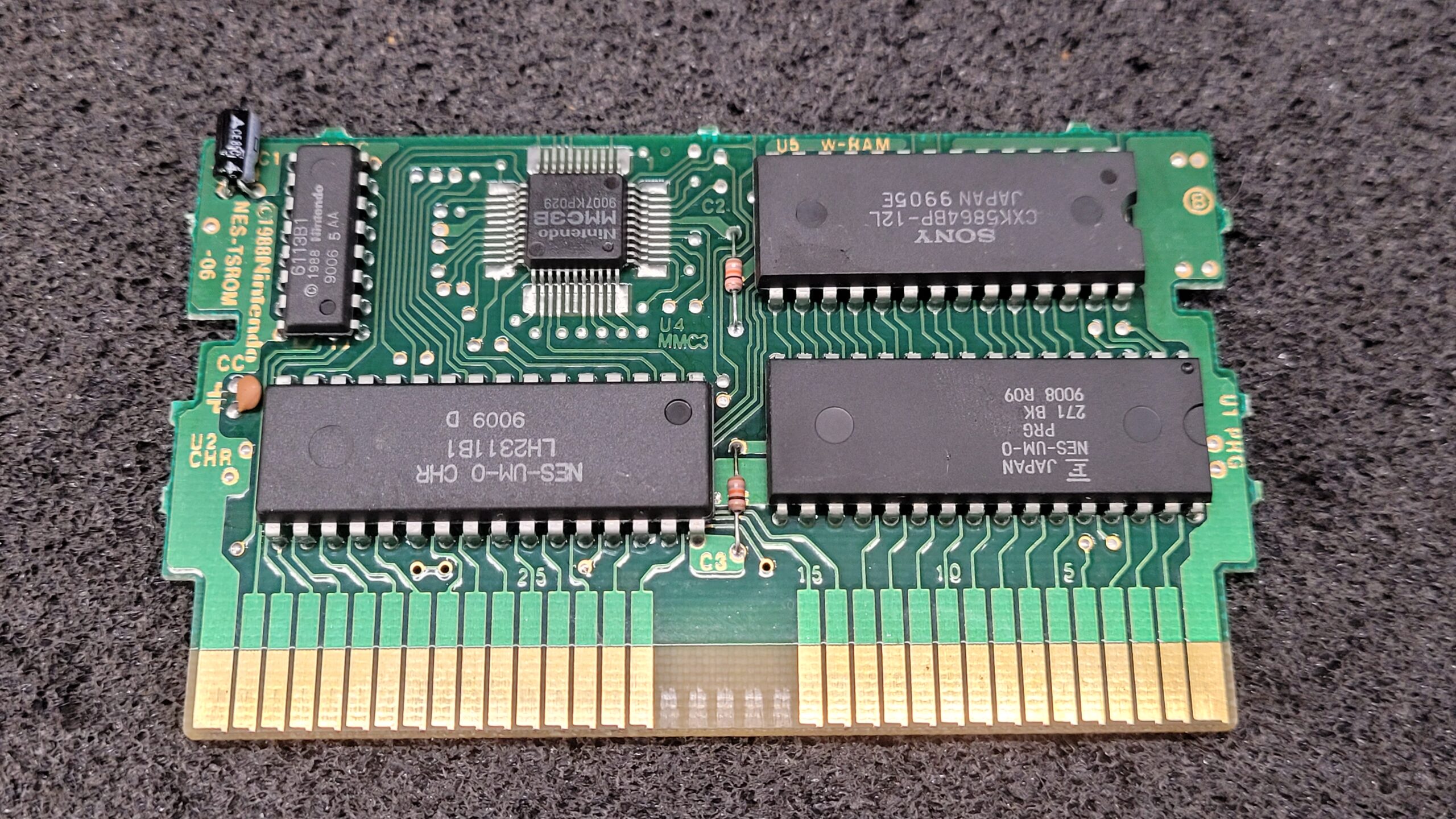

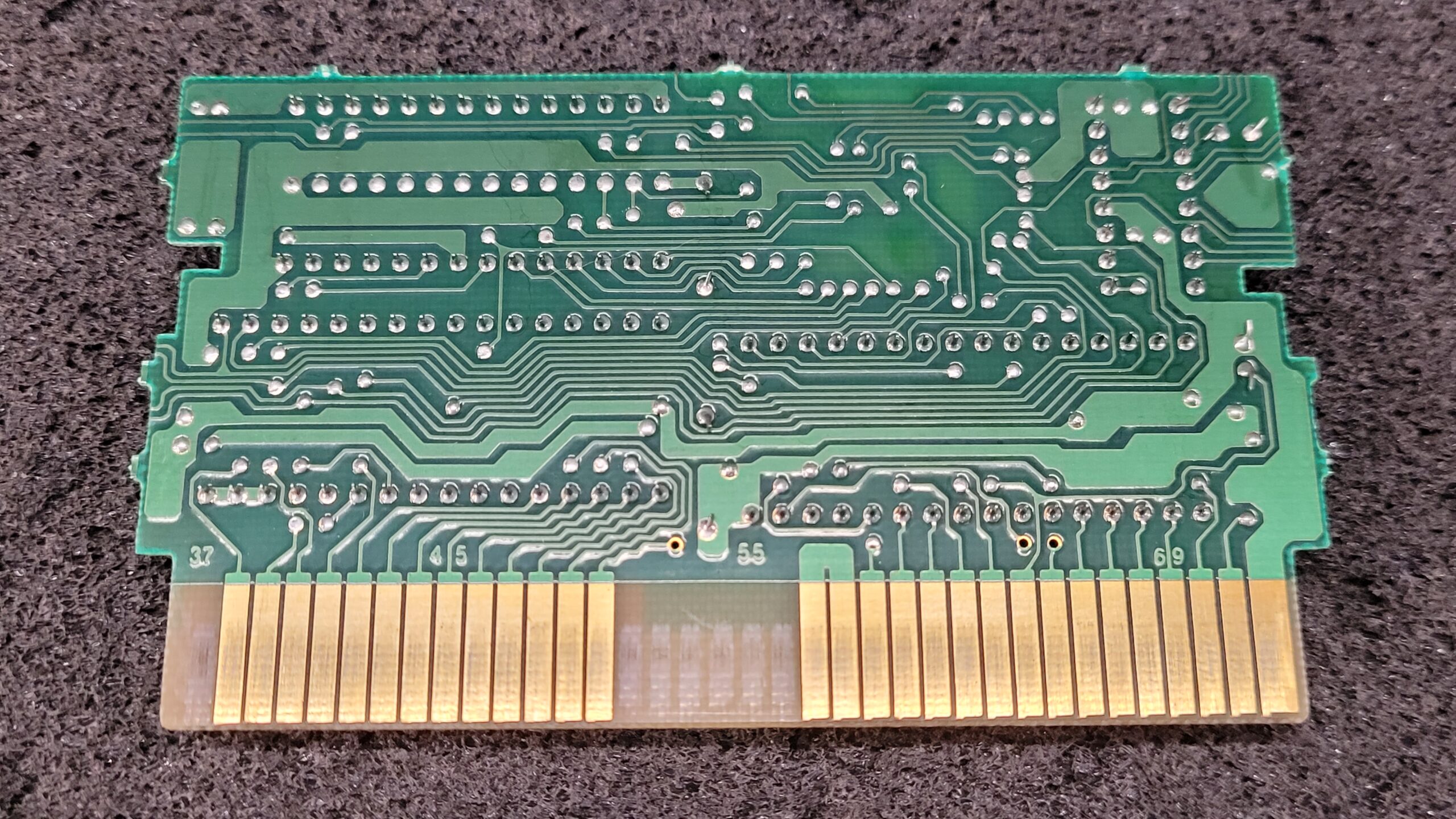

Photos of the PCB Many of these on the internet already.
Note: Creating Posts and Maintaining this blog requires a significant investment of time and resources. If you’ve found the content informative or helpful, your generous support is greatly appreciated. Donations can be made through Cash App all funds are used for Blog Projects, Hosting Bills, and Cottie Kitty Cat Cookie Fund. Donate Here

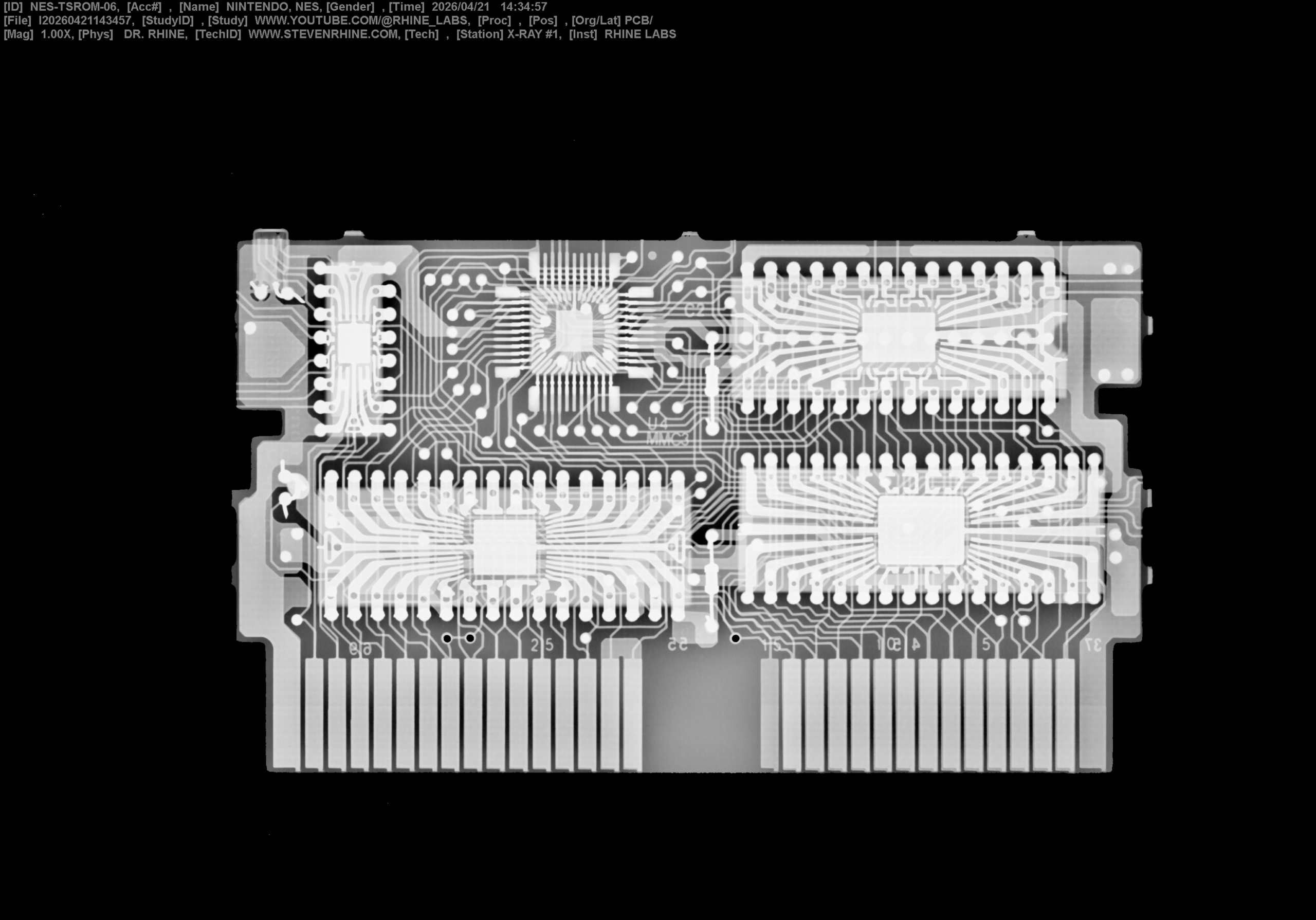

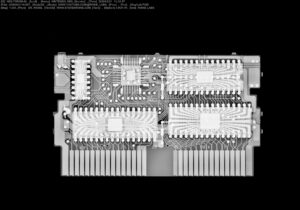

Here is a single at 1.oX

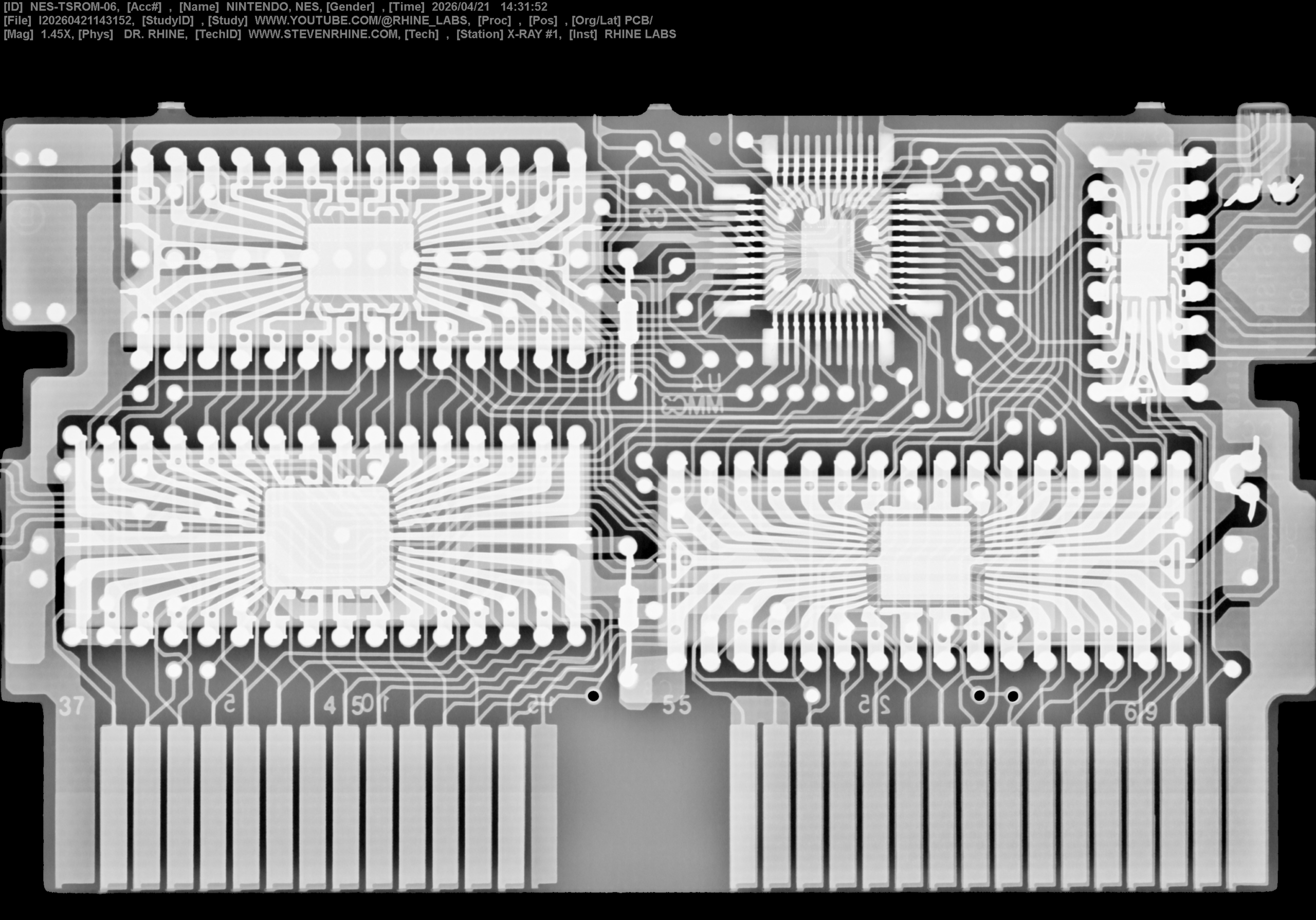

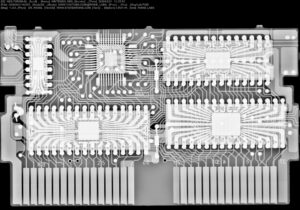

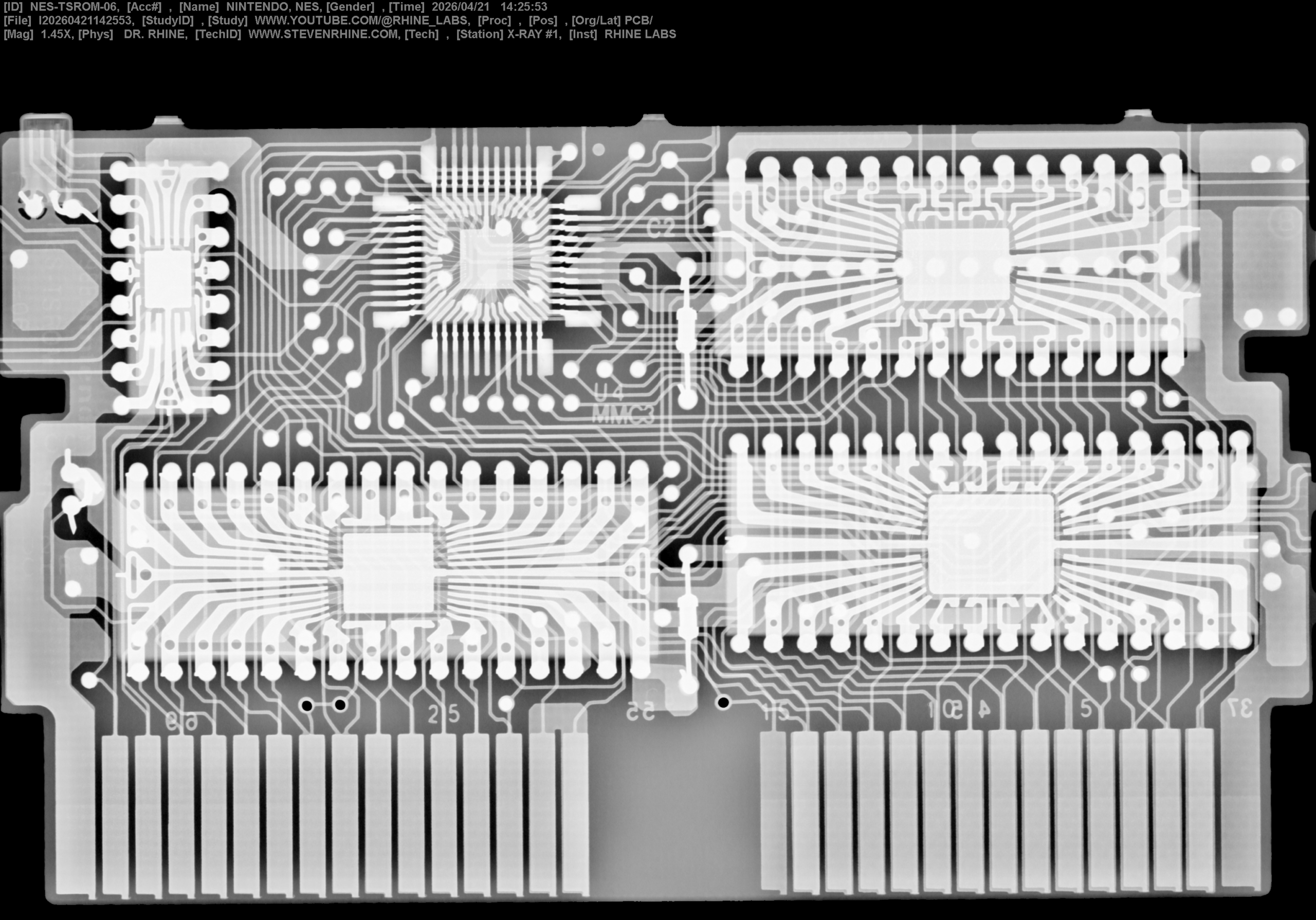

X-Rays I took 2 Exposures As you see in the photos Above.. these are at 1.45X
If You like this content ill post more…
