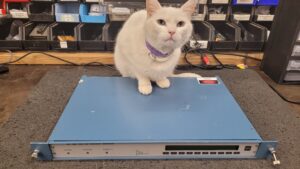

Teardown Datum 9390 GPS Time Code and Frequency Generator

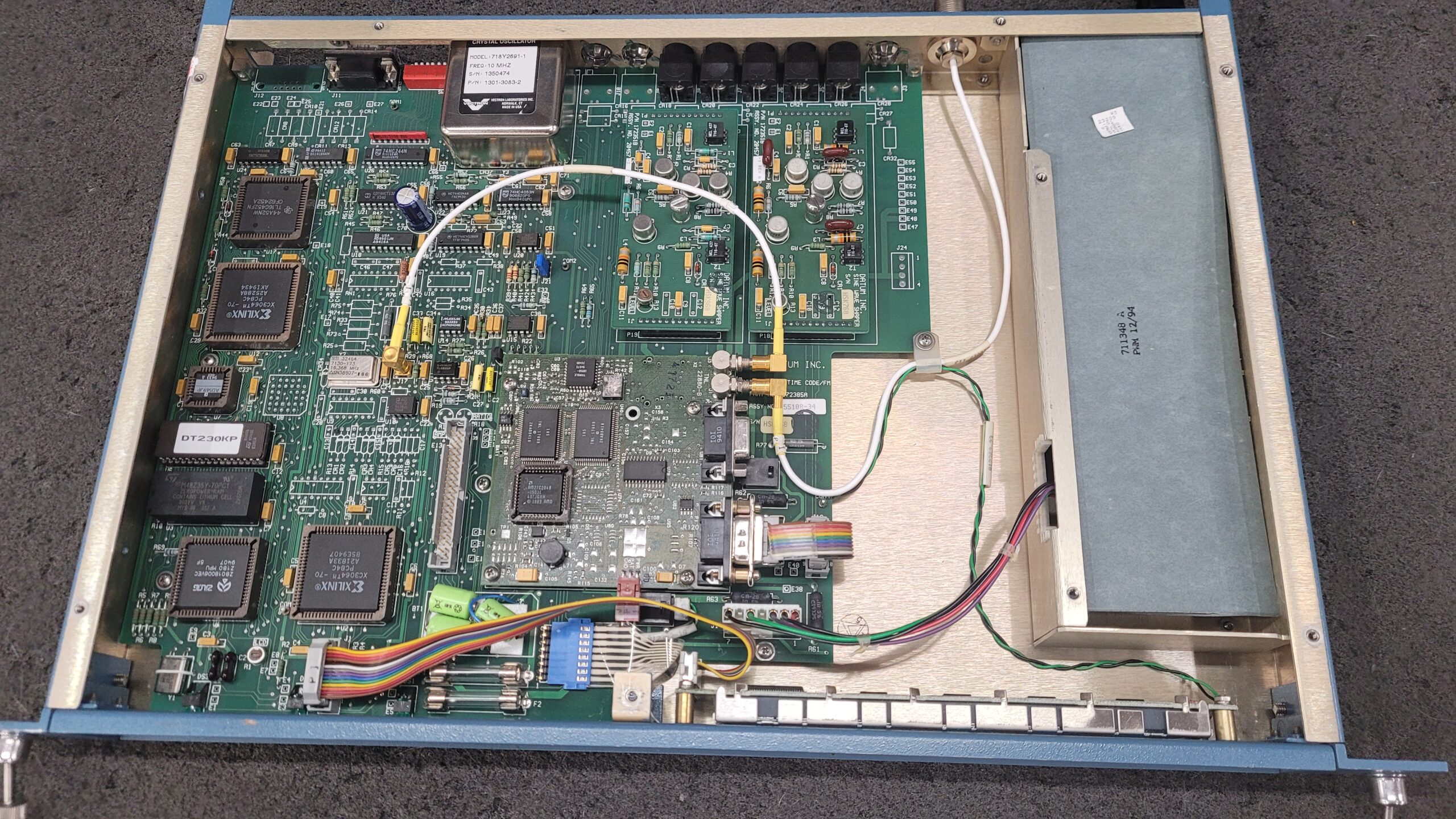

Cover Off
Firmware Archive
Datum 9390 GPS EPROM ARCHIVE
27C2048 PLCC (256KB) is the firmware for the GPS receiver engine itself. Two things confirm this:
Its byte pairs swapped from true memory order (a common artifact of dumping a 16‑bit‑wide part with certain EPROM programmers). Un-swapping it exposes a clean copyright string: Copyright (C) 1992,1993 Trimble Navigation Written by Paul Braisted, plus a long run of GPS-engine debug strings (Signal Processor error:, Blind search, Tracking set update, SVs visible, Different week, etc).
Datum 9390 DDISPLAY EPROM ARCHIVE
M27C1001 DIP (128KB) is the front-panel keypad/LCD controller separate MCU, plain 8-bit ASCII, no swap needed. It’s full of UI prompt strings (ENTER LATITUDE:, ENTER TIME, DOING GPS CORRECTION, GPS TIME NOT ACQUIRED, etc.)
X-Ray of M48Z350Y
