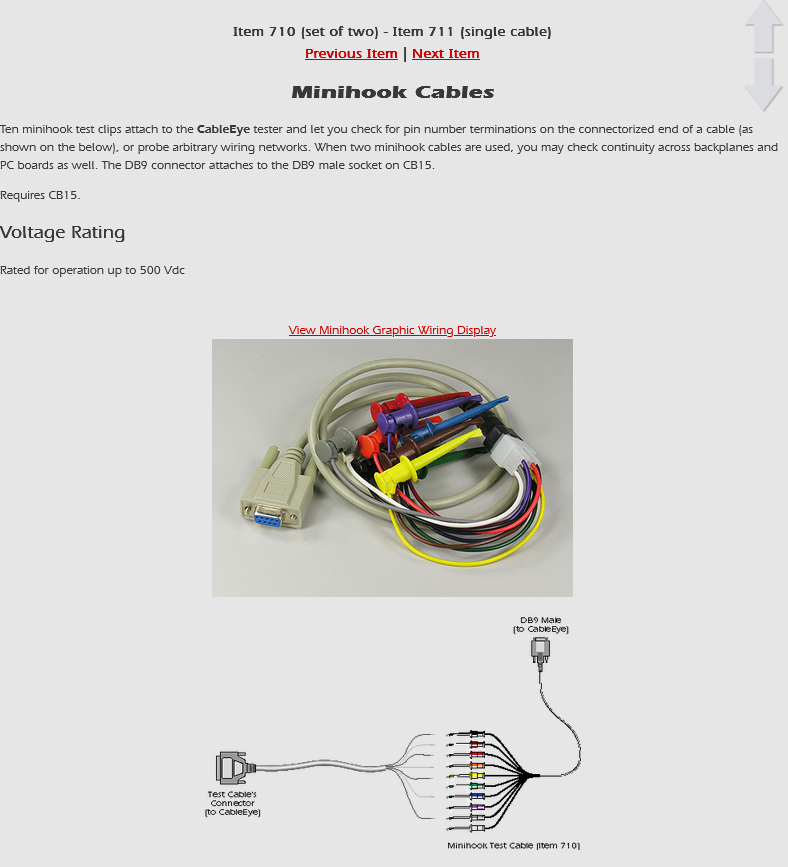

Cami Research Don’t publish the pin-outs of the Cableye Mini Hooks I am. They only show you a sample diagram of connected cable.

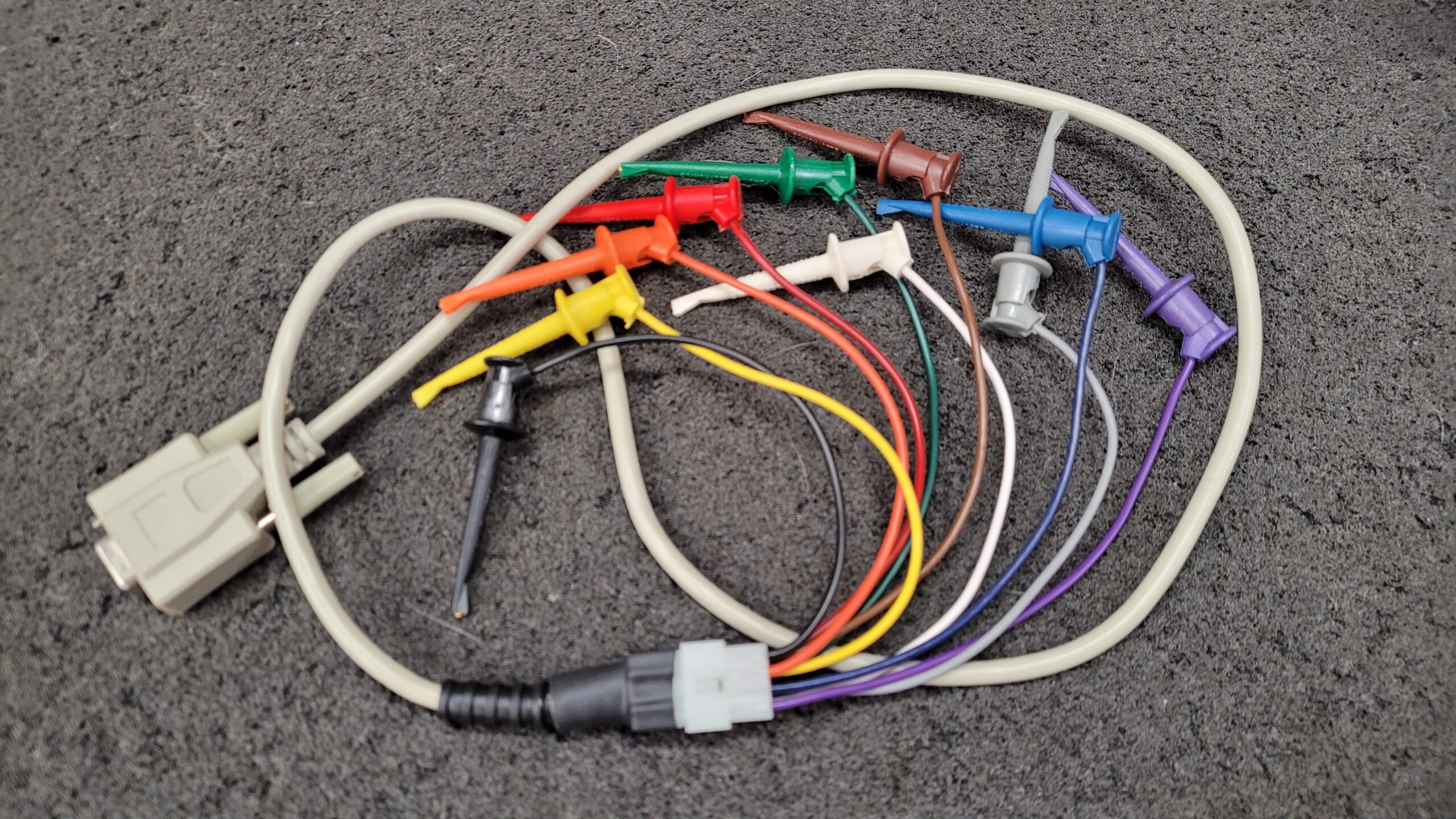

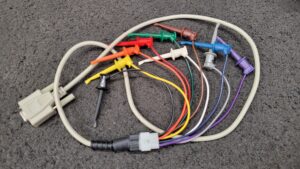

Shield Black (Also Used For Probe)
1 Brown
2 Red
3 orange
4 Yellow
5 Green
6 Blue
8 Purple
8 Gray
9 White

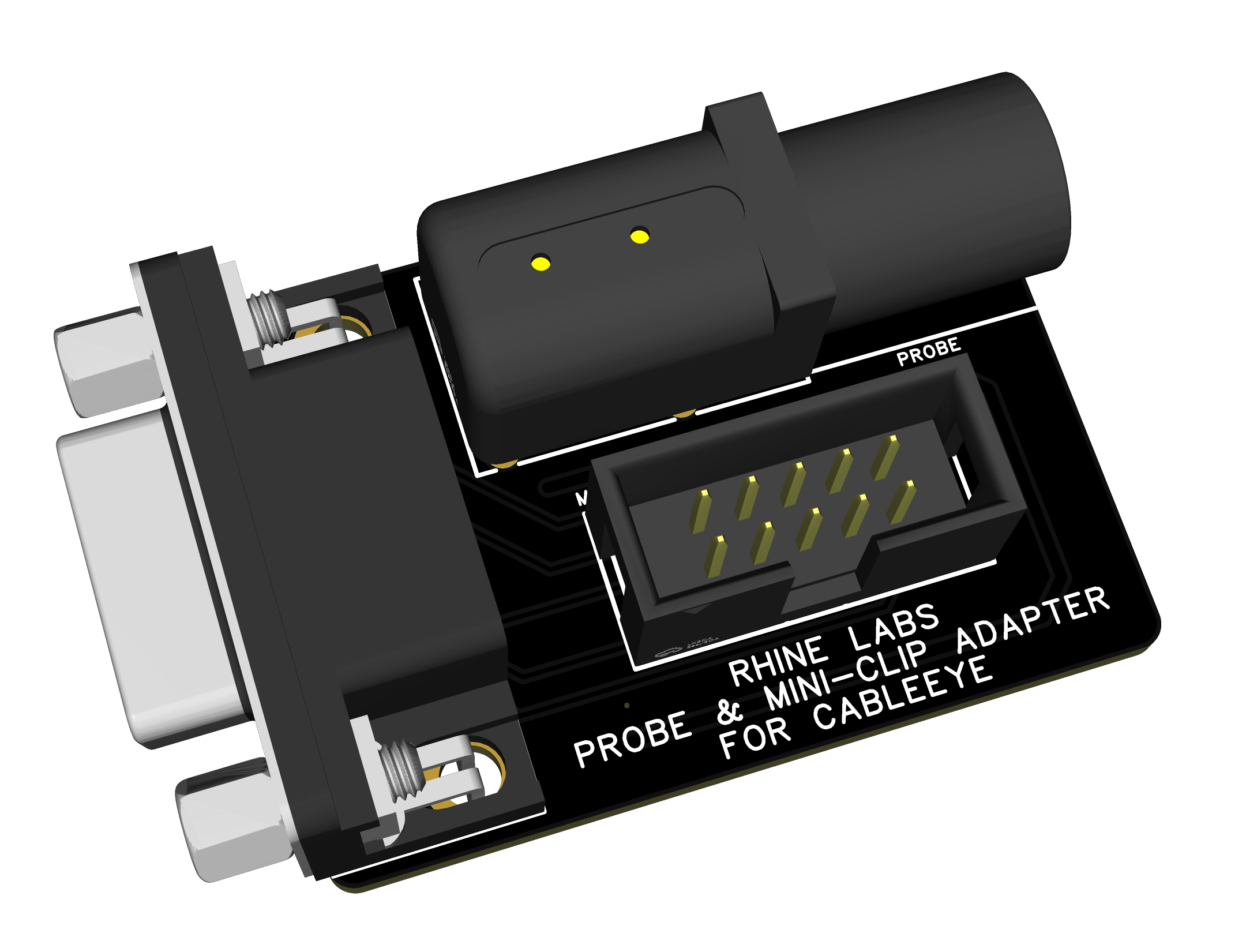

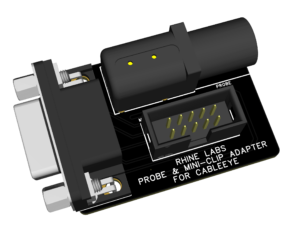

I Have made a open source version..

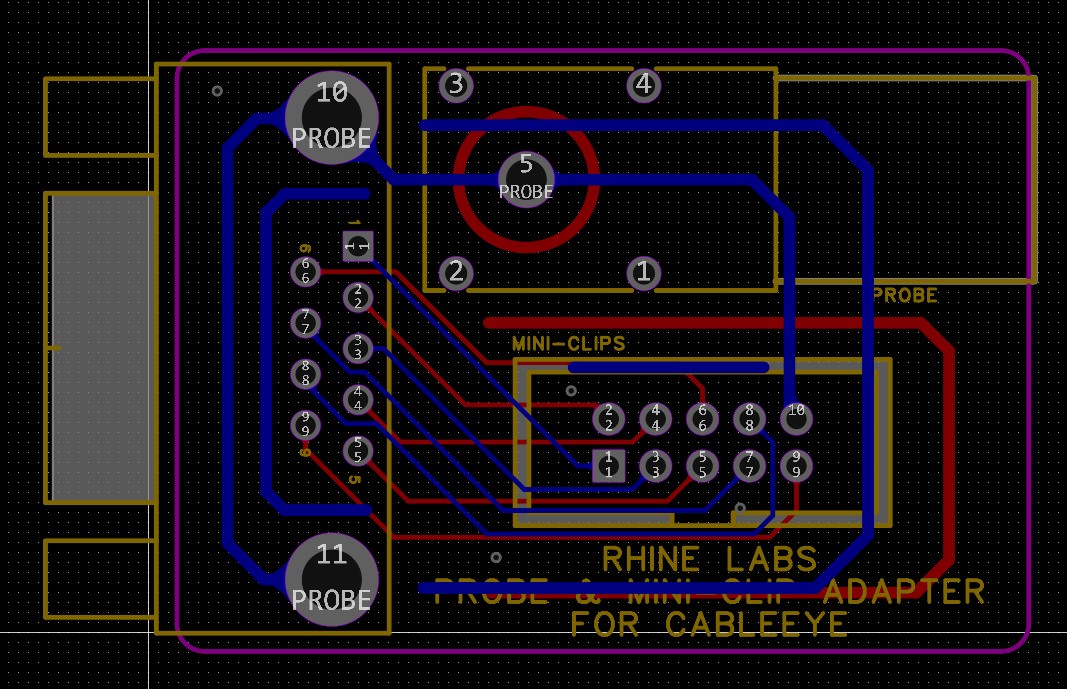

Wire Pin1-9 Pin 10 Is Shield
I have a few pcb’s made you can contact me 360 567 6646 send a text with e-mail..
