Meiji Techno EMZ-8TR Microscope Electronics / PCB Repair.
I do things a bit different then a lot of other’s when it comes to equipment etc. I never been one to follow the herd!! Yes, I could buy a china plastic microscope such as the AMScope SM-4, SM-4TP or the Unbadged 7x to 45X Versions that others use. I actually did and tried the SM745NTP in 2022 and it gave me a headache after about 30 min of use and just felt like a plastic toy compared to the one I was using for about 2 decades.
I have had this Meiji Techno EMZ-8TR Microscope for about 8 months now the thing is Built like a tank and the optics are exceptionally crystal clear everything is butter smooth should last decades. The adopter adjustments one on each eye the controls are smooth, large knobs and very sensitive witch is good and and do not come out of adjustment. This microscope is metal and sealed much better as to a lot of others so the smoke from the flux will not make it in to it and contaminate the internal optics/mirrors/prisms as easy.
Yes I cover the Make and Model as I do live streaming and I am not giving Meiji Techno any free advertisements. (Continue Reading)

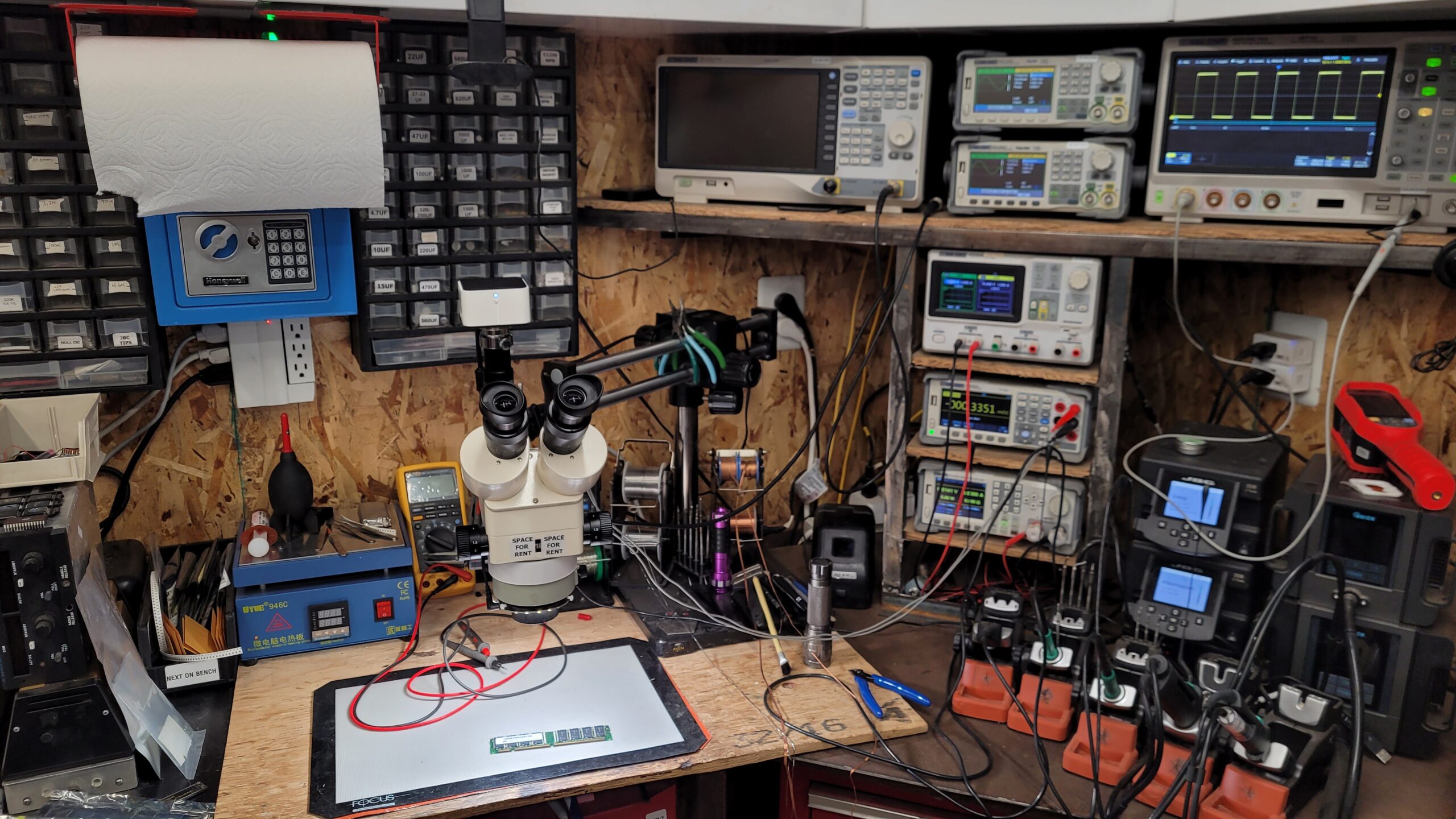

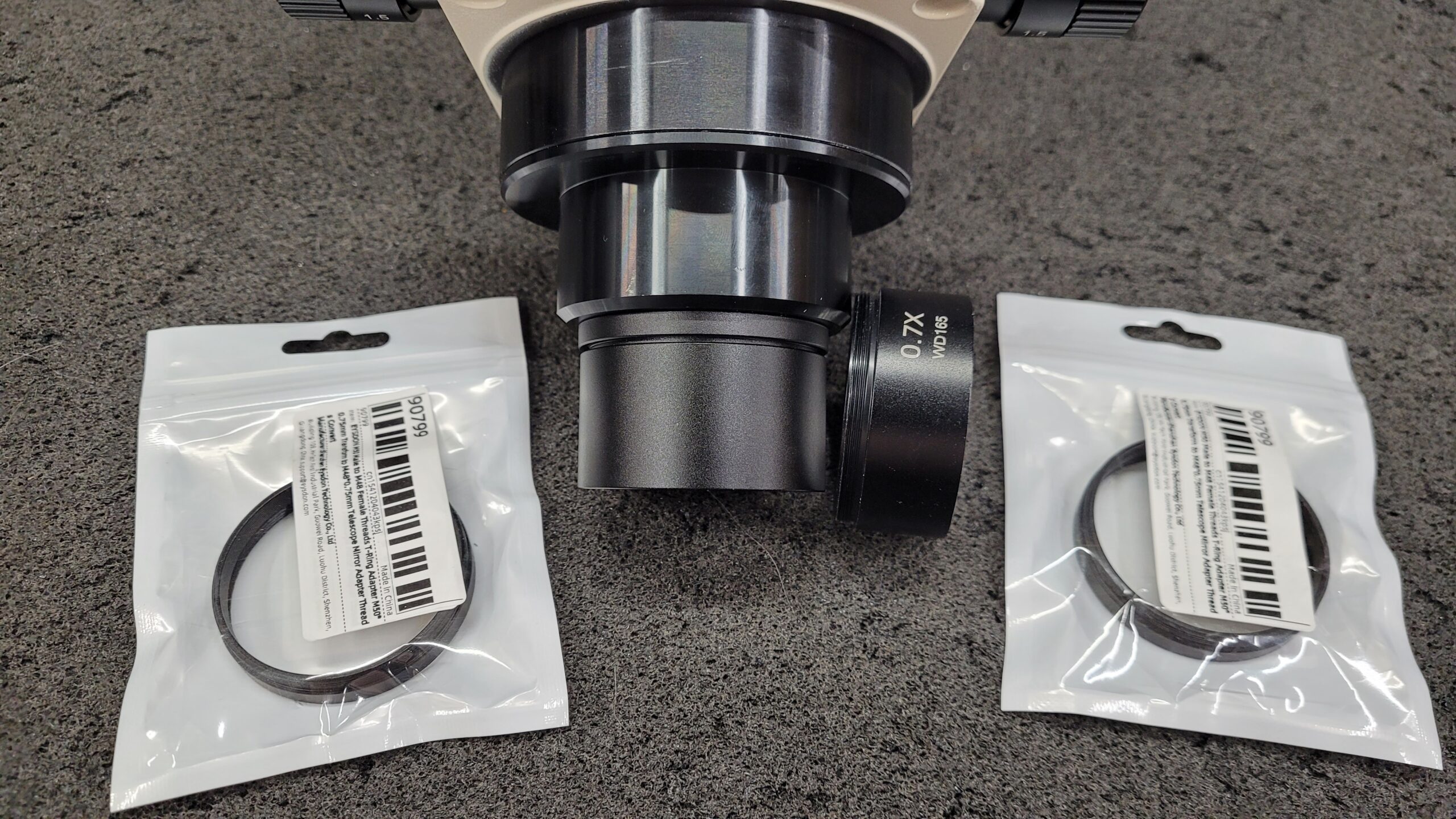

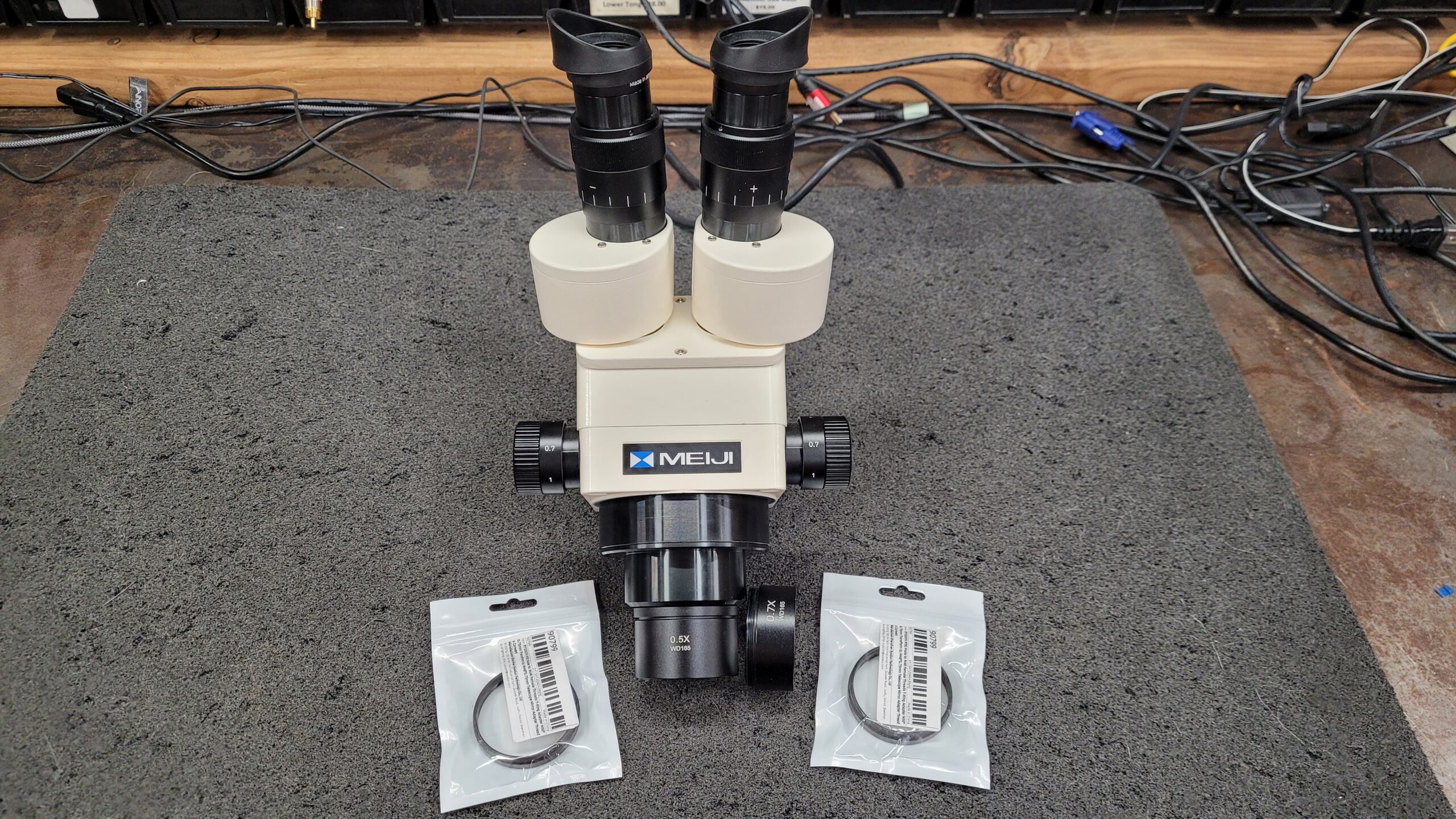

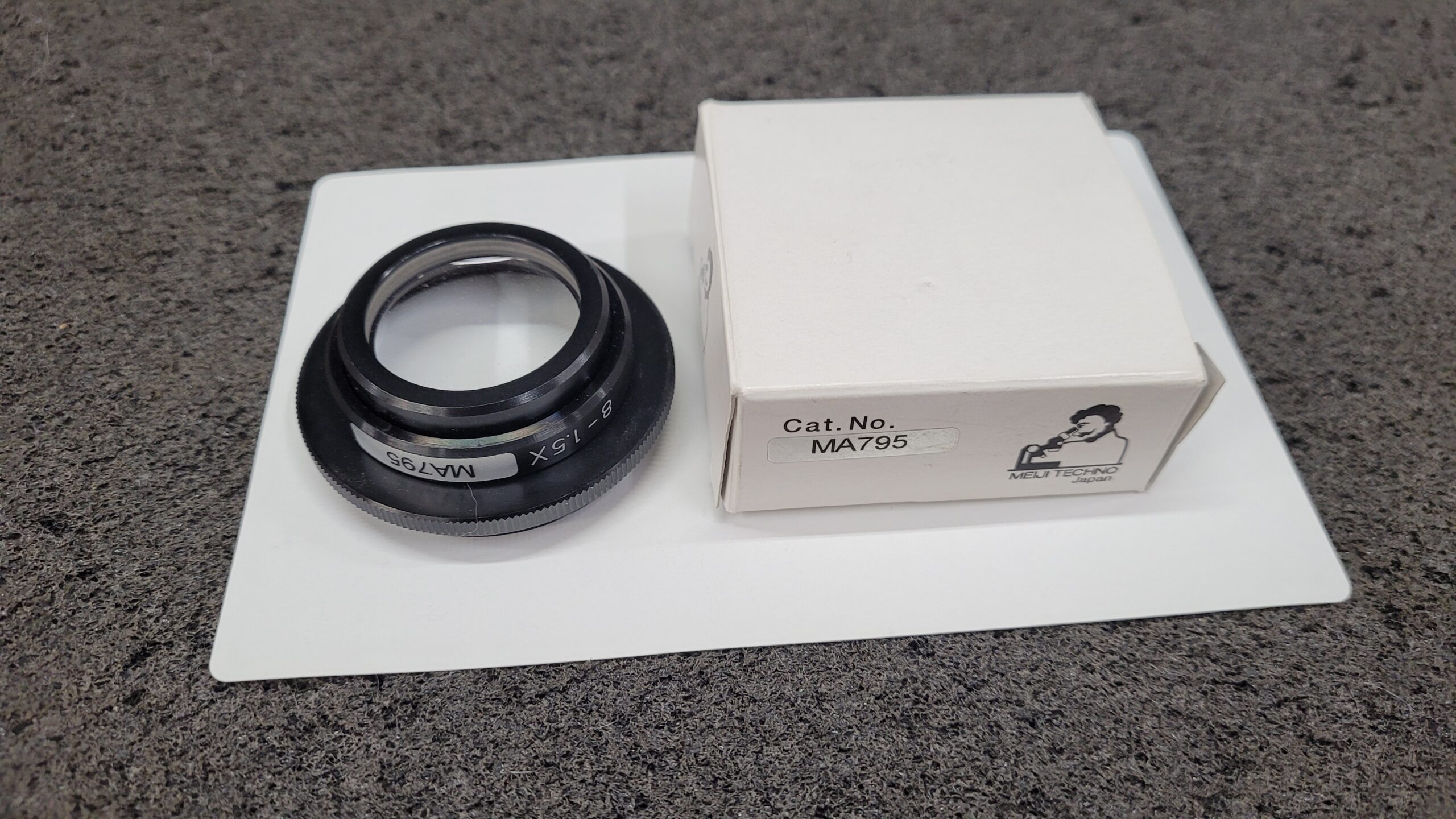

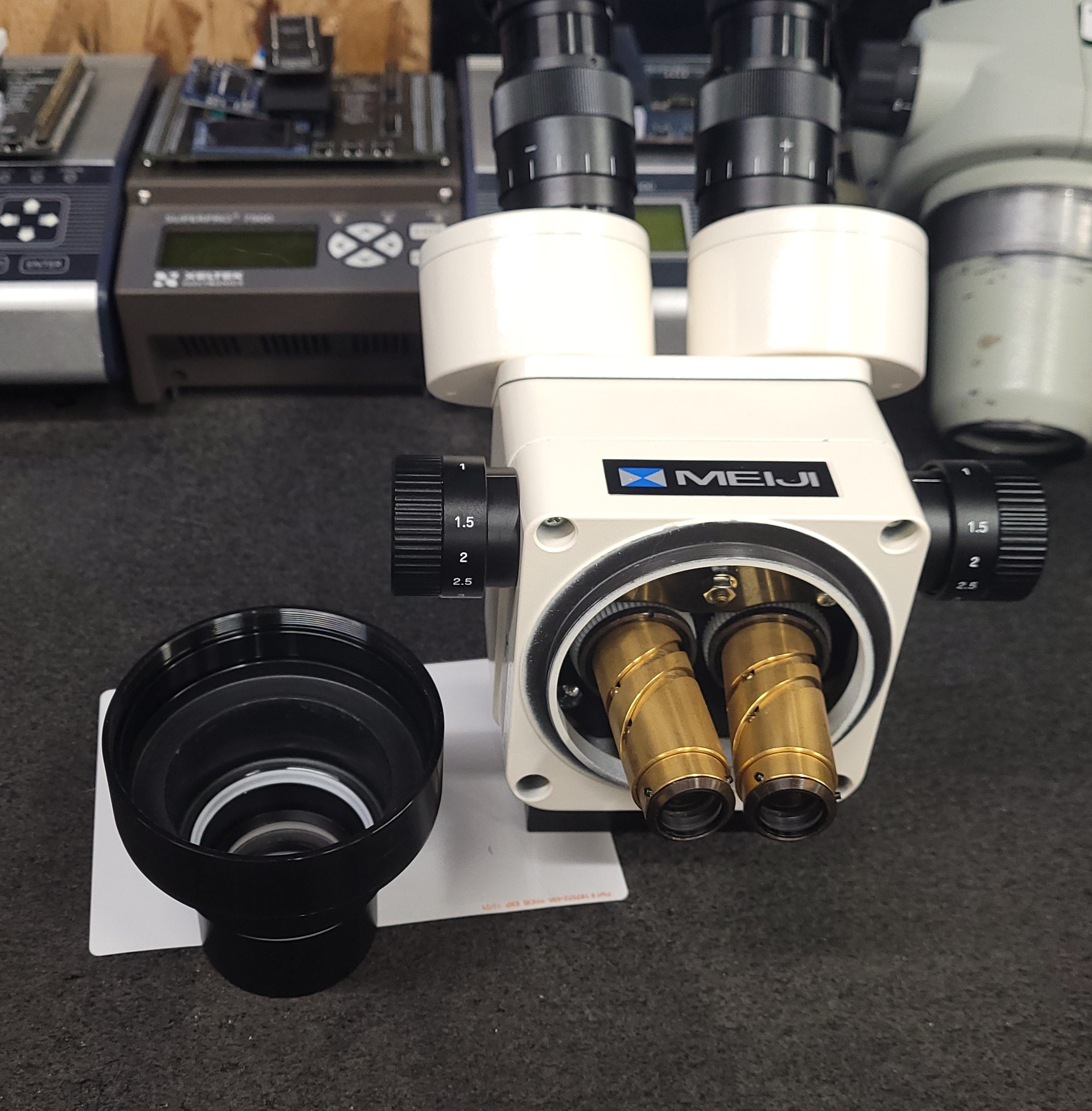

The Auxiliary Lens Threads are M50 X 0.75 You can get a Reducer Rig to got to M48 to use standard Auxiliary Barlow Lenses.

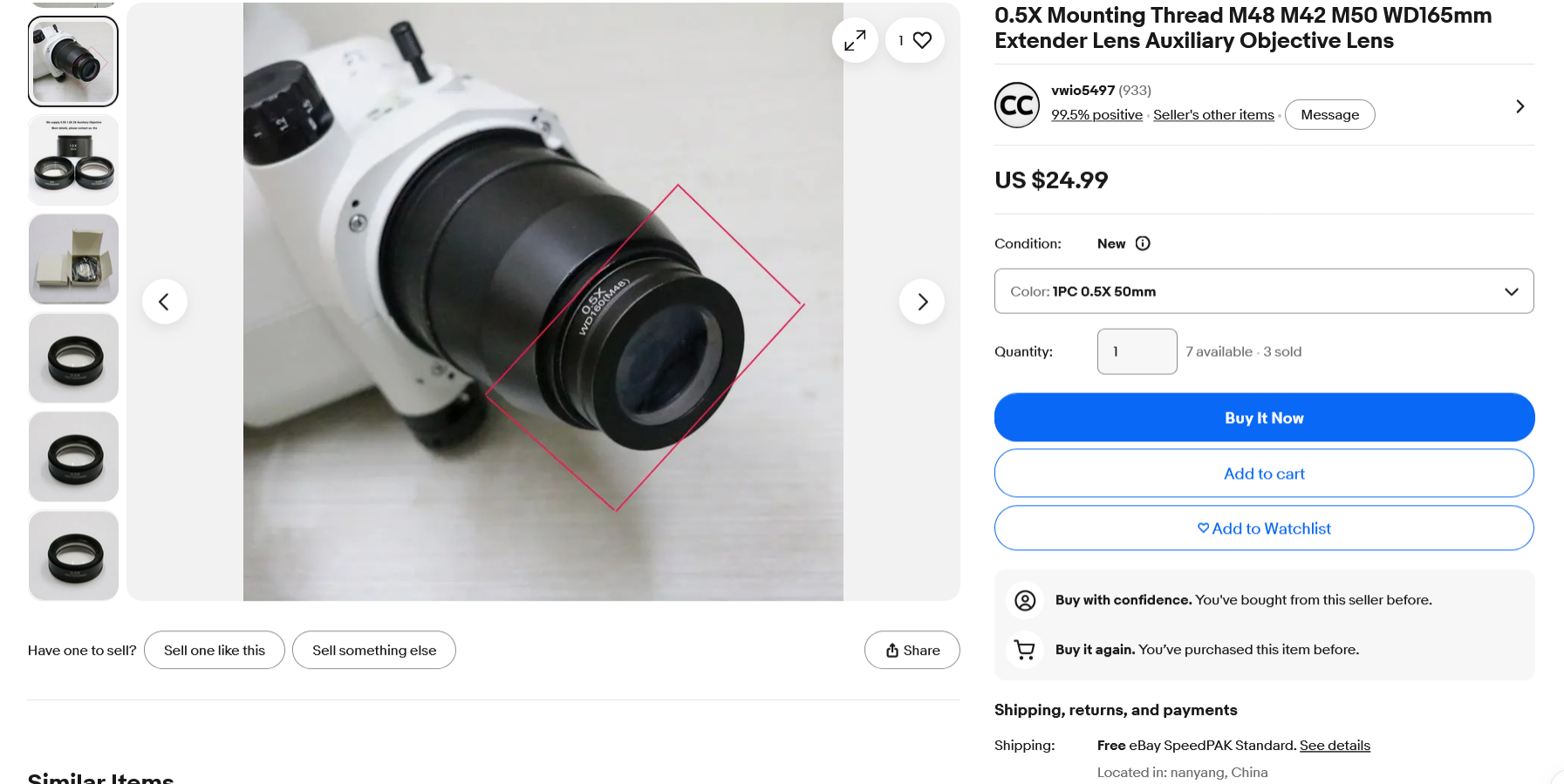

I Tried a Generic M50 threaded 0.5X Auxiliary Objective Lens but it must be marked wrong as the working distance was that of a 0.35X a Working Distance of 240mm

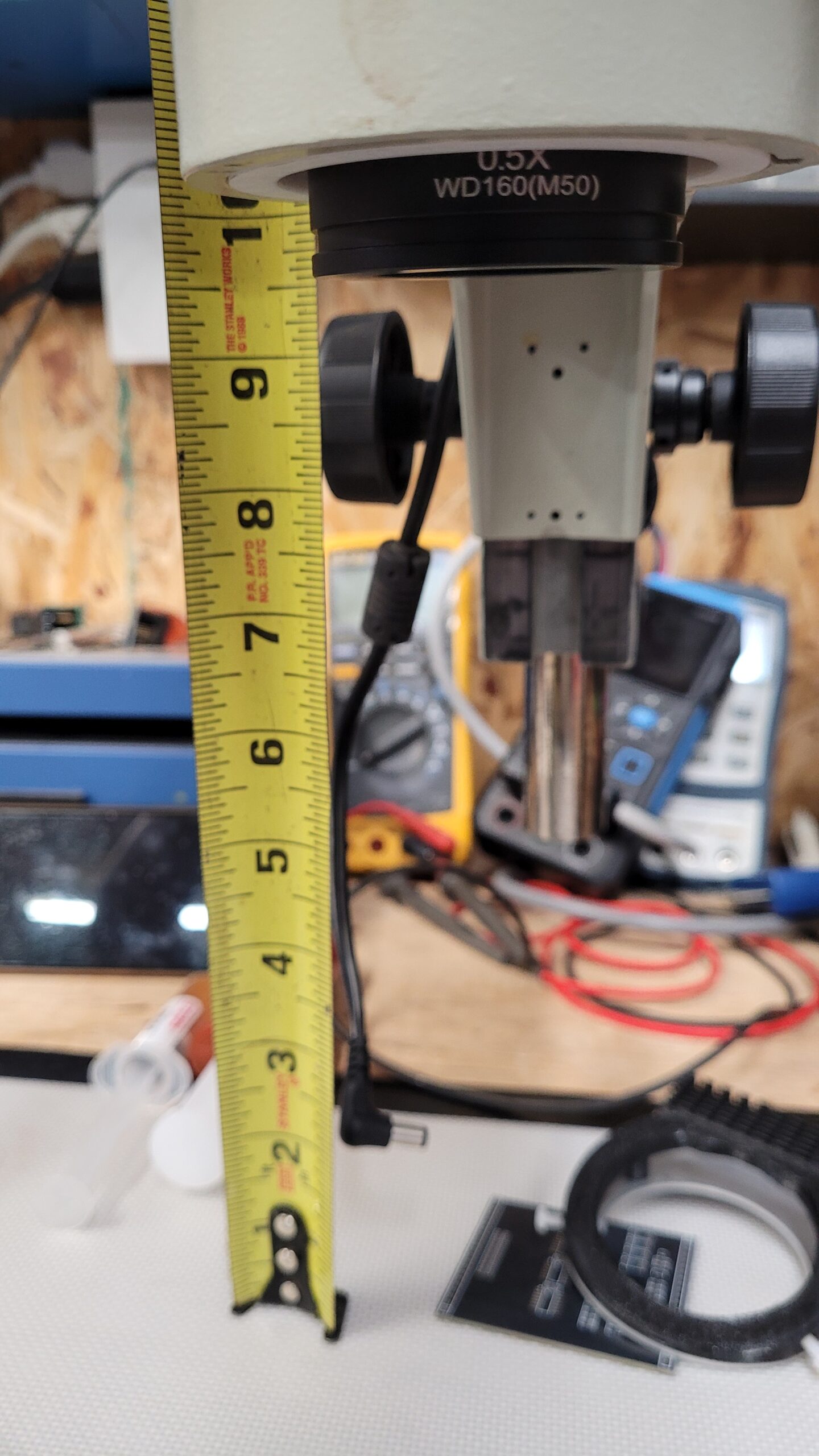

About 9.5″ or 240MM Wich is way to much but will have its use on cretin tasks so not a waste.
With the standard off the shelf 48mm 0.5X and 0.7X Barlow the Working Distances are Correct.

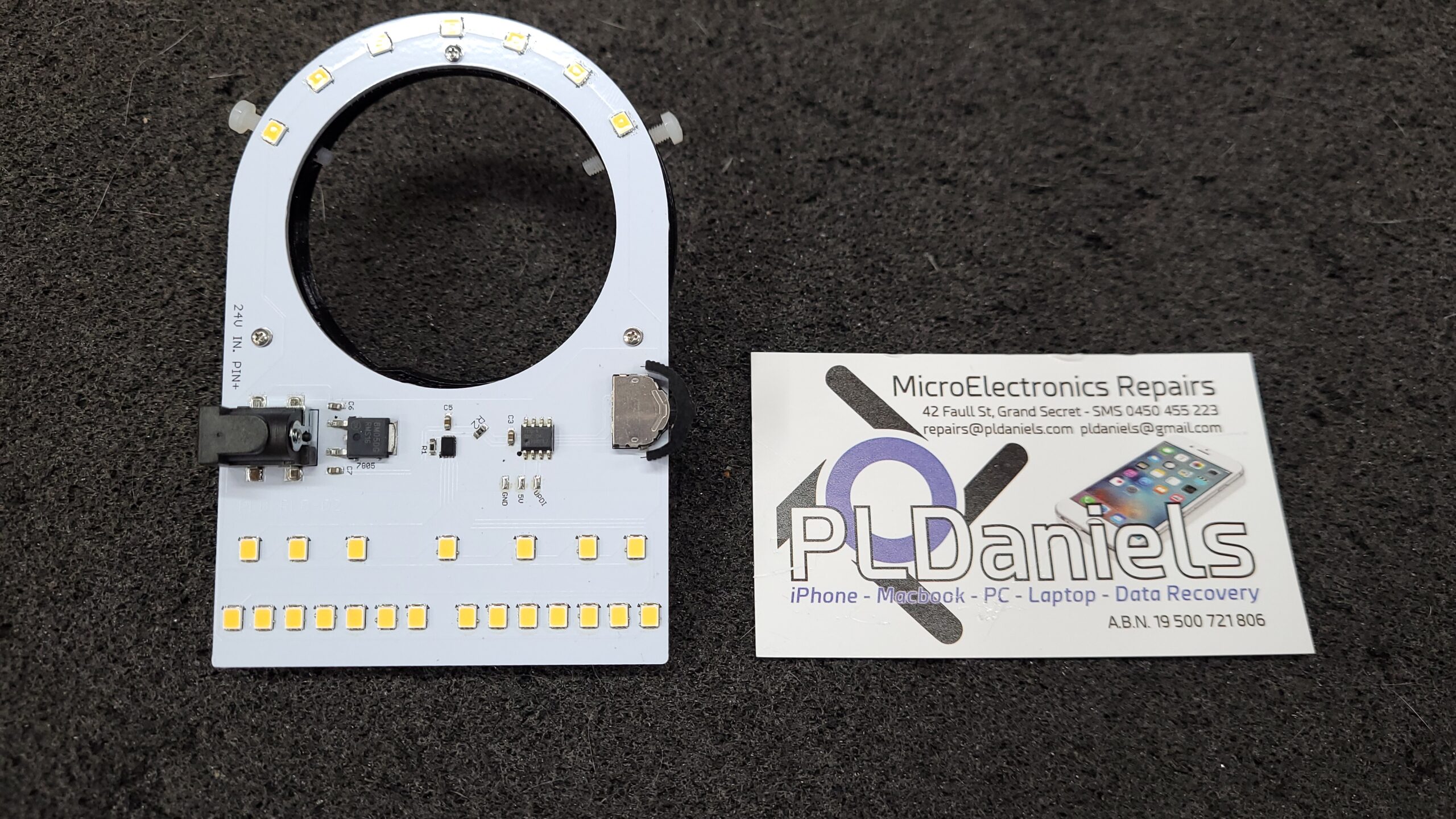

The Light… I am using the Paul Daniels PLD Advanced Ultra-CRI Microscope Ring Light, This light is Very Bright and Flicker Free ad Mounts at teh right angle can read text on chips etc.
The Bad!!
Camera:

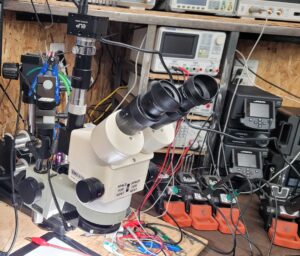

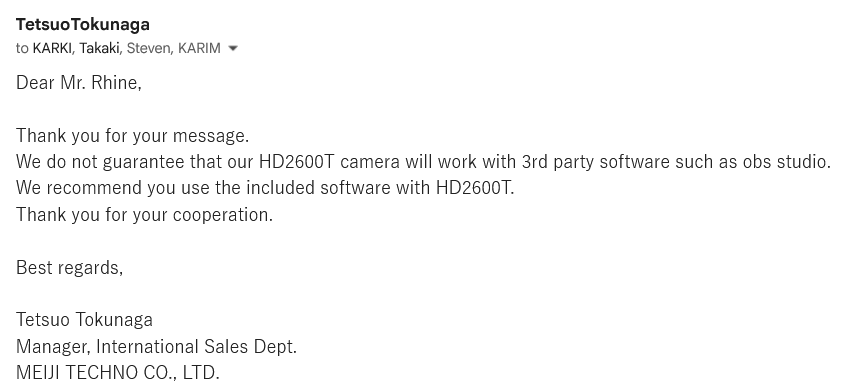

I am Experimenting with Different Camera Setups… 100% Avoid the Meiji Techno HD2600T once again a rebadged Tucsen Michrome 6 camera that a lot of companies use the Tucen and put their name on them and their inflated price tag! they don’t even bother to change the USB Device Descriptor. The Tucsen TUCamera and Directshow Drivers are broken They Lock up OBS Studio Meiji and Tusen will not fix otherwise it would be an acceptable 4k camera at 30FPS or less. I have other cameras that use similar direct show and they work great with OBS studio no lockups. But there are others that use modern 4k sensors that produce actual 60FPS and don’t require proprietary drivers. ELP, Bresun 4K Max, Using the IMX 678 Sensors at a Fraction of the Cost.
Support:

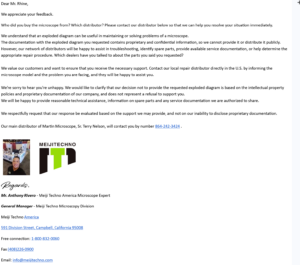

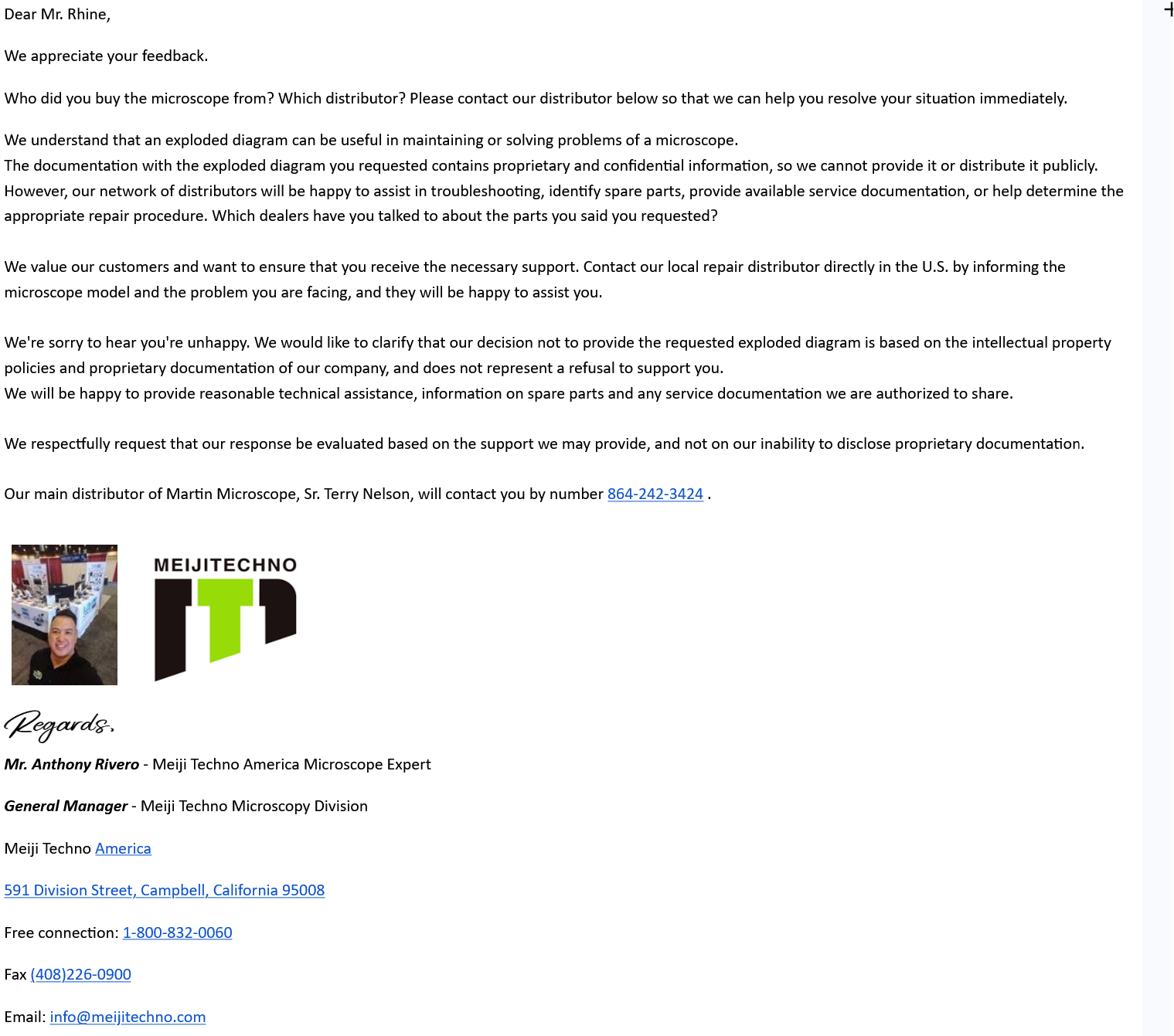

Meiji Techno America “USA” After Sale Support is Horrible (You Are On Your Own for Accessory Configs No Help form them) Pre Sale Meiji america told me that al parts would be avaiable if ever needed “as an experiment i tried” If It breaks and not covered under warranty good luck finding service or simple parts. One of them situations they said we need a part number. I asked, Can I get a parts diagram or list their reply sorry that is proprietary and confidential we cannot provide that contact a retailer they had no clue how to get one either LOL. Yes, Then How the “F” am i to get them a part number hahah?
No preventive maintenance Service info lube etc nope nada.

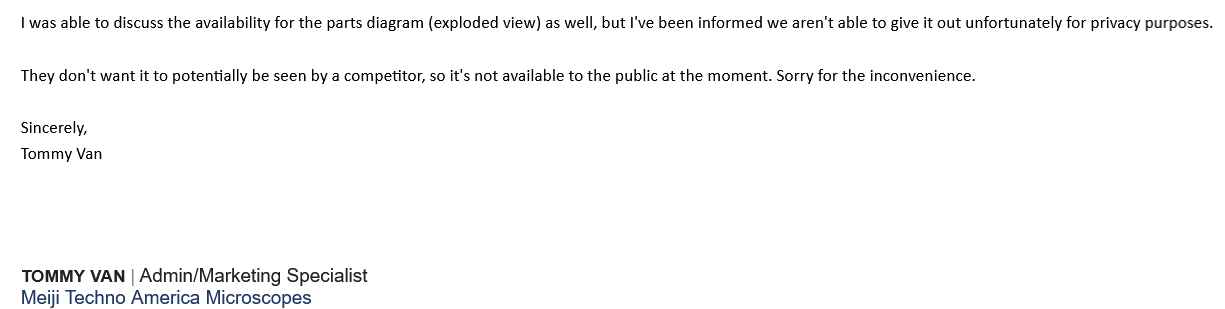

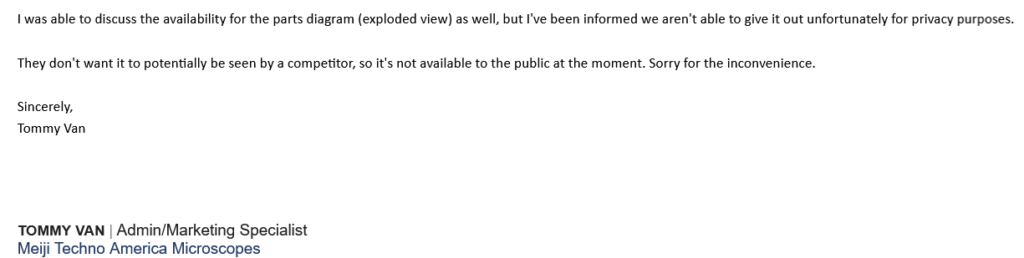

After some pressure Meiji Japan did provide an exploded View of the EMZ-8TR Trinocular Area and a EMZ-5TR Head Exploded Parts View but missing most the parts list said they don’t want the 8TR Head Exploded Parts View to be seen by competitor? so only sent the 5TR WTF? Really! Meiji said they share most the same parts.
All a competitor needs to do is obtain one and take one apart. (I am posting the info I received here for archiving. May this help someone looking at Meiji Techno see their design and build quality for informed purchasing or get that repair part maybe.)

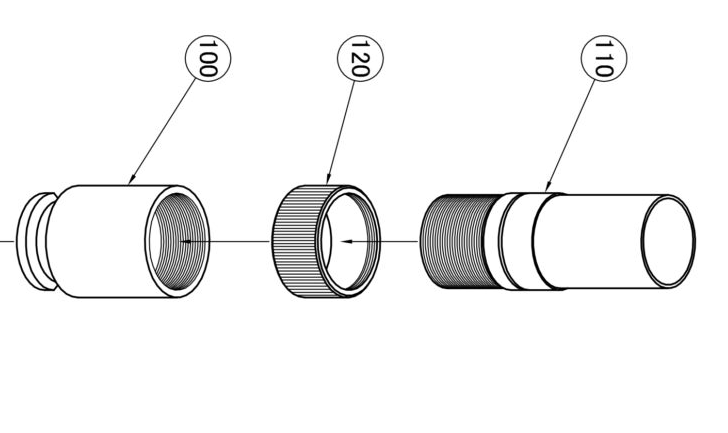

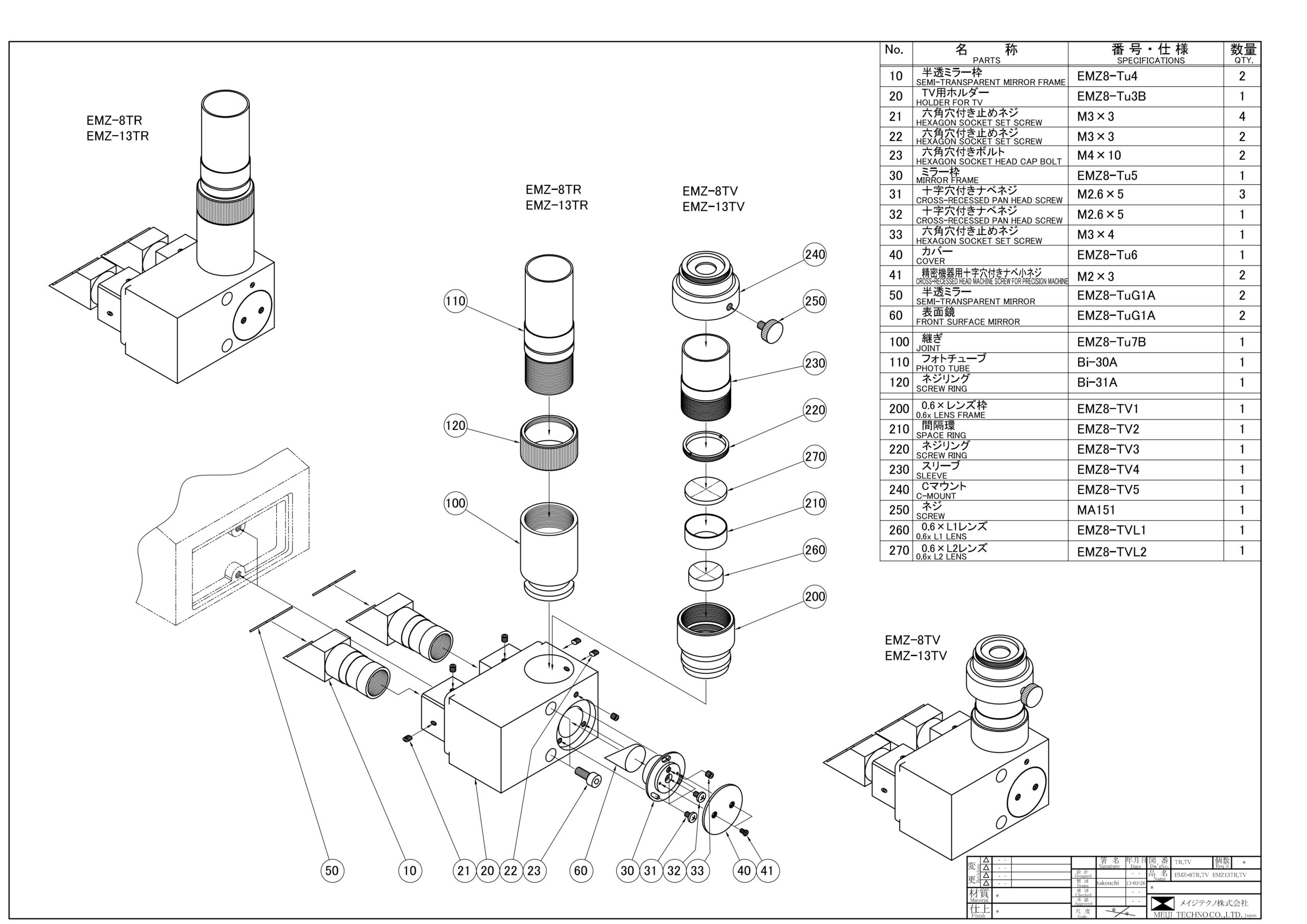

EMZ-8TR TV Exploded Parts Diagram

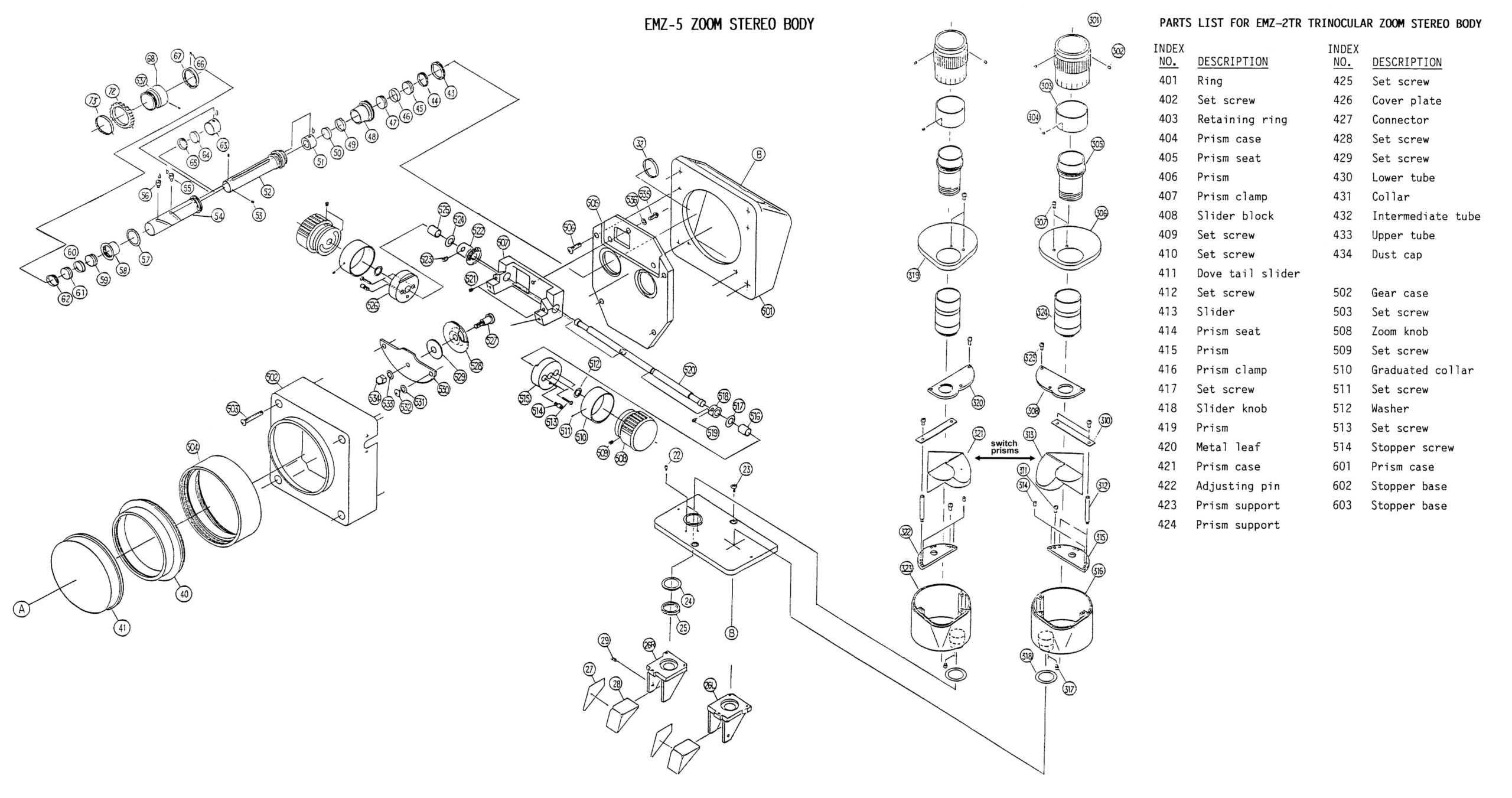

EMZ-5 Exploded Body Parts Diagram

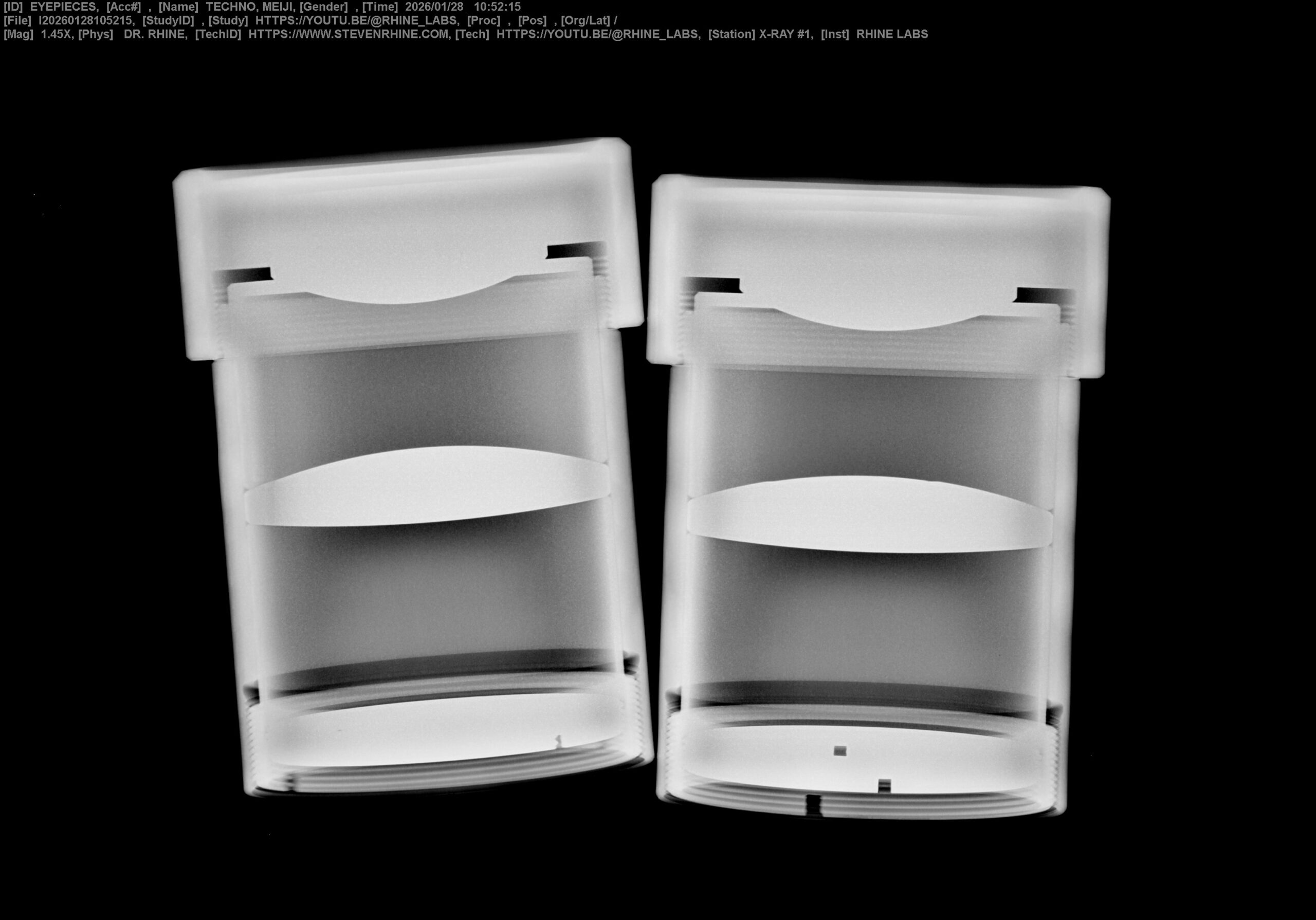

Eye Pieces:
There is No Set Screw For Eye Pieces They Can Slip Out Very Easy and Rotate when using eye guards requiring constant fiddling. I use tape to secure and fix them
Sloppy Photo Port / C-Mount:

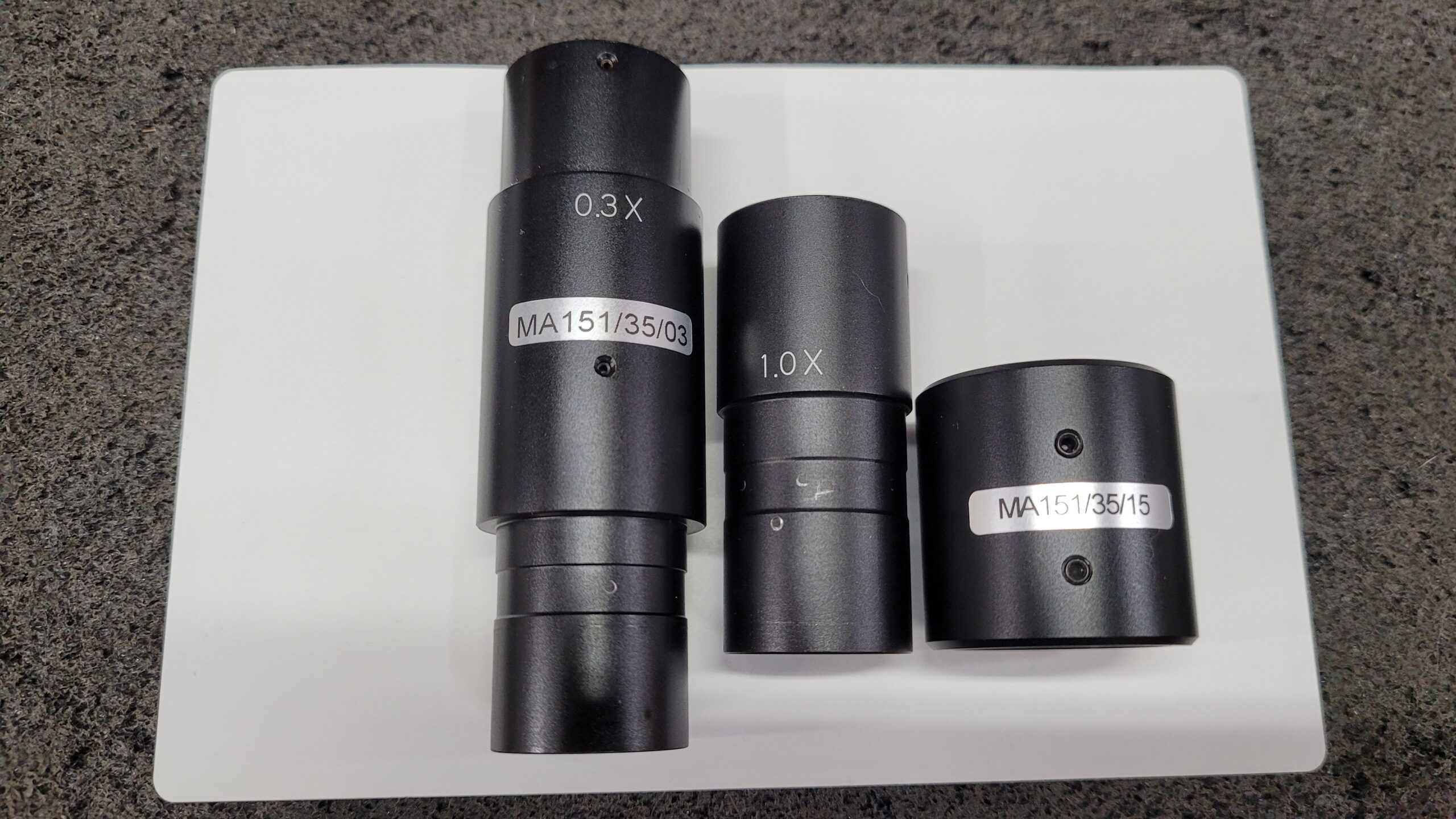

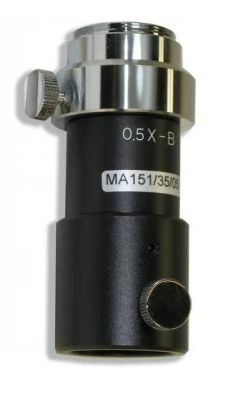

Photoport pieces are sloppy as hell.. Requires shim to get the proper alignment or ya get sever vignetting on one side seems a .08mm to .1mm thick completely around the objective where the c-mount slips over is proper aligns everything up properly.

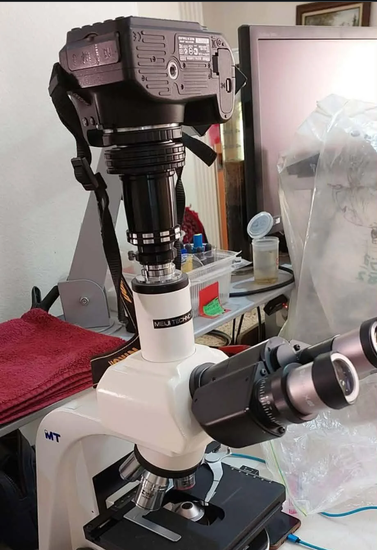

Photo port Focus is PITA having to use the threaded tube This is especially a PITA if your PC is not close by. Most other microscopes use a Focusing Helicoid Meiji uses threads wondering if anyone has Adapt one Focusing Helicoid the EMZ-8TR?
I am thinking of buying a spare photo tube for my 2nd camera.

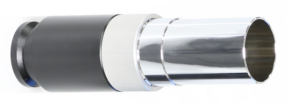

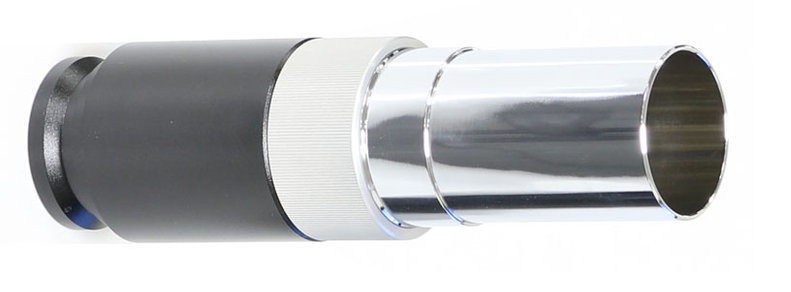

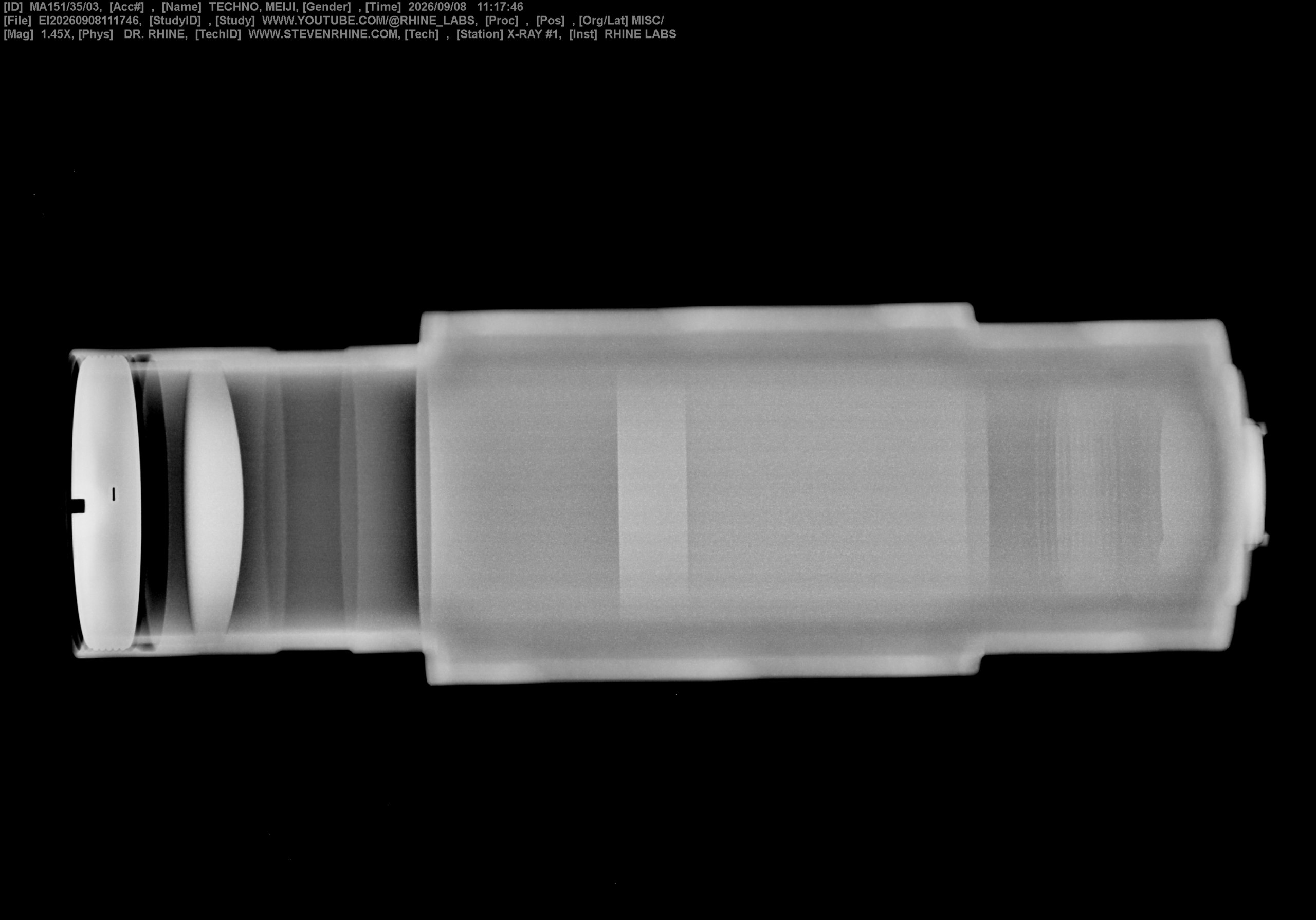

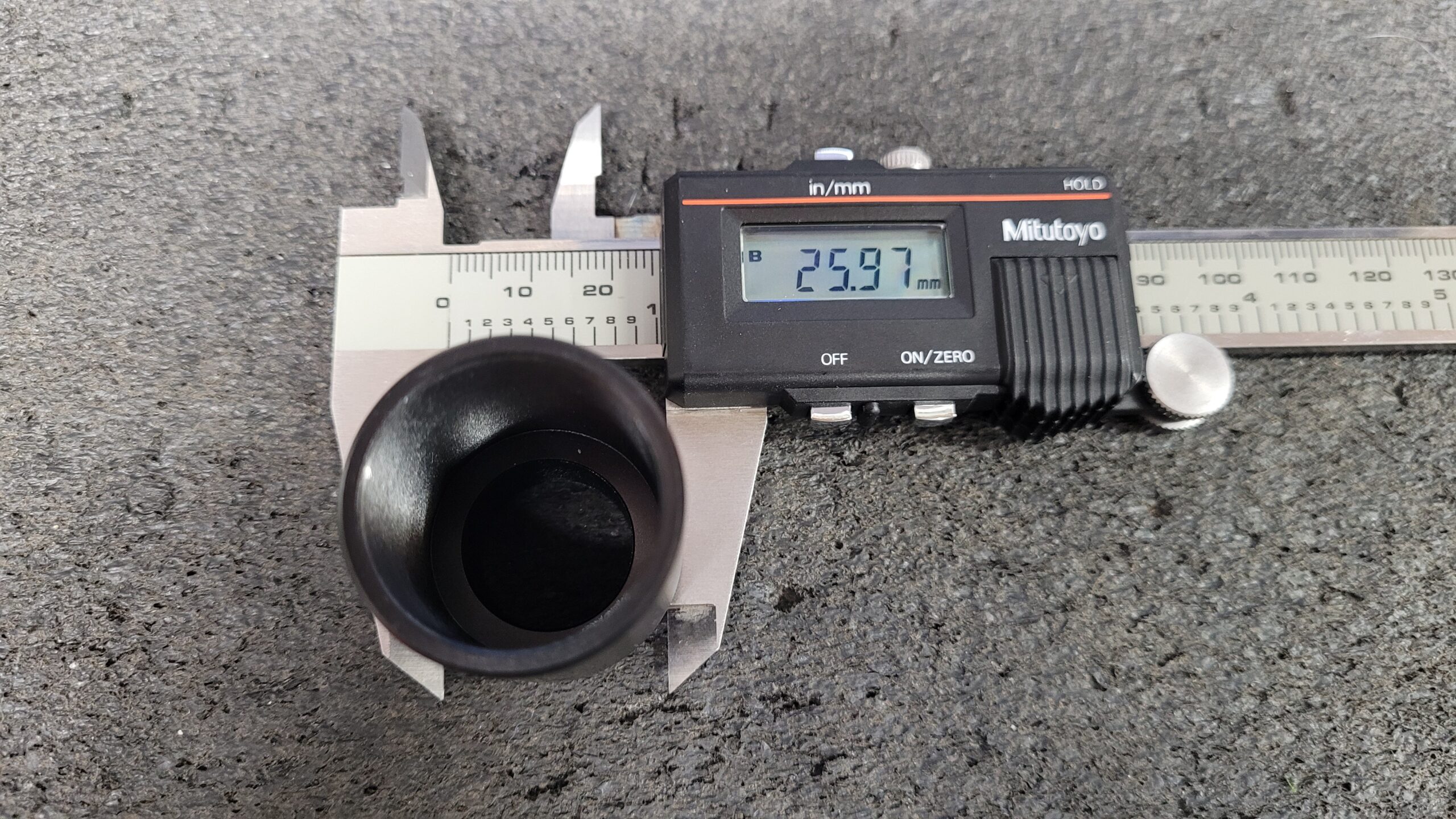

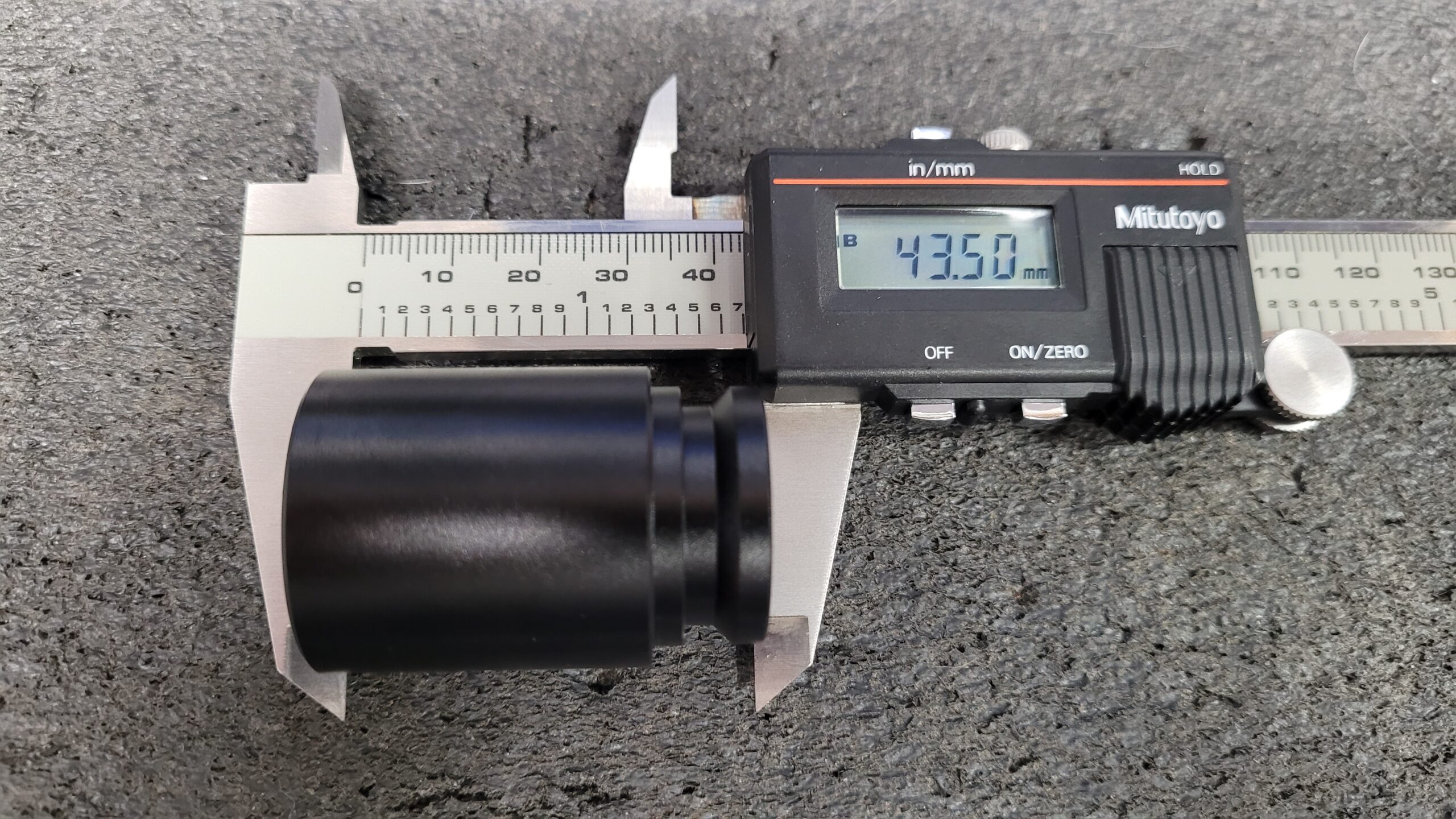

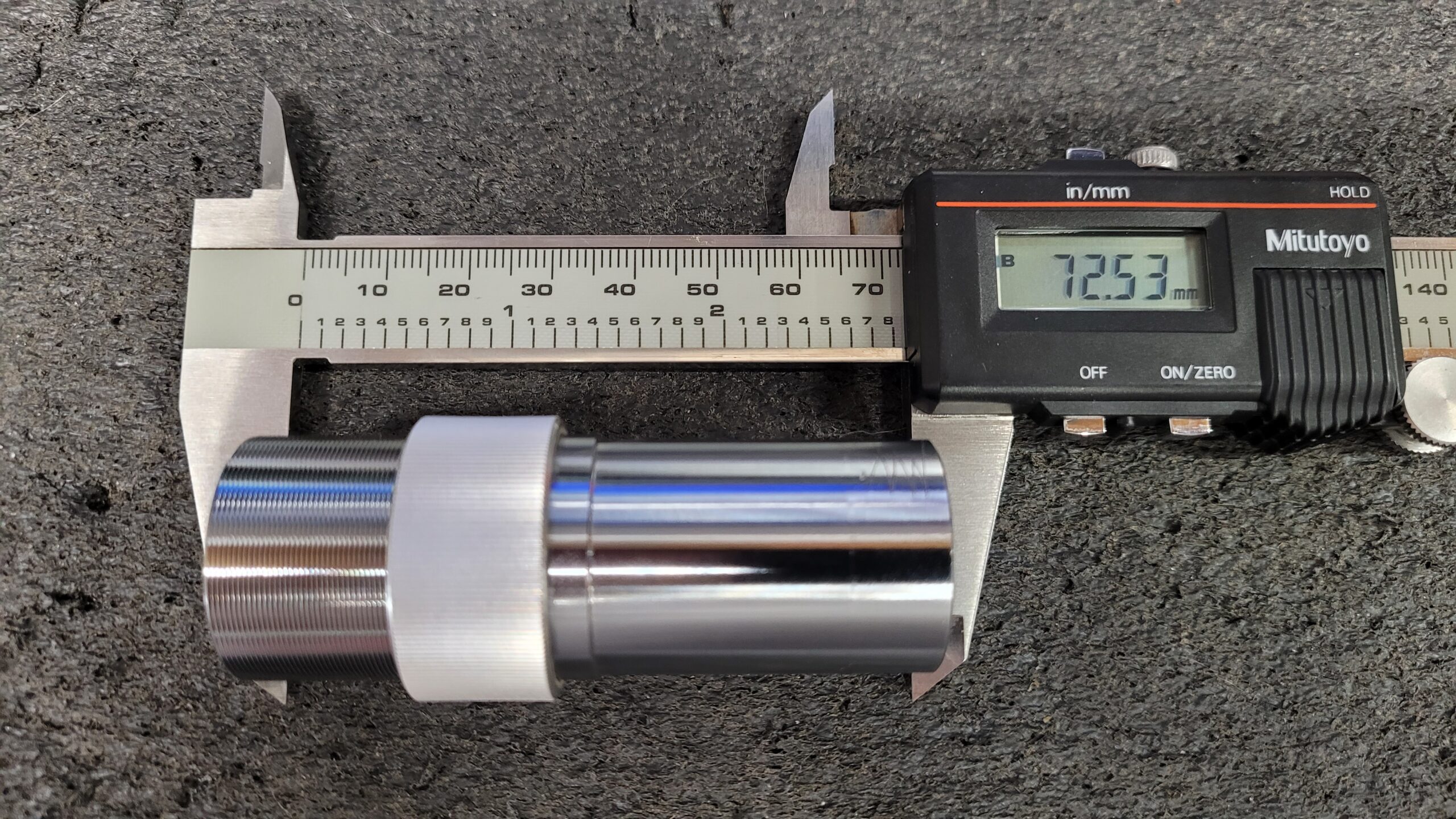

Photo Tube OD Measurements Left to Right

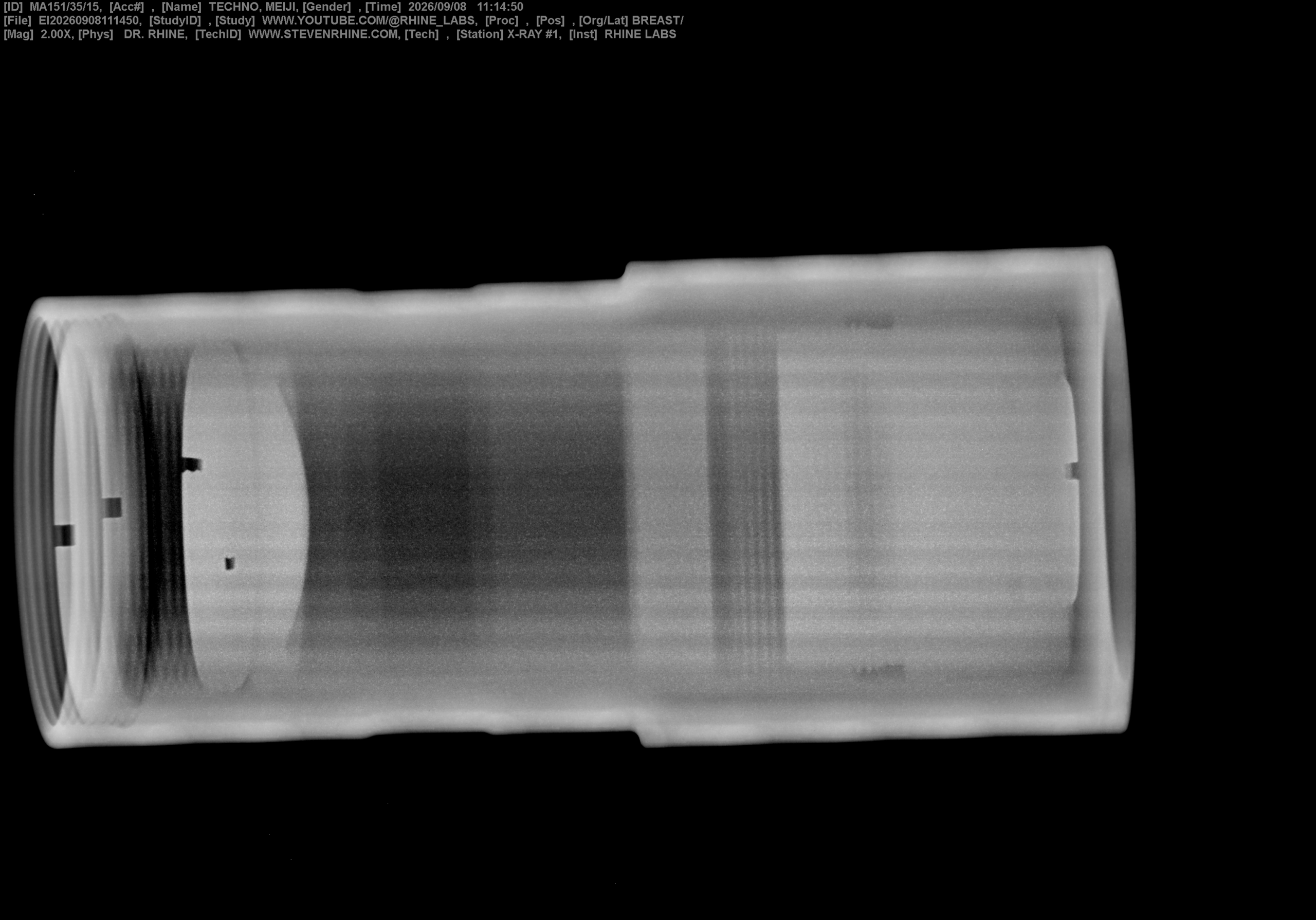

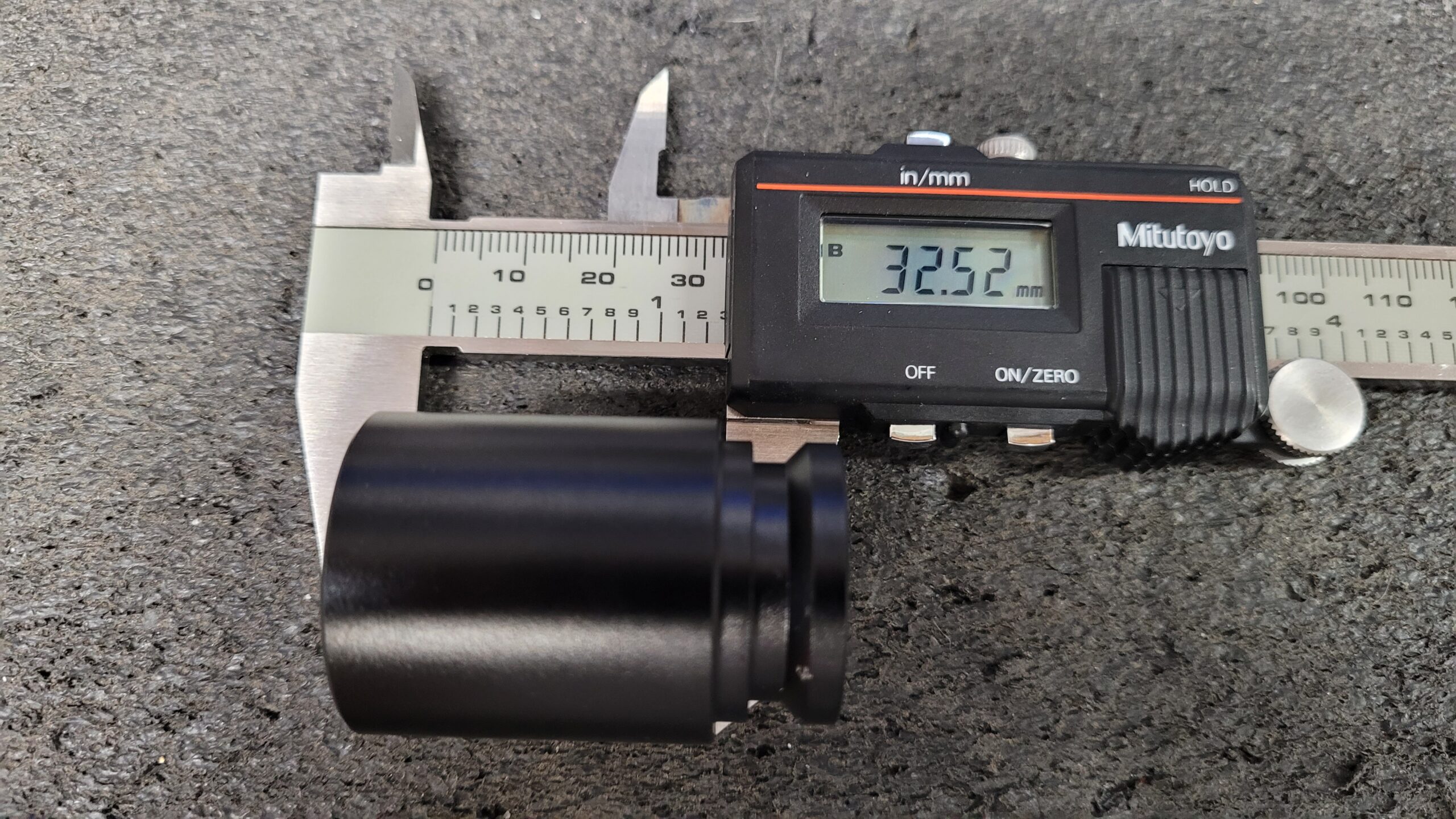

30mm This end slip in the block on the Microscope Body

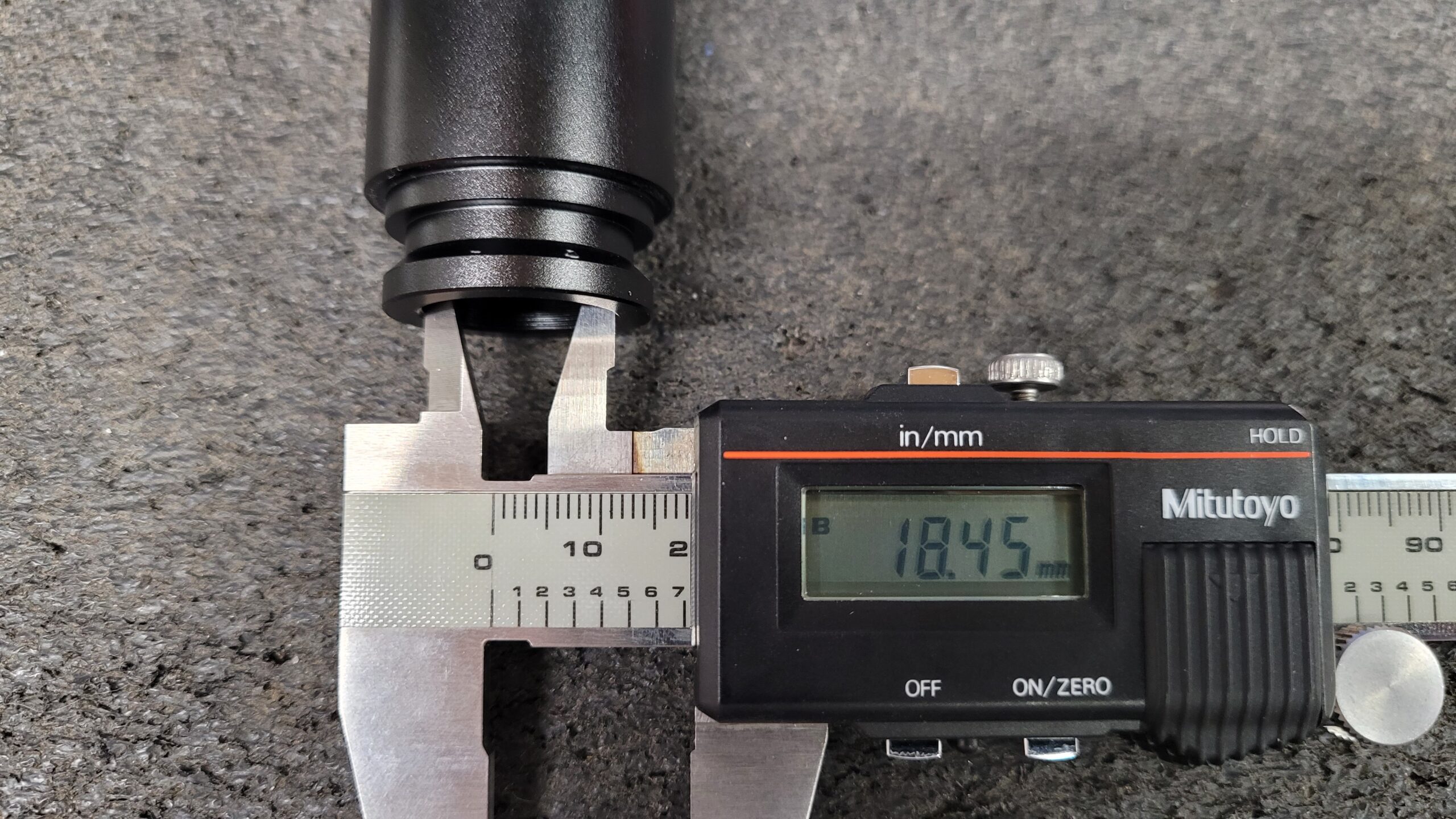

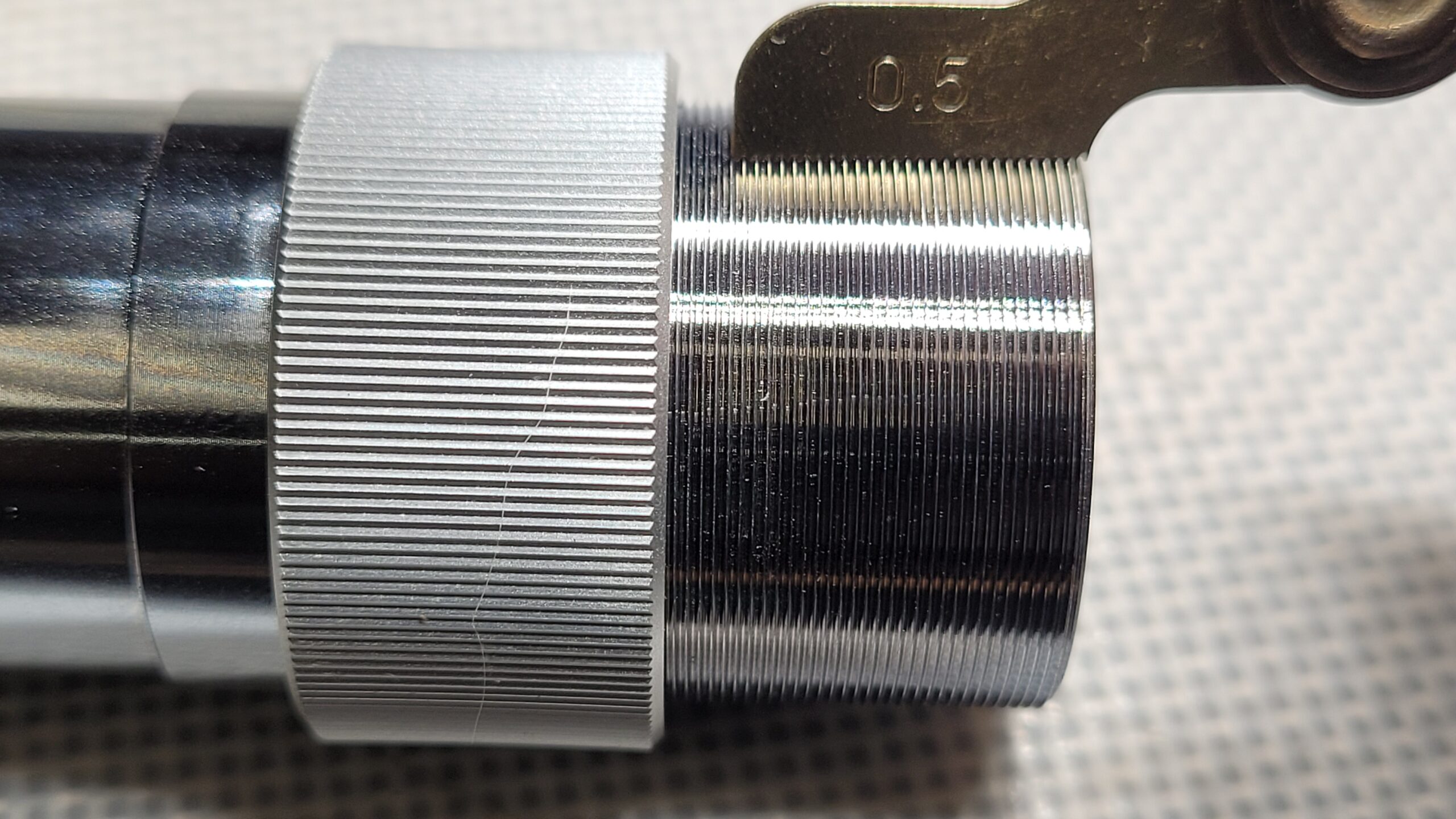

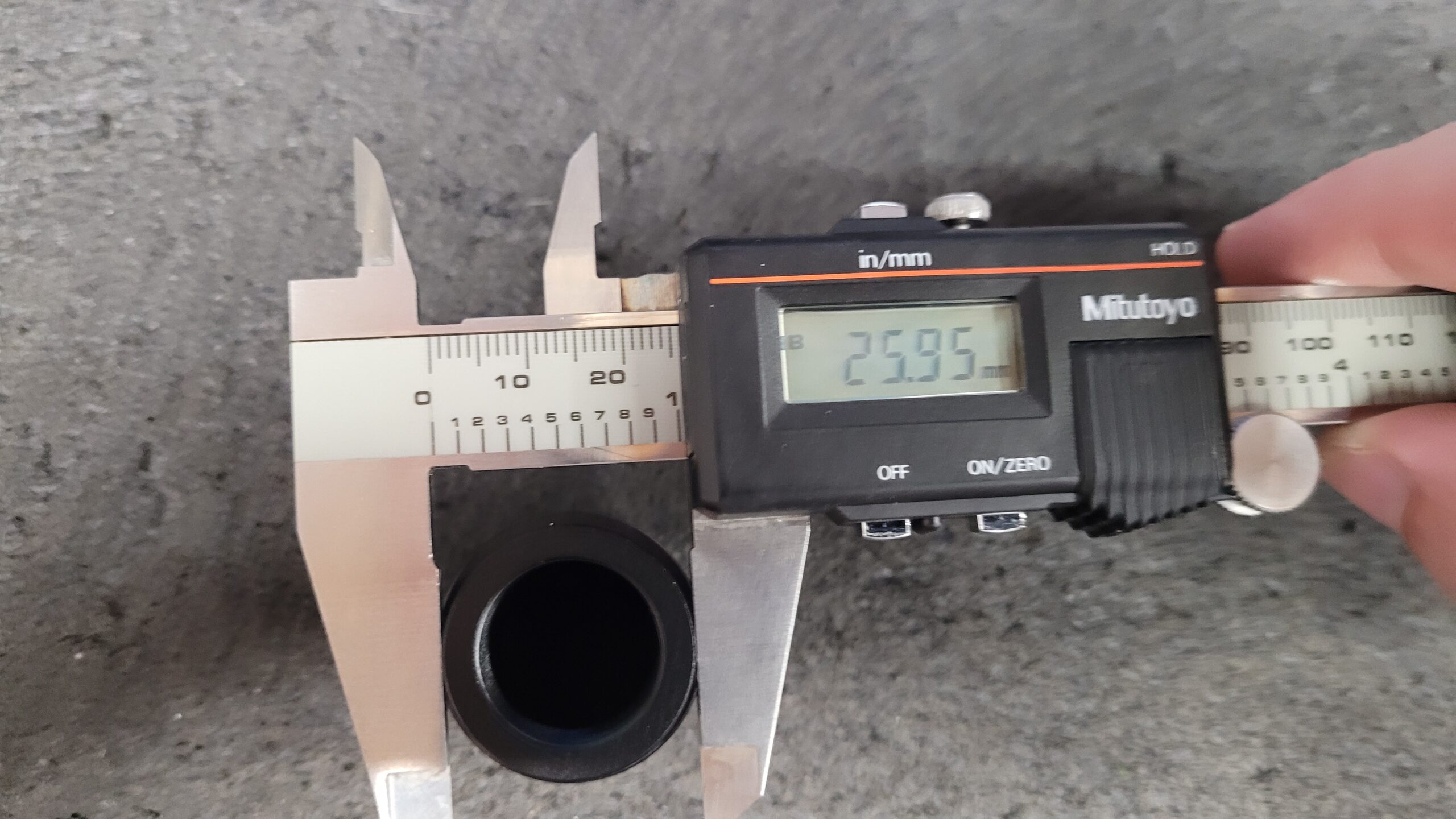

26MM (Assume 0.50 Threads Appear Very Fine)
25mm the Rest the tube

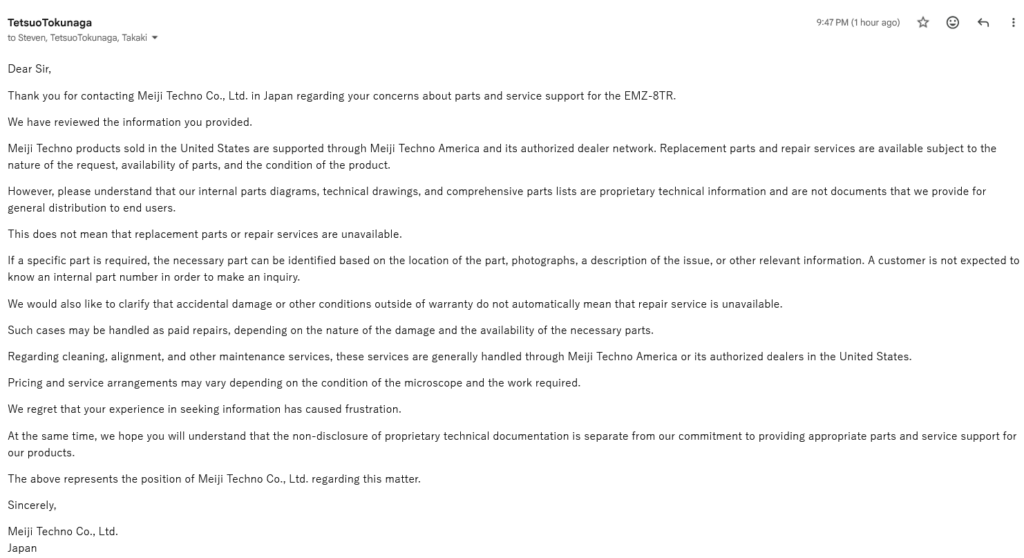

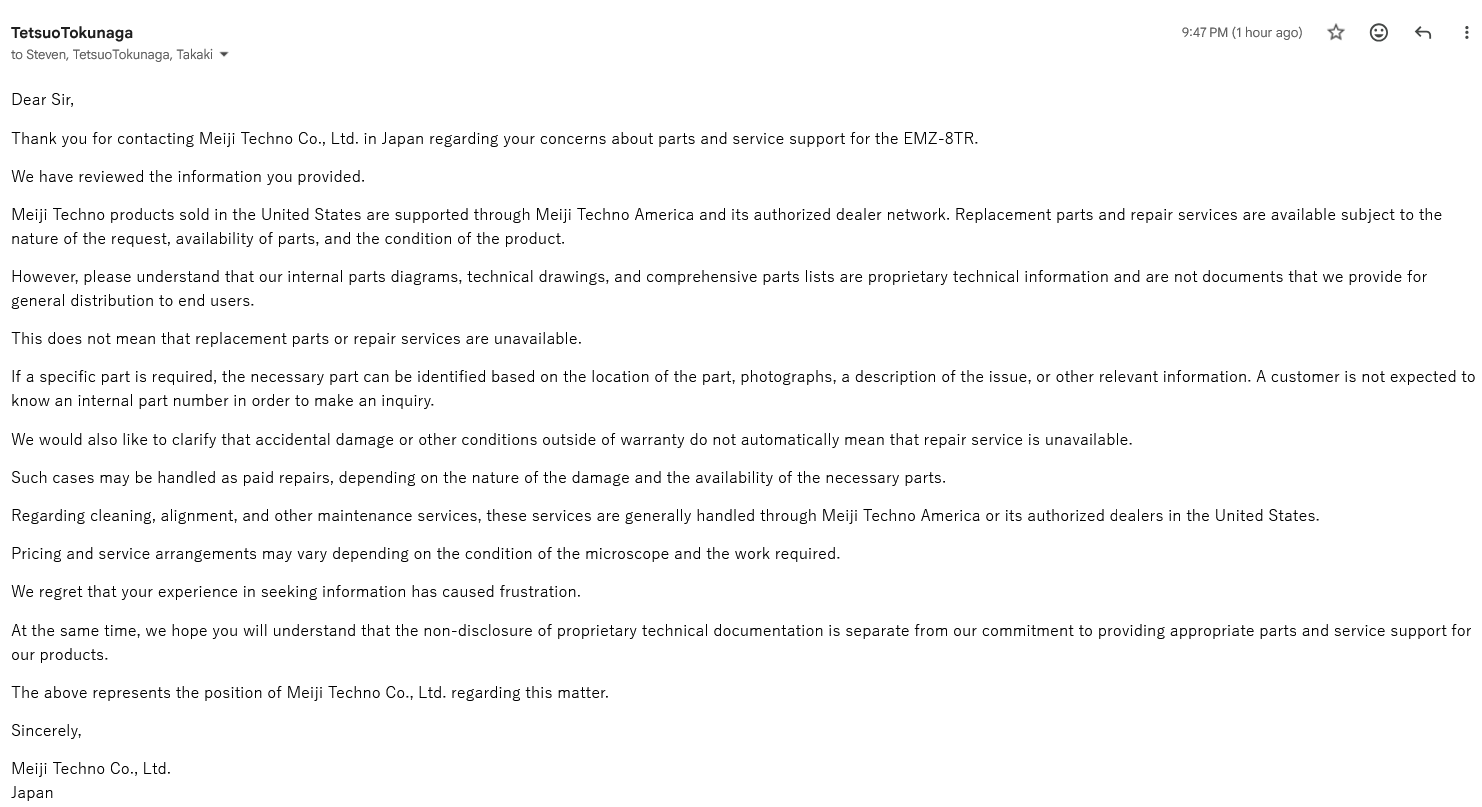

Meiji America, They just said buy from the retailer and try it. Well problem with that is Most these parts are special order and nonrefundable ot they are refundable with steep shipping costs and restocking fees.. The price can add up very quickly. The retailers also just go off the Meiji website themselves so they have the same info.

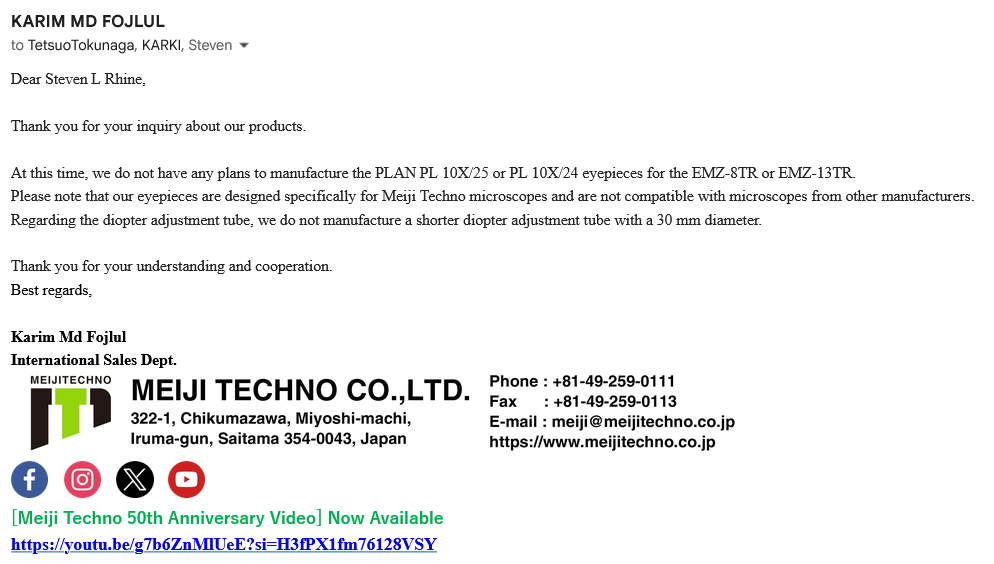

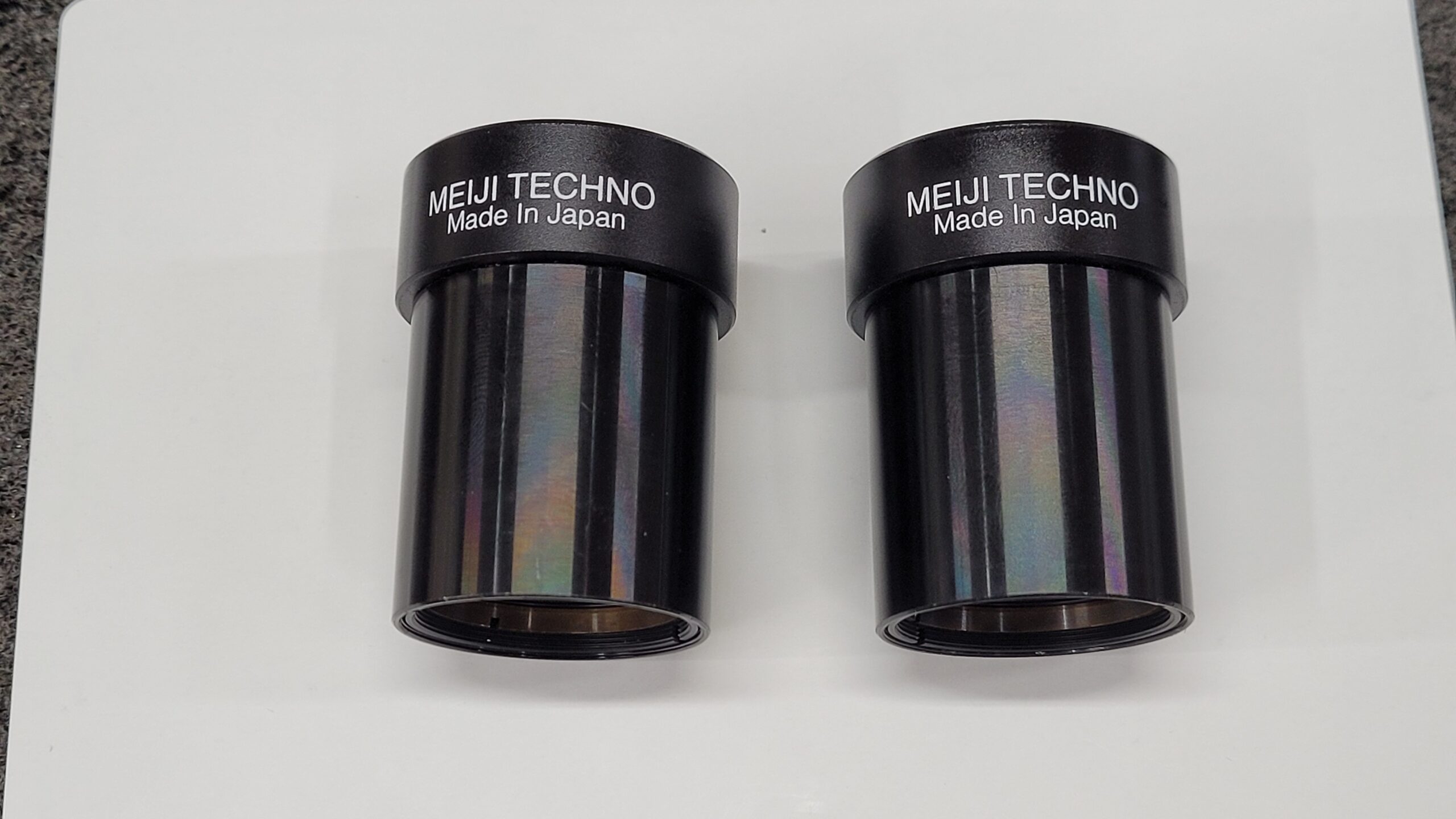

Conclusion..I really like this microscope optics and how well built it is it don’t feel like a toy, But with my aging eyes Maybe I should have went with a EMZ-8TRH it has 30mm eyepieces so there could be some High eye point options. But little a late now. The off the shelf 30mm eyepieces almost work but sit a few mm to high with diopter adjustments bottomed out they almost work I was thinking of having a machinist turn me some off the shelf ones down a few mm at the seat or make custom eye piece objective holders but need to learn optics length etc.
If Meiji Techno made parts available “accidents can and will happen”, Make a more precision fit on their photo port / c-mount, and some high eye point 10X eyepieces then this would be the perfect microscope. I may still buy a EMZ-8TRH and try it but that’s almost $2,500 with a set of 10X Eye Pieces and 0.6X Camera Adapter.
At the price of these microscopes and their accessories one would expect precision fit on the parts. and as said earlier most are non returnable or hefty restocking fees.
Prices just for the Head No Eye Pieces or Camera Port Mounts Adds Up Quick.

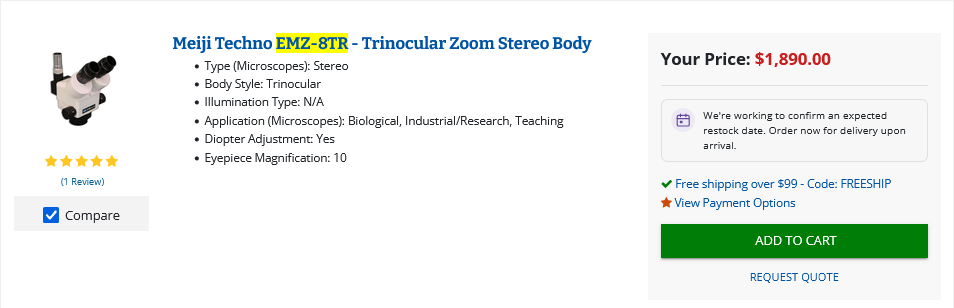

EMZ-8TR
EMZ-8TRH

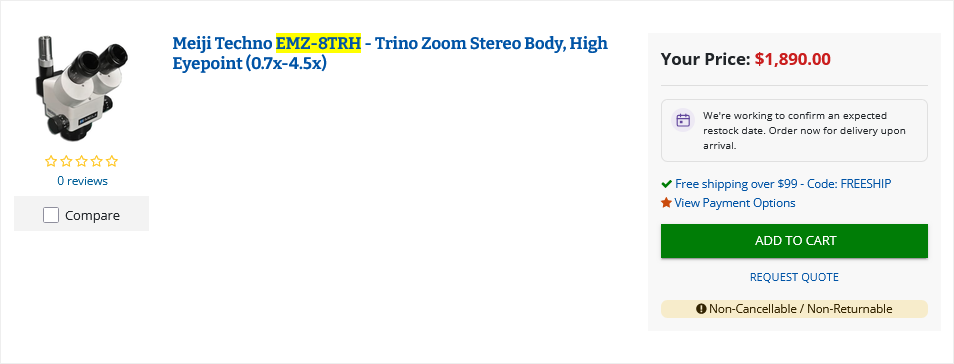

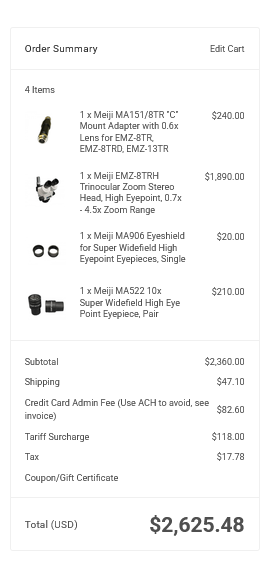

The EMZ-8TRH high eye point.. With Credit Card Fees, Tariff Surcharges, Shipping, About $2,625
More Later Maybe.
