CAMI Research Cableeye Cable Testers CB Board PCB Layout For EasyEDA Pro I may generate Kicad Layouts as well if I get the time.
(Updated and Made Public 05/10/2025)
Note: Cami Research CB Board PCB’s are 2.5mm Thick, I recommend that you use PCBX not JLCPCB as PCBX Has the 2.5mm thickness PCB capability last i checked JLCPCB Did not have 2.5mm thick material.
These are Not Gerber files.. these are for use with EasyEDA Pro PCB Software. I have not tested them but the measurements were verified twice on an actual Cami Research connector PCB’s
Single CB Board PCB Version 2.2
I added Radius on the corners and adjusted the rear slots and lock holes V1.x was .1mm off on the slots and no thumb screw holes.

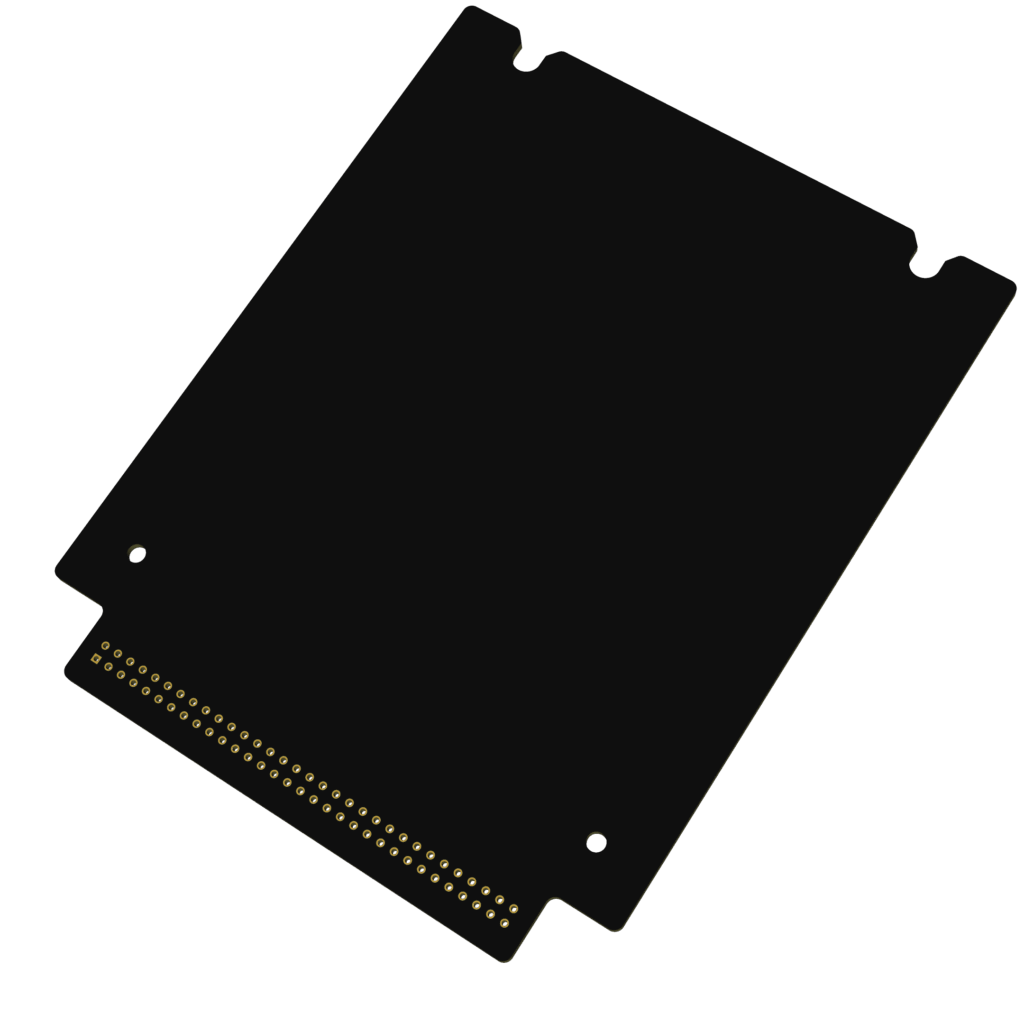

CAMI Research Cableeye CB Board Single Footprint V2.2
Cami Research Double Board PCB V1.1
(V1.0 Space between connectors was off .125mm)
Cami Research Cableeye Double CB Board PCB Footprint V1.1
Vertical Double Density CB-30 Board (Soon)
Last Updated on May 10, 2025 by Steven Rhine
