System General Multi Apro Test and Teardown and Info
System General Software Win MA 2.84Z Archive (Runs on Windows XP)
Multi Apro Device List Viewer V284Z
System General Multi Apro Manual PDF
System General Socket Board Selection Guide June 2003
Live Stream Teardown and Inspection Of The 4 System General Multi Apro Programmers
Firmware Binaries Backups From U20 27C512
I have Confirmed the numbers scratch in to the chip are the sertial # or Programmer ID’s and the Add on units will work if you connect a Serial Cable to the Headers.

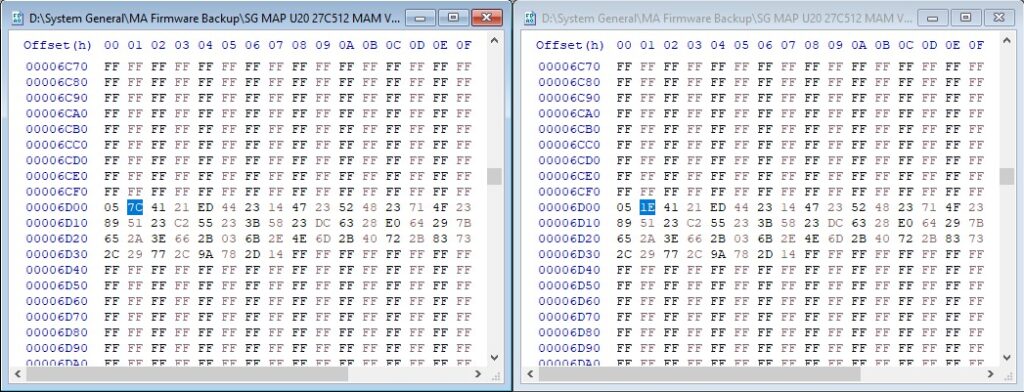

I Have Compare the Files the Only difference is on line 6D00 6D01,

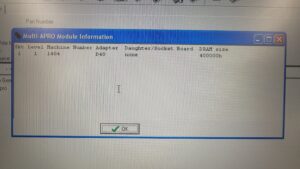

You Can use a Hex Calculator 05 7C in hex is 1404 in Decimal and 05 1E IS 1310 Consistent with the numbers scratch on the chip and that read back of the machine number when software is connected. So anyone can make custom machine id’s now simple to do.
I am Not Sure where it is pick up the level form.
One of the programmers is level 2 but there is nothing in the firmware of the chips I backed up
System General Programmer #1 Testing After Reassembly
System General Programmer #2 Testing After Reassembly
System General Programmer #3 Testing After Reassembly
System General Programmer #4 Testing After Reassembly
My Ebay Listings of Used System General Programmers and Adapters
Circuit Board Photos…(Soon)
Last Updated on October 18, 2025 by Steven Rhine
