BPM Microsystems 2800 APS Site Teardown Inspection Whats is this Vector Engine co processor?
The 2800 is BPM Microsystems 8th Generation Universal Programmer it is a diffrent vairent then the standard 2800 as it is used the BPM Microsystems 3800 MK2 Automated programming System (APS)
Making these Blog Post takes lot of time and money..
If this Site Helps You, or If You Just Like What You See, and/or You Want to Support My Blog Please Donate via Cash App $slrhine
I decided I would remove 1 of the 3 Sites form the BPM Microsytems 3800 MK2 APS and Disassemble it and get some photos.

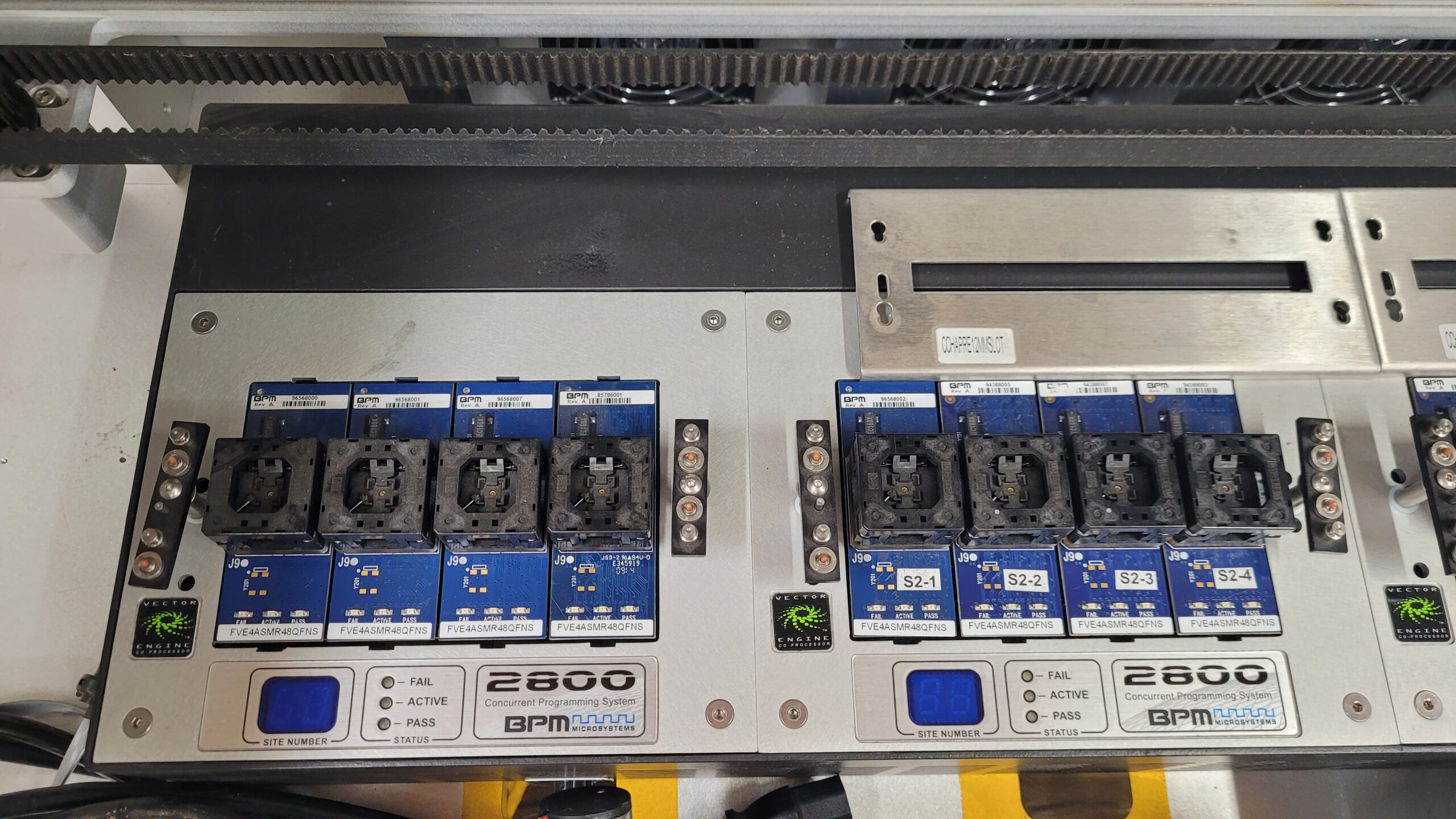

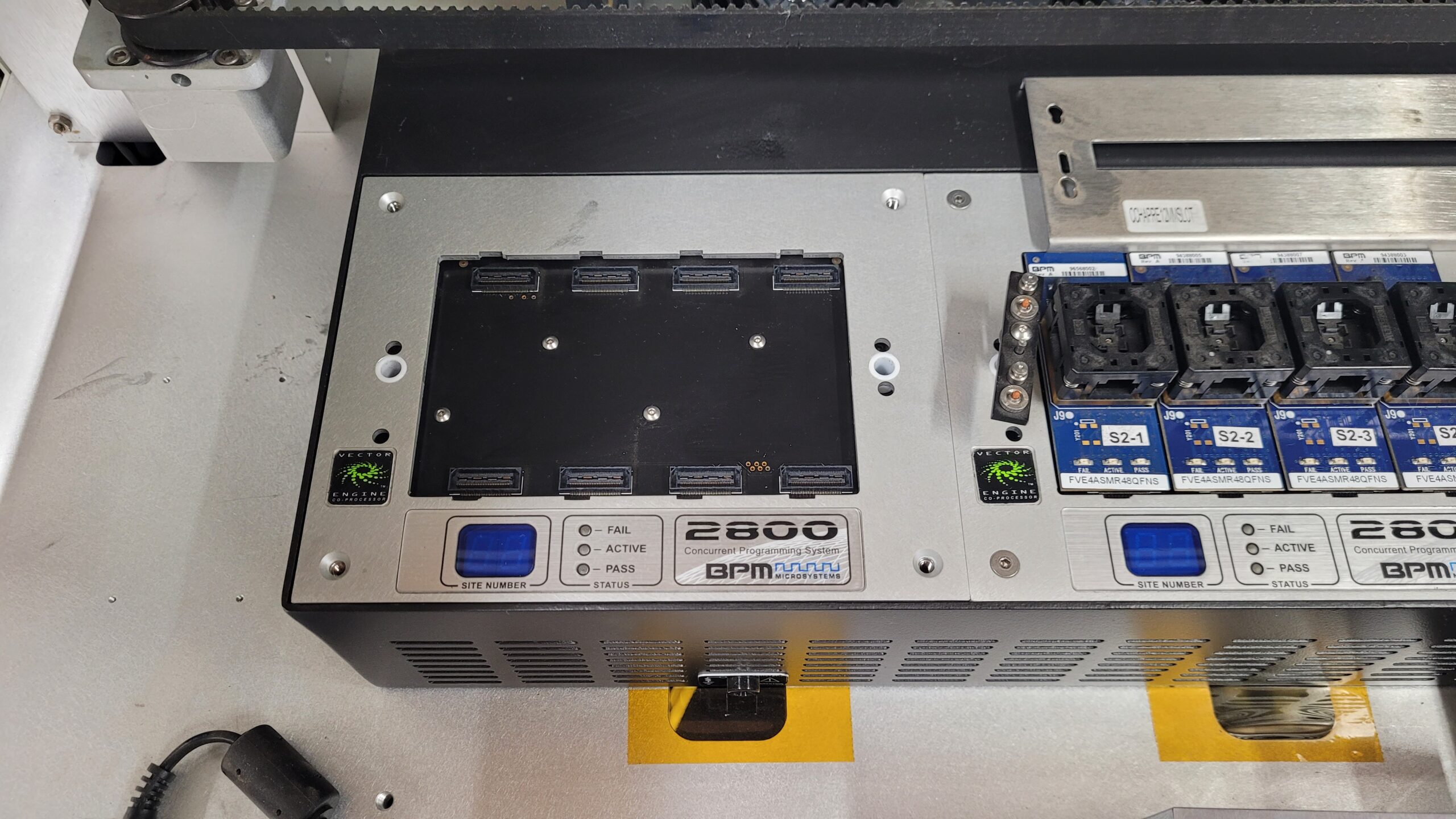

Removal Was Simple Remove the Socket Adapters, T-Posts and 4 Screws the Trim Ring Comes Off.

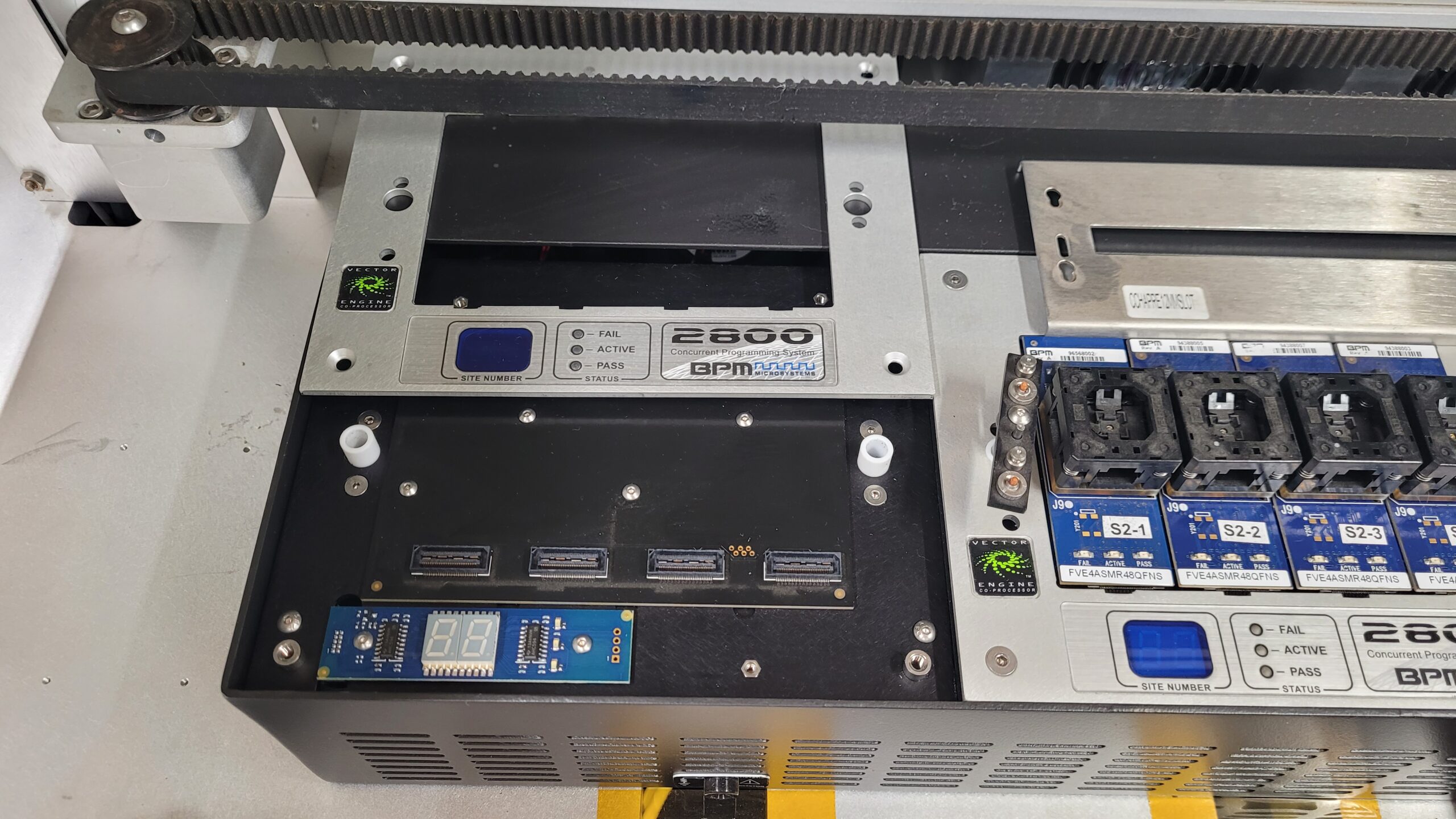

Remove the Trim Ring it Just Lifts Out.

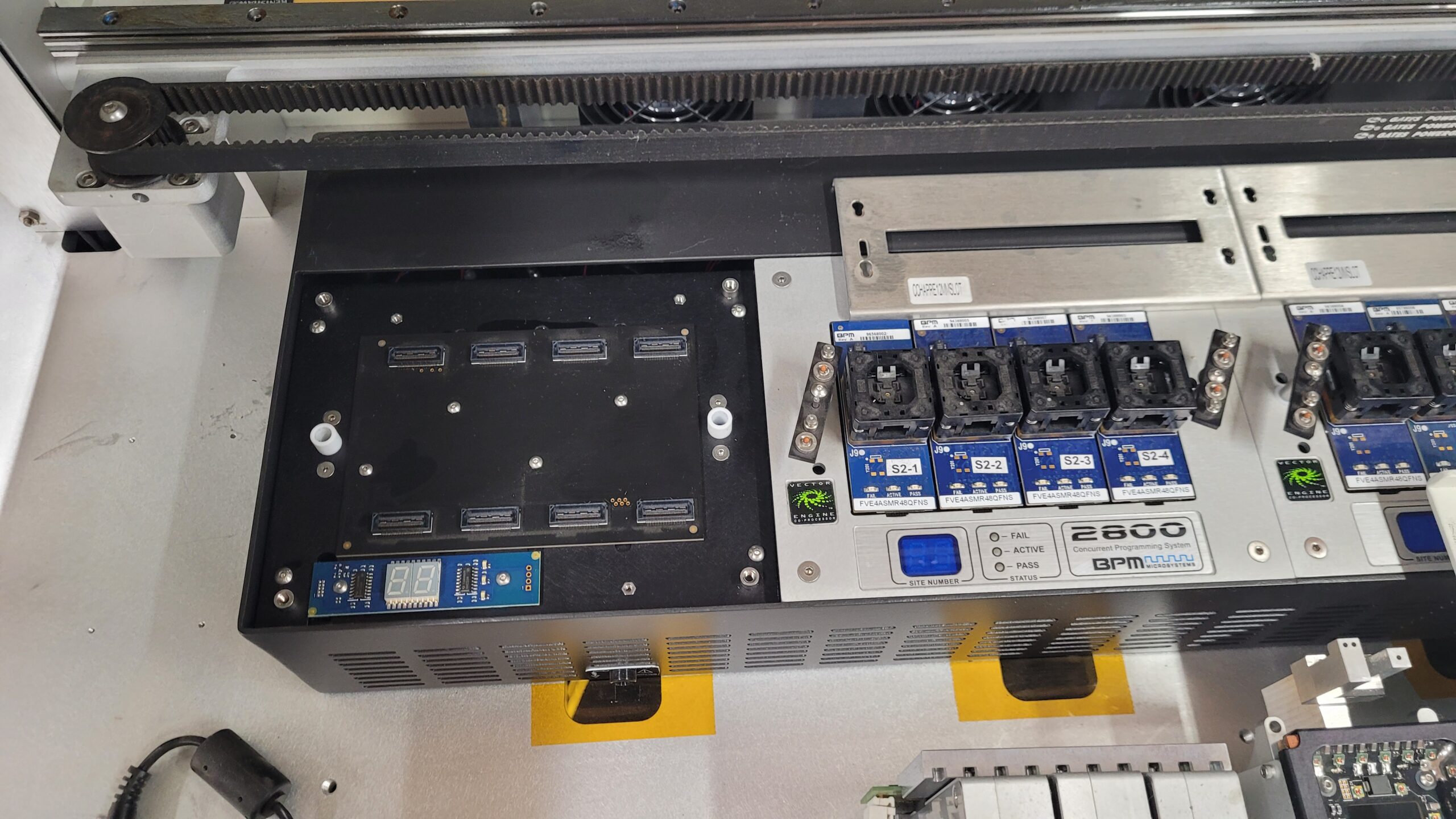

Remove 4 More Screws That Holds the Site Down.

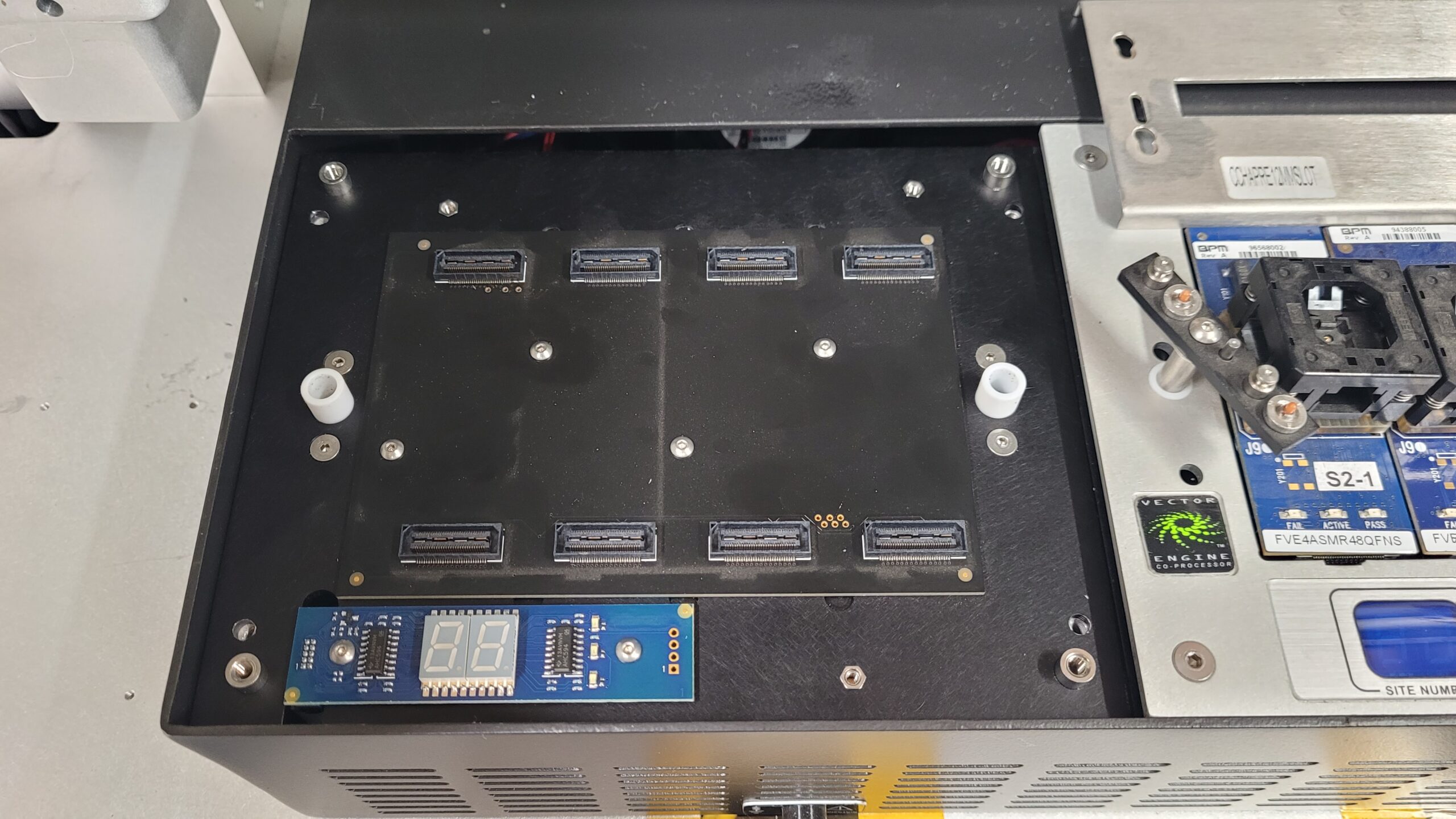

Remove the 4 Screws.
Insert the T-Posts and Carefully Lift Out the Site. There will be wires attached.

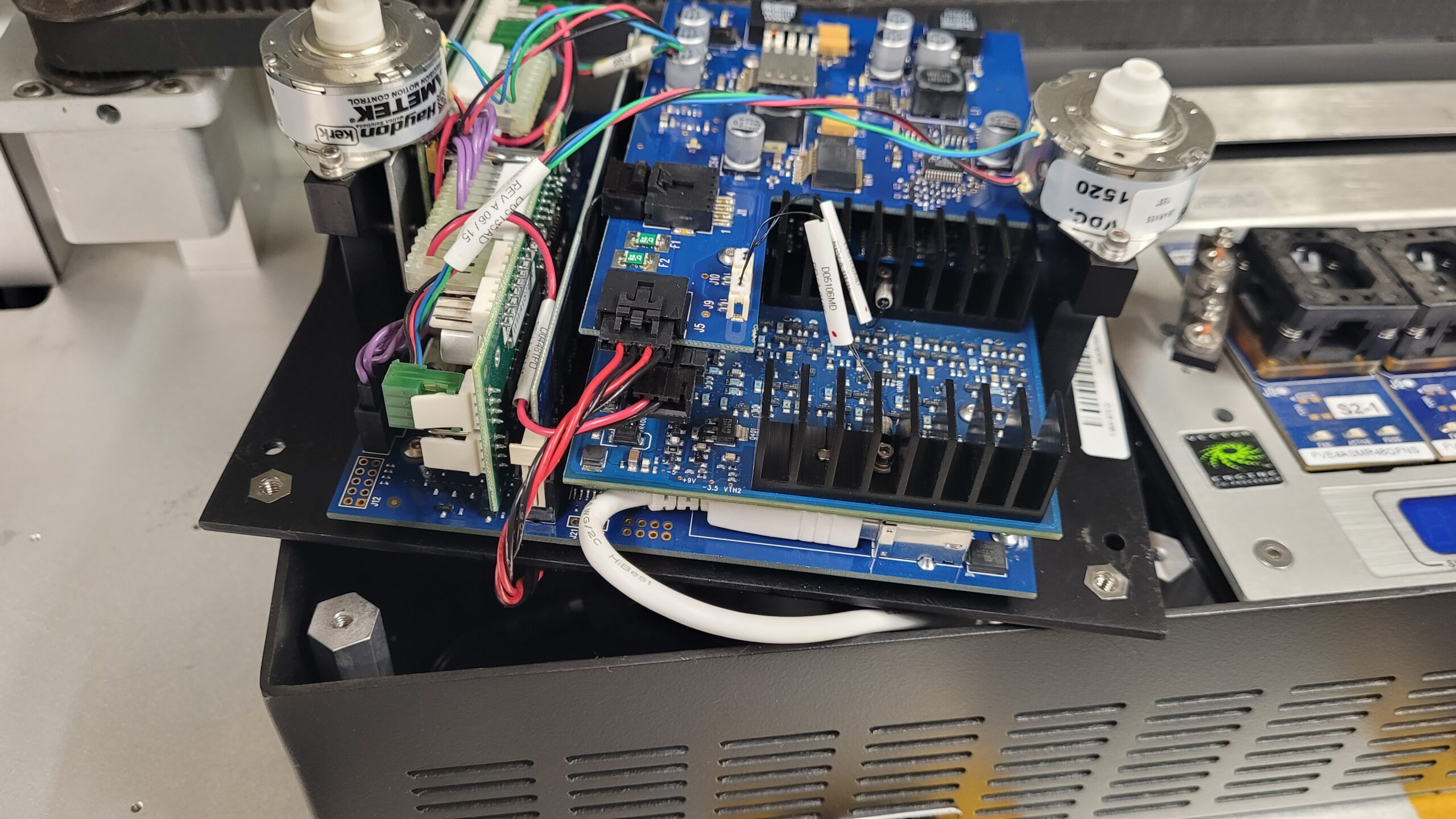

You Will need to disconnect the red and black Wire J5 and the White USB Cable its a tight fit go easy.

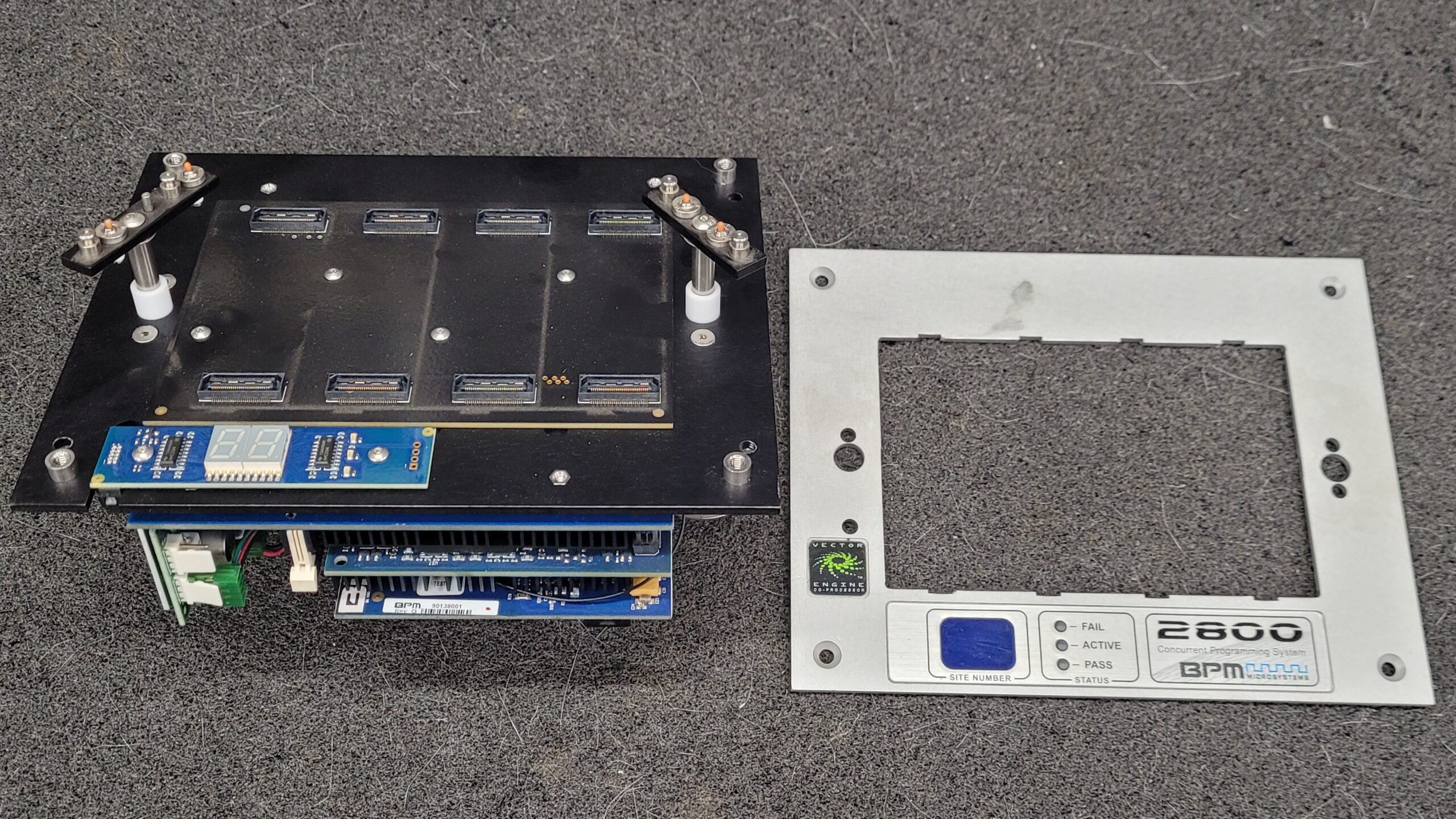

The BPM Microssytems 2800 APS Site is On the Bench… (Yes Cottie Cat Hair and All) Yea I could have cleaned up a little better.

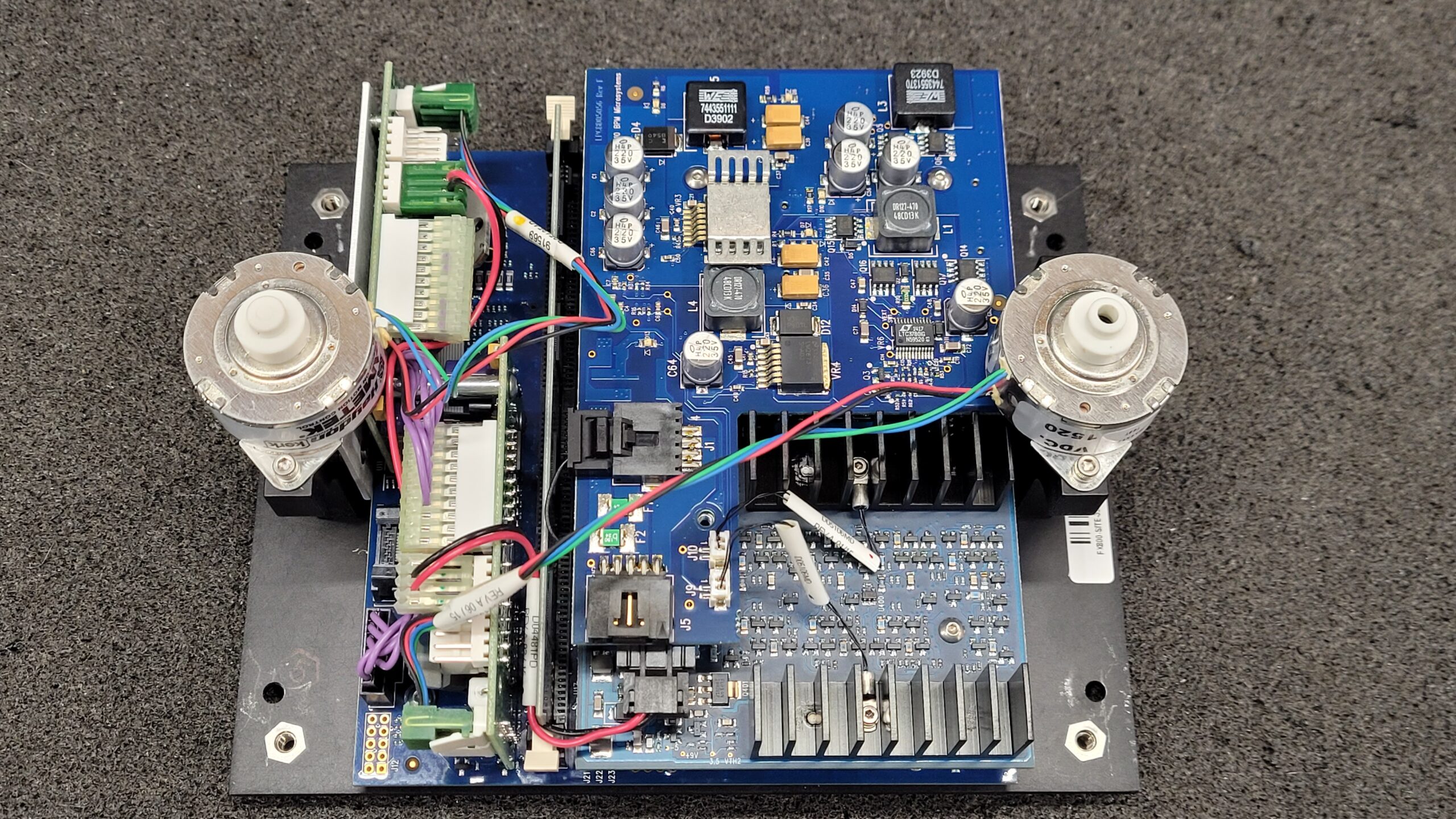

Lets Start Tearing it Down!!! For Inspection. Bottom of the Programmer

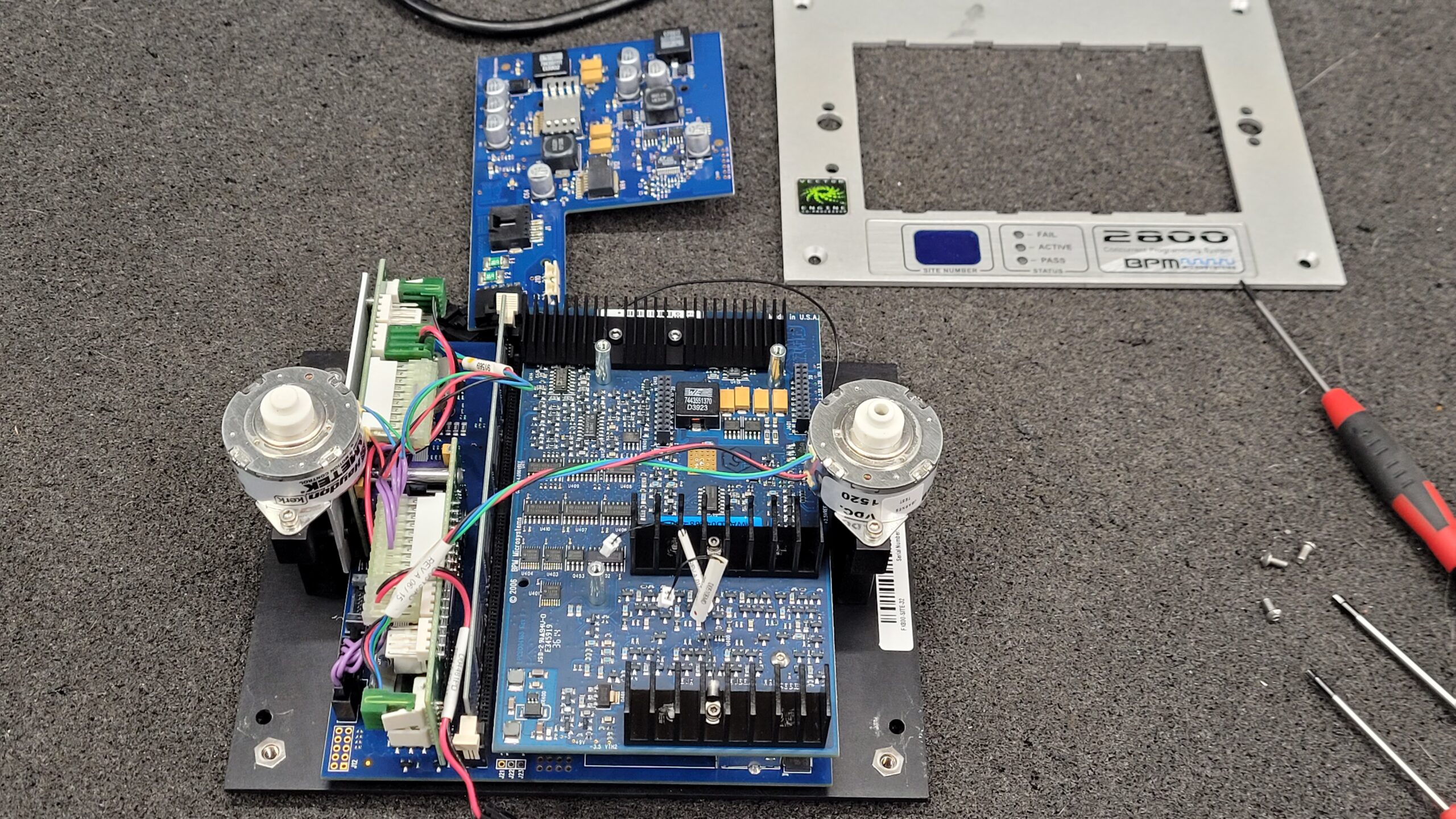

Removal of the First Board. 3 Screws… and 3 what appear to be ground wires.
Continuing to peel the BPM 28000 Onion Going down a layer
Pull what looks like a stick of ram it says its an EMMC 32GBÂ Module? Something Proprietary.
BPM Microsystems 2800 APS Site Main Board I am not going to pull the main board or tear it down any further at this point. I will post some photos of the chips.
The Altera EP2070F896C7N FPGA Chip (I have see then FPGA in another programmer Just cannot recall what one) Is their their Vector Engine Co Processor?
Cypress Chip EZ-USB FX2LP Chip CY7C68013A
Microchip dsPic33FJ64gp206 or is this Is their their Vector Engine Co Processor? (Sorry Bad Photo I have already assembled I may take it apart again “maybe” and better one) Sometimes getting the right angle to get the text to show is difficult this one was difficult very faint text.
Some other Chip of Interests. (Soon)
Possibly Some BGA Flash Chips
CY22150FZ Clock Generator
Serial Eprom M95160WP I attempted to back the data up it was read protected.
I am Still on the hunt for this wiz-bang Vector Engine Co Processor technology all I see is common off the shelf parts so far. Anyone spot it?
