BP Microsystems 1600 / Silicon Sculptor II Main Board this board may have been used on others 486 Based programmers like the 1400 etc.

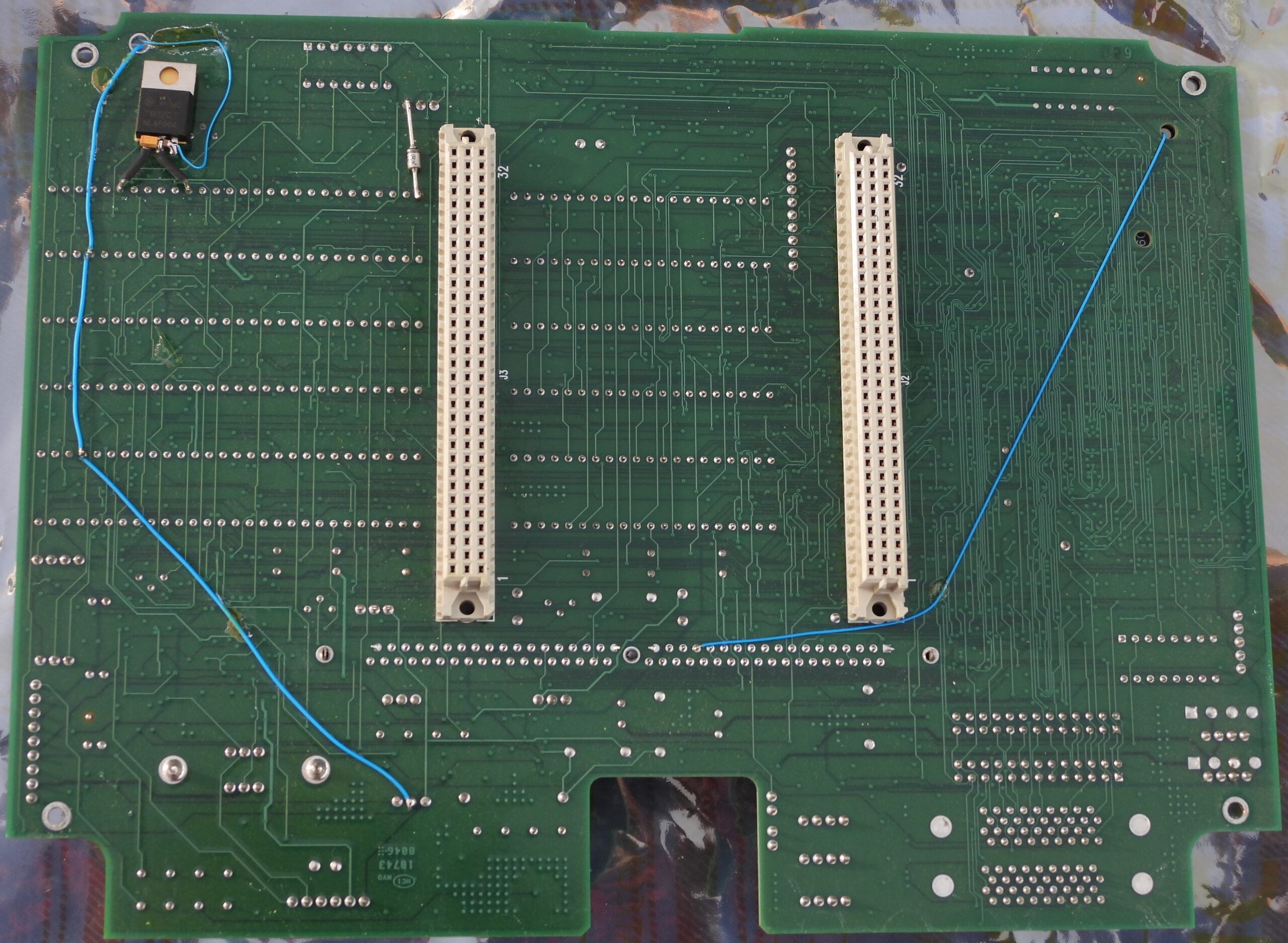

Thank You Wicher for The Photos. Interesting Bodge (Blue Wire)

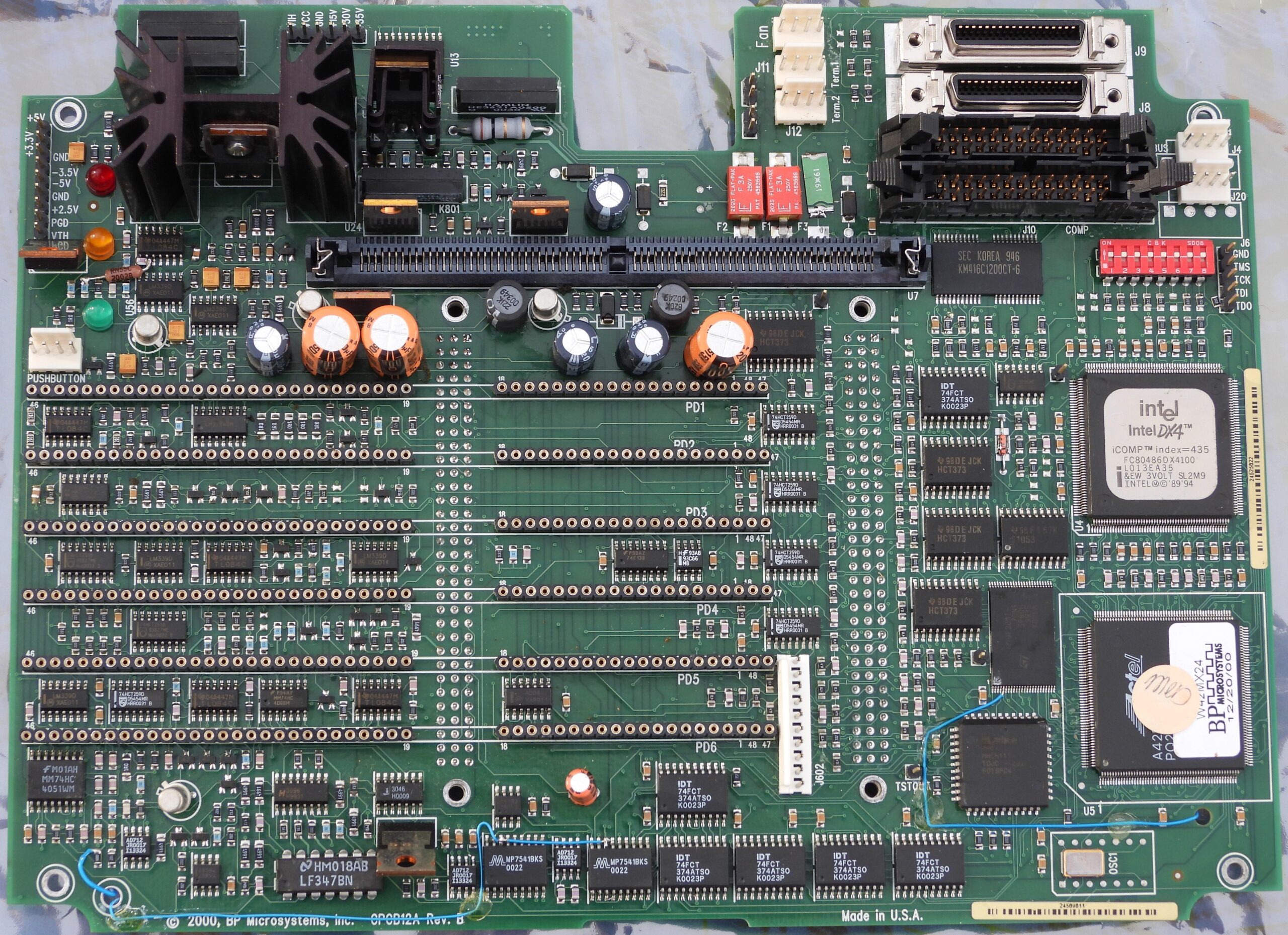

Main Board CPCB12A Rev B
Programmable Devices: (If you are able, I Recommend Backing these Up Because if they Fail you will be SOL and have a Brick)
Flash 29F200

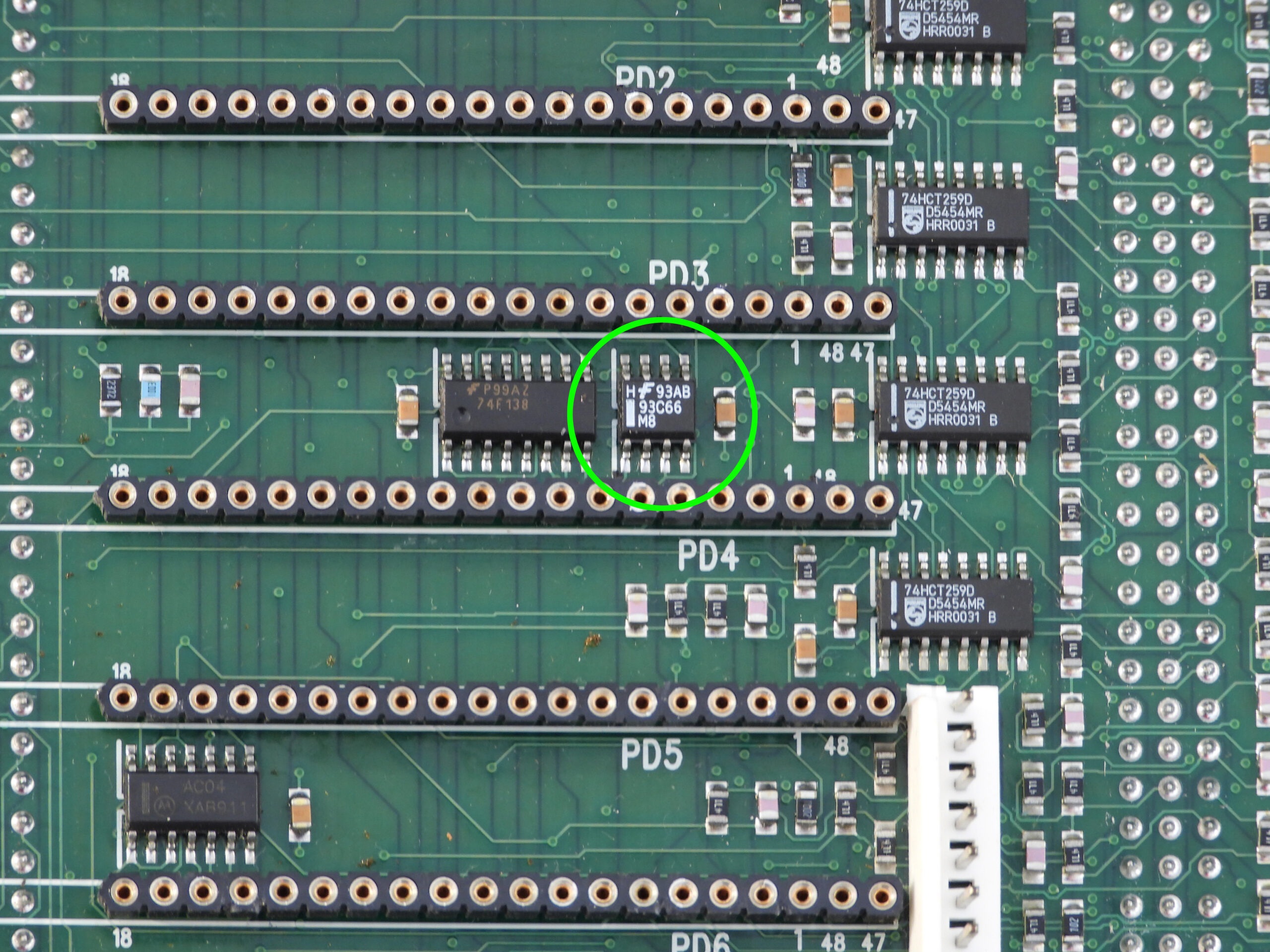

Serial Eeprom 93C66

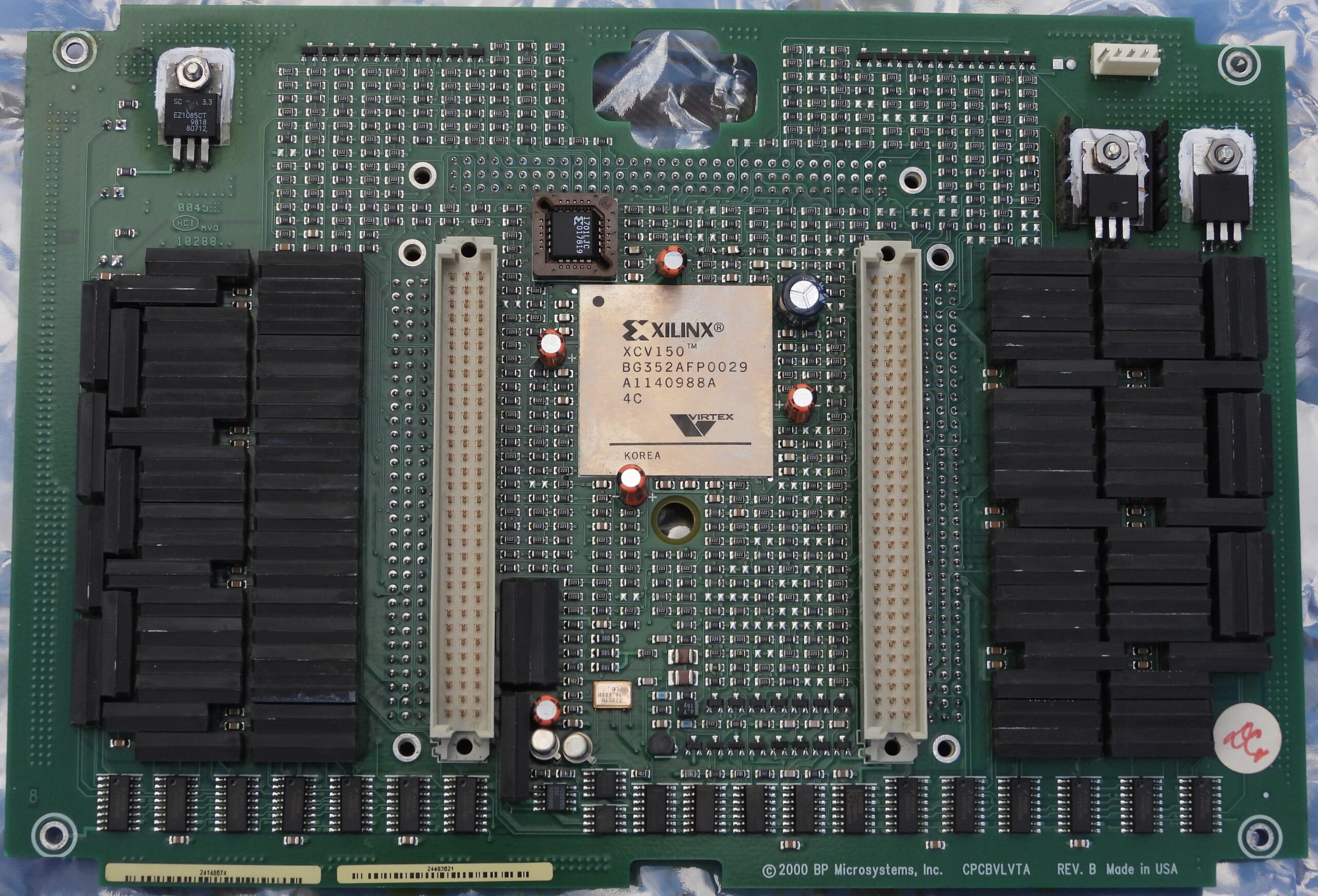

TA Board CPCBVLVTA REV B

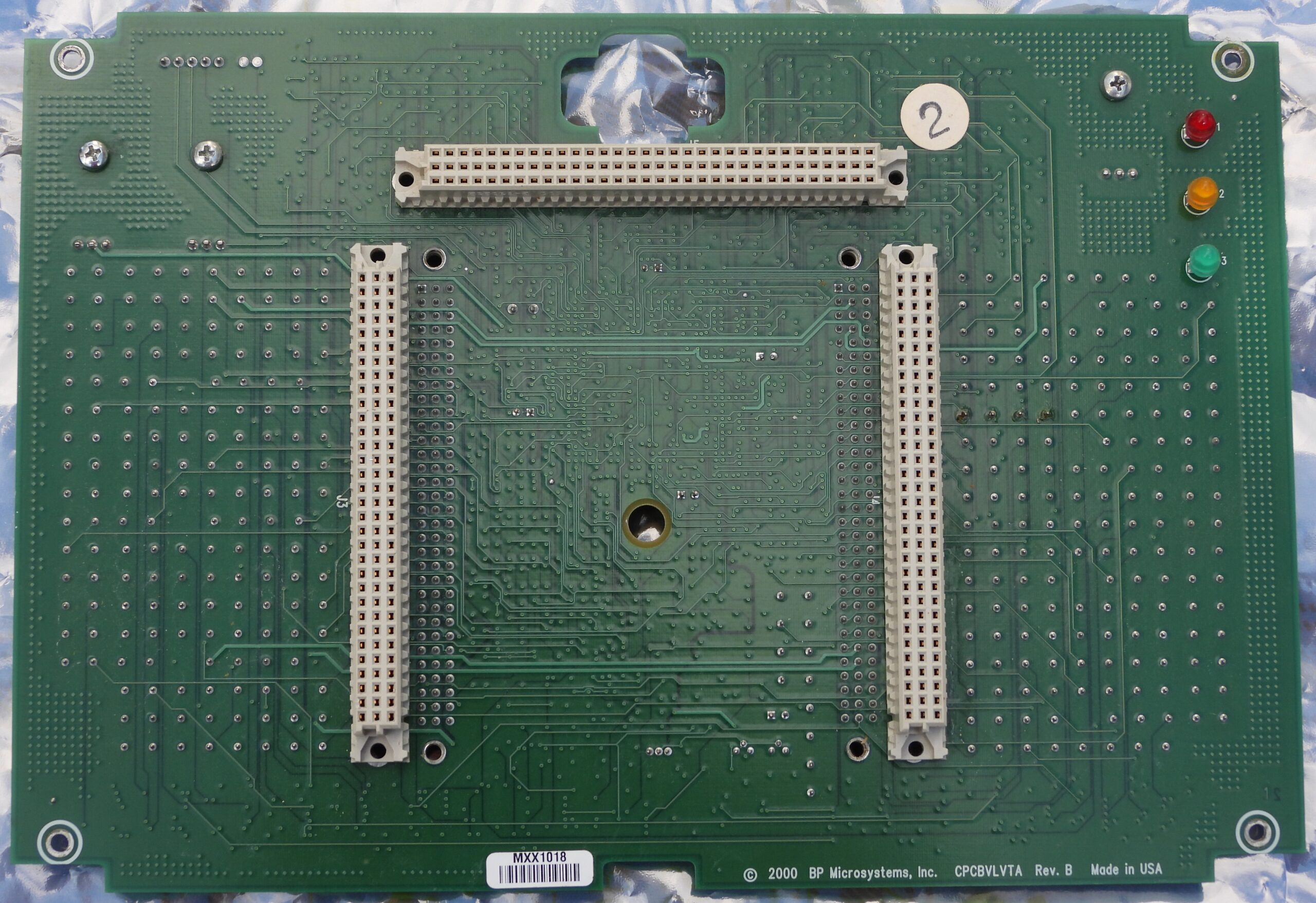

Bottom Side

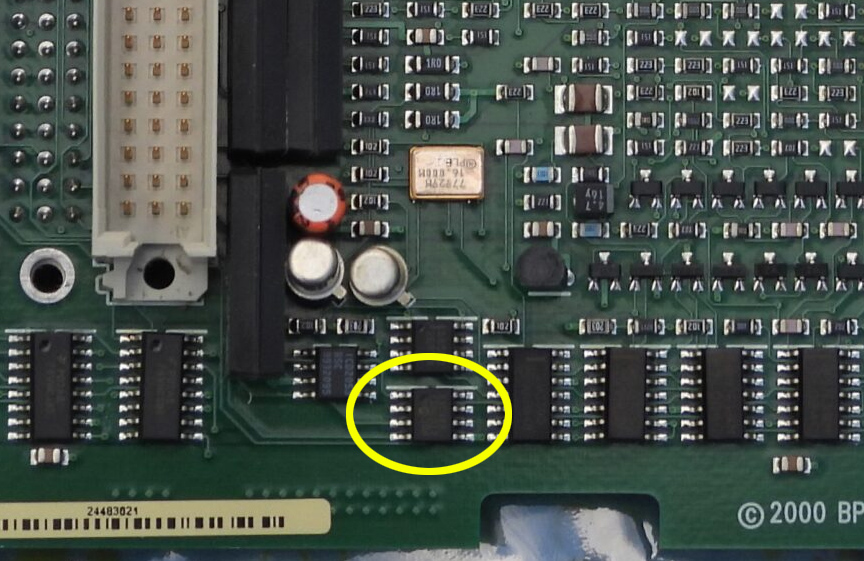

TA Board has a 93C46 be sure to Backup this one up also.
Last Updated on April 22, 2026 by Steven Rhine
