New Tool.. Segger Flasher Pro Teardown and Segger Flasher Pro Pro XL  Comparison. Really did not want to invest much in this due to my experience with Segger Microcontroller Systems on #rightorepair on the older Segger Flasher 5 (R1) Legacy and their Anti Repair Practices but I ended up requiring one so had to get one.

Segger Flasher Pro 5.17.01

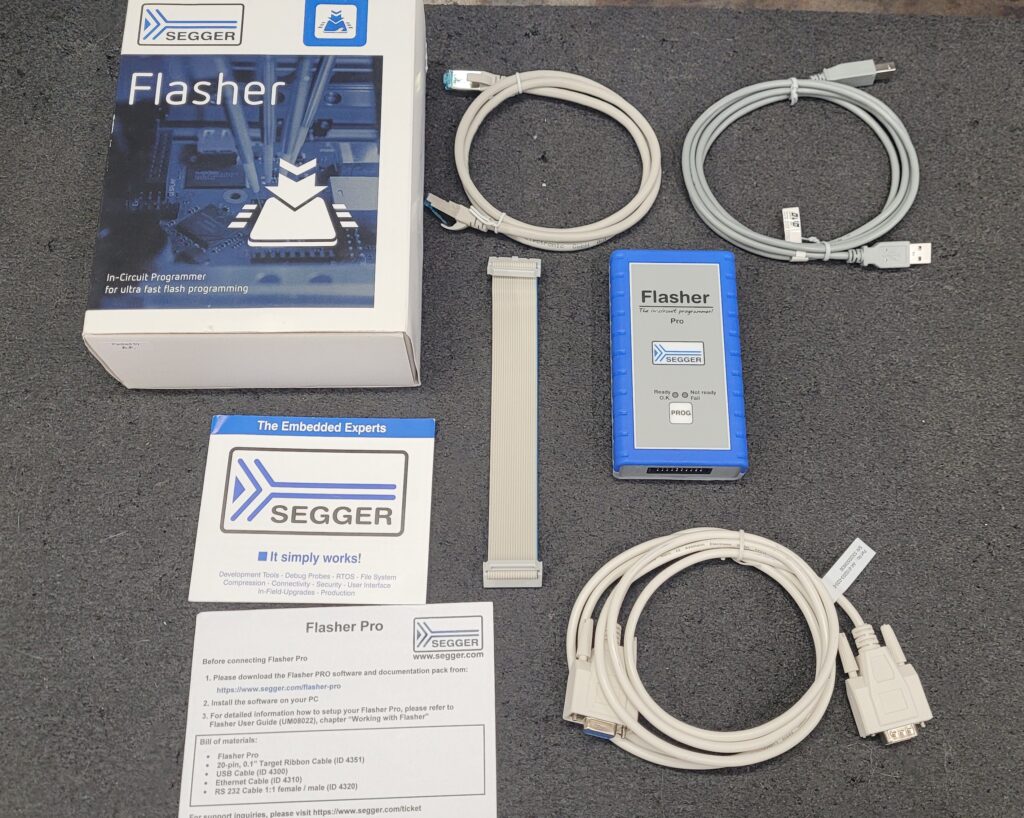

Segger Flasher Pro 5.17.01 Unboxing Video

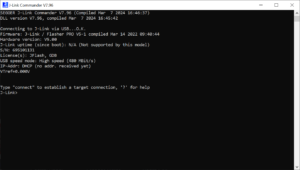

I Hooked Unit Up Detected and Upgraded The Firmware March 15th 2022 to February 28th 2024

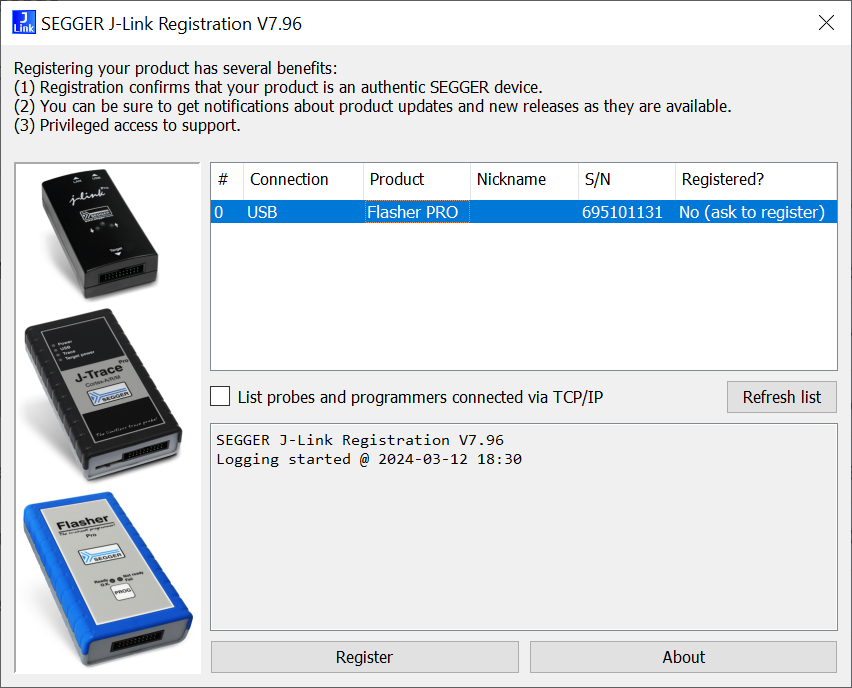

I will use their registration program and register the programmer the next few days.

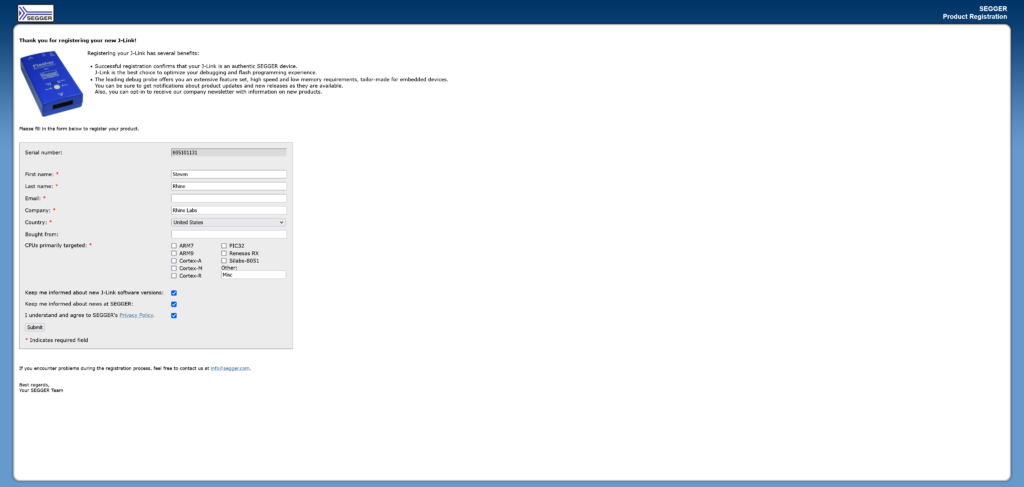

Registration Sends You to a Website

You will get a Confirmation E-mail Letting you know if your Flasher or J-Link is Authentic Or Not.

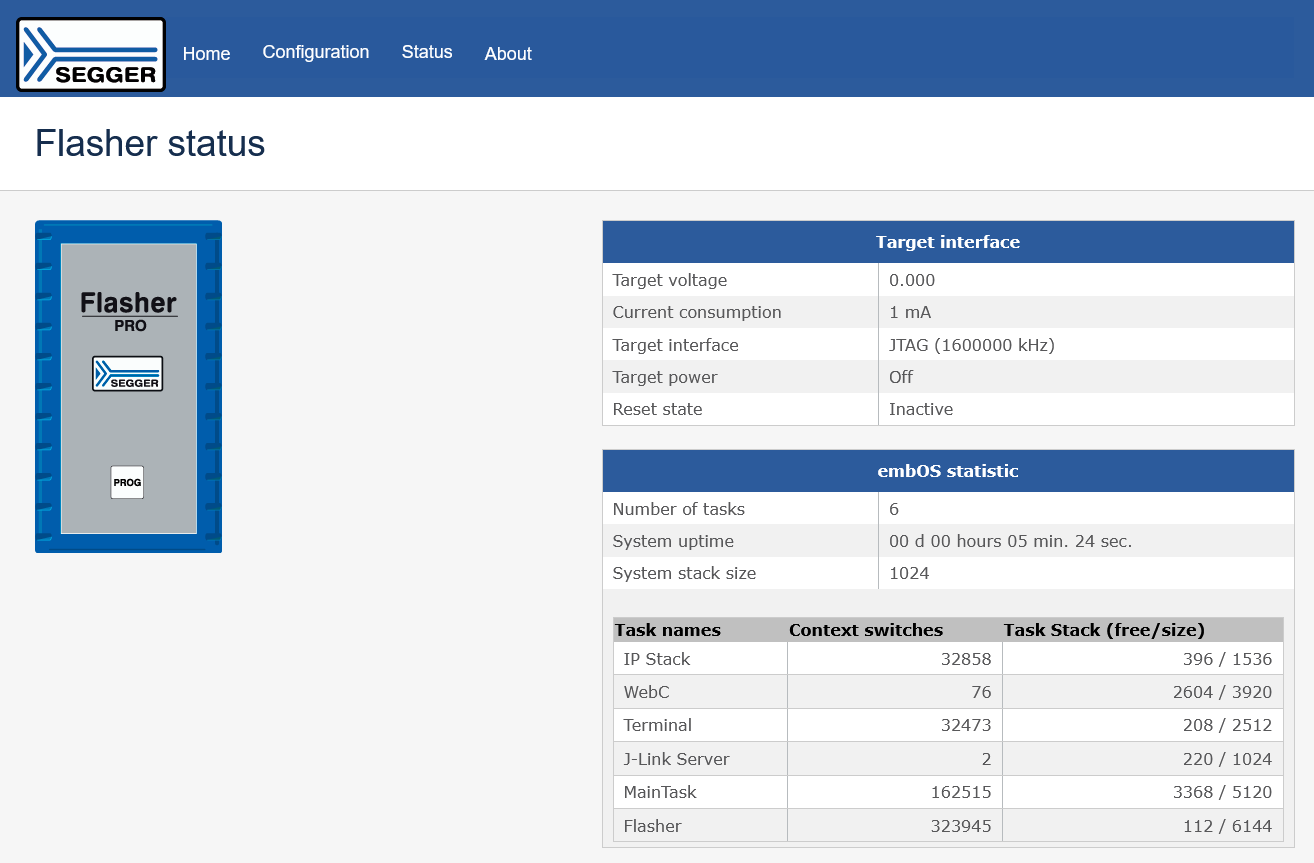

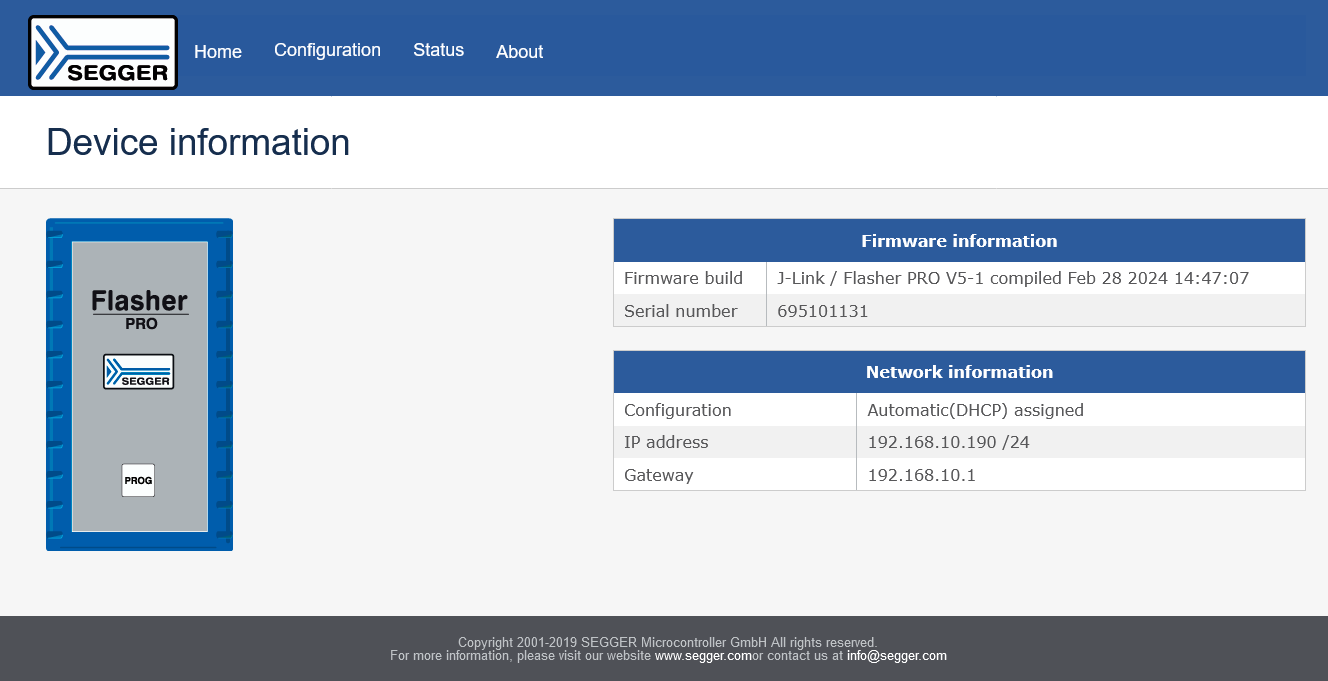

Exploring the Internal Web Server


Gives the Following Links
https://www.segger.com/products/file-system/emfile
https://www.segger.com/embos_general.html
https://www.segger.com/embosip_general.html
https://www.segger.com/find
https://www.segger.com/emFTP
https://www.segger.com/emusb.html
https://www.segger.com/emweb

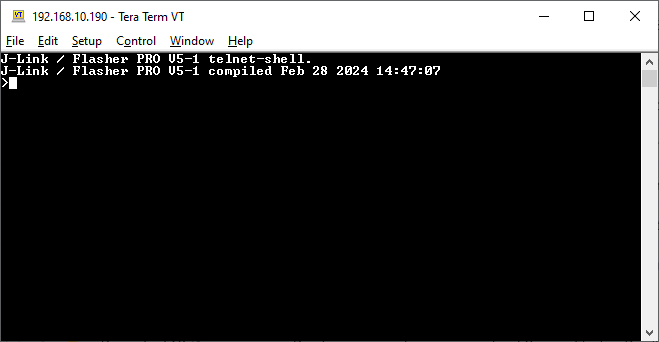

Telnet Access Kind Of.. Just Displays the Following:
J-Link / Flasher PRO V5-1 telnet-shell.
J-Link / Flasher PRO V5-1 compiled Feb 28 2024 14:47:07

Internal Photos.
CPU is a Xilinx XC7Z007S-1CLG400
Flash MX30LF1GE (1 Gig)

My Segger Flasher Pro 5.17.01 (Non XL) board bears the distinguished label “Flasher ARM V5.1,” possibly indicating the manufacturing date as 210504. Notably, my unit arrived without a micro SD card included.

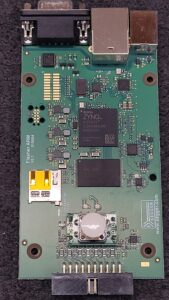

Segger Flasher Pro 5.17.01 Opened Up Main Board

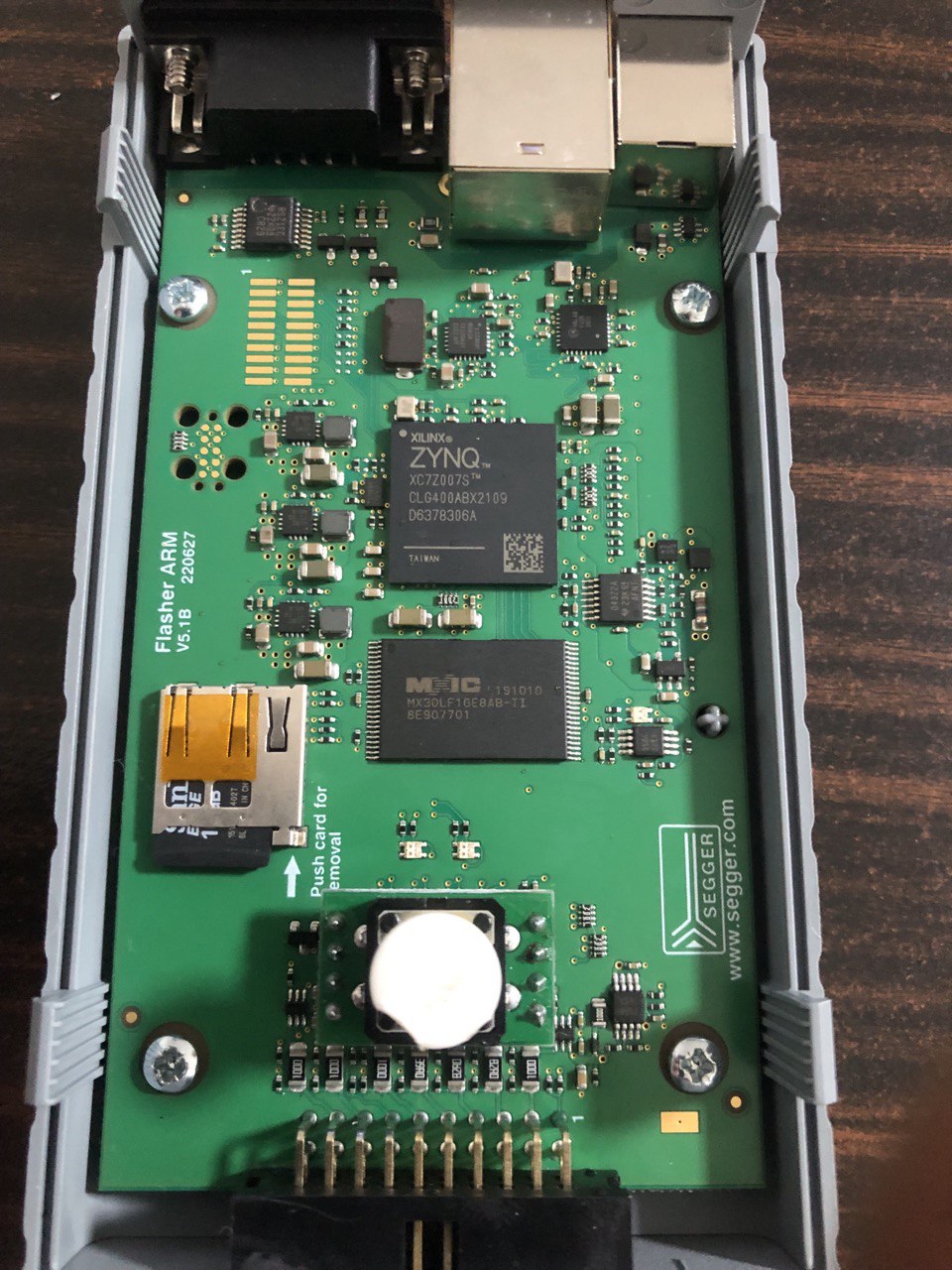

The image below was graciously shared by an acquaintance in Turkey (many thanks for that). It reveals the interior of a Segger Flasher Pro XL 5.17.02 PCB, with markings indicating “Flasher ARM V5.1B,” potentially suggesting a manufacturing date of 220627. Interestingly, the CPU and flash components remain consistent. However, the contents of the SD card remain a mystery; I’ll reach out to request an image of its contents for further exploration.

Segger Flasher Pro XL 5.17.02 Opened Up Main Board

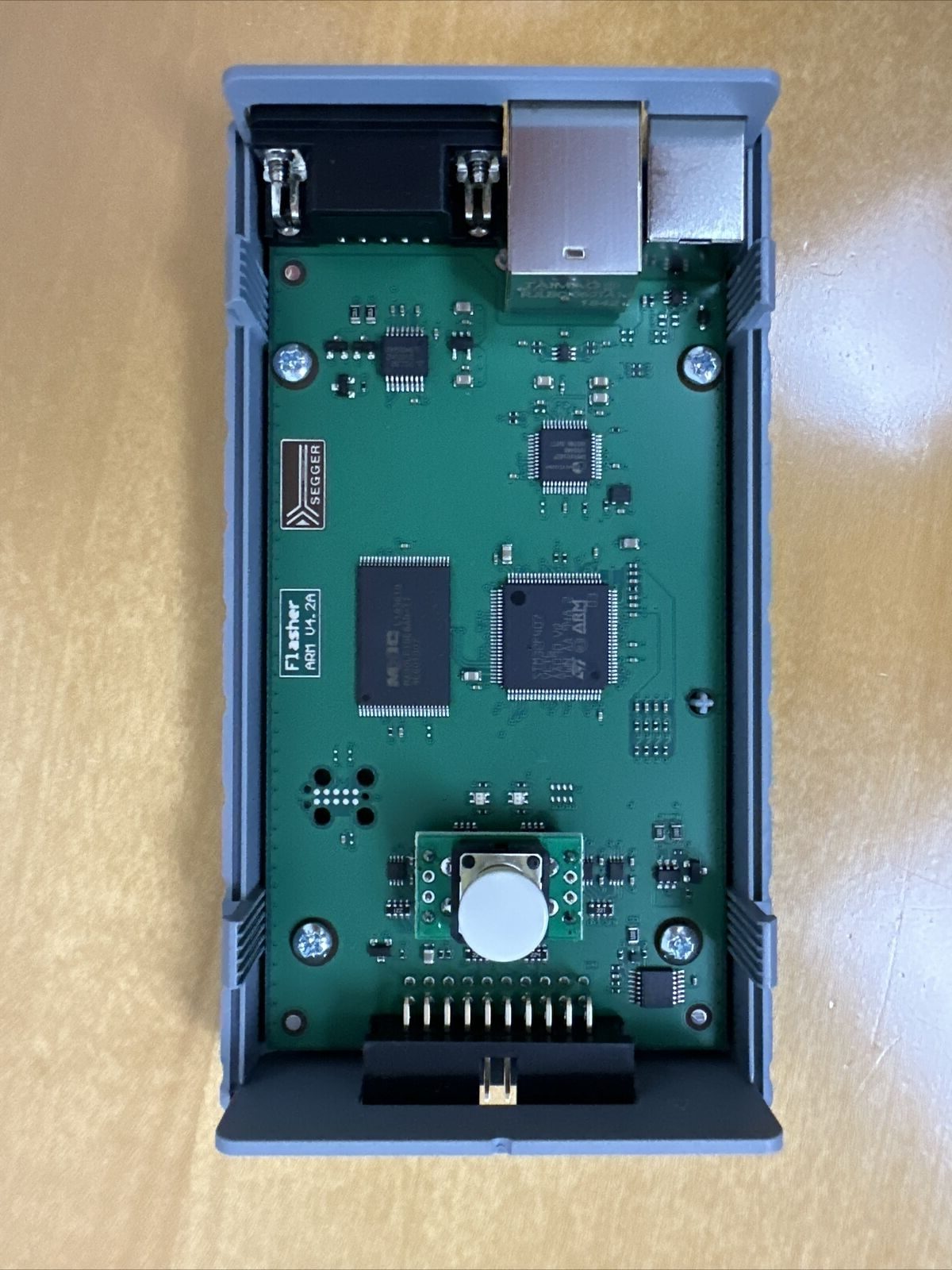

Segger Flasher Arm V5.07.01 (Is Diffrent) Thank you Ebay Seller kidforlife for the Photos. He is selling his Flasher ARM Click Here The board is a Bit Different.
Segger Flasher Arm 5.07.01 Cover Off

Board Removed Form Mine Photos Of Top and Bottom

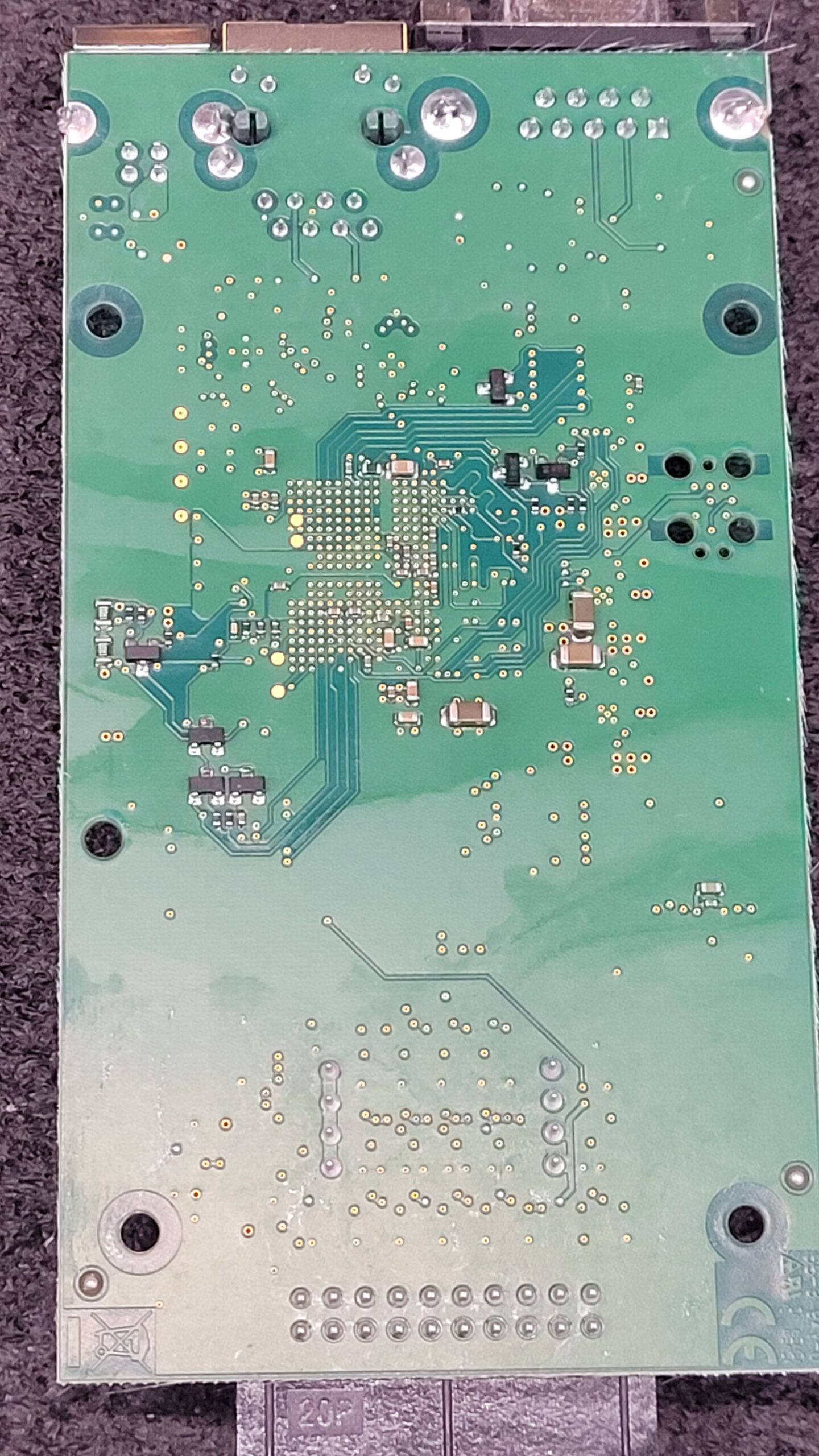

Segger Flasher Pro 5.17.01 PCB Top Segger Flasher Pro 5.17.01 Bottom

Close up Photos (I have to retake these not sure why setting are grainy) will update soon!
CPU is a Xilinx XC7Z007S-1CLG400
Segger Flasher Pro 5.17.01 CPU

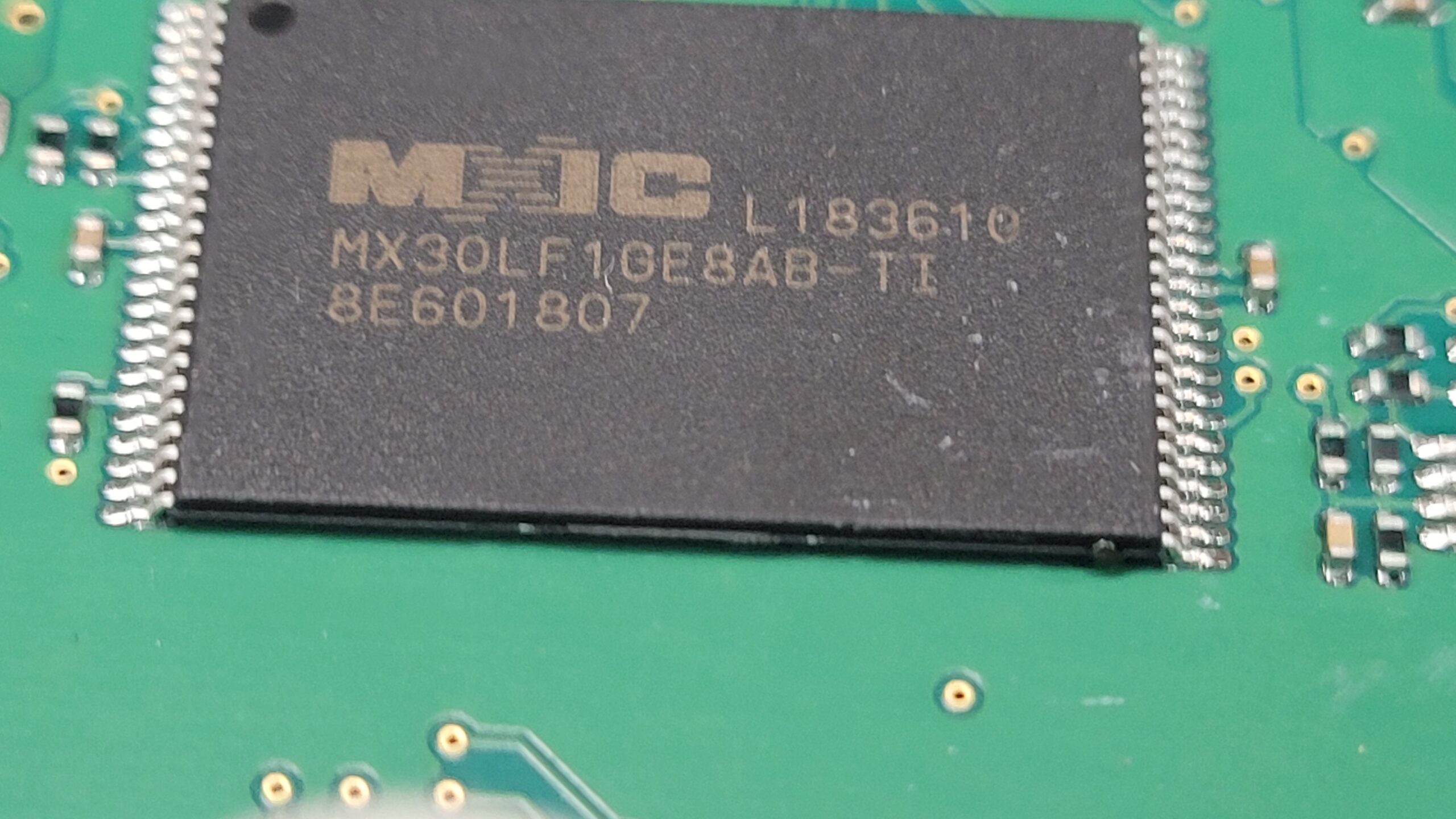

Flash MX30LF1GE (1 Gig)
Segger Flasher Pro 5.17.01 Flash

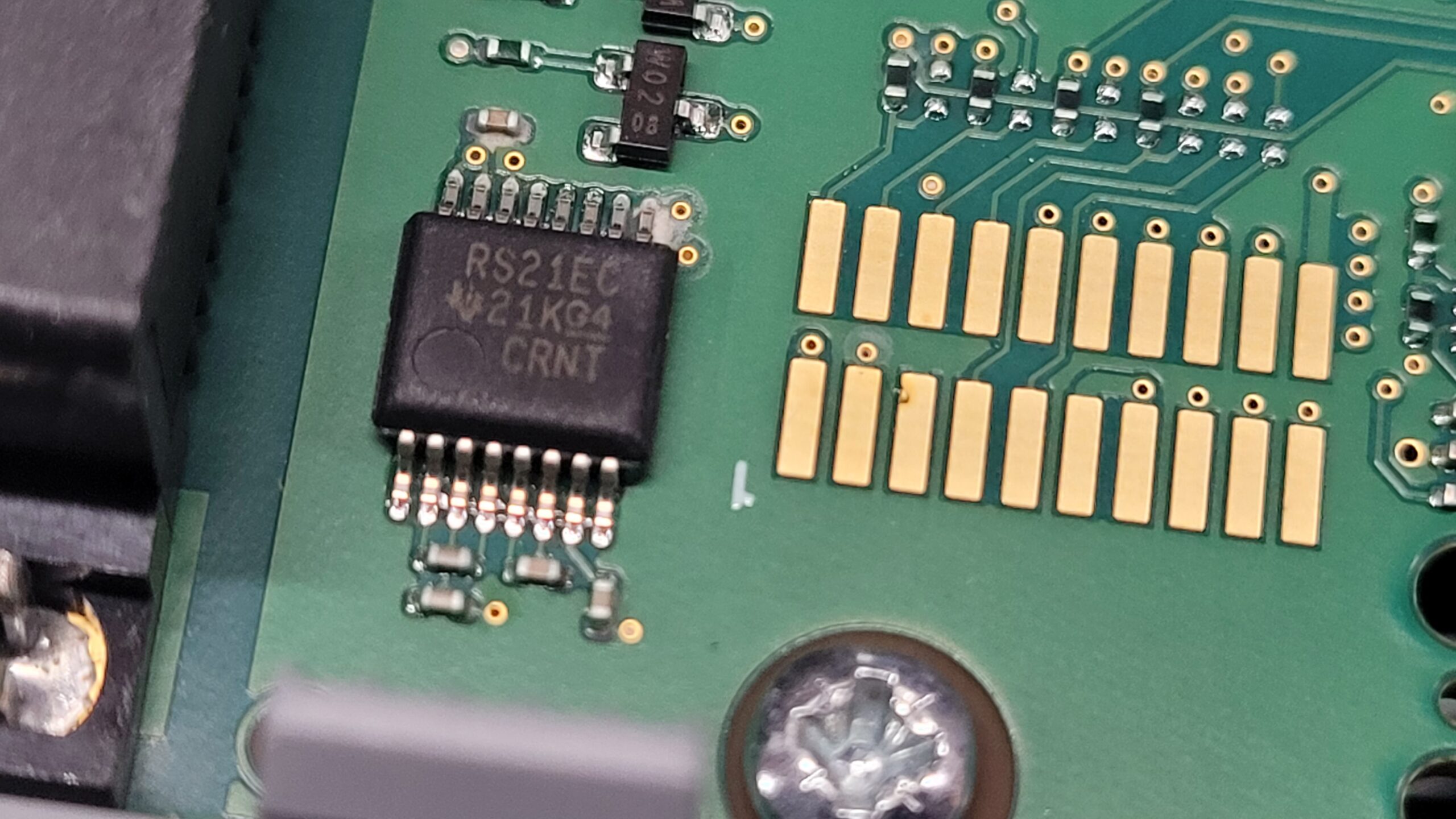

TI RS21EC RS232 Driver Chip

Have a Legacy Flasher 5 this was to upgrade just in case my Flasher 5 ever failed. I did e-mail Segger asking them to add device support for the M38039FFFP to the Flasher Pro My request was Denied LOL! Yes that Works Sorry we do not Repair these, not will they provide schematics or firmware and  you need to Upgrade to the Flasser Pro that will not support devices the legacy flasher  5 supports and we will not add the device support because it is old device lol.  Got it!

More Soon!!

@seggermicro #SeggerMicro

Last Updated on May 7, 2024 by Steven Rhine
