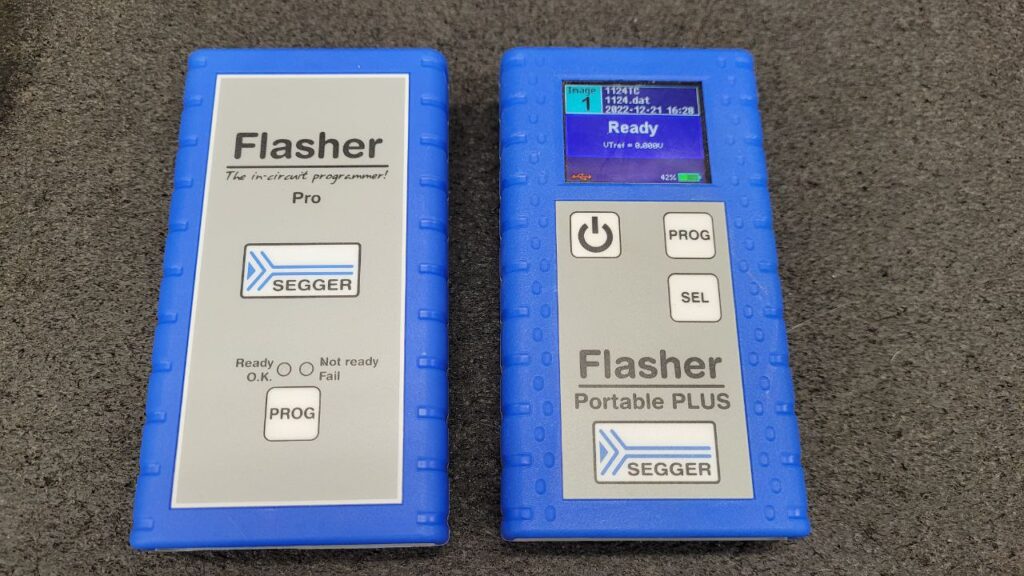

Segger Flasher Portable Plus Next to the Segger Flasher Pro

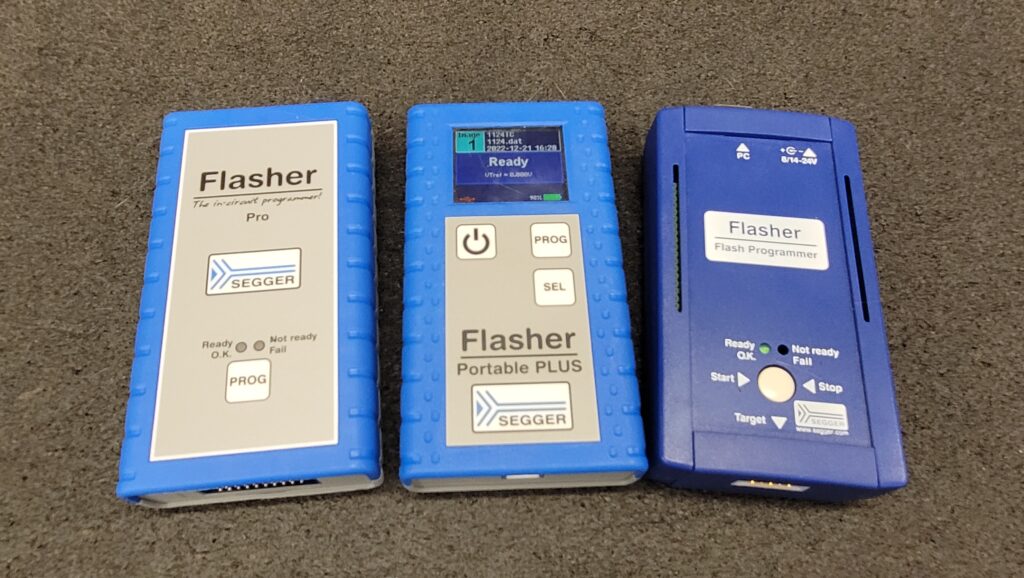

Here are My Segger Flashers, Segger Flasher Pro, Flasher Portable Plus, and Legacy Segger Flasher 5 R1, I have another Flasher 5 R1 but had dead/corrupt MCU I have the replacement MCU’s just need to find the time to do the sweap and reprogram. I want to thank Segger for sending schematics and firmware for it so I can get it up and going next chance I get.
Segger Flasher Portable Plus Teardown “A Look Inside” This is What You Are Buying…

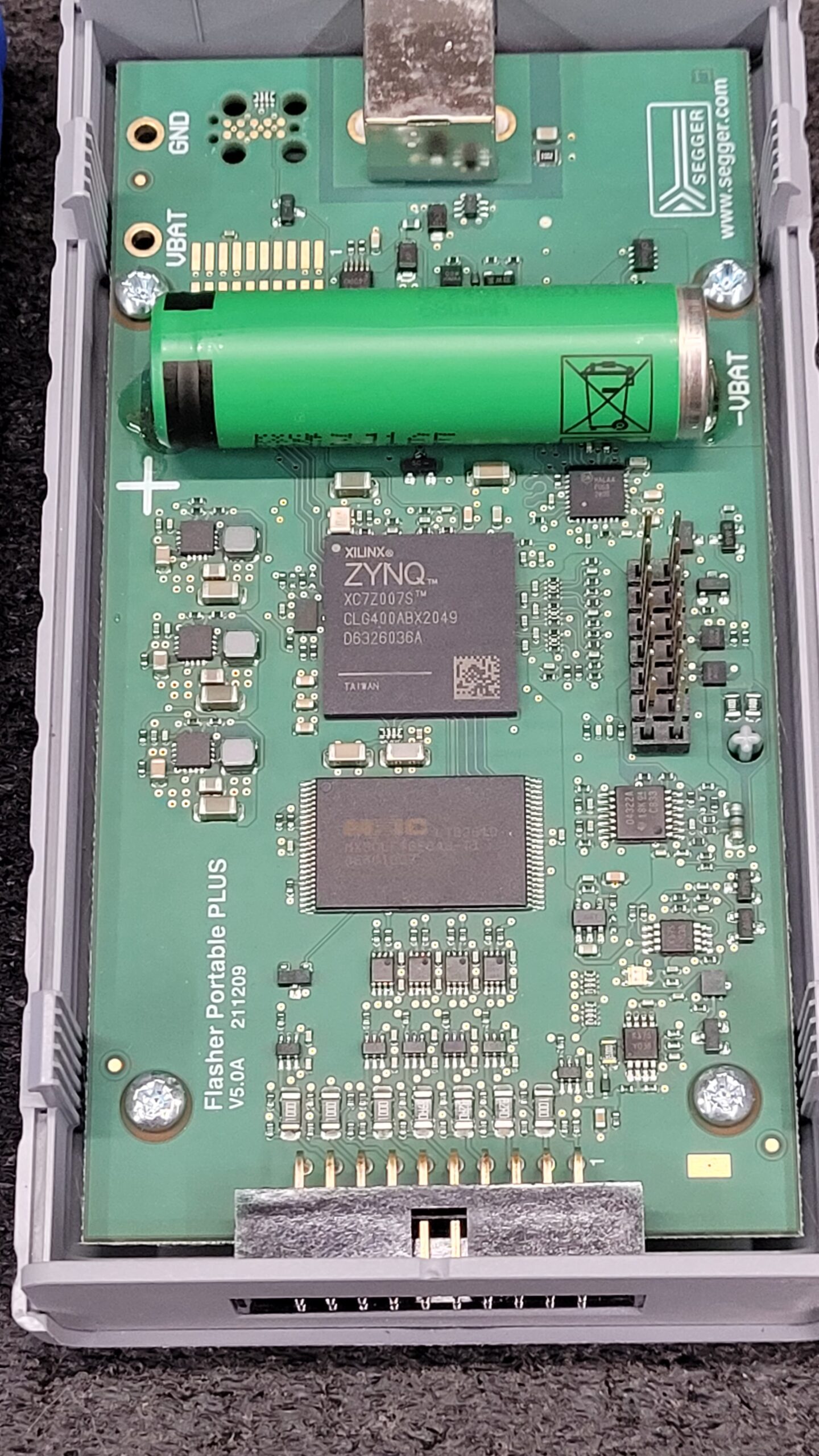

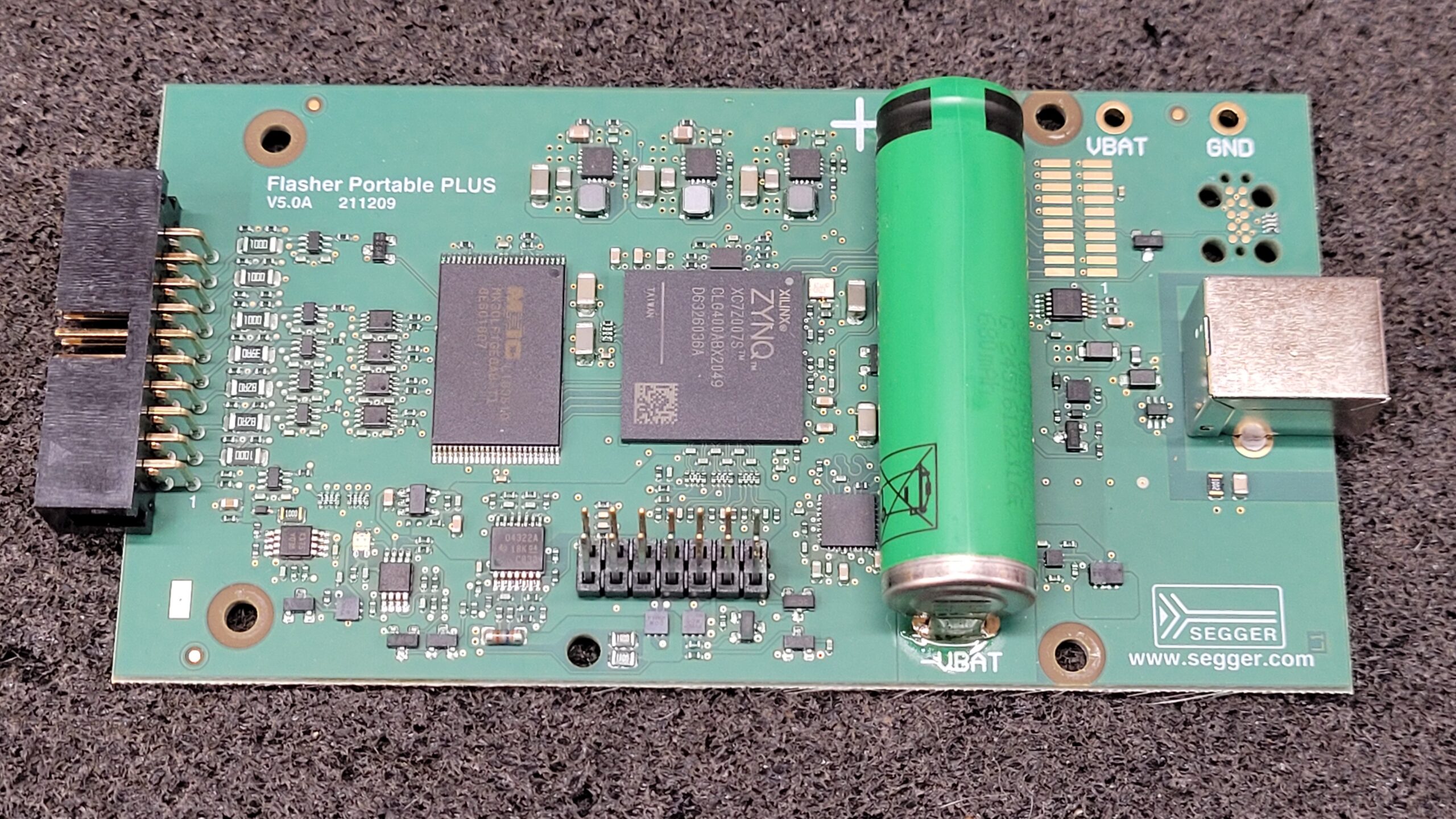

MCU Board.
Display Board
I got another one flasher Portable Plus

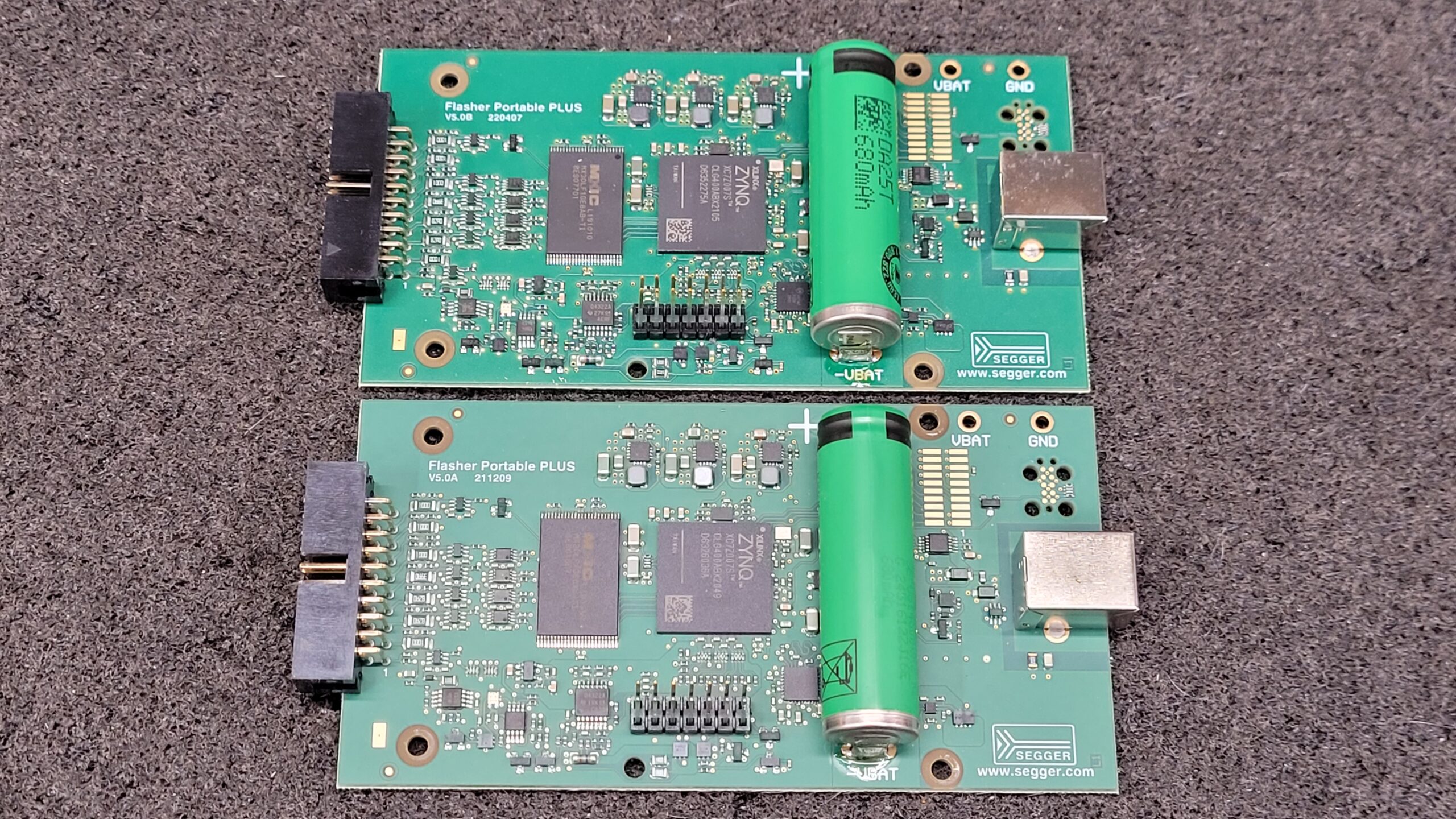

So Now I have a backup.. this reminded me i needed to update this Post. There are 2 versions of the PCB
X-Rays Segger Flasher Portable Plus V5.0A 211209

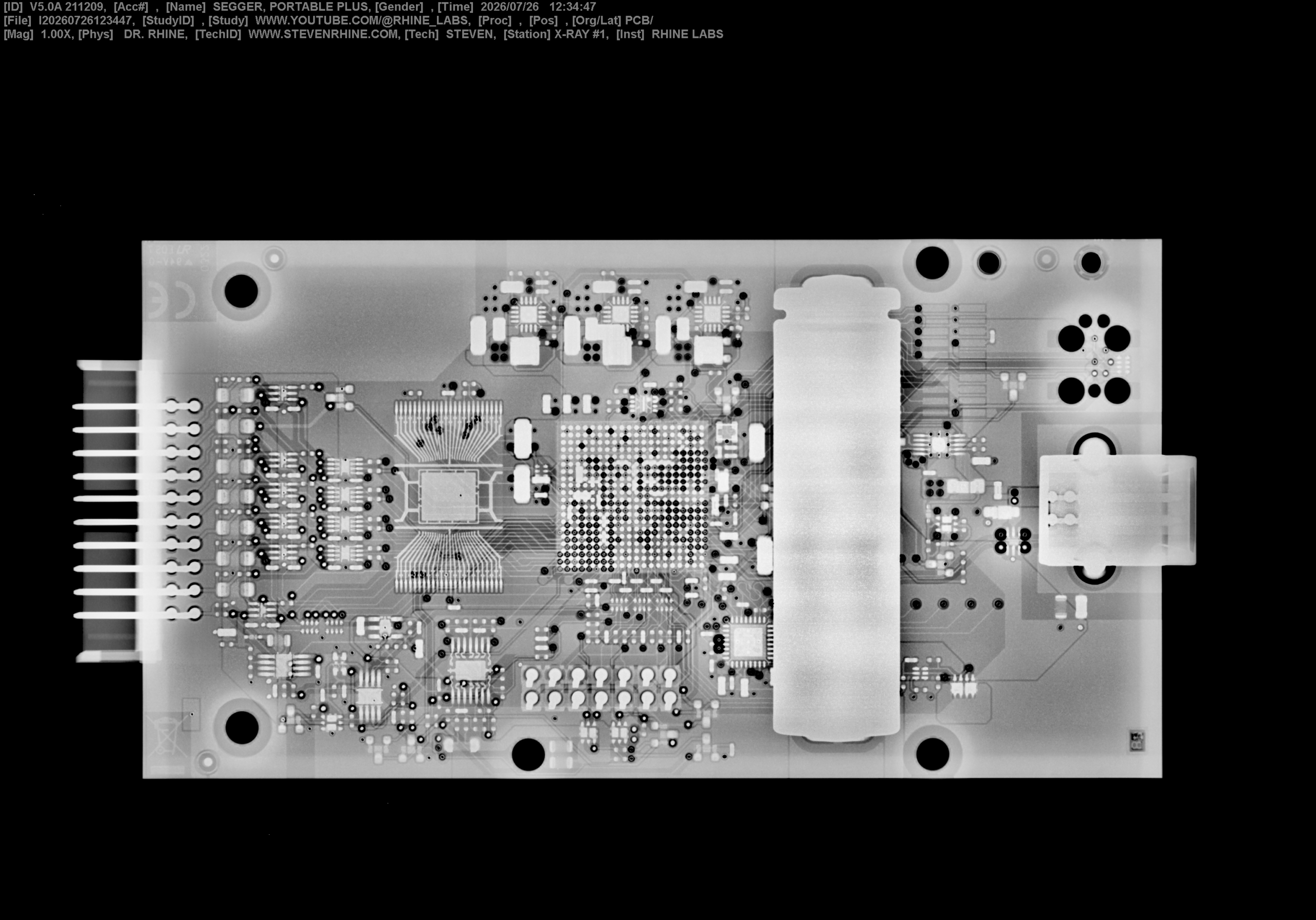

X-Rays Segger Flasher Portable Plus V5.0A 211209 X-Ray

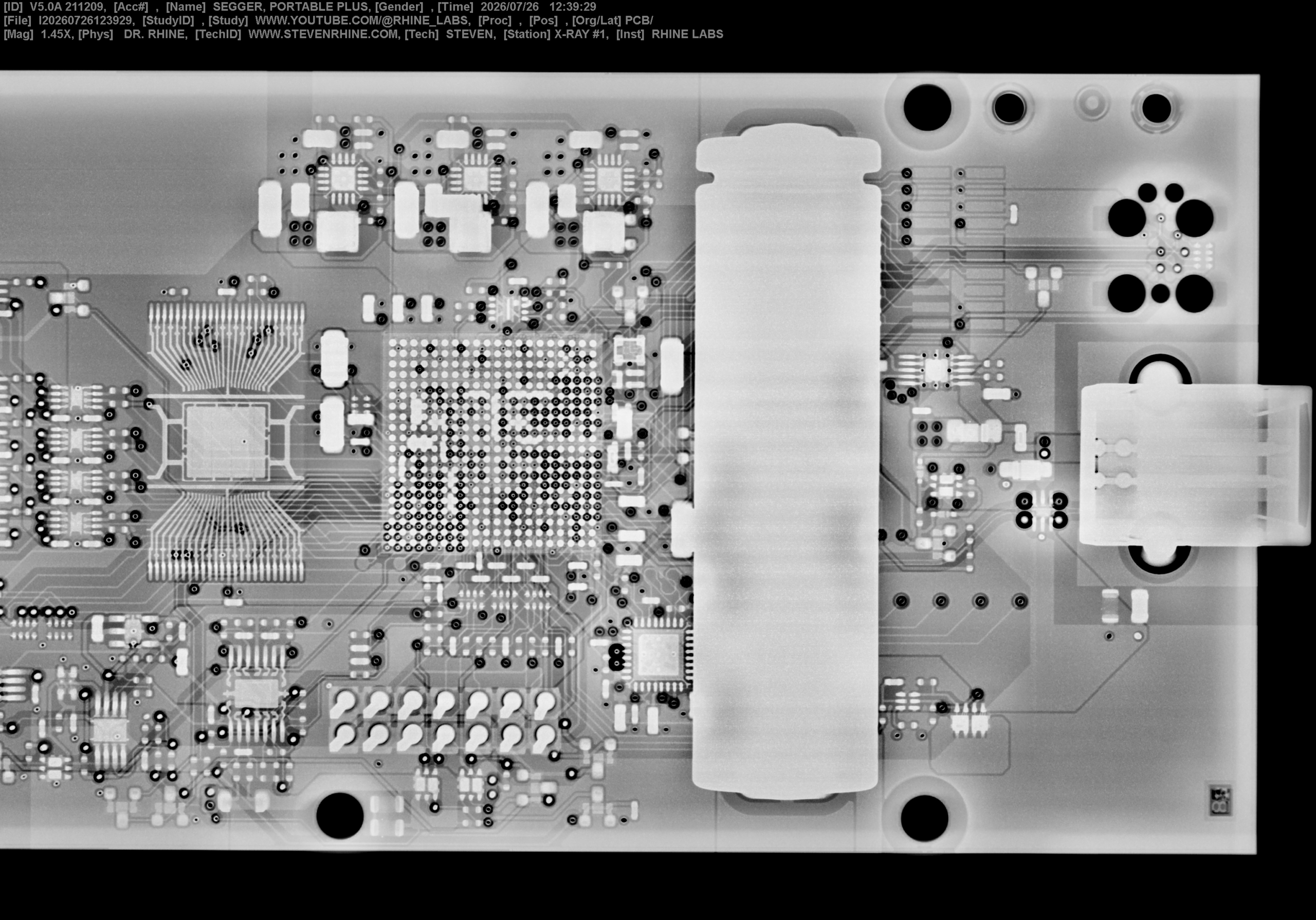

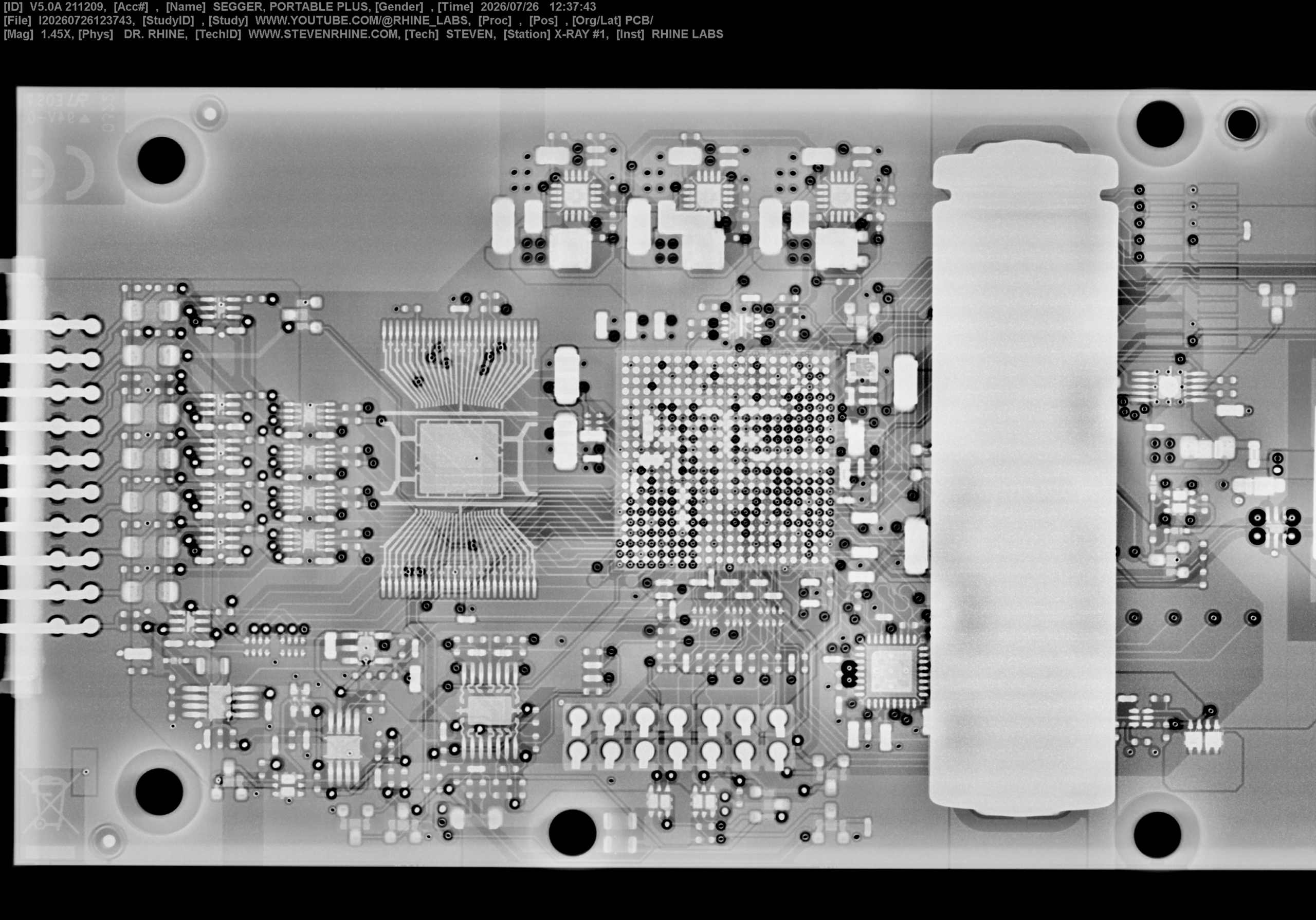

Segger Flasher Portable Plus V5.0A 211209 X-Ray 1.45A Had to take 2 images due to sensor size.

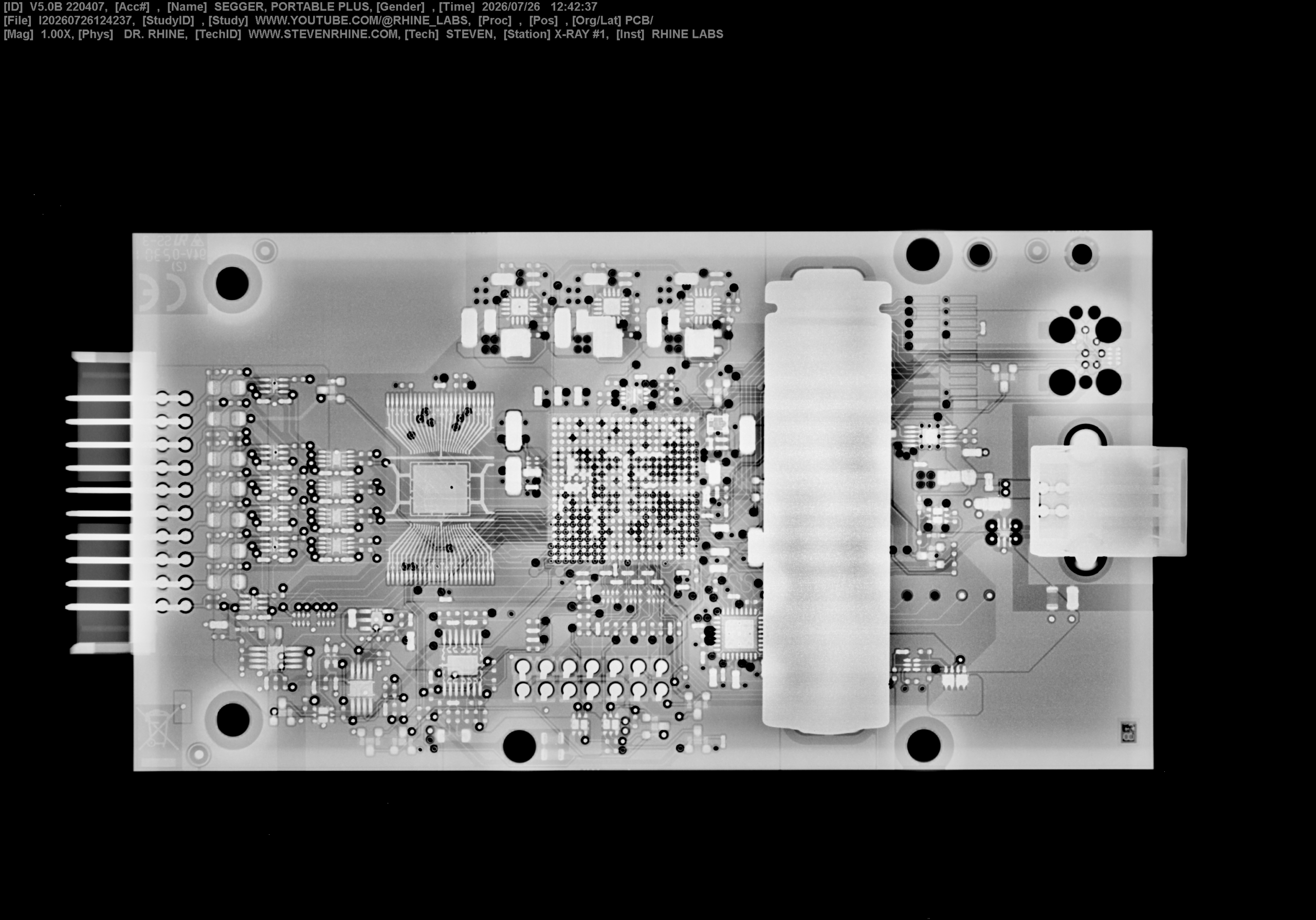

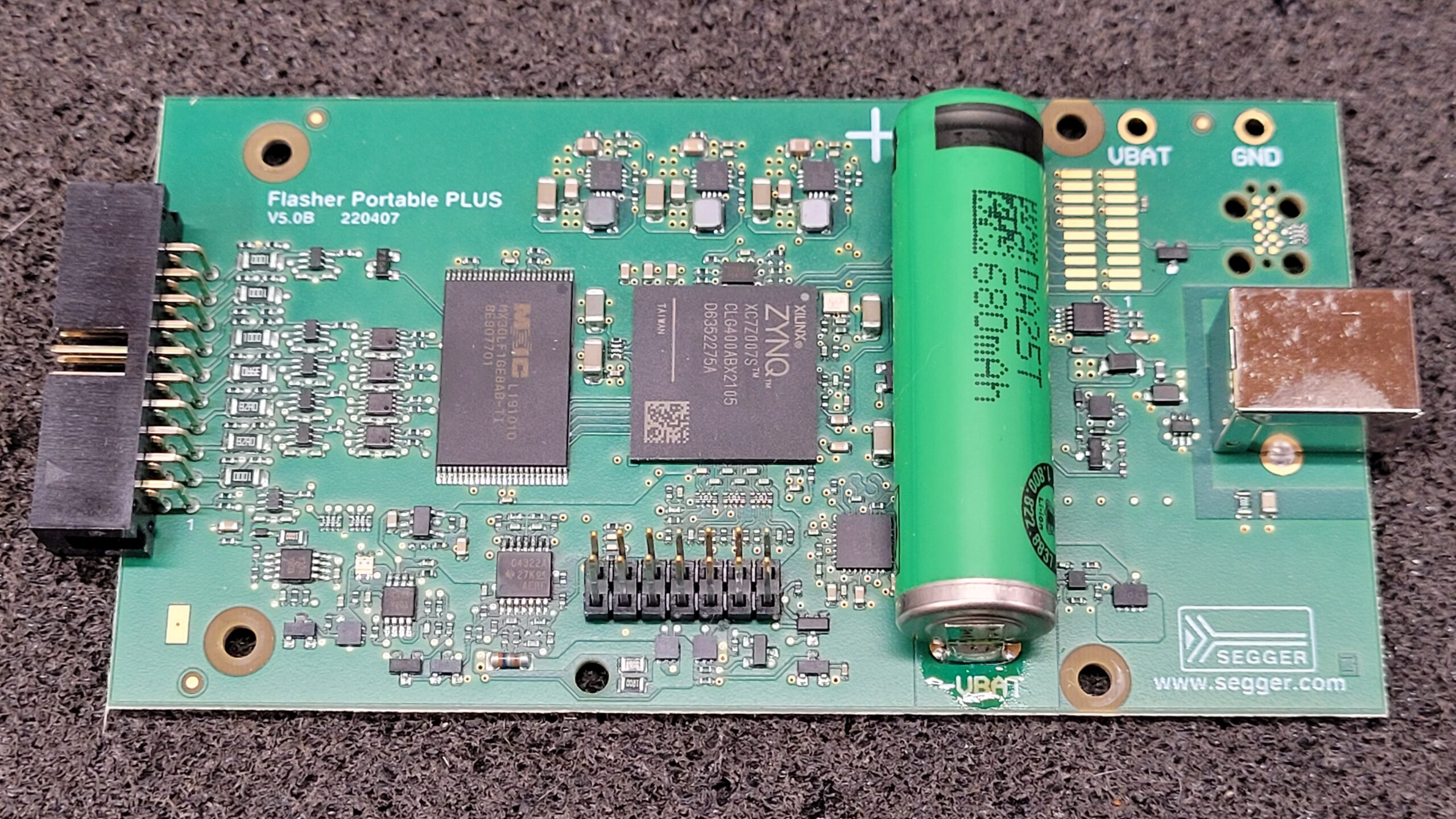

Segger Flasher Portable Plus V5.0B-2204
Segger Flasher Portable Plus V5.0B-220407 X-Ray

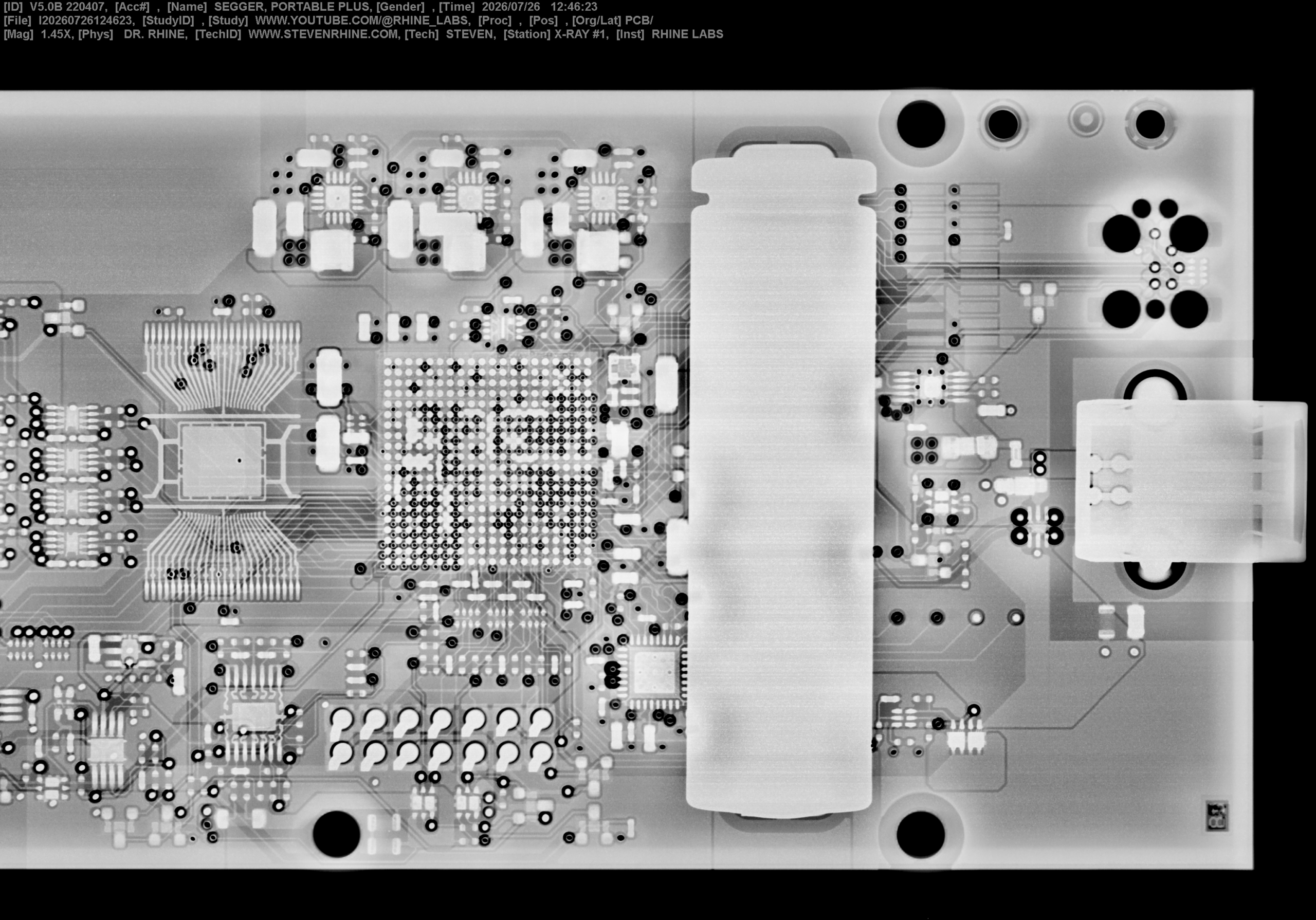

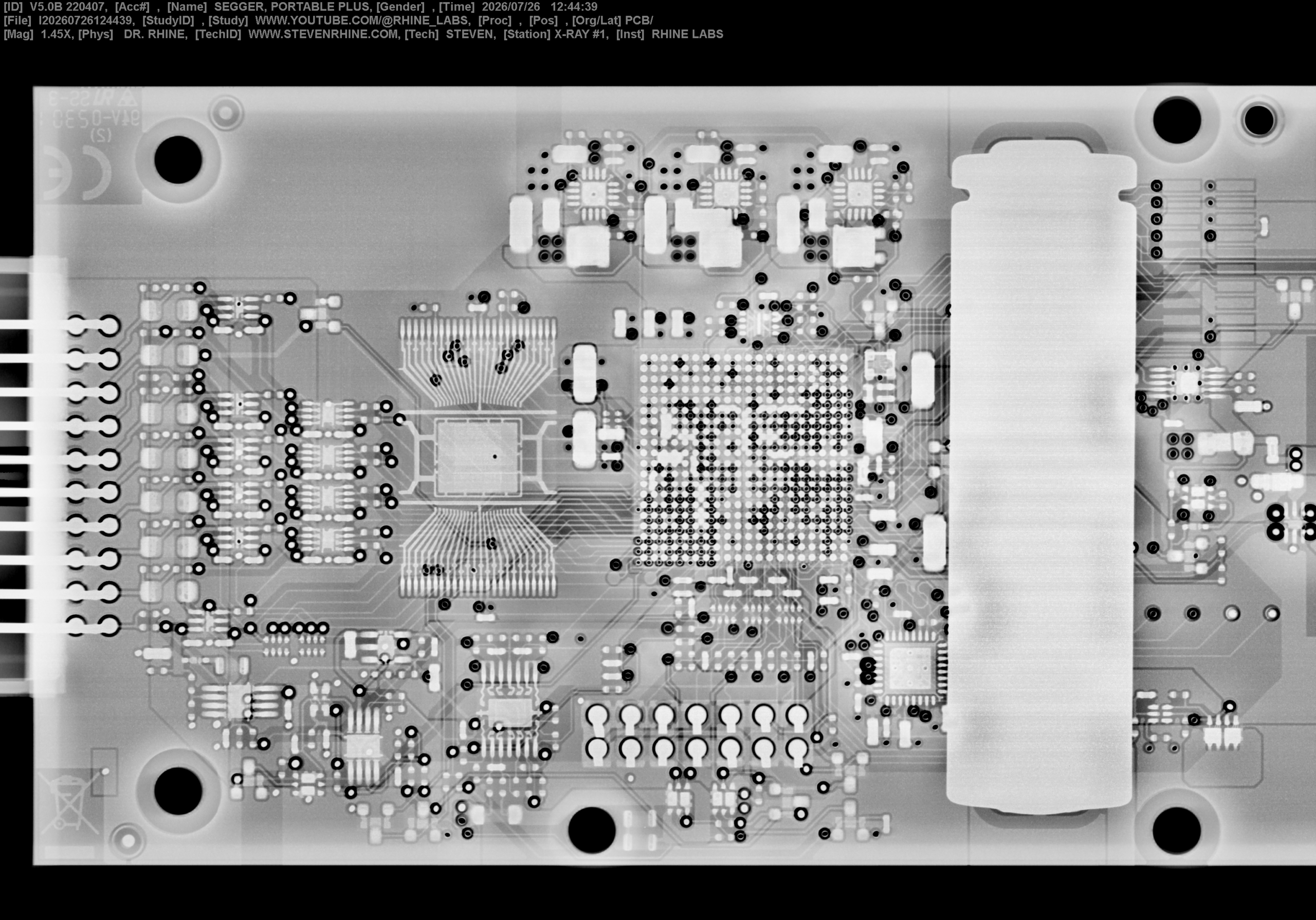

Segger Flasher Portable Plus V5.0B-220407 X-Ray 1.45A Had to take 2 images due to sensor size.
Maybe More later.
