Free Sams Photofacts Schematics Form Local Library.

Sep03
by Steven Rhine on September 3, 2023 at 4:52 PM
Posted In: Steven Rhine's Posts
Make a Small Donation: Cash App
My Amazon Wish List: Buy Me Somthing From My Wish List
Last updated on September 3rd, 2023

Free Sams Photofacts Schematics Form Local Library.

Did You know You can get Free Sams Photofacts Schematics and Service Manuals Form Your Local Public Library. Check Out My Video How it is Done Here. Be sure to Like and Subscribe if it helps you. Also comment with your library info on the youtube comments if your library has it available so other can find it easier.









Segger Flasher 5 (Legacy) Teardown

Aug17
by Steven Rhine on August 17, 2023 at 8:24 PM
Posted In: Steven Rhine's Posts
Make a Small Donation: Cash App
My Amazon Wish List: Buy Me Somthing From My Wish List
Last updated on August 31st, 2023

Segger Flasher 5 (Legacy) Teardown A Look Inside (Way Back Machine Link)

This is an older Flasher 5 Programming tool for ST9 and Renesas M16C/20, M16C/62, M16C/80, M38 and M79 series of Flash Microcontrollers in serial mode I wish it was a Rev 3 for the RC/8 Support But you get what you can get when you can get it. It got the Job done! Backing up the Hakko FM-202 Firmware. I am Not sure if it could be upgraded to Rev 3 hardware. If anyone has a rev 3 please please send me some photos.

Here is What it looks like inside the Segger Flasher 5
Segger Flasher 5 Legacy Teardown Opened Up
Removal of the Flasher M16 Board
Segger Flasher 5 Legacy Teardown Flasher M16 Removed
Close Up Of the Flasher M16 Board Top and Bottom
Segger Flasher 5 Legacy Teardown Flasher M16 Top Segger Flasher 5 Legacy Teardown Flasher M16 Bottom
Flasher 5 Main Board Top
Segger Flasher 5 Legacy Teardown Main Board
Flasher 5 Main Board Bottom
Segger Flasher 5 Legacy Teardown Main Board Bottom
Flasher 5 QFP 100pin Microcontroller Renesas M16C/62M M30620FCMFP  and The Flash Memory TSOP48 29LV400 Flash.

Communications / Power

Max3221 Serial Chip

Power L272D Amplifier, LM317 Regulator, MAX884 LDO Regulator,

Video:

Would be Nice to have a R3 but these are hard to locate. A or a Flasher PRO XL would be cool to mess with but still would not be capable of some of the devices.

Update History.

October 2006 Introduced Rev 3:
Flasher 5 rev. 3 comes with 2MByte Flash to store target data.
This allows programming of all RENESAS CPUs with more than 512KB Flash when Software 1.96a or above is used. All Flasher 5 with series number above 51584 can be upgraded by just using the new Flasher software.

December 2007:
Support for RENESAS R32C and R8C added.

March 2008:
Support for RENESAS R8C/28, R8C29, M16C/64, M16C/65, M16C/6s added.

April 2008:
Support for RENESAS M16C/28B, M3062LFGPFP, M3062LFGPGP added.

Hope this teardown helps the person that requested it..

I Requested Schematics From Segger This Was The Response, Another Repair Tool Company that Don’t Support The Right to Repair. Trade Secret? Still Spewing that Line LOL! Note this was for a device long out of production more then 10 years. What I was a standard anti repair F-U if your device breaks buy a new one no repair options and no documents available. So what if you brought a new-one at $1,300 – $1,600 What happen after the 1 year warranty? what happens if you have an accident or a slip and break the device?  No repair options not even form the factory!

Yes, the Newer Flashers price range is $1,300 to $1600 after shipping and tax and they do not support the devices the older flashers do so really would be useless for the target device it was intended for.

August 28th 2023 I received a follow up e-mail there may be some hope that Segger may actually support the right to repair. Lets hope the Segger the support engineer was actually correct. We shall see, but have my reservations. It should not be this hard to obtain documentation for a device that has been out of production for more then 10 years.

Green Mountain Grills Jim-Bowie Choice Wifi Digital Control Board Teardown & Firmware Backup and Recovery

May01
by Steven Rhine on May 1, 2019 at 11:11 AM
Posted In: Steven Rhine's Posts
Make a Small Donation: Cash App
My Amazon Wish List: Buy Me Somthing From My Wish List
Last updated on August 29th, 2023

Green Mountain Grills Jim-Bowie Choice Wifi Digital Control Board Teardown & Firmware Backup and Recovery (Updated 01-2023)

This is For the $180.00 Green Mountain Grills Wifi Digital Control Board – JB Choice 110V (Not the prime)

May 2019:

I Have to replace a corroded Antenna Connector and Repair The PSU On My GMG Jim-Bowie Wifi Controller So Why Not Take Some Teardown Photos.. Of the Inside!

This is the Original GMG Wifi Digital Control Board from my Jim-Bowie Pellet Grill. Behind The Front Cover.. This unit Packs a STM8S207CB Micro Controller (Data Sheet)
Green Mountain Grills Wifi Digital Control Board – JB Choice 110V STM8S207CB

With the PCB Separated you will see the Top Right is the ST-Link Programming Header for Use with the STM8Flash Utility. This GMG Controller also uses a Hi-Link HLK-RM04 UART Wifi Module. (Data Sheet/User Manual) Manufacture Product Info.
jim bowie wifi digital control board jb choice firmware programming header
Screen Shot Of Inside The Wifi Module Default Username is admin Password is admin
Looks Like they are using firmware V1.78 form 2013? Not sure how secure this thing is on the network!! Hi-Link has v1.95 Here.

Open WRT site says the HLK-RM04 Looks Like it can be Loaded With OpenWRT Firmware.. Yes, A bit Involved.. By may be Worth it to do a home brew Project down the road. No sure of anyone has pen tested the factory wifi firmware?

06/04/2019 I was given this link from a Person on Facebook it looks like there has been a Green Mountain Grills Security Penetration Test. It Failed and was reported to MFG Not sure if ever Resolved.


PSU Repair: The 2 Electrolytic Capacitors 470uf 25V Fail and will cause Random shutdowns and Should Be Replaced. The original caps are 1000 hour 105C caps of the lowest quality from a no name manufacture and placed near a high heat source? Recommend replacing with 4000 Hour Polymer Capacitors rated 125C they should last till the fire box burns out.

Hooked to Common ST-Link V2 (Ebay or Amazon about $5 to $10) Via SWIM (Note: You Do Not Need to Disassemble The Unit You Can Get to the Programming Header At The Back) The PCB Silk Screen is incorrect/missing on some units. XX, XX, GND, 3.3V, SWIM, 5V. Use Good Dupont Jumper Cables.
jim bowie wifi digital control board jb choice firmware programming header connected to st link for recovery

Using a common ST Link V2 and ST Visual Programmer STM8 Software A Back-Up of the Original STM8S207CB Green Mountain Grill s V6.8 Firmware is made just in case it needs to be restored at a future date or future repair.

Launch ST Visual Programmer Select Your Programmer, Swim and Device STM8S207CB

You Will want to Select Read and All Tabs and Back Up Your Data. Click On Each Tab and Save As.

In The Data Memory Tab, Note Your Grills Serial # In the back up file here the SN is 10583245 (I have Blocked Out with XXX My Wifi Sid and Password)

Default Option Bytes.

To program a Bricked unit hook up the 4 wires Ground, 3.3V 5V and SWIM Select Target Load .S19 firmware backup files linked above, load each tab, be sure to enter your serial # in the data memory if it was lost, program each tab, and verify. Generally you should only need to Load and Program the Program Tab.

Already gone to deep in to this rabbit hole. Other things to do.

May/June 2020: Re Uploaded Photos.

Update: 10/2021
I have had about 2 dozen of these controllers come in to the shop in 2020 during covid lock-downs, Despite the thick conformal coating it’s been mostly liquid/physical damage failed OTA updates.

10/20/21 I reached out to GMG About Right to Repair and will be giving a Right to Repair Score Shortly.

01/05/2023 Uploaded Firmware and Updated Images, provided more details on backup/recovery. I may revisit this and do a YouTube video on it. If I can obtain some other control boards for other models I will back them up.

08/29/2023
Testing the New Xeltek Superpro IS01 on the STM8 3 Wire SWIM Connection on the STM8S207CB I Unbrick about 10-15 controllers a year for people from failed updates this will make it much simpler then having to use a stlink v2 and its horrible software. What I do like about the ST Link it it will provide 5V so unit will power on no big deal.

Software Screen Shot and Option Bytes.

Video Soon!

Right to Repair Score: F
GMG Denied Official Firmware And Schematics Request.

Xeltek Superpro 7000 Universal Programmer Teardown

Sep13
by Steven Rhine on September 13, 2022 at 3:25 AM
Posted In: Steven Rhine's Posts
Make a Small Donation: Cash App
My Amazon Wish List: Buy Me Somthing From My Wish List
Last updated on August 29th, 2023

Xeltek Superpro 7000 Universal Programmer Teardown (Click On Images to See Full Size) and Quick Analysis.

I recently added this chip programmer to my Xeltek chip programmer farm, with the hope of increasing my throughput and possibly acquiring some gang adapters that are available for it. Unfortunately, the unit was purchased “as-is” and was only checked for power-on functionality, but it seems to be experiencing a power supply issue.

Despite this setback, I’m confident that I can address the problem and get this chip programmer up and running. With a little bit of troubleshooting, I’m hopeful that I can unlock its full potential and make it an asset to my programmer farm.

Do you like this content? If so consider making a donation via Cash App $slrhine so I can get more available time to do posts and videos like this.

09/13/2022 I will try and get my notes added soon I have spent a lot of time on this already!

If you want to access the inner workings of the Xeltek Superpro 7000, all you need to do is remove five screws and lift off the bottom cover.

However, it quickly became apparent that this device has undergone repair work around U11, a TPS61175 3-A high-voltage boost converter.

It’s difficult to say for sure what caused the issue. It could have been a post-production repair at the factory, an attempted repair by an end-user, or simply a part failure. Regardless of the cause, it’s clear that there’s more investigating to be done.

Despite the uncertainty, I’m eager to get to the bottom of this and get the Superpro 7000 up and running again. With a little bit of effort and a lot of attention to detail, I’m confident that I can solve this mystery and get this device back to working order and put to good use.
Xeltek Superpro 7000 Botom Cover Off
Clearly the pry marks on the Chip and Circuit Board by C34 the work was done by someone who did not know how to solder or was in a hurry! Without a Doubt The smell was the stinky unknown Burnt Flux. Ohh well, it is always a gamble when buying used surplus power on tested only equipment. You never know what issues might be lurking beneath the surface, just waiting to rear their ugly heads. I would bet this is not a factory repair sure don’t look like it unless it was done on the 6th day in the 11th hour of the Chinese work week. Obviously it is a Botched repair attempt. I will remove the chip clean it up properly solder it back in place and make it look good.
Superpro 7000 TPS61175 Solder Flux
As we continue with the teardown of the Xeltek Superpro 7000, we come to the display board. This particular display board has the part number WYPCB177A and the model number WYM2004D, as indicated in the data sheet. Interestingly, it appears to be the same display used in the Superpro 6100N, with a 2004D 20X4 LCD that measures approximately 76-77mm x 46-47mm and features an FFC/FPC connector. During my  investigation, I came across a compatible replacement display that I believe would work well as a replacement if ever needed.

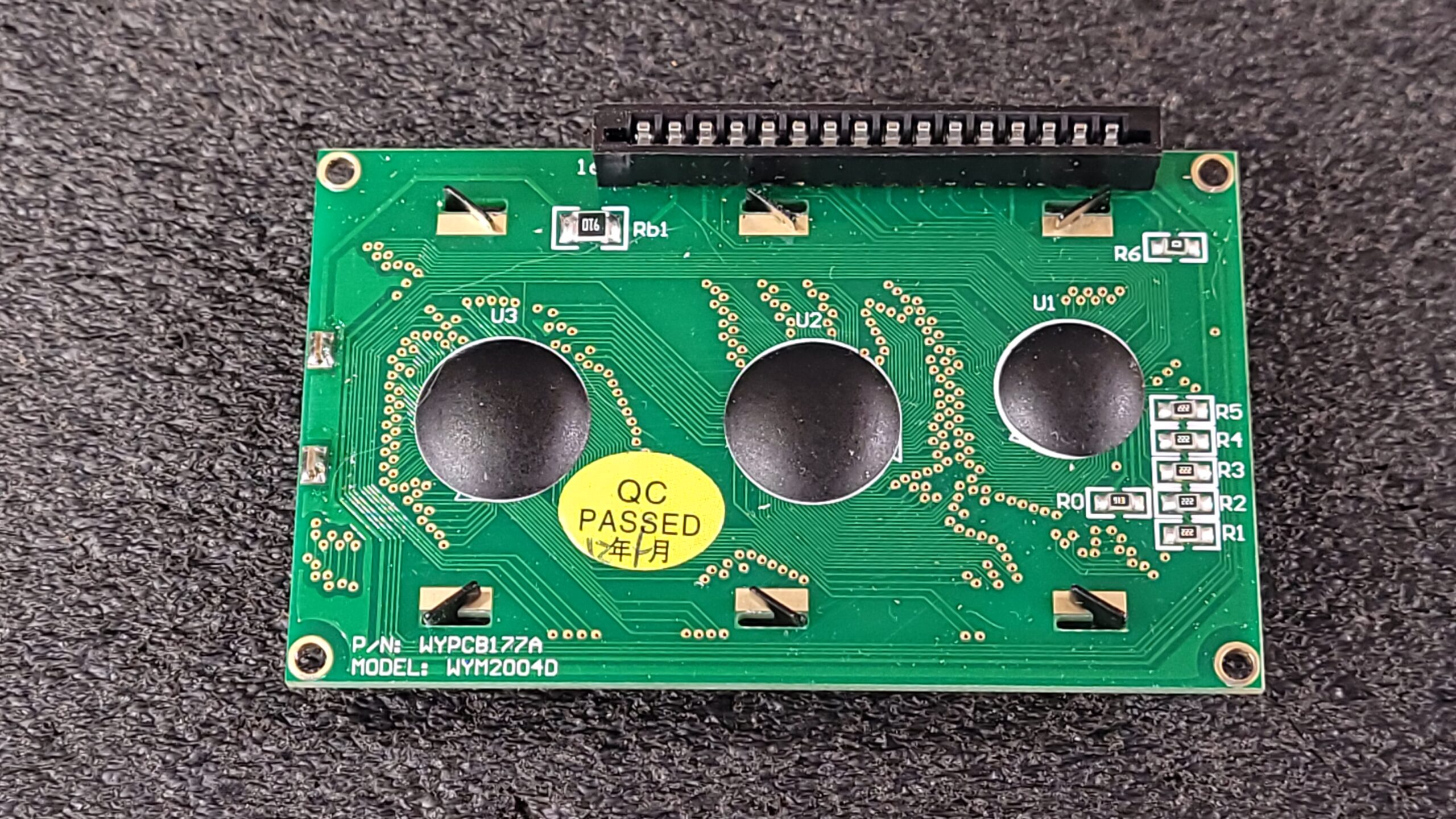

Xeltek Superpro 7000 PN:WYM2004D

The #PCBCake consists of 6 Interconnecting boards held in with 4 screws to the top cover.

Not sure what happened top the photos in this Xeltek Superpro 7000 Universal Programmer Teardown but looked good on my display when taken but look washed out on PC Screen. I am not a professional photographer! I think I need to invest in a real camera and learn to use it properly! Regardless here they are.

Power Supply Board Xeltek Superpro 7000 PN: SP7k PWR
Power Supply Board Xeltek Superpro 7000 PN: SP7k PWR Top Power Supply Board Xeltek Superpro 7000 PN: SP7k PWR Bottom

1 x LM2676  3A Step Down Regulator @ L10
4 x OPA548F High-Voltage High-Current Operational Amplifiers @ U1, U4, U5, U7
1 X TPS61175 3-A High-Voltage Boost Converter @ U11
1 X AD5308ARUZ 8 Bit Digital to Analog Converter @ U3
1 X  ADS7841E Quad Channel Single Analog to Digital Converter @ U8
1 X AMS1117-3.3 Regulator @ U9

Pinout Voltages (Soon).

The Xeltek Superpro 7000 CPU board, PN SK7K CPU Board v4.0, has a ground off chip at U17, which makes it difficult to identify. However, it does have a Jtag header at J3, so I may revisit it another day and connect it to poke around.

From the datasheet, I learned that the scratched off chip at U17 in the TQ144 Package a ACTEL Proasic3 will either be an A3P060 or A3P125. The Superpro 7000 board is controlled by an S3C6410XH-66 ARM 11 processor at U9.

This CPU board features K9F1208U0C 64M x 8 bits NAND flash memory at U14 (datasheet), as well as two 512Mb DDR SDRAM chips K4X51163PI-FGC6 at U10 and U13 (datasheet). Additionally, it has a DAVICOM DM9000AEP Ethernet controller(datasheet), with a Xeltek AE801 chip at U18.

I’m curious about the P1 header (Serial/UART?) and the P2 header (JTAG?) and J3 on the board, as well as the purpose of J9 and J10. I was told at one point that these Superpro Programmers run a form of embedded Linux. Maybe I should request the source code (just kidding!)

Update 08/29/2023 P1 Is Serial/Uart 115200 bps (8-N-1) I Hooked it up to a serial Port Pins 1 tx (Y) and 3 rx (O),


When hooked to a basic terminal this is what is displayed.  I think it is missing some data. I will work on it.

!OKT
xeltek U-Boot 1.1.6 (Sep 28 2012 – 02:25:55) for SMDK6410

CPU: S3C6410@666MHz
Fclk = 666MHz, Hclk = 133MHz, Pclk = 66MHz, Serial = CLKUART (ASYNC Mode)
Board: SMDK6410
–Boot V0.4–
K9F1208 Found
starting kernel…
Uncompressing Linux… done, booting the kernel.

I/O Board Xilinx Spartan 3 FPGA (Dataheet)
Xeltek Superpro 7000 PN: SK7K CPU Board v4.0 Xeltek Superpro 7000 PN: SK7K CPU Board v4.0 Bottom

SP7K-V1V2 Board For Xeltek Superpro 7000 a lot of 6C596PW Shift Registers & Diodes. Then you have Y2 a SOT package Zener or PNP transistor?
Xeltek Superpro 7000 SP7K-V1V2 Board Top Xeltek Superpro 7000 SP7K-V1V2 Board Bottom
Board Part  SK7K -V3 For Xeltek Superpro 7000 the NH245’s I believe is a SN74LVC8T245 8-Bit Dual-Supply Bus Transceiver.
Xeltek Superpro 7000 SP7K-V3 Board Top Xeltek Superpro 7000 SP7K-V3 Board Bottom
Ground Board Xeltek Superpro 7000 SP7k-GND HCT595 Chips Data Sheet Transistors have marking BKD Assume they are KTC8050S-D Bipolar Transistors
Xeltek Superpro 7000 SP7k-GND V2.2 Top Xeltek Superpro 7000 SP7k-GND V2.2 Bottom
SP7K Stack a little bit clearer on the bottom side! The board to board connector on top is an Oupiin 2349-100G00DN1T

After examining the power supply board more closely, it became clear that the soldering on U11 was very poor, with pry marks on the chip and a noticeable gouge near C34 on the circuit board. As a result, I decided to remove U11 to get a better look. It was clear that there had been a botched repair attempt at some point, as the pads had been lifted and the chip had not been properly soldered down.

Dealing with this kind of issue is always frustrating, and the thick black solder mask on this particular board made it even more difficult to work with. However, with some patience and careful attention to detail, I was able to address the problem and get the board back in working order. In the end, it’s always satisfying to overcome these challenges and bring a piece of equipment back to life.

Before reassembling the programmer, I took the time to clean up the flux a bit. However, it’s clear that a more thorough cleaning is necessary. In fact, I think it would be best to give the board a quick dip in the ultrasonic cleaner for a few seconds to ensure that it’s completely free of any residual contaminants.

Hope this Xeltek Superpro 7000 Teardown helps someone. This is a living blog and I will update as time allows.

I do not have a EX0001 Adapter and Seems that Xeltek has Discontinued them. So this will have to stay on the back burner till another day.

Update, 07/2023 The Xeltek Superpro 7000 EX Adapter’s Uses a Uncommon Oupiin 2348-100G00DP1T

On the modern Xeltek GX Adapter it Uses a Common Avery Roust Hirose FX2-100S-1.27SV(71)

According to information provided by Xeltek China, it has been stated with that the EX and GX adapters employ compatible security chips, thus indicating a high likelihood of compatibility between the two. It is worth considering the potential creation of an adapter that bridges the uncommon Oupiin connector with the Hirose connector. However, it is important to note that a definitive decision has not been reached on whether this adapter will be produced, thereby emphasizing the need for further evaluation and deliberation.

I have 3d Printed a Socket Cover for the Xeltek Superpro EX Adapter.

Here is the 3D Printed Cover. I will release the STL File On My Printable Profile As I Did with the Superpro 5000-6100N’s Check Back Here or my Printable’s Profile Regularly.

Xeltek Suprpro 7000
Right to Repair Score: D (They Will Repair But Costs More then Item Is Worth)

Check Out My Xeltek Superpro 7500 Universal Programmer Post.



Baofeng UV-5R for $2.99 + Tax

May31
by Steven Rhine on May 31, 2023 at 3:37 PM
Posted In: Steven Rhine's Posts
Make a Small Donation: Cash App
My Amazon Wish List: Buy Me Somthing From My Wish List
Last updated on August 17th, 2023

The pesky Social Media Ad’s for the Baofeng UV-5R for $2.99 + Tax Total $3.24

I was searching for a battery for mine as it went flat after many many years of abuse.

Social media tracking algorithms actively targeted me with Baofeng ads. Every other post i scrolled past seemed to promote the offer of getting a Baofeng UV-5R for just $2.99.

Initially, I suspected it was clickbait or a scam. However, I took action, Using a old android burner phone that i use to install these shady apps on without risking to much of my my personal data. I downloaded the app, the total cost came to $3.24 after tax. Then, I patiently waited for the delivery, which surprisingly only took about 8 days to arrive from China to my doorstep.

Baofeng UV-5R 2.99 Temu
Tracking Log

Unboxing Video (Looks to have Been Opened Enroute)

Old Radio Was Purchased December 2012


Wight Of The Old #BaoFeng and New Baofeng Radios. 2 Grams Difference.

Aug 9th 2023 TEMU is at it Again.. Blasting this everywhere!

This time I Shared The Advertisement. (YMMV)

This time was a $15.00 Min Order so I searched some items i had in the jungle store shopping list that i was going to buy sooner or later.

Got me for 17.03!!! Lets See if it arrives.
Aug 9th 2023 A 3rd One Same Shyared Advert But a Different Promo Was Generated? Buy 5 Items and 2 are free. The Baofeng and Amp Was Free Order Total was $16.84 In Other Items.

Both Order Have Shipped Should Arrive The Same Day.

Order Arrived 08-17-2023
Unboxing Video

Here they are one has a Green Label one has a White Label??

Here are all 4 of them top left is From 2012

More Details

  • Page 2 of 35
  • «
  • 1
  • 2
  • 3
  • 4
  • 5
  • »
  • Last »

Blog Supporters

  • Mesa Electronics
  • Support This Site
  • Xeltek

Confused?

  • Another Steve Rhine
  • The Other Steven Rhine

Cool Links!

  • Fight To Repair
  • ProtoQ AM1 Additive CNC
  • Prusa Printables
  • Right To Repair

Family Members Blogs

  • Scott Rhine (My Son)

Forums I Visit

  • CalGuns
  • CNC Zone
  • EEvblog
  • Linux CNC
  • The AK Files
  • The AK Forum
  • The Garage Journal
  • Weaponsguild

Must Have Items

  • My AK Build Tools and Parts

Places To Shop At

  • Air 802 Cables
  • AK-Builder
  • Cross Excavating
  • Hakko Soldering
  • Mesa Electronics
  • Miller Welders
  • Mix Aircraft Solutions
  • Tormach
  • Xeltek Universal Programers

Right To Repair

  • Fight To Repair
  • Repair Dot Org
  • Secure Repairs

Social Media

  • 12X Lathe Facebook Group
  • Follow Me On Twitter
  • Linked-In
  • My FaceBook Alternate
  • My Facebook Primary
  • Xeltek Superpro Universal Programmer Users

Steven's Links

  • Electronics Data Sheets
  • Garage Journal Classifieds
  • International Ferry Flights Inc
  • My 3D Printable Files
  • My AK Parts Sales
  • My Ebay Feedback
  • My Gun Broker Items
  • My Offer Up Listings
  • Service Manual's

Youtube Videos/Links

  • EEVblog What Is Jtag
  • Fixed Until Broken
  • Rhine_Labs Youtube Channel
  • Terrence Popp
